NSN 5120-01-538-2910 SGA017, SG-A-017, 01-538-2910
Product Details | SPANNER WRENCH
5120-01-538-2910 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: SGA017, SG-A-017, 5120-01-538-2910, 01-538-2910, 5120015382910, 015382910
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 16 MAR 2006 | 01-538-2910 | 03476 ( WRENCH, SPANNER ) |

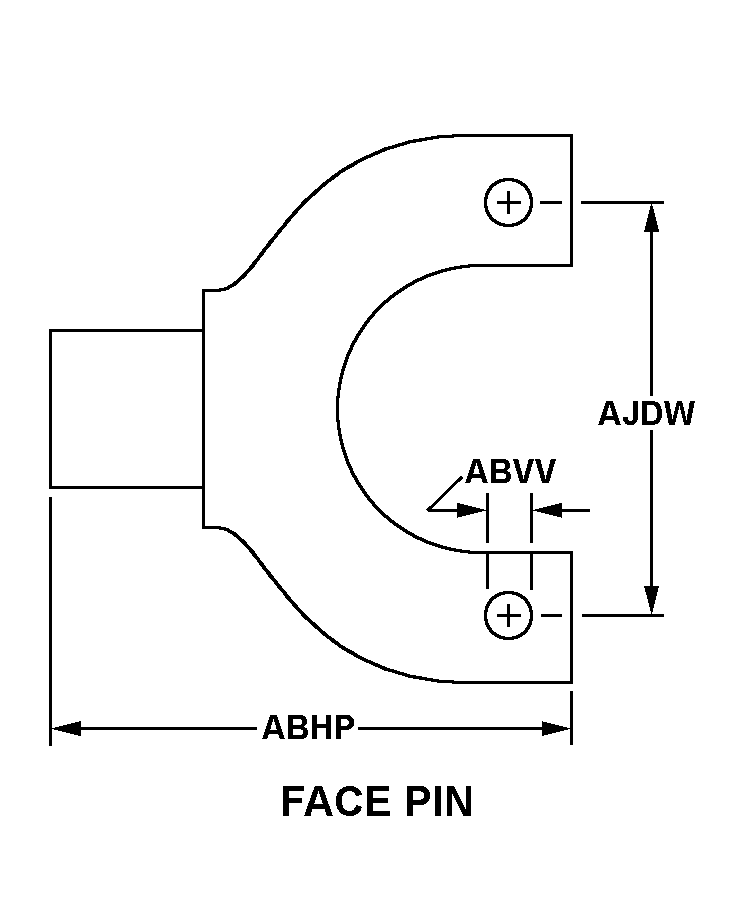

Drawings & Photos | NSN 5120-01-538-2910
Cross Reference | NSN 5120-01-538-2910
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SG-A-017 | 34228 | L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-538-2910
Technical Data | NSN 5120-01-538-2910
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-B209 ASSN STD ALL MATERIAL RESPONSES OVERALL |
| STYLE DESIGNATOR | 737 FACE PIN |
| OVERALL LENGTH | 12.500 INCHES MINIMUM AND 12.510 INCHES MAXIMUM |
| PIN DIAMETER | 0.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN PINS | 10.745 INCHES MINIMUM AND 10.755 INCHES MAXIMUM |
| DRIVE END SHAPE | OVAL SINGLE END EXTERNAL |
| SPECIAL MARKINGS | ELECTRO-CHEMICAL ETCH WITH PART NO. SG-A-017 APPROX 0.13 INCHES HIGH |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SPANNER WRENCH, D AND C TO TUBE |
Restrictions/Controls & Freight Information | NSN 5120-01-538-2910
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
