Product Details | SPANNER WRENCH
5120-01-550-3247 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Part Alternates: 36732, 5120-01-550-3247, 01-550-3247, 5120015503247, 015503247
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 16 APR 2007 | 01-550-3247 | 03476 ( WRENCH, SPANNER ) |

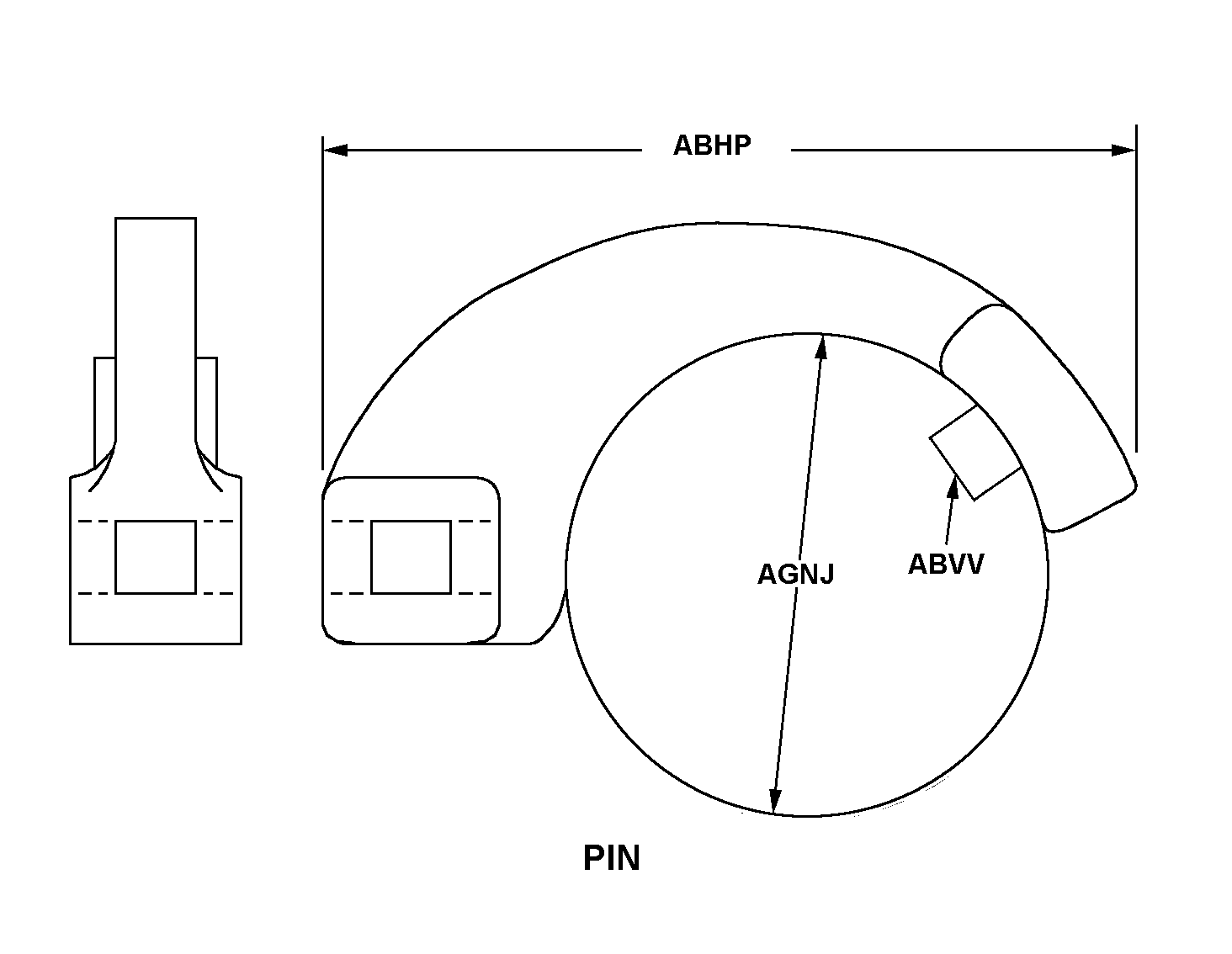

Drawings & Photos | NSN 5120-01-550-3247
Cross Reference | NSN 5120-01-550-3247
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 36732 | 07070 | NAVY, UNITED STATES DEPARTMENT OF THE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5120-01-550-3247
5120-01-550-3334, 5120-01-550-3335, 5120-01-550-3560, 5120-01-550-5130, 5120-01-550-5153
Technical Data | NSN 5120-01-550-3247
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| STYLE DESIGNATOR | 637 PIN |
| OVERALL LENGTH | 3.141 INCHES NOMINAL |
| PIN DIAMETER | 0.156 INCHES NOMINAL |
| OPENING DIAMETER | 1.726 INCHES NOMINAL |
| SPECIAL FEATURES | 17-4PH900;CONSIST OF 2 DOWEL PINS AND SPANNER;DRAWING NAME HOOK SPANNER ASSY |
| III END ITEM IDENTIFICATION | SONAR, AN/AQS-24A SS |
Restrictions/Controls & Freight Information | NSN 5120-01-550-3247
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-01-550-3247
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
