NSN 5305-00-045-1684 MS510219, MS51021-9, 00-045-1684
Product Details | SETSCREW
5305-00-045-1684 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: MS510219, MS51021-9, 5305-00-045-1684, 00-045-1684, 5305000451684, 000451684
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 MAY 1967 | 00-045-1684 | 06672 ( SETSCREW ) |

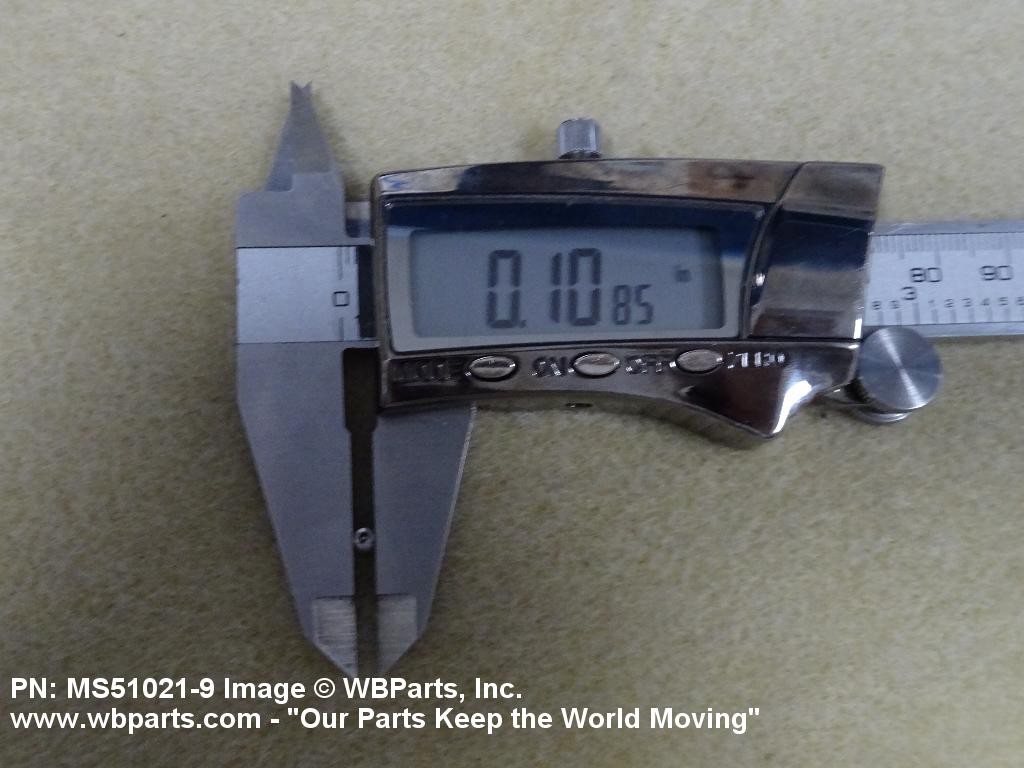

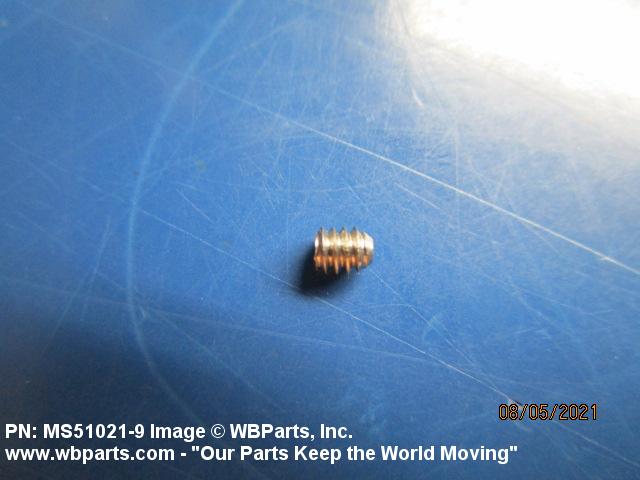

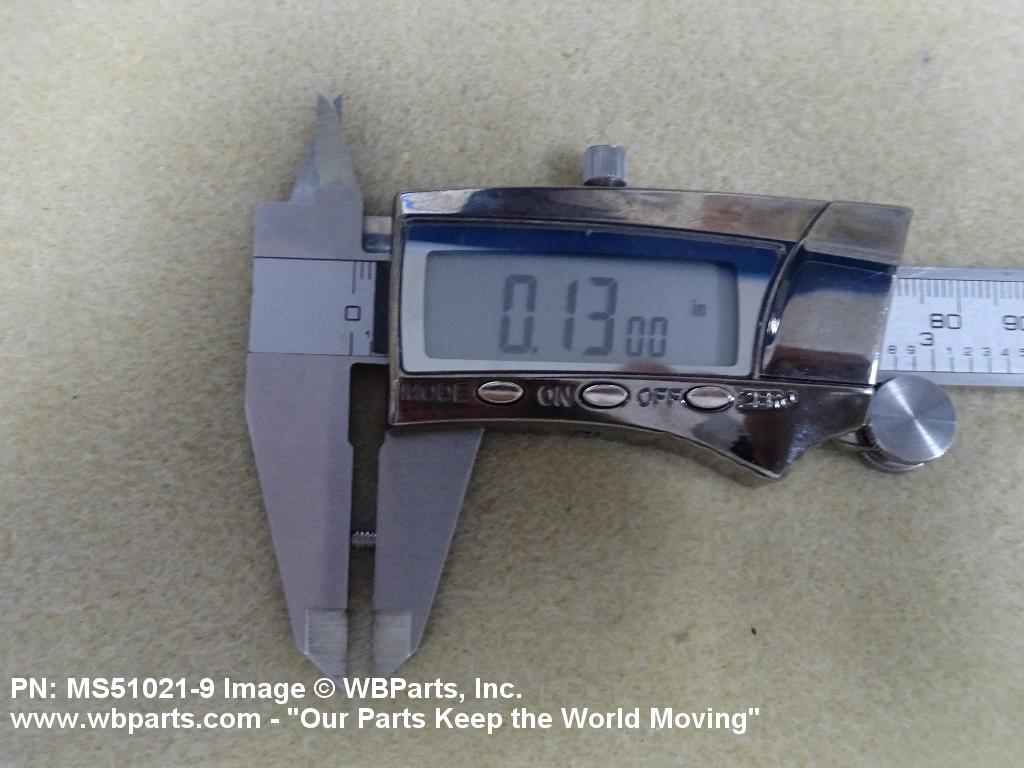

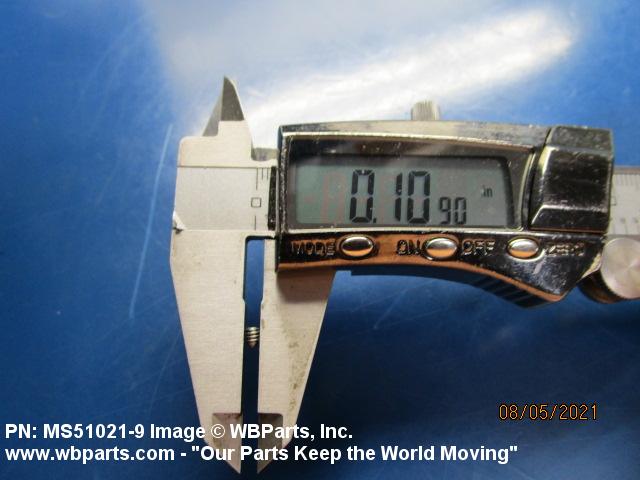

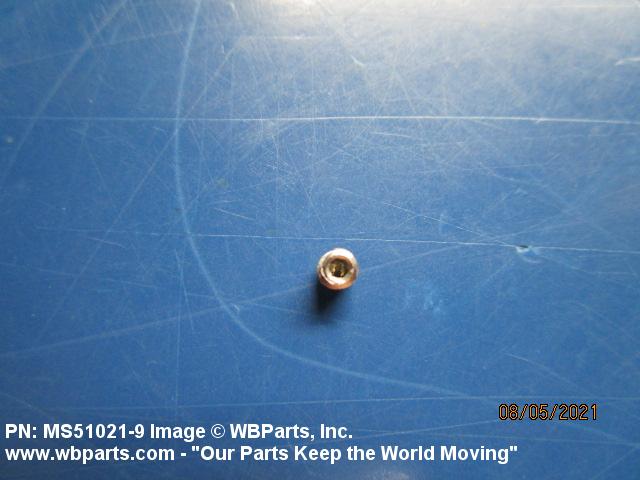

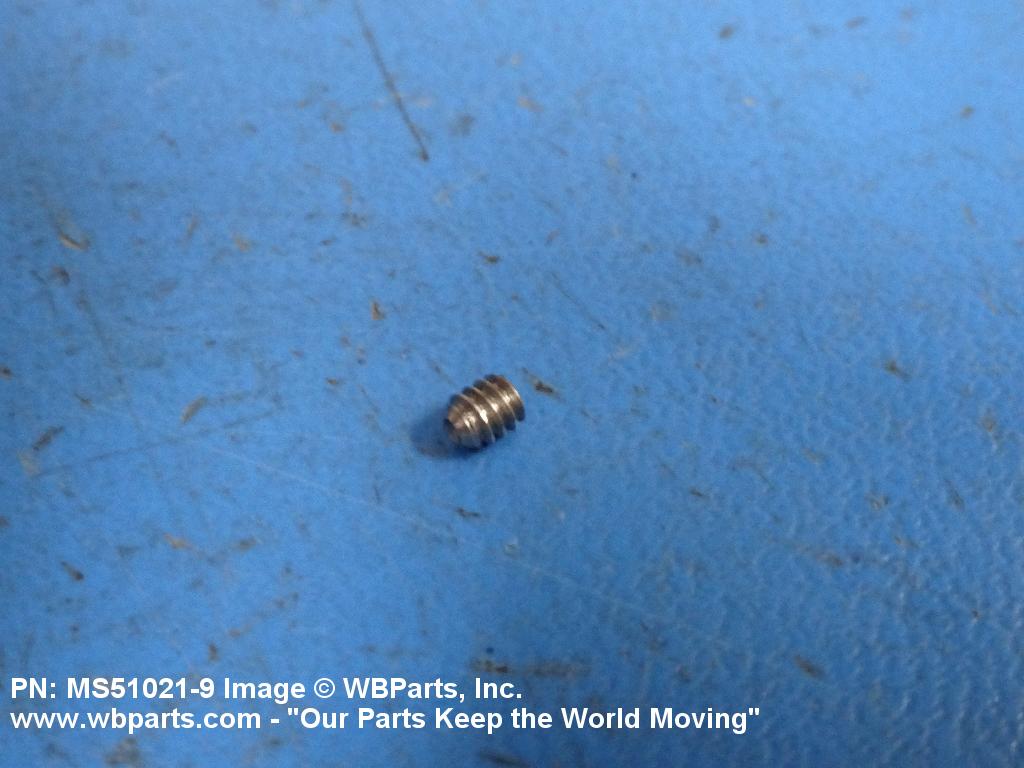

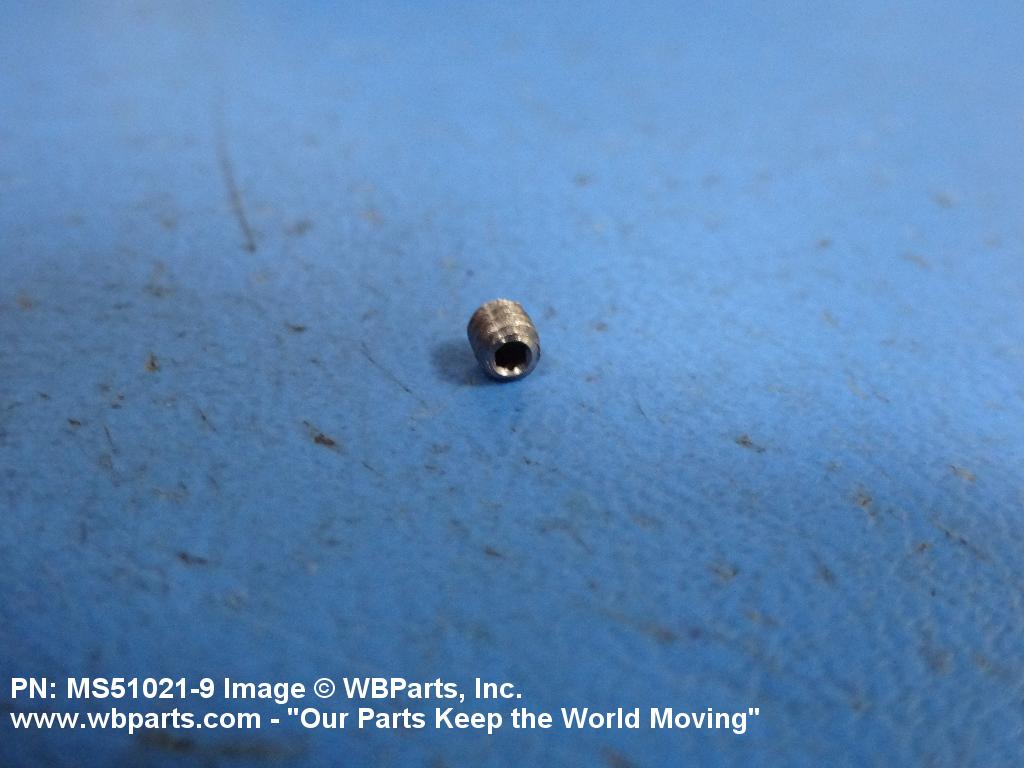

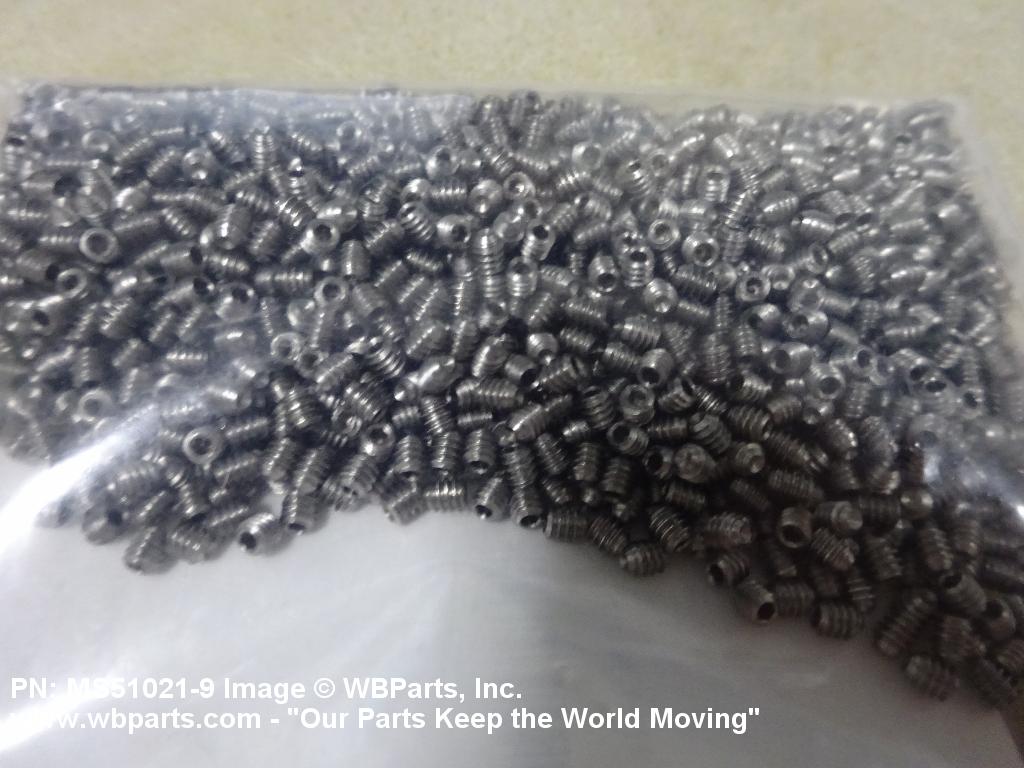

Drawings & Photos | NSN 5305-00-045-1684
Demand History | NSN 5305-00-045-1684
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS510219 | 2025-12-342 | 2500 | Korea |
| MS510219 | 2025-08-225 | 1000 | Korea |
| MS510219 | 2025-05-140 | 375 | Korea |
| MS510219 | 2025-04-119 | 5000 | Korea |
| MS510219 | 2025-04-107 | 5000 | Korea |
| MS510219 | 2024-04-107 | 800 | Korea |
| MS510219 | 2024-04-107 | 660 | Korea |
| MS510219 | 2023-08-237 | 500 | Korea |
| MS510219 | 2023-03-79 | 220 | Korea |
| MS510219 | 2023-03-79 | 1600 | Korea |
| MS510219 | 2022-01-04 | 105 | United States |
| MS510219 | 2021-12-348 | 1400 | Korea |
| MS510219 | 2021-07-203 | 5600 | United States |
| MS51021-9 | 2020-09-268 | 804 | South Korea |
| MS51021-9 | 2020-09-268 | 804 | South Korea |
| MS51021-9 | 2020-09-268 | 312 | South Korea |
| MS510219 | 2020-09-258 | 1000 | South Korea |
| MS51021-9 | 2020-06-174 | 40 | Hong Kong |
| MS510219 | 2018-07-211 | 50 | Malaysia |
| MS510219 | 2018-07-211 | 50 | Malaysia |
| MS51021-9 | 2018-05-150 | 3290 | South Korea |
| MS51021-9 | 2018-05-149 | 3290 | South Korea |
| MS510219 | 2014-06-168 | 20 | Japan |
| MS51021-9 | 2014-02-59 | 20 | TR |
| MS510219 | 2014-02-43 | 1 | United States |
| MS510219 | 2010-02-43 | 100 | US |
| MS510219 | 2007-12-345 | 500 | United States |
Cross Reference | NSN 5305-00-045-1684
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51021-9 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-045-1684
Related Products | NSN 5305-00-045-1684
Technical Data | NSN 5305-00-045-1684
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.125 INCHES MINIMUM |

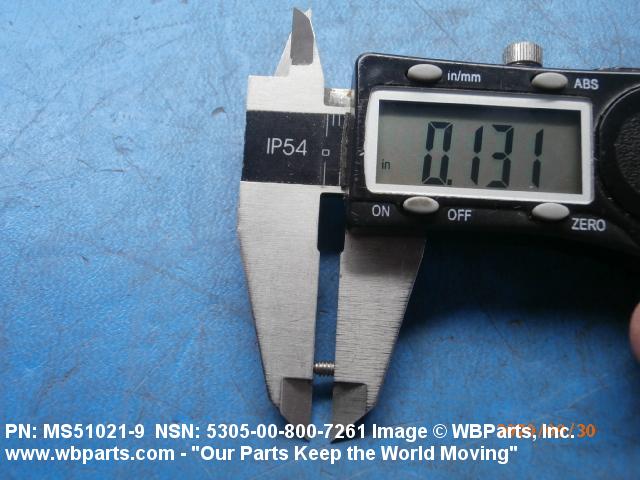

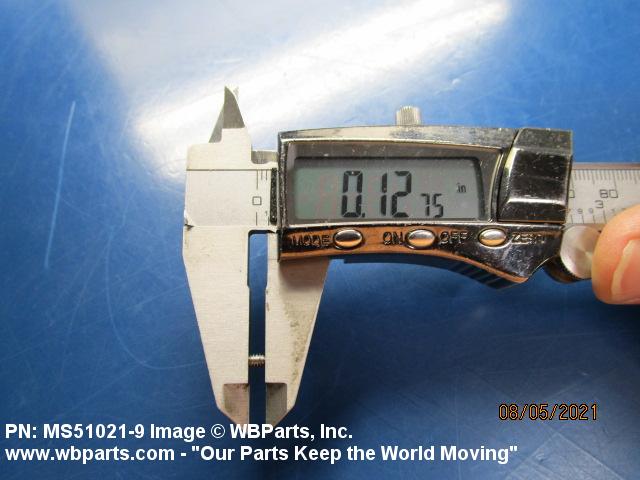

| FASTENER LENGTH | 0.125 INCHES NOMINAL |
| MATERIAL | STEEL COMP 304 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 25.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
| HEAD STYLE | C101 HEADLESS |
| INTERNAL DRIVE STYLE | D5 HEXAGON |

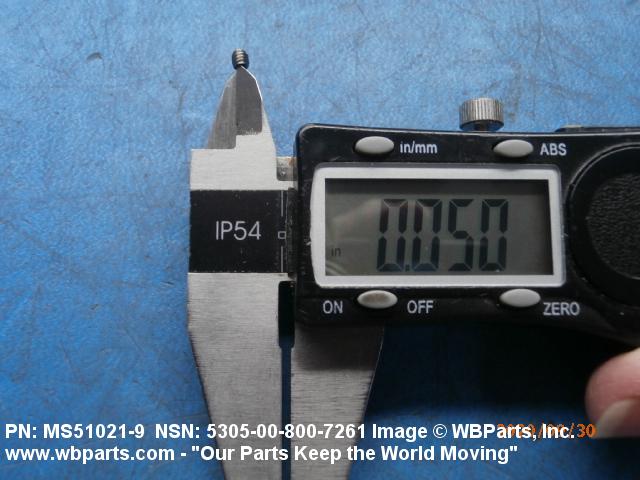

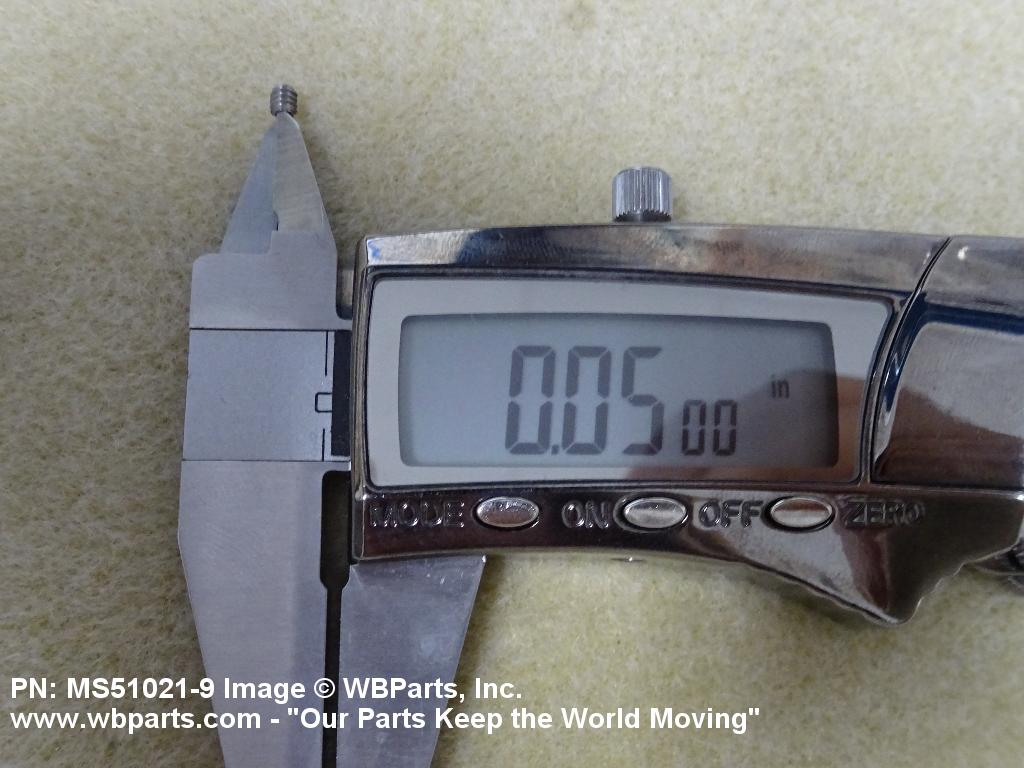

| WIDTH ACROSS FLATS | 0.050 INCHES NOMINAL |
| POINT STYLE | F20 CUP |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51021-9 |
Restrictions/Controls & Freight Information | NSN 5305-00-045-1684
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XN | National Security Agency ATTN: L111 Fort George G. Meade, MD 20755-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-045-1684
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | I | Industrial MaterielDefense Industrial Supply Center (DISC) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Physical Category Code | 1 | Bin |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
