NSN 5305-00-054-6673 MS200730305, MS20073-03-05, MS3223332

Product Details | MACHINE SCREW

5305-00-054-6673 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS200730305, MS20073-03-05, MS3223332, MS32233-32, MS3521645, MS35216-45, MS3523332, MS35233-32, MS3523348, MS35233-48, MS51957, MS5195748, MS51957-48, MMS5195748, MMS51957-48, AN515C814, AN515C8-14, CAV70814P, CAV70-8-14P, SS0832AA12, WC1052048, WC1052-048, FFS92, FF-S-92, G30243358, G302433-58, GA3135048, GA3135-048, 86013-0814, 91400A201 , 9150140048, 915014-0048, 9150140050, 915014-0050 , 935.63.11.464 , 9356311464, 09-13-203-26, 091948, 0919-48, 1120782048, 112-0782-048, 128C604DE048, 179706-000, 2012908, 23069, 23069ADX, 3430192000, 343-0192-000, 4177214-17, 5000 085609, 5000085609, 5305-00-054-6673, 00-054-6673, 5305000546675, 5305000546673, 860130814, 091320326, 417721417, 179706000, 000546673

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-054-6673	06657 ( SCREW, MACHINE )

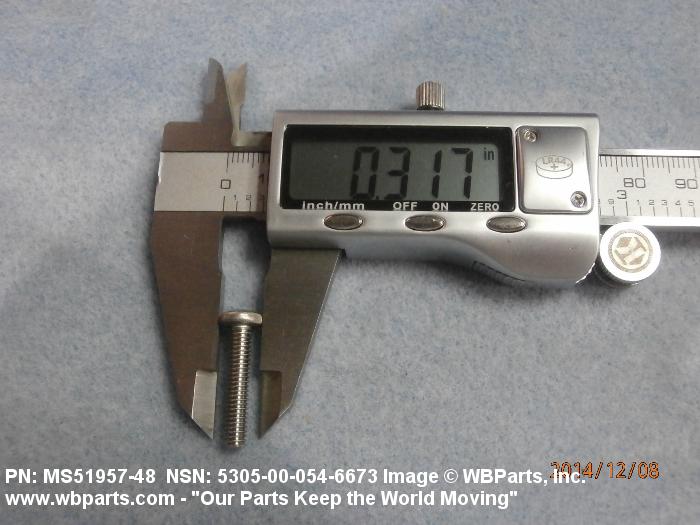

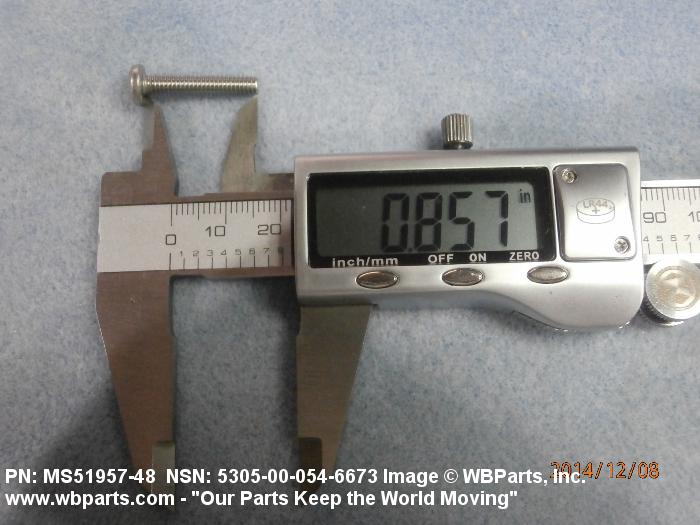

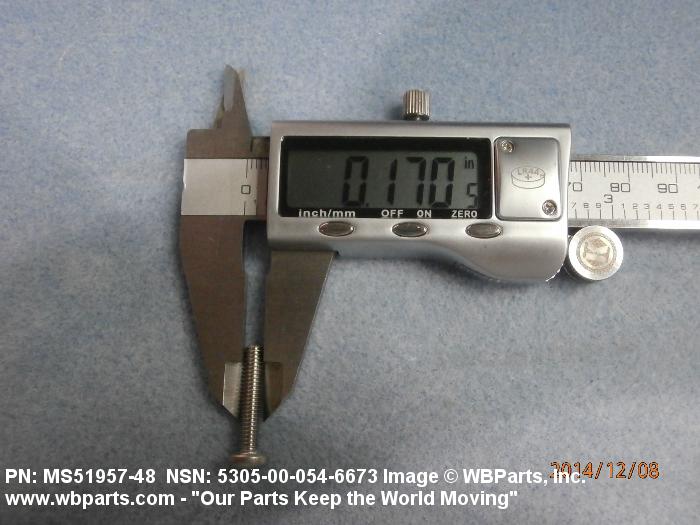

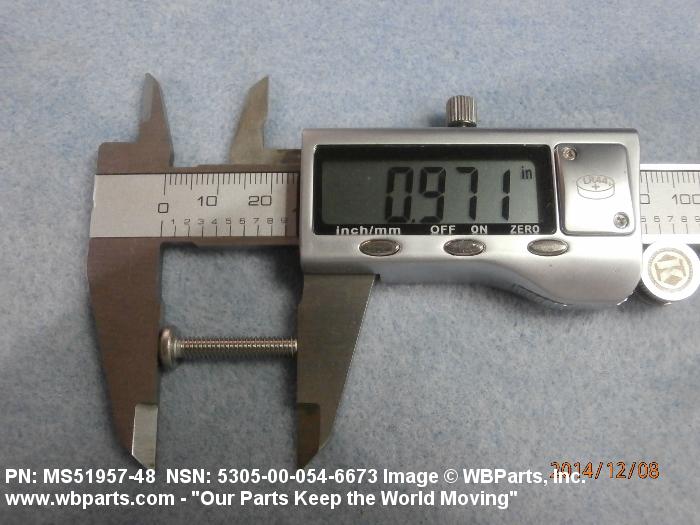

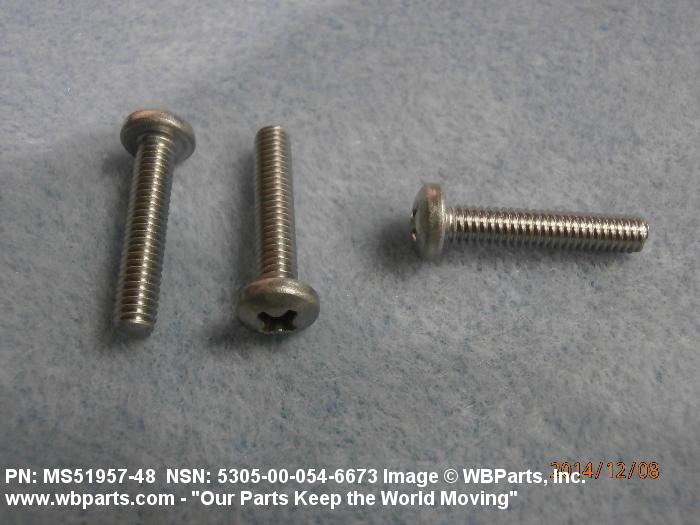

Drawings & Photos | NSN 5305-00-054-6673

Part Number	Request Date	QTY	Origin
MS5195748	2025-05-140	112	US
5305-00-054-6673	2025-03-61	130	DIBBS
MS5195748	2024-08-220	101	Japan
5305-00-054-6673	2023-11-319	84	us
FFS92	2023-08-236	14	US
MS5195748	2022-02-40	1700	US
5305-00-054-6673	2021-06-168	5	US
MS5195748	2020-05-141	100	United States
5305-00-054-6673	2017-04-102	12	United States
2012908	2015-07-182	22	UK
MS5195748	2014-10-296	210	Israel
MS51957-48	2014-09-271	100	United States
MS200730305	2014-08-224	20	United States
MS51957-48	2014-07-199	100	United States
FF-S-92	2014-02-59	75	United States
MS5195748	2013-08-226	200	United States
MS200730305	2012-11-331	280	US
MS5195748	2012-08-233	200	US
5305-00-054-6673	2011-11-327	525	DIBBS
MS200730305	2011-08-242	8	United States
MS51957-48	2011-04-95	64	United States
MS5195748	2011-03-70	60	United States
FFS92	2011-02-49	5	US
FFS92	2011-02-49	50	US
MS5195748	2011-01-26	150	TW
5305-00-054-6673	2010-11-333	307	DIBBS
FFS92	2010-11-323	165	US
5305-00-054-6673	2010-04-111	6	US
FFS92	2009-12-338	100	US
FFS92	2009-10-292	50	United States
5305-00-054-6673	2009-07-208	1800	United States
5305-00-054-6673	2009-05-133	387	DIBBS
5305-00-054-6673	2008-09-274	150	US
5305-00-054-6673	2008-03-87	100	us
FFS92	2008-03-80	50	United States

Cross Reference | NSN 5305-00-054-6673

Part Number	Cage Code	Manufacturer
09-13-203-26	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
0919-48	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
112-0782-048	94736	HOWARD INDUSTRIES INC
128C604DE048	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
179706-000	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2012908	001JK	EMBRAER S/A
2012908	FB459	EMBRAER AVIATION INTERNATIONAL
2012908	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
23069	73734	FEDERAL SCREW PRODUCTS INC.
23069ADX	1VN02	AIRDALE EXPRESS LLC
343-0192-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
343-0192-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
4177214-17	05869	RAYTHEON COMPANY DBA RAYTHEON
4177214-17	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5000 085609	04801	POWER PARAGON INC DBA POWER SYSTEMS GROUP
86013-0814	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
86013-0814	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
915014-0048	65597	THALES DEFENSE & SECURITY, INC.
AN515C8-14	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
CAV70-8-14P	11871	RECON/OPTICAL, INC.
FF-S-92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
G302433-58	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
GA3135-048	03647	GLOBE AEROSPACE INC
MMS51957-48	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS20073-03-05	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS32233-32	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35216-45	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35233-32	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35233-48	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51957	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS51957-48	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SS0832AA12	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
WC1052-048	70318	ALLMETAL SCREW PRODUCTS CORP DBA ALL METAL SCREW PRODUCTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-054-6673

Compare

Related Products | NSN 5305-00-054-6673

5305-00-054-6674, 5305-00-054-6675, 5305-00-054-6676, 5305-00-054-6677, 5305-00-054-6680

Restrictions/Controls & Freight Information | NSN 5305-00-054-6673

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-054-6673

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
