NSN 5305-00-063-3098 AN530C8R6, 00-063-3098, 000633098
Product Details | TAPPING SCREW
5305-00-063-3098 A hardened externally threaded fastener whose thread extends to the bearing surface of the head. The thread may be fluted or otherwise designed to cut or form its own mating thread. Excludes SCREW, ASSEMBLED WASHER.
Part Alternates: AN530C8R6, 5305-00-063-3098, 00-063-3098, 5305000633098, 000633098
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-JAN-63 | 00-063-3098 | 41756 ( SCREW, TAPPING ) |

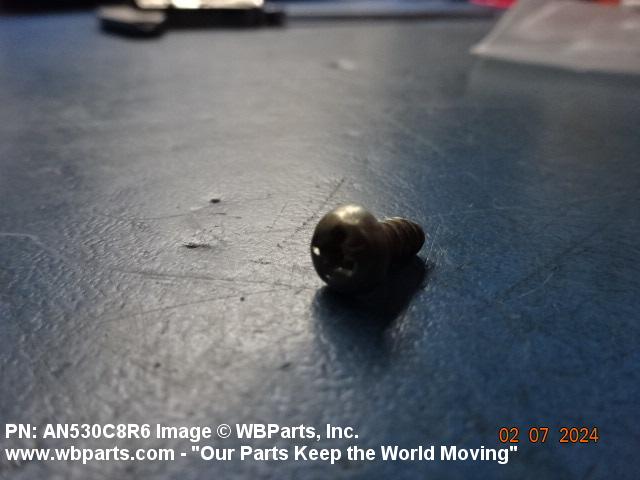

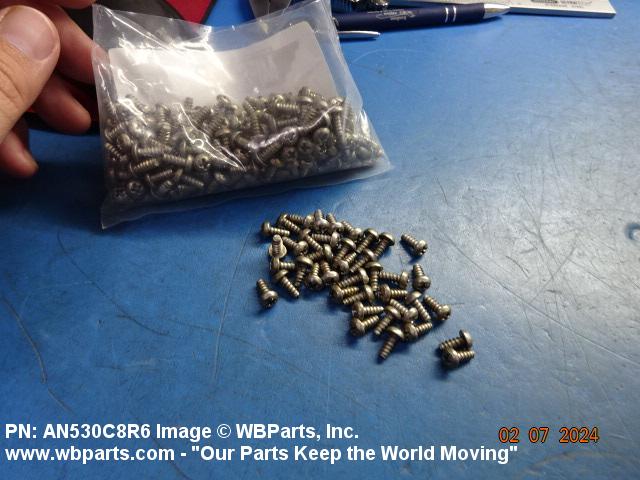

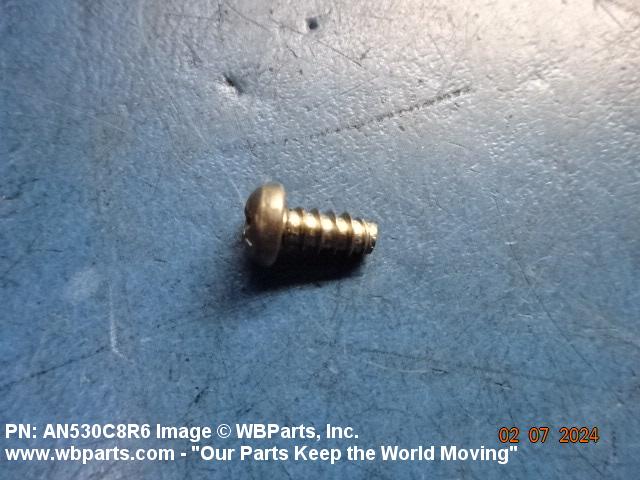

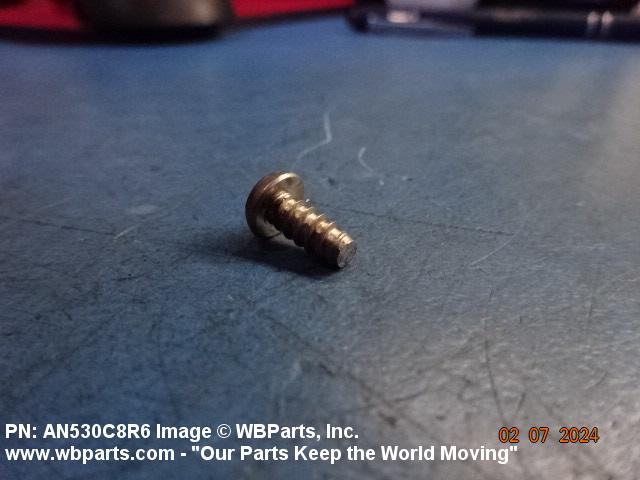

Drawings & Photos | NSN 5305-00-063-3098
Demand History | NSN 5305-00-063-3098
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN530C8R6 | 2024-01-15 | 300 | Croatia |
| AN530C8R6 | 2007-10-285 | 500 | US |
Cross Reference | NSN 5305-00-063-3098
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FFS107 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS24622-29 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24662-29 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS51861-34C | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS51861-34C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-063-3098
Technical Data | NSN 5305-00-063-3098
| Characteristic | Specifications |
|---|---|
| NONMACHINE THREAD STYLE | A12 DOG TYPE |
| NONMACHINE NOMINAL THREAD DIAMETER | 0.164 INCHES |

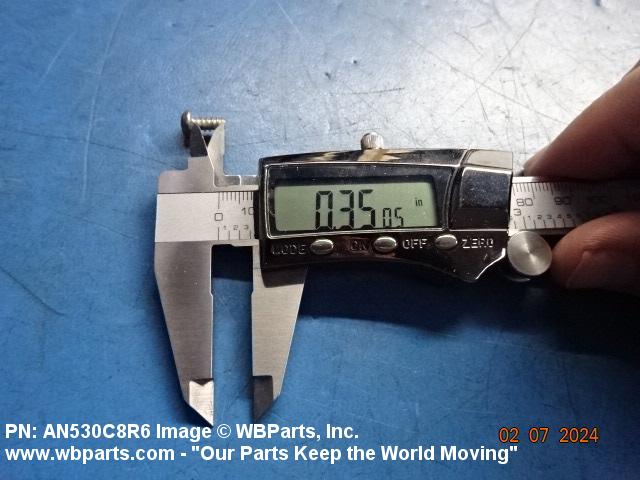

| FASTENER LENGTH | 0.375 INCHES NOMINAL |
| MATERIAL | STEEL COMP 410 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HEAD STYLE | C37 ROUND |

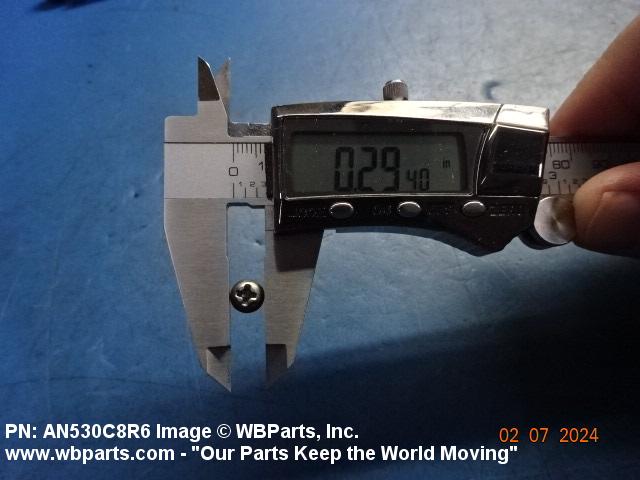

| HEAD DIAMETER | 0.298 INCHES NOMINAL |

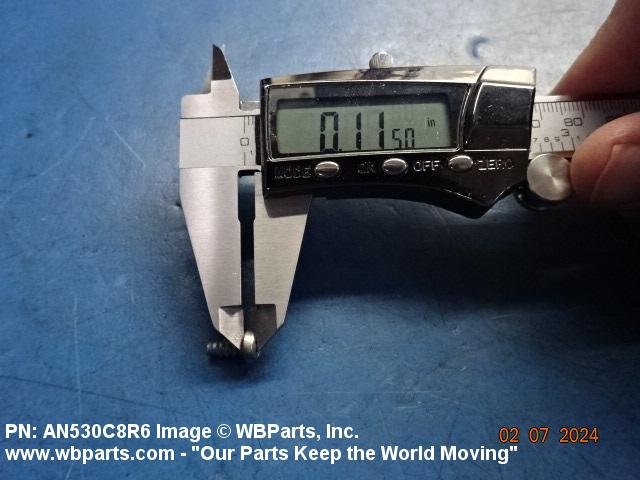

| HEAD HEIGHT | 0.120 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| FEATURES PROVIDED | CASEHARDENED |
| MANUFACTURERS CODE | 88044 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN530C8R6 |
Restrictions/Controls & Freight Information | NSN 5305-00-063-3098
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
