NSN 5305-00-253-5609 MS2131813, MS21318-13, AN535C22

Product Details | DRIVE SCREW

5305-00-253-5609 A hardened cylindrical fastener with multiple spiral flutes on its shank. It also has an end smaller in diameter than the outside diameter of the spiral flutes, which acts as a pilot when driven into a drilled hole.

Part Alternates: MS2131813, MS21318-13, AN535C22, AN535C-2-2, FFS107, 10125085 , 1767500002, 17-675-00-002, 381840100031, 38-18401-0003-1, 413391, 5592952, 802CX252, 811376, 5305-00-253-5609, 00-253-5609, 5305002535609, 002535609

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-253-5609	15896 ( SCREW, DRIVE )

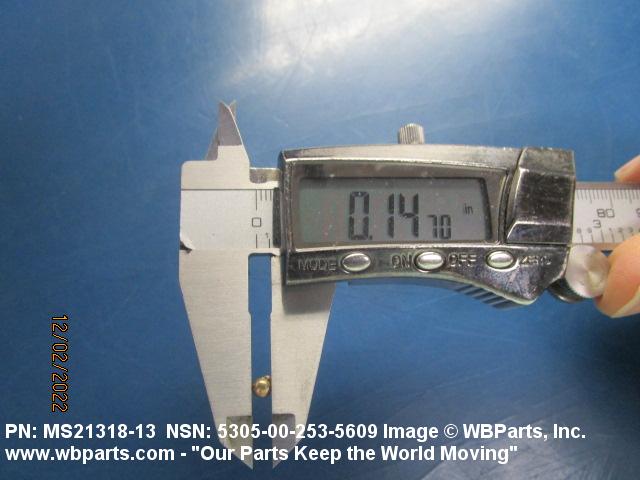

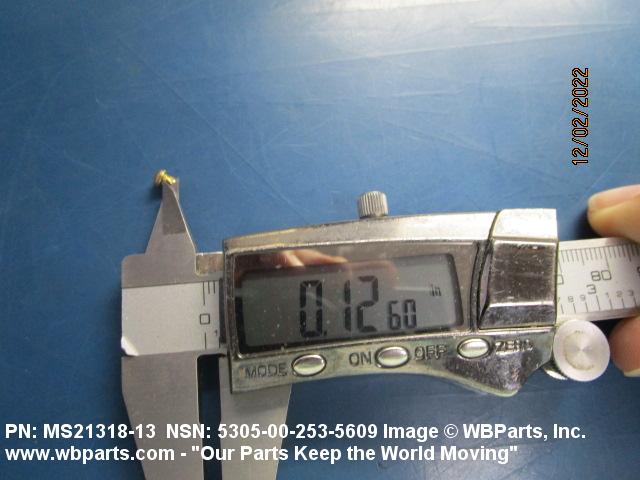

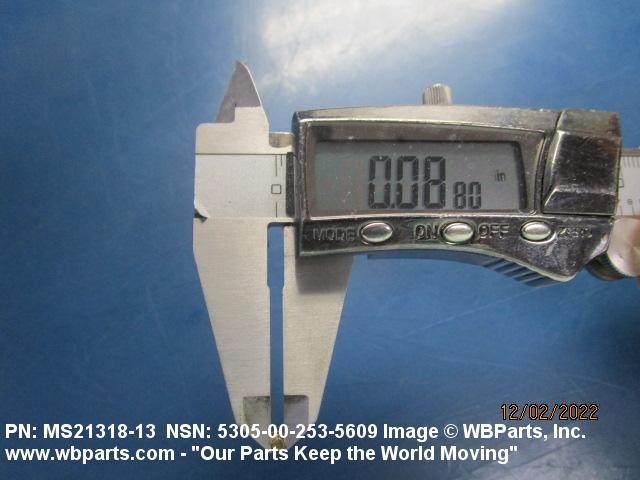

Drawings & Photos | NSN 5305-00-253-5609

Part Number	Request Date	QTY	Origin
MS2131813	2024-07-185	56	United States
MS2131813	2023-11-312	3	United States
5305-00-253-5609	2022-11-332	10	Germany
5305-00-253-5609	2019-05-149	70	DIBBS
5305-00-253-5609	2019-01-30	139	DIBBS
5305-00-253-5609	2018-03-64	50	DIBBS
MS2131813	2016-04-119	250	US
MS2131813	2016-04-99	226	United States
MS21318-13	2014-08-232	120	Australia
MS21318-13	2014-08-232	120	United States
MS21318-13	2014-08-232	120	United States
MS21318-13	2014-08-227	120	Australia
MS2131813	2014-07-211	200	Australia
MS2131813	2013-04-112	216	AU
MS2131813	2012-07-212	500	Israel
5305-00-253-5609	2012-04-117	890	DIBBS
FFS107	2011-02-49	10	US
FFS107	2011-02-49	17	US
5305-00-253-5609	2010-12-360	950	IN
5305-00-253-5609	2009-03-79	595	DIBBS
FFS107	2009-03-62	1800	US
5305-00-253-5609	2008-12-352	424	DIBBS
5305-00-253-5609	2008-09-255	499	DIBBS
AN535C22	2008-08-217	100	US
5305-00-253-5609	2008-07-193	330	DIBBS
5305-00-253-5609	2008-03-74	12	US
FFS107	2007-12-347	600	United States

Cross Reference | NSN 5305-00-253-5609

Part Number	Cage Code	Manufacturer
17-675-00-002	78022	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
38-18401-0003-1	86329	PARKER-HANNIFIN CORPORATION DBA FLUID SYSTEMS DIVISION
413391	88725	WESTINGHOUSE ELECTRIC CORP GENERAL CONTROL DIV
5592952	34623	AM GENERAL, LLC
802CX252	45152	OSHKOSH CORPORATION
802CX252	75Q65	OSHKOSH DEFENSE, LLC
811376	02280	AMERICAN HOIST AND DERRICK CO
811376	49185	TEREX AMERICAN CRANE CORP
AN535C-2-2	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
FFS107	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS21318-13	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21318-13	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-253-5609

Compare

Related Products | NSN 5305-00-253-5609

5305-00-253-5610, 5305-00-253-5611, 5305-00-253-5612, 5305-00-253-5614, 5305-00-253-5615

Technical Data | NSN 5305-00-253-5609

Characteristic	Specifications
NONMACHINE THREAD STYLE	A16 DRIVE SCREW
NONMACHINE NOMINAL THREAD DIAMETER	0.098 INCHES
FASTENER LENGTH	0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC ALL TREATMENT RESPONSES OVERALL
HEAD STYLE	C37 ROUND
HEAD DIAMETER	0.146 INCHES MINIMUM AND 0.162 INCHES MAXIMUM
HEAD HEIGHT	0.059 INCHES MINIMUM AND 0.069 INCHES MAXIMUM
PILOT DIAMETER	0.080 INCHES MINIMUM AND 0.083 INCHES MAXIMUM
PILOT LENGTH	0.047 INCHES NOMINAL
FEATURES PROVIDED	CASEHARDENED
NONDEFINITIVE SPEC/STD DATA	U TYPE
III END ITEM IDENTIFICATION	AIRCRAFT, (AC-130H, MC-130H, EC-0130E, HC-130); AIRBORNE MOBILE DIR AIR SPT CTL (2ID),(02M JUL83)(AN/UYQ-3A); SUPPORT EQUIPMENT, B-1 AIRCRAFT; MISSILE, ALL-WEATHER ANTI-SHIP, HARPOON (AGM-84); COMPRESSOR, RECIPROCATING M4; RADAR SET, AN/TPN-18; ENGINE, AIRCRAFT TF33-PW-102 (C-135E, EC-135H/K/P); CLOSE IN WEAPON SYSTEM (CIWS-PHLANX); AIRCRAFT, AWACS, E-3A; ENGINE, AIRCRAFT TF33-P-3/5/9 (C/EC-135, B-52H); STURGEON CLASS SSN (637)
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFS107

Restrictions/Controls & Freight Information | NSN 5305-00-253-5609

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-253-5609

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
