NSN 5305-00-282-3393 AN565D8H4, N70P1504C, HC922H08
Product Details | SETSCREW
5305-00-282-3393 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: AN565D8H4, N70P1504C, HC922H08, HC922H080832, HC922H08-0832, EE3941, EE394-1, 7203630P13, 5305-00-282-3393, 00-282-3393, 5305002823393, 002823393
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-282-3393 | 06672 ( SETSCREW ) |

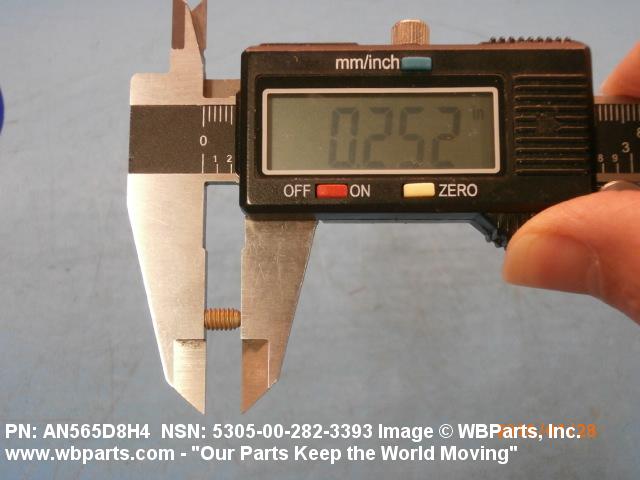

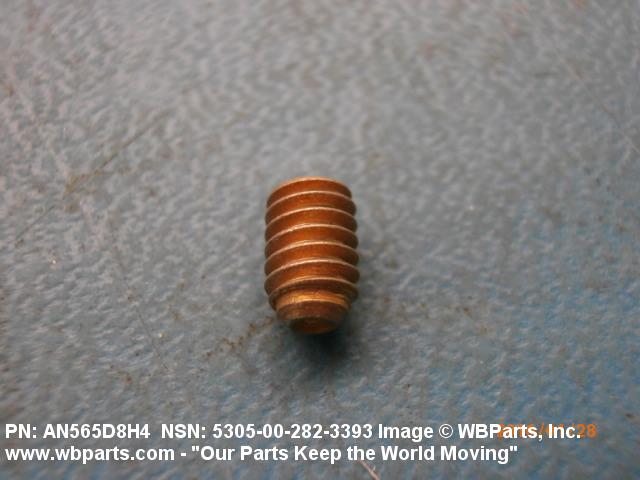

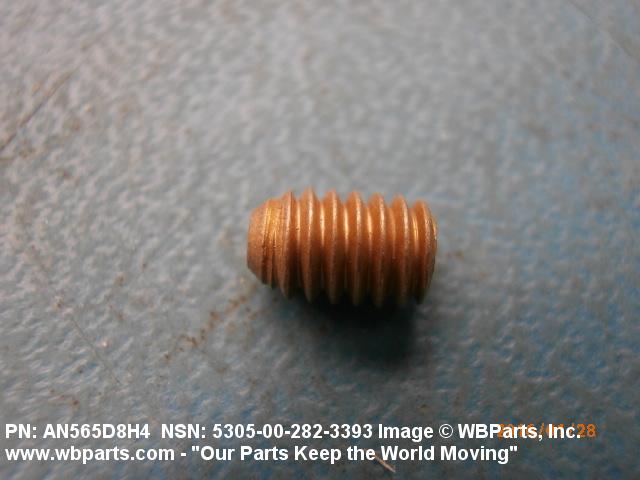

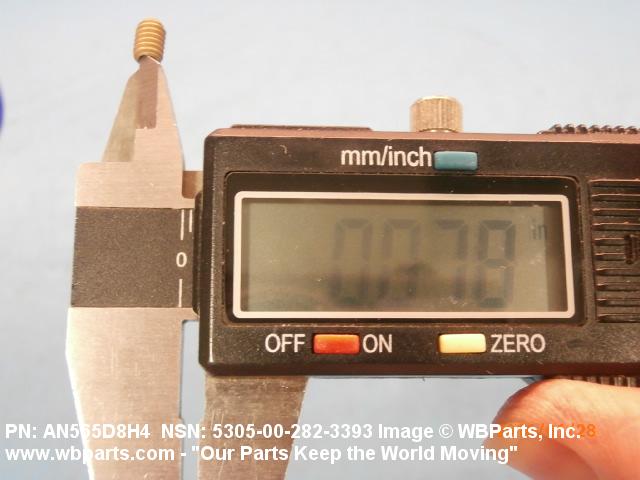

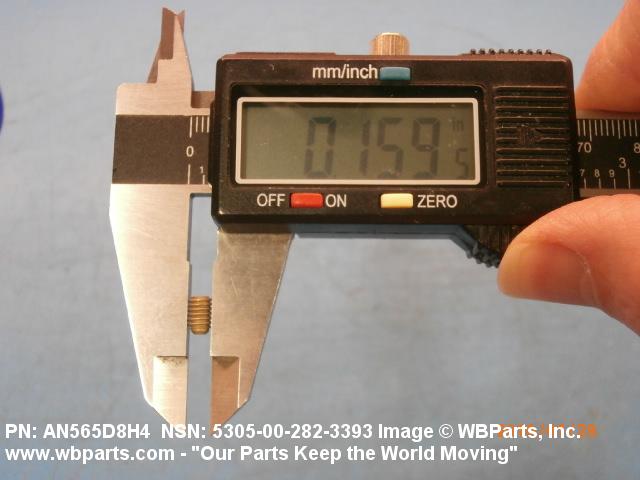

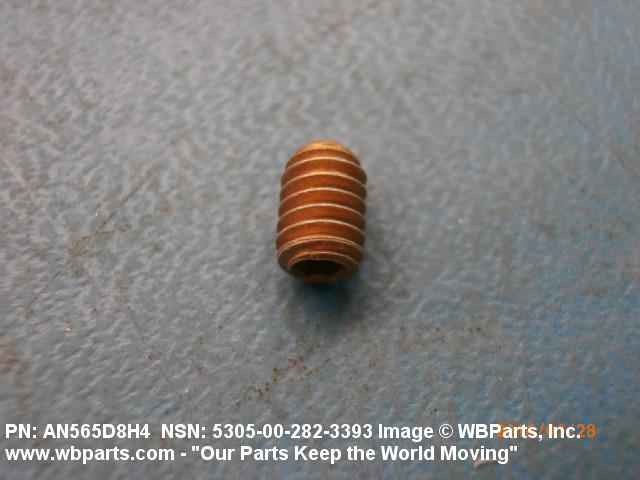

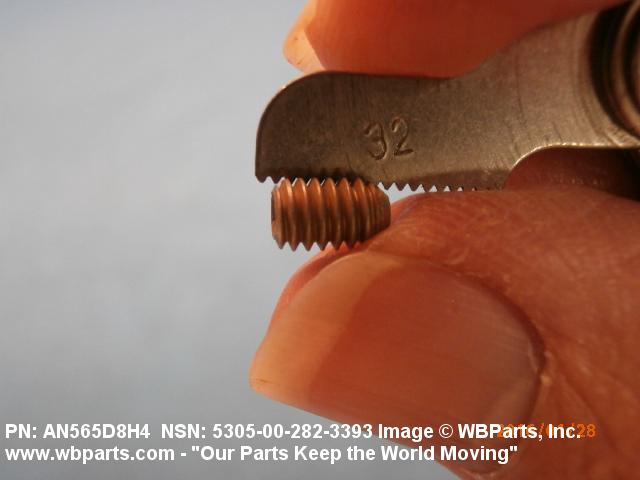

Drawings & Photos | NSN 5305-00-282-3393
Cross Reference | NSN 5305-00-282-3393
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7203630P13 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 7203630P13 | 24446 | GENERAL ELECTRIC CO |
| AN565D8H4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| EE394-1 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| HC922H08 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
| HC922H08-0832 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
| N70P1504C | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| N70P1504C | 24446 | GENERAL ELECTRIC CO |
