NSN 5305-00-325-1926 MS1806563, MS18065-63, FFS200
Product Details | SETSCREW
5305-00-325-1926 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: MS1806563, MS18065-63, FFS200, 5305-00-325-1926, 00-325-1926, 5305003251926, 003251926
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-325-1926 | 06672 ( SETSCREW ) |

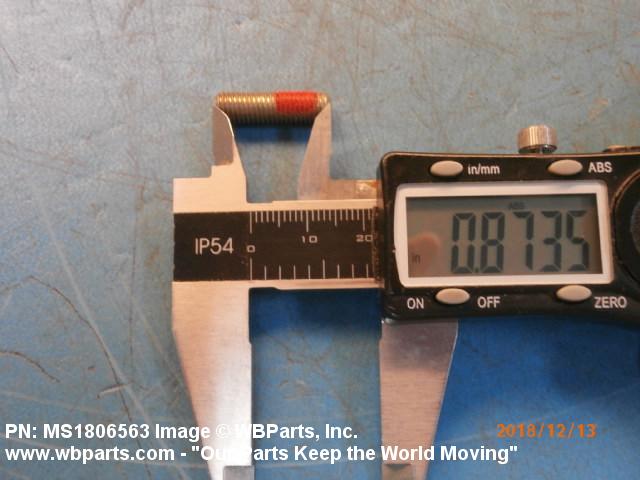

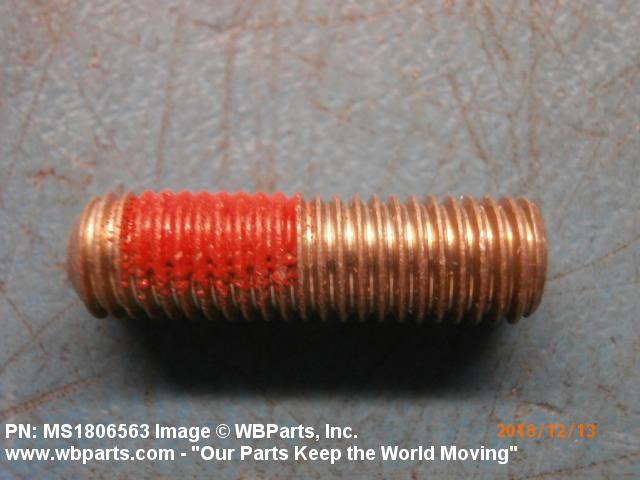

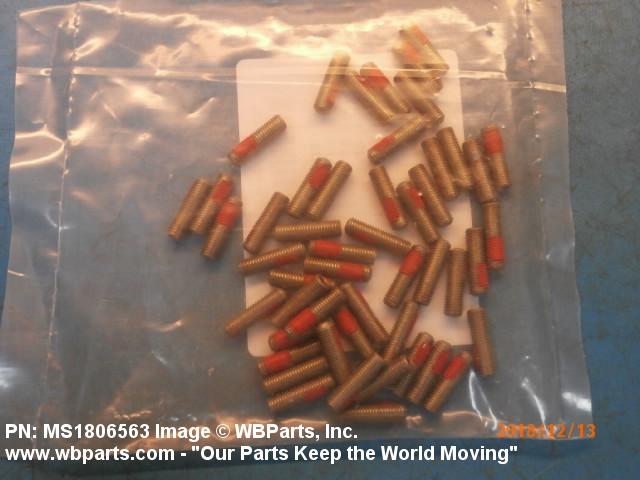

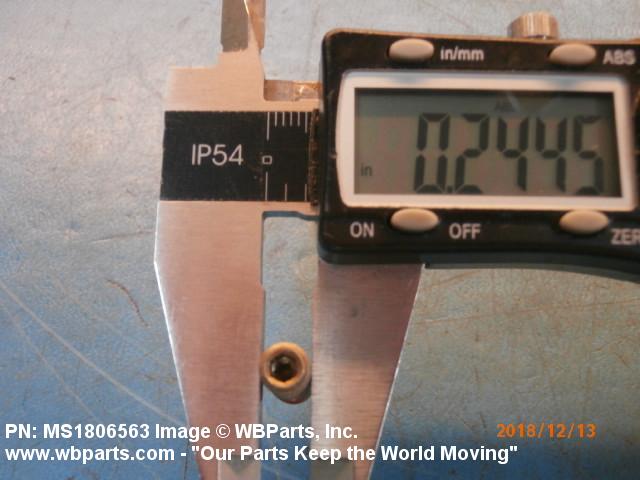

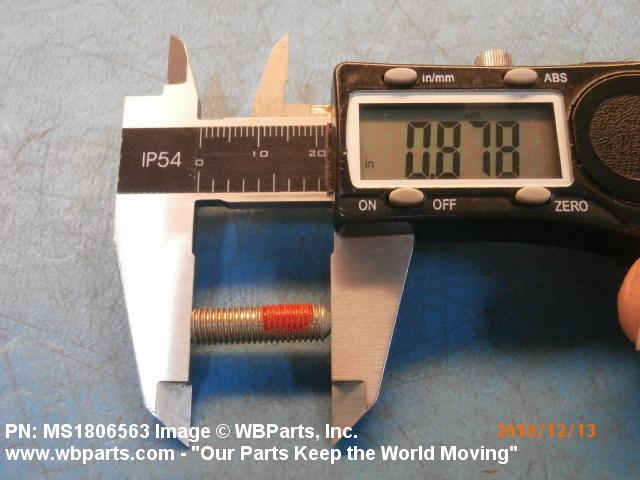

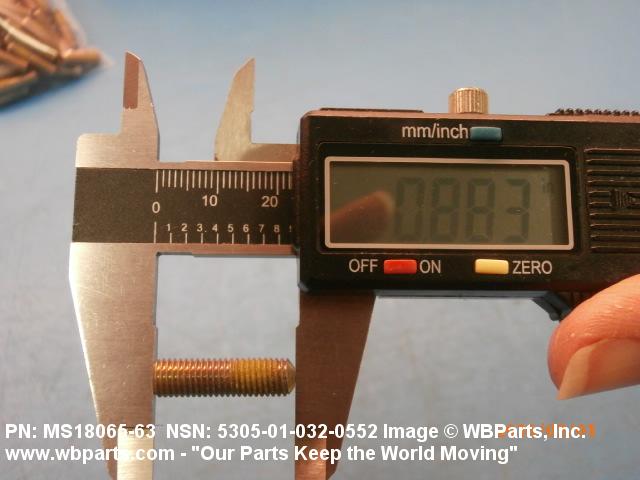

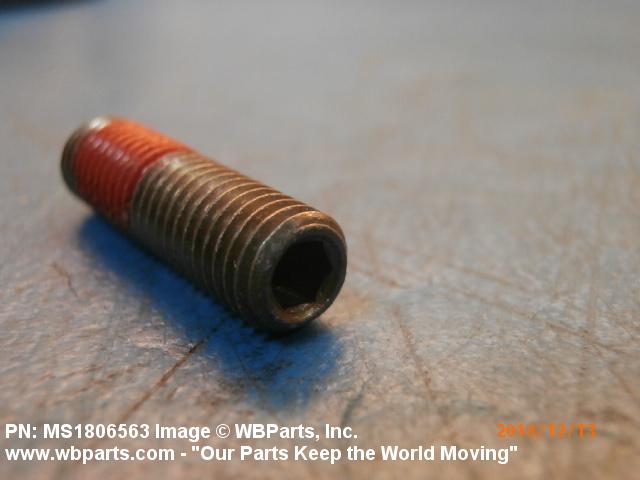

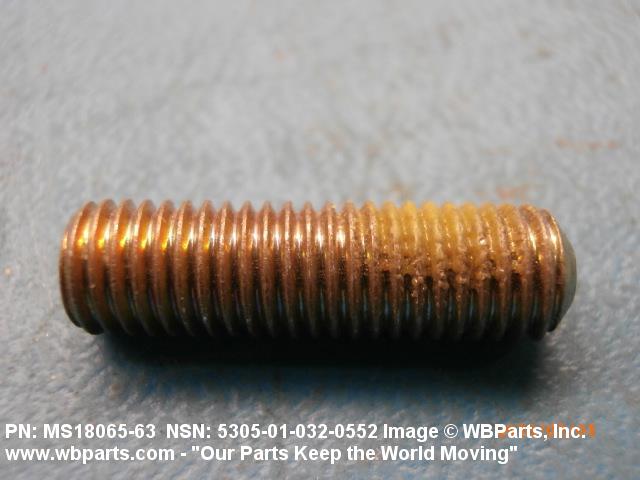

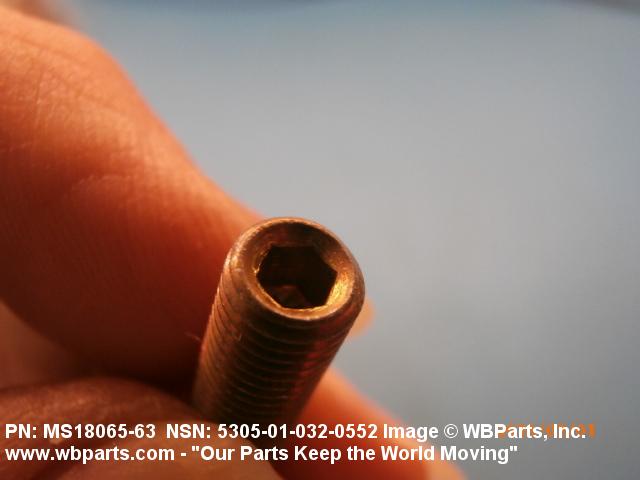

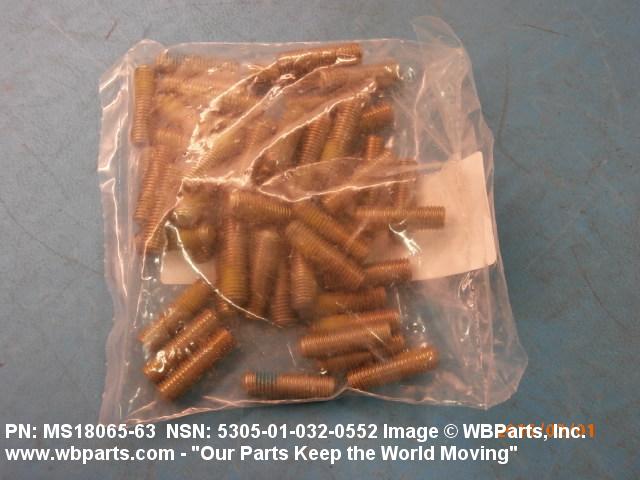

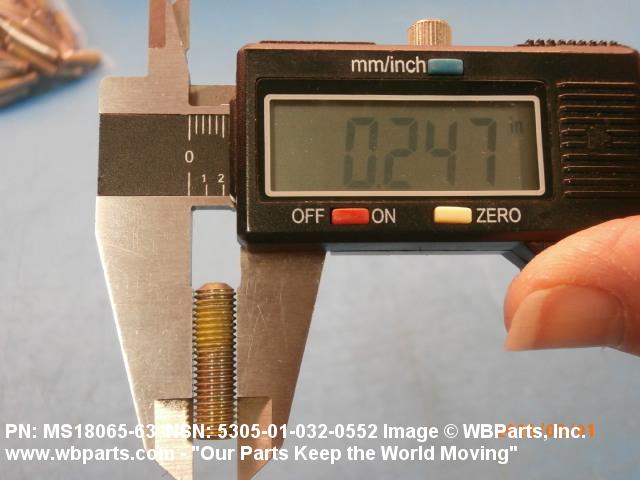

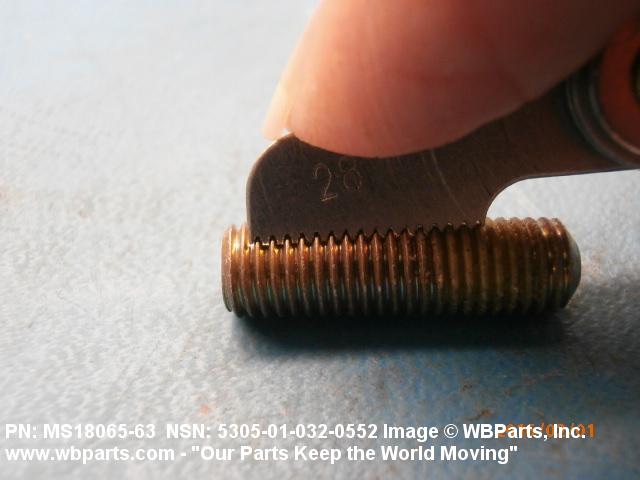

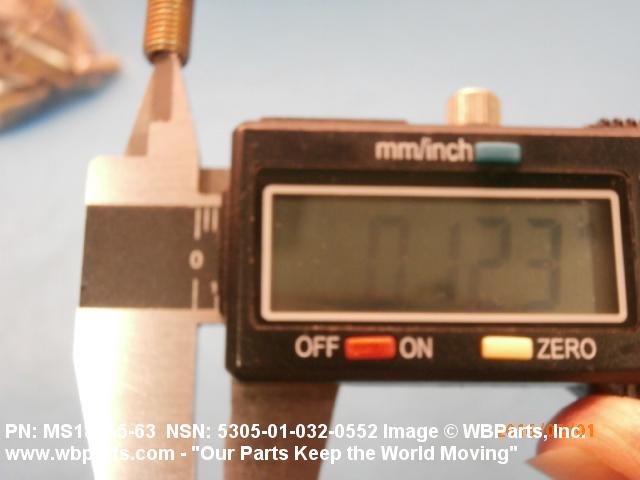

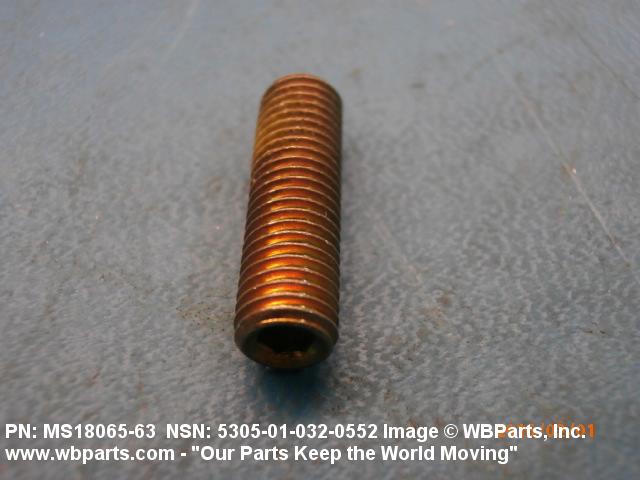

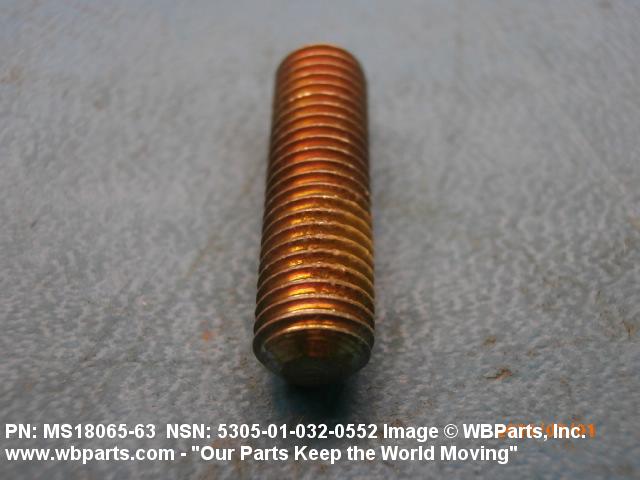

Drawings & Photos | NSN 5305-00-325-1926
Demand History | NSN 5305-00-325-1926
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS1806563 | 2021-06-158 | 317 | United States |
| MS1806563 | 2018-12-344 | 50 | United States |
| MS1806563 | 2015-05-132 | 50 | United States |
| FFS200 | 2011-10-280 | 28 | United States |
| FFS200 | 2009-12-344 | 20 | Canada |
| FFS200 | 2009-10-288 | 100 | US |
Cross Reference | NSN 5305-00-325-1926
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FF-S-200 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS18065-63 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51966-130 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS51966-130 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-325-1926
Technical Data | NSN 5305-00-325-1926
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.875 INCHES MINIMUM |
| FASTENER LENGTH | 0.875 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4032 OR STEEL COMP 4037 OR STEEL COMP 4137 OR STEEL COMP 4140 OR STEEL COMP 8630 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| HARDNESS RATING | 45.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM OVERALL |
| HEAD STYLE | C101 HEADLESS |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.125 INCHES MINIMUM AND 0.127 INCHES MAXIMUM |
| LOCKING FEATURE | DISTORTIONS THREADS |
| POINT STYLE | F19 FLAT |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFS200 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS18065-63 |
Restrictions/Controls & Freight Information | NSN 5305-00-325-1926
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
