NSN 5305-00-403-3563 383757S8B, 00-403-3563, 004033563
Product Details | SETSCREW
5305-00-403-3563 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 383757S8B, 5305-00-403-3563, 00-403-3563, 5305004033563, 004033563
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 JUN 1970 | 00-403-3563 | 06672 ( SETSCREW ) |
Drawings & Photos | NSN 5305-00-403-3563
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-403-3563
Technical Data | NSN 5305-00-403-3563
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| FASTENER LENGTH | 0.650 INCHES NOMINAL |

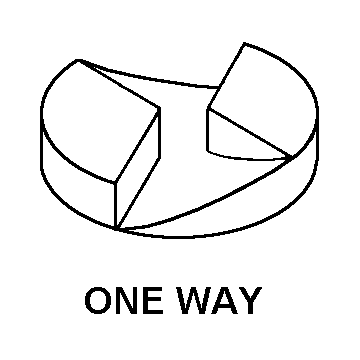

| INTERNAL DRIVE STYLE | D13 ONE WAY |
| MANUFACTURERS CODE | 23040 |
| DESIGN CONTROL REFERENCE | 383757S8B |
Restrictions/Controls & Freight Information | NSN 5305-00-403-3563
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
