NSN 5305-00-639-4338 AN565D4H4, N70P00904C11, 4179100-31
Product Details | SETSCREW
5305-00-639-4338 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: AN565D4H4, N70P00904C11, 4179100-31, 7203630P003, 5305-00-639-4338, 00-639-4338, 5305006394338, 417910031, 006394338
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-639-4338 | 06672 ( SETSCREW ) |

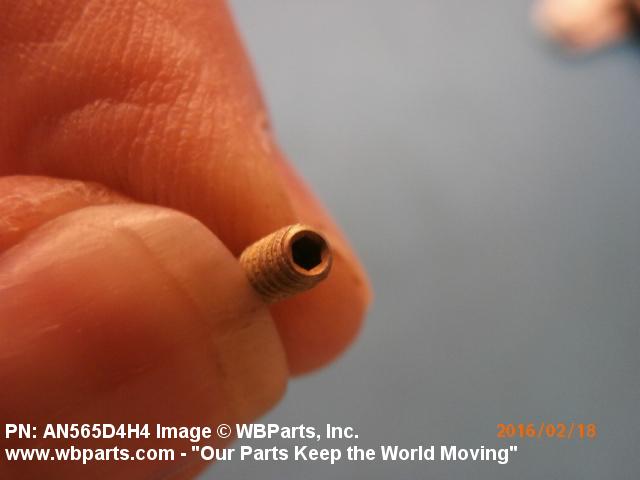

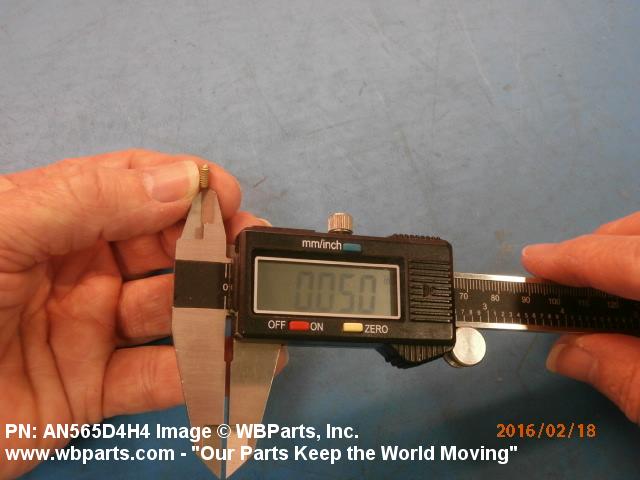

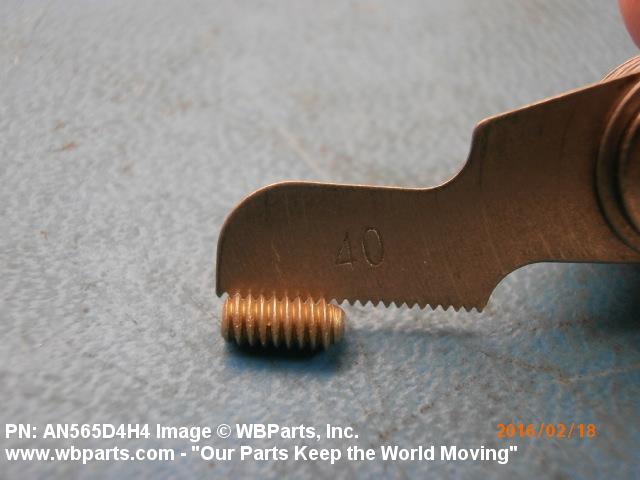

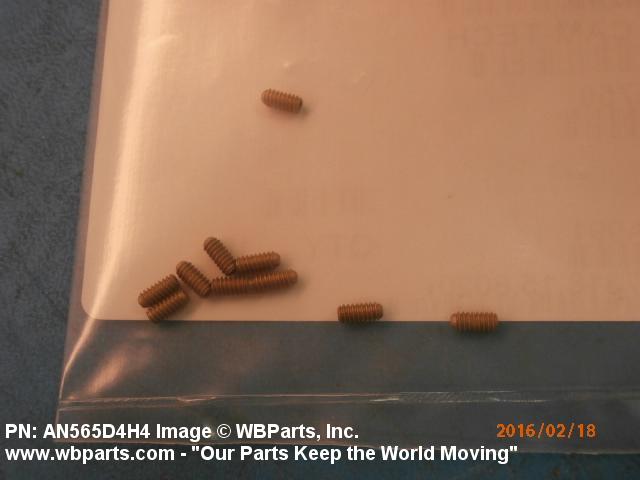

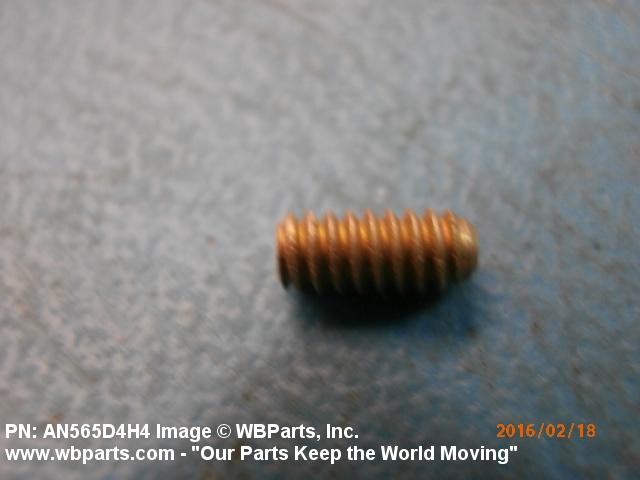

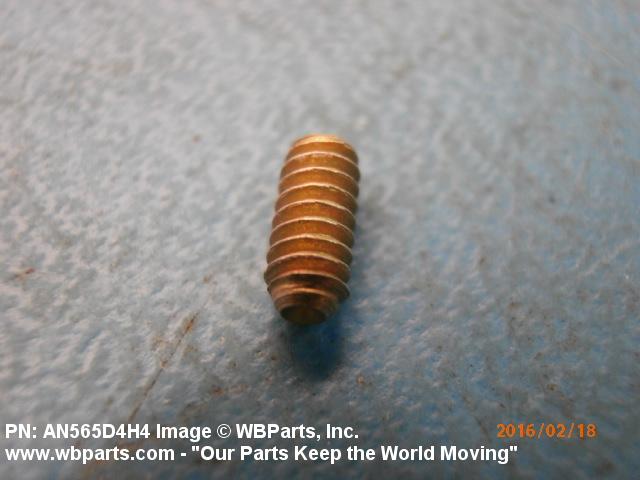

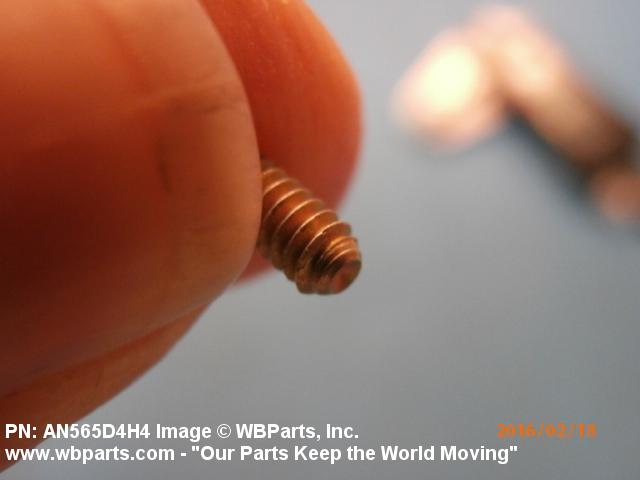

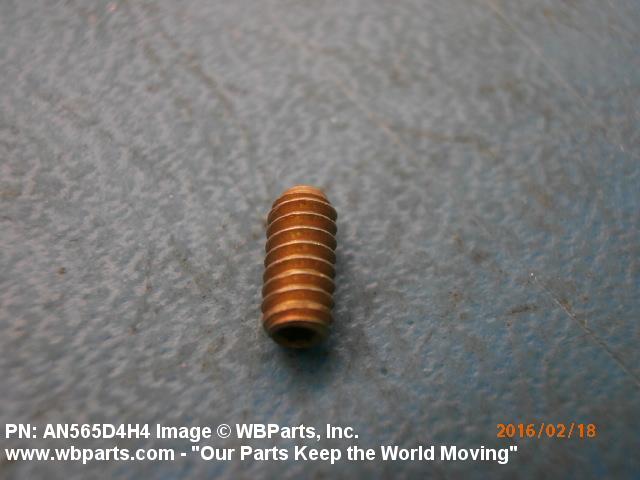

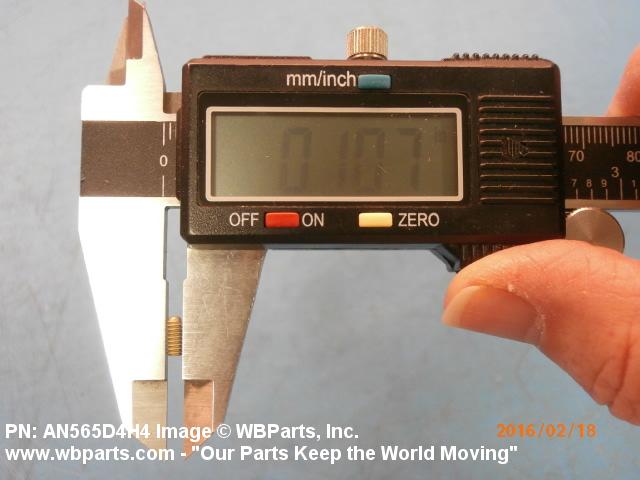

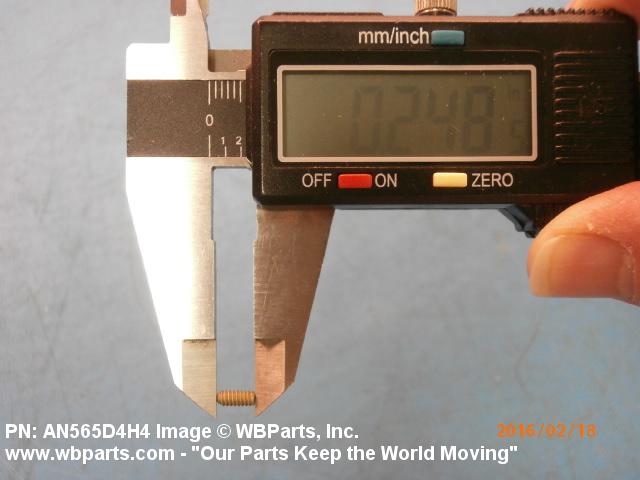

Drawings & Photos | NSN 5305-00-639-4338
Demand History | NSN 5305-00-639-4338
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-639-4338 | 2008-09-262 | 100 | Singapore |
Cross Reference | NSN 5305-00-639-4338
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4179100-31 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4179100-31 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 7203630P003 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 7203630P003 | 24446 | GENERAL ELECTRIC CO |
| AN565D4H4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| N70P00904C11 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| N70P00904C11 | 24446 | GENERAL ELECTRIC CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-639-4338
Technical Data | NSN 5305-00-639-4338
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.250 INCHES MINIMUM |
| FASTENER LENGTH | 0.250 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4137 OR STEEL COMP 8630 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| HARDNESS RATING | 45.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM OVERALL |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.050 INCHES MINIMUM AND 0.051 INCHES MAXIMUM |
| POINT STYLE | F20 CUP |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN565D4H4 |
Restrictions/Controls & Freight Information | NSN 5305-00-639-4338
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
