Product Details | SETSCREW

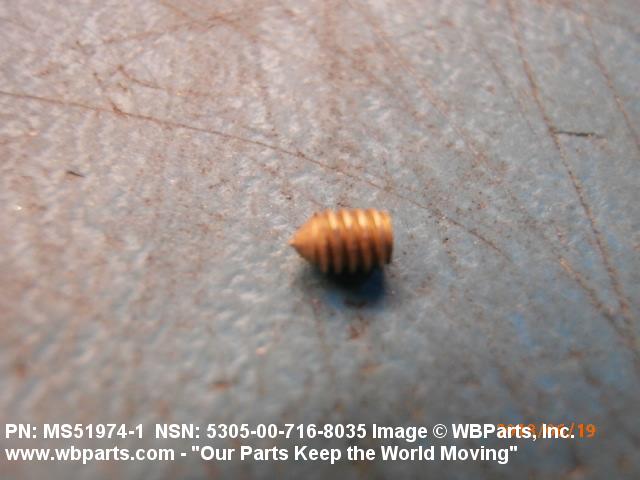

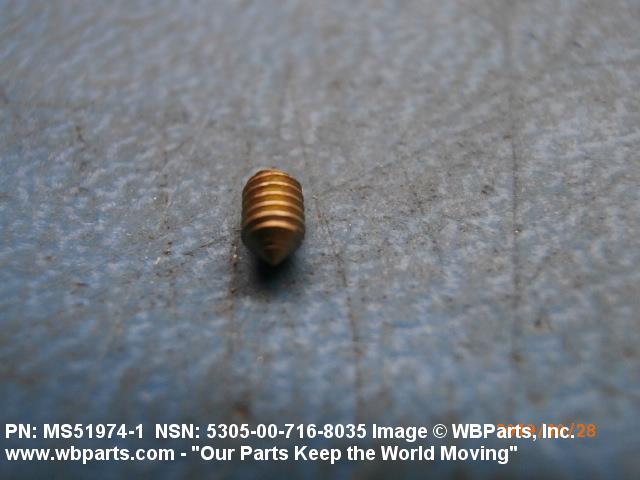

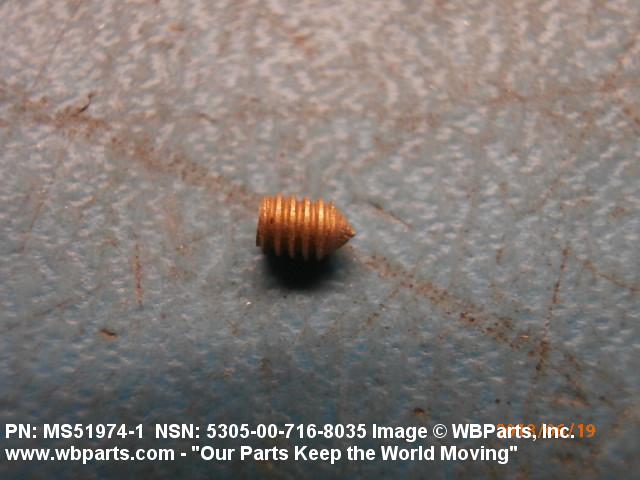

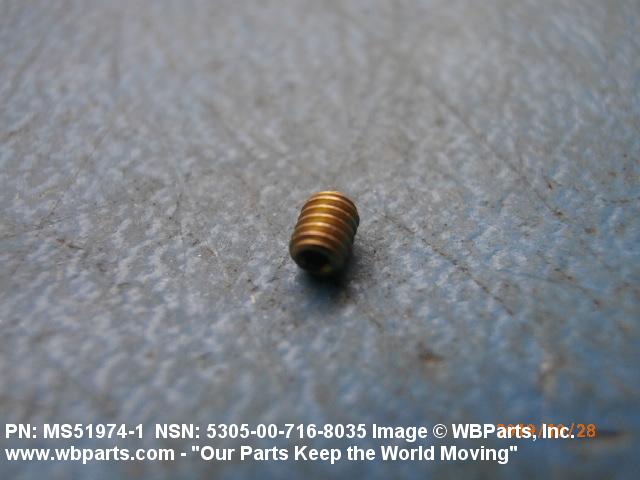

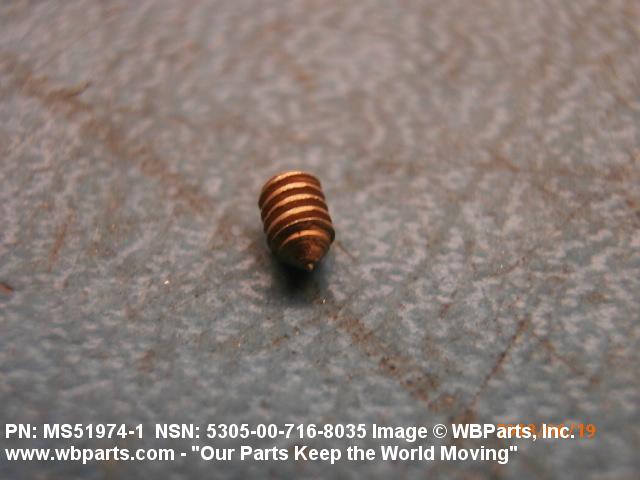

5305-00-716-8035 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: MS519741, MS51974-1, R22538 , 10883085 , 5305-00-716-8035, 00-716-8035, 5305007168035, 007168035
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-716-8035 | 06672 ( SETSCREW ) |

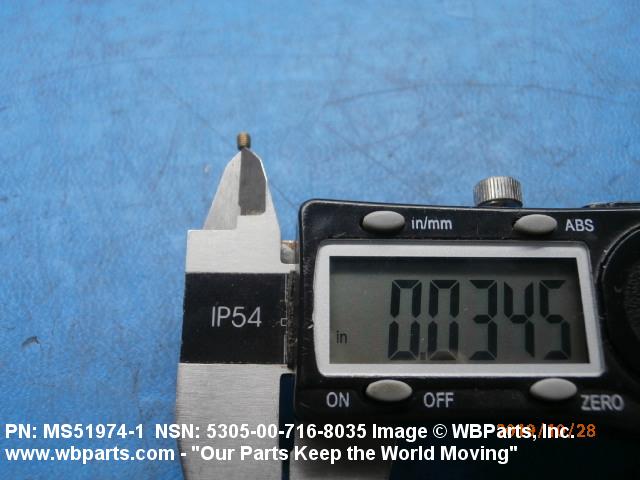

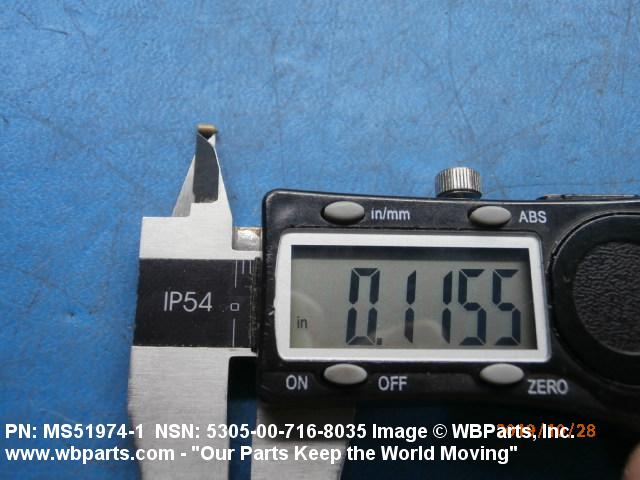

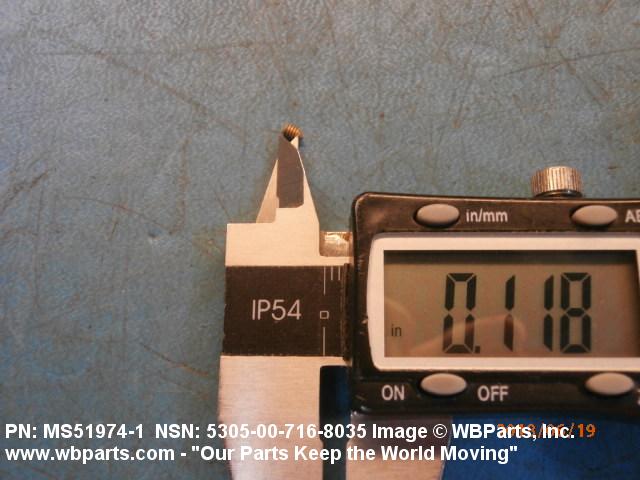

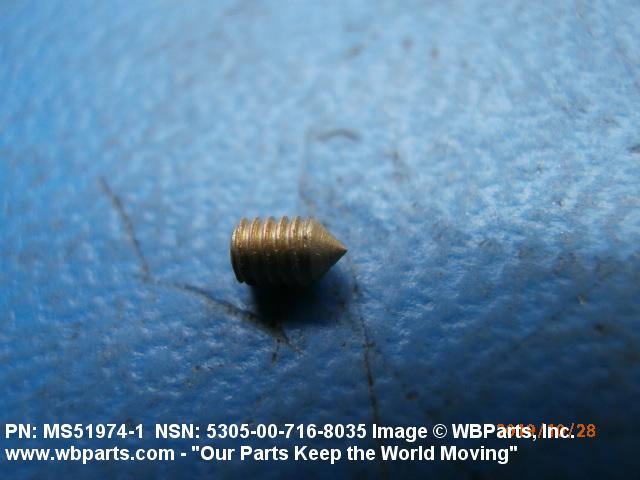

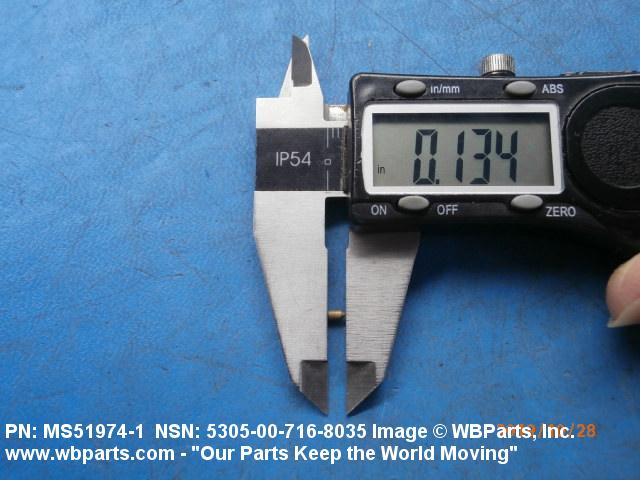

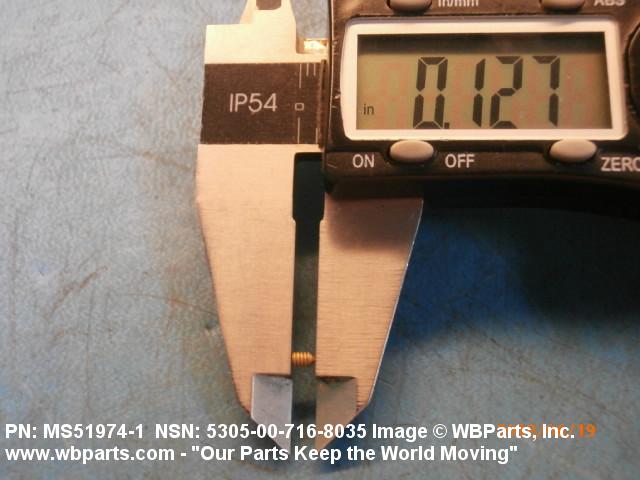

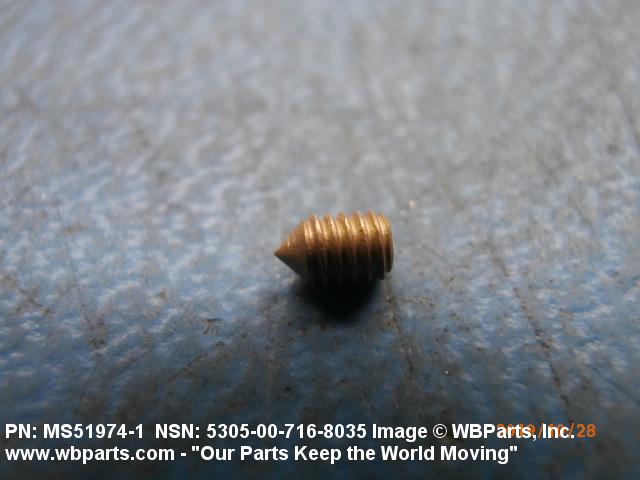

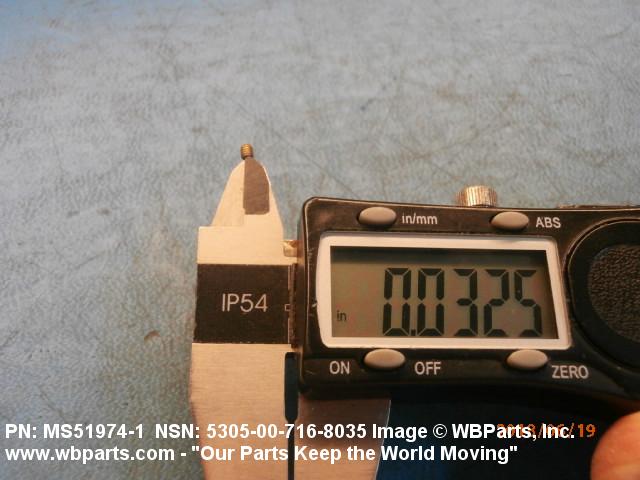

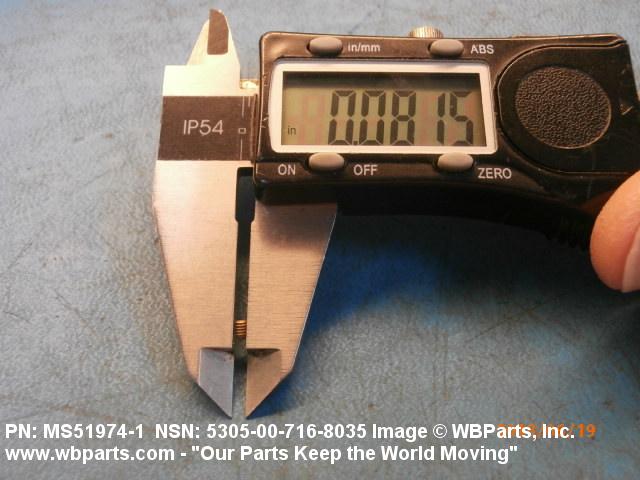

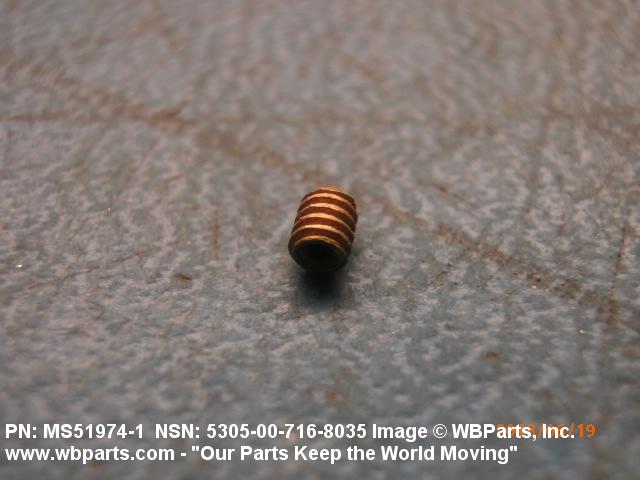

Drawings & Photos | NSN 5305-00-716-8035
Demand History | NSN 5305-00-716-8035
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS519741 | 2025-07-204 | 1350 | Korea |
| MS519741 | 2024-04-107 | 600 | Korea |
| 5305-00-716-8035 | 2023-06-173 | 823 | DIBBS |
| MS519741 | 2023-03-79 | 1200 | Korea |
| MS519741 | 2023-03-79 | 510 | Korea |
| MS519741 | 2020-05-149 | 3000 | South Korea |
| MS519741 | 2019-09-269 | 1200 | South Korea |
| MS519741 | 2019-07-200 | 300 | South Korea |
| MS51974-1 | 2018-05-150 | 2470 | South Korea |
| MS51974-1 | 2018-05-149 | 2470 | South Korea |
| MS519741 | 2018-05-124 | 815 | South Korea |
| 5305-00-716-8035 | 2015-05-125 | 554 | DIBBS |
