NSN 5305-00-721-2312 MS5102935, MS51029-35, NASM5102935
Product Details | SETSCREW
5305-00-721-2312 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: MS5102935, MS51029-35, NASM5102935, NASM51029-35, 5305-00-721-2312, 00-721-2312, 5305007212312, 007212312
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-721-2312 | 06672 ( SETSCREW ) |

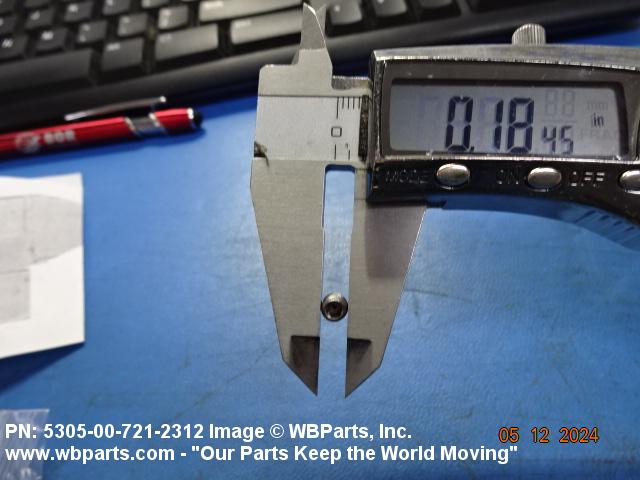

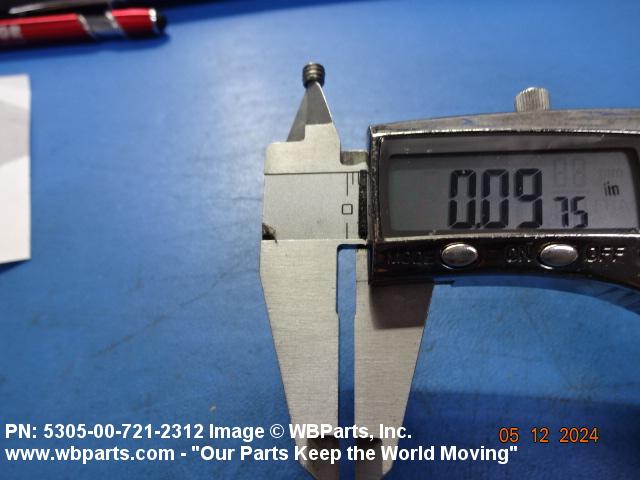

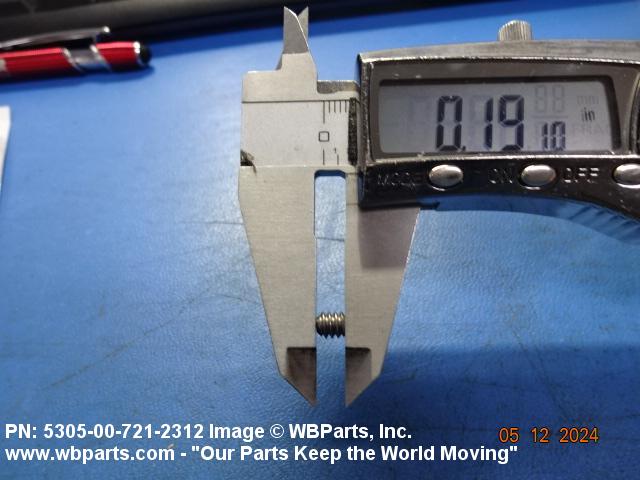

Drawings & Photos | NSN 5305-00-721-2312
Demand History | NSN 5305-00-721-2312
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-721-2312 | 2024-02-59 | 1 | us |
| MS5102935 | 2022-10-292 | 2 | United States |
| MS5102935 | 2022-10-291 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-721-2312
Technical Data | NSN 5305-00-721-2312
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.187 INCHES MINIMUM |
| FASTENER LENGTH | 0.187 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C101 HEADLESS |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.094 INCHES NOMINAL |
| POINT STYLE | F19 FLAT |
Restrictions/Controls & Freight Information | NSN 5305-00-721-2312
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
