NSN 5305-00-725-0203 MS51963174, MS51963-174, 00-725-0203
Product Details | SETSCREW
5305-00-725-0203 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: MS51963174, MS51963-174, 5305-00-725-0203, 00-725-0203, 5305007250203, 007250203
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-725-0203 | 06672 ( SETSCREW ) |

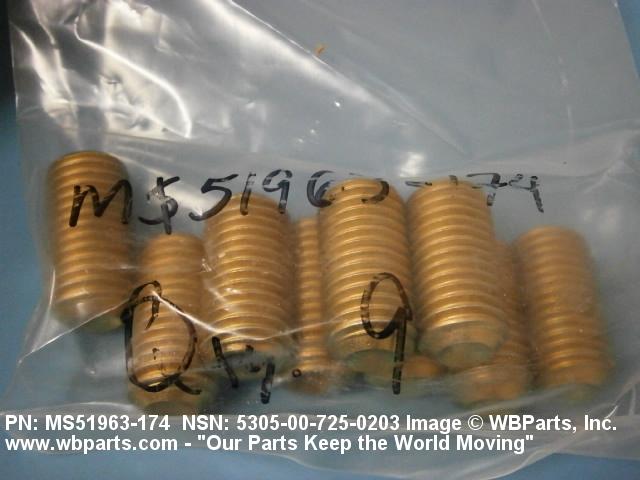

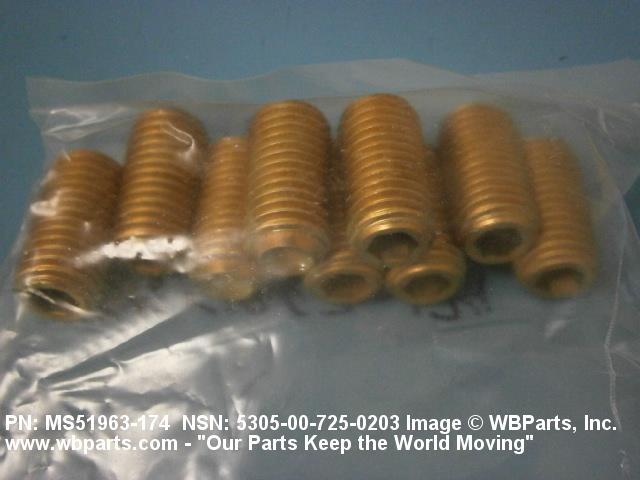

Drawings & Photos | NSN 5305-00-725-0203
Demand History | NSN 5305-00-725-0203
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-725-0203 | 2025-07-183 | 300 | DIBBS |
| 5305-00-725-0203 | 2025-06-153 | 300 | DIBBS |
| MS51963-174 | 2011-12-349 | 27 | Israel |
| MS51963174 | 2011-12-341 | 9 | Israel |
| MS51963174 | 2011-05-129 | 5000 | US |
Cross Reference | NSN 5305-00-725-0203
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51963-174 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-725-0203
Technical Data | NSN 5305-00-725-0203
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 10 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.530 INCHES MINIMUM AND 1.570 INCHES MAXIMUM |
| FASTENER LENGTH | 1.530 INCHES MINIMUM AND 1.570 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 4032 OR STEEL COMP 4037 OR STEEL COMP 4137 OR STEEL COMP 4140 OR STEEL COMP 8630 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2 CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 45.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM OVERALL |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.375 INCHES NOMINAL |
| POINT STYLE | F20 CUP |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 4 STYLE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51963-174 |
Restrictions/Controls & Freight Information | NSN 5305-00-725-0203
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
