NSN 5305-00-800-7261 MS510219, MS51021-9, MS510229

Product Details | SETSCREW

5305-00-800-7261 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.

Part Alternates: MS510219, MS51021-9, MS510229, MS51022-9, N634P902, A05266, AN565DC42, AN565DC4-2, AN565DC4H2, S46000H4C4P, FFS103, P2497235, P2497-235, RT 207 039-2, RT2070392, RT-VA 207 039-2, RTVA2070392, 00307941009, 003-07941-009, 592816, 70073-0802, 010137, 0455128, 0455-128, 10125496 , 269055, 26-9055, 317166, 4111219, 411121-9, 43S90591210, 43S90591-210, 4-40X1/8SKTSETRDHD32-030, 440X18SKTSETRDHD32030, 5002390112, 5002390-112, Y116, 722-010-204, 92311A103, 5305-00-800-7261, 00-800-7261, 5305008007261 , 008007261, 722010204, 700730802

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-800-7261	06672 ( SETSCREW )

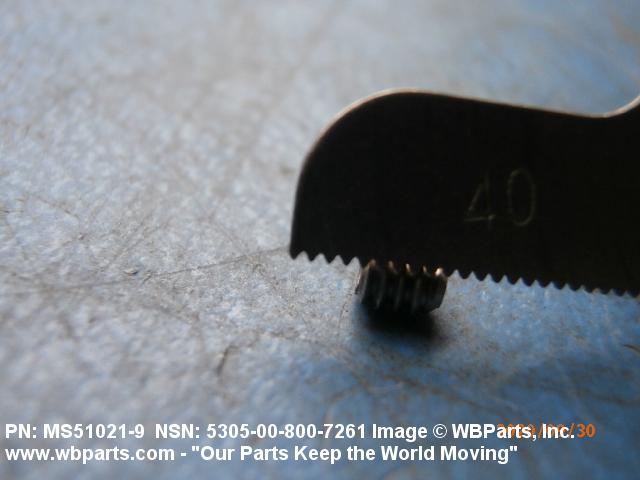

Drawings & Photos | NSN 5305-00-800-7261

Part Number	Request Date	QTY	Origin
MS510219	2025-12-342	2500	Korea
MS510219	2025-08-225	1000	Korea
MS510219	2025-05-140	375	Korea
MS510219	2025-04-119	5000	Korea
MS510219	2025-04-107	5000	Korea
MS510219	2024-04-107	800	Korea
MS510219	2024-04-107	660	Korea
MS510219	2023-08-237	500	Korea
MS510219	2023-03-79	220	Korea
MS510219	2023-03-79	1600	Korea
MS510219	2022-01-04	105	United States
MS510219	2021-12-348	1400	Korea
MS510219	2021-07-203	5600	United States
MS51021-9	2020-09-268	804	South Korea
MS51021-9	2020-09-268	804	South Korea
MS51021-9	2020-09-268	312	South Korea
MS510219	2020-09-258	1000	South Korea
MS51021-9	2020-06-174	40	Hong Kong
MS510219	2018-07-211	50	Malaysia
MS510219	2018-07-211	50	Malaysia
MS51021-9	2018-05-150	3290	South Korea
MS51021-9	2018-05-149	3290	South Korea
5305-00-800-7261	2016-11-327	1	DIBBS-RFPs
5305-00-800-7261	2015-06-174	2000	US
MS510219	2014-06-168	20	Japan
MS51021-9	2014-02-59	20	TR
MS510219	2014-02-43	1	United States
5305-00-800-7261	2013-10-296	3866	DIBBS
5305-00-800-7261	2013-09-269	991	DIBBS
AN565DC4H2	2011-01-26	10	US
MS510219	2010-02-43	100	US
AN565DC4H2	2009-10-294	1	US
AN565DC4H2	2009-10-274	500	US
AN565DC4H2	2008-11-329	20000	US
5305-00-800-7261	2008-08-221	1	us
MS510219	2007-12-345	500	United States

Cross Reference | NSN 5305-00-800-7261

Part Number	Cage Code	Manufacturer
003-07941-009	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
010137	D0078	DIEHL BGT DEFENCE GMBH & CO. KG
0455-128	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
26-9055	F0296	THALES AVIONICS ELECTRICAL SYSTEMSSAS
317166	F0296	THALES AVIONICS ELECTRICAL SYSTEMSSAS
317166	F1688	GOODRICH ACTUATION SYSTEMS BUCVERNON SAS
317166	F6103	LUCAS FRANCE SA DIV AEROSPACE FRANCE
317166	FA3T0	LUCAS AEROSPACE FMS SAS FILIALE DE LUCAS FRANCE SA
4-40X1/8SKTSETRDHD32-030	70276	ALLEN MFG CO SUB OF CHICAGO PNEUMATIC TOOL CO
411121-9	96214	RAYTHEON COMPANY DBA RAYTHEON
43S90591-210	94135	NAVAL ORDNANCE STANDARDS
5002390-112	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5305008007261	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
592816	21450	ARMY WEAPONS COMMAND ATTN AMSWE-REE-S
70073-0802	14028	SYPRIS ELECTRONICS, LLC
722-010-204	26055	PARKER-HANNIFIN CORPORATION DBA ELECTRONICS SYSTEMS DIVISION
722-010-204	59211	PARKER-HANNIFIN CORPORATION DBA CUSTOMER SUPPORT MILITARY
92311A103	39428	MCMASTER-CARR SUPPLY COMPANY
A05266	K0967	MBDA UK LTD
AN565DC4-2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN565DC4H2	95542	NORTHROP GRUMMAN SYSTEMS CORPORATION
AN565DC4H2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
FFS103	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS51021-9	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS51021-9	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51022-9	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
N634P902	13688	MARTIN MARIETTA CORP ELECTRONICS LABORATORY
N634P902	31637	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
P2497-235	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
RT 207 039-2	13567	EXELIS INC. DIV NIGHT VISION & TACTICAL
RT-VA 207 039-2	13567	EXELIS INC. DIV NIGHT VISION & TACTICAL
S46000H4C4P	06845	RAYTHEON COMPANY DBA RAYTHEON
Y11+6	00141	ROLLER BEARING COMPANY OF AMERICA, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-800-7261

Compare

Related Products | NSN 5305-00-800-7261

5305-00-800-7441, 5305-00-800-7672, 5305-00-800-7976, 5305-00-800-7982, 5305-00-800-8004

Technical Data | NSN 5305-00-800-7261

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
FASTENER LENGTH	0.125 INCHES NOMINAL
MATERIAL	STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-763 FED SPEC ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HEAD STYLE	C101 HEADLESS
INTERNAL DRIVE STYLE	D5 HEXAGON
WIDTH ACROSS FLATS	0.050 INCHES MINIMUM AND 0.051 INCHES MAXIMUM
POINT STYLE	F20 CUP
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFS103

Restrictions/Controls & Freight Information | NSN 5305-00-800-7261

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-800-7261

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
