NSN 5305-00-815-9312 AN565DC4H8, 00-815-9312, 008159312
Product Details | SETSCREW
5305-00-815-9312 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: AN565DC4H8, 5305-00-815-9312, 00-815-9312, 5305008159312, 008159312
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-JAN-62 | 00-815-9312 | 06672 ( SETSCREW ) |

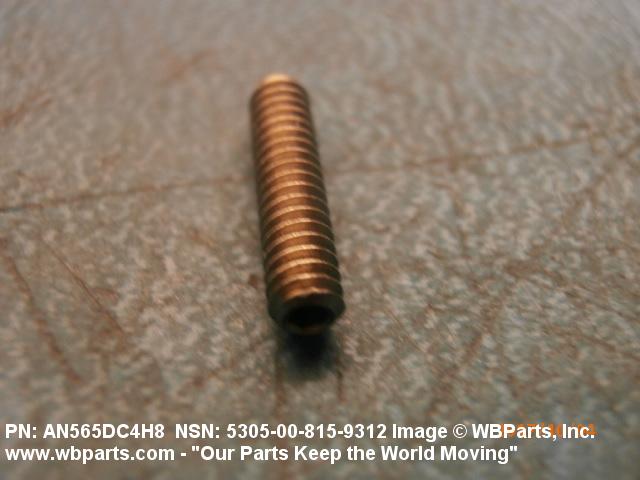

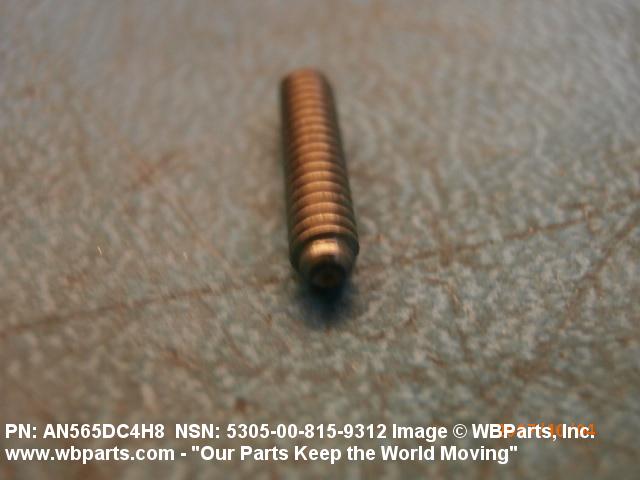

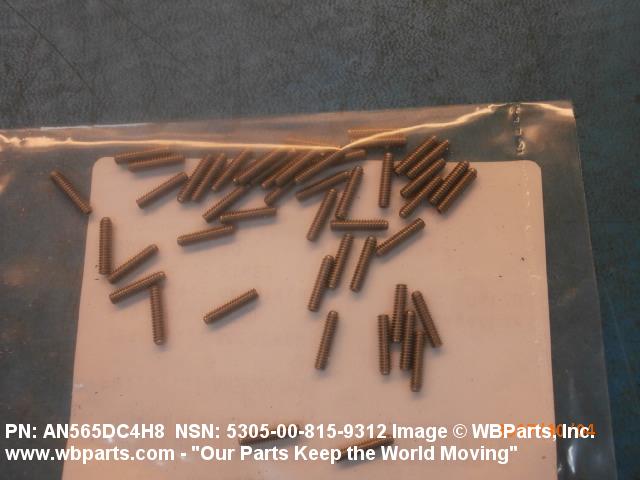

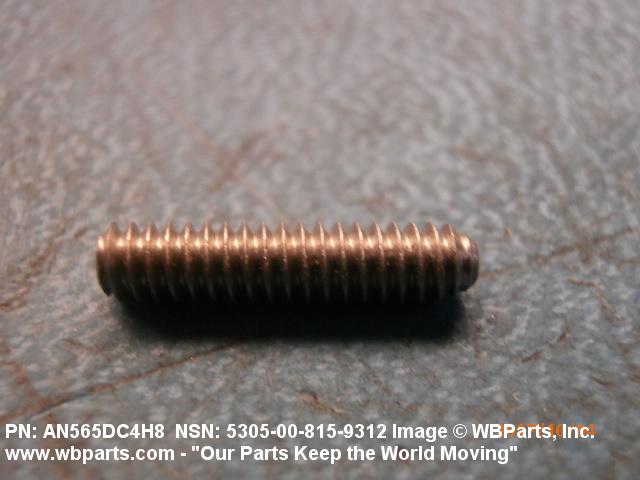

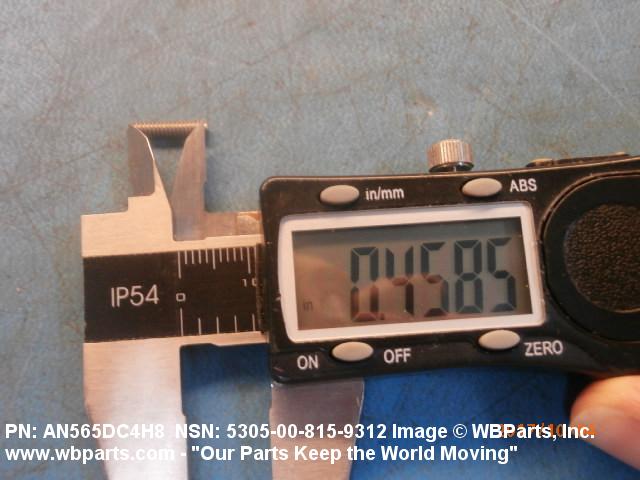

Drawings & Photos | NSN 5305-00-815-9312
Demand History | NSN 5305-00-815-9312
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-815-9312 | 2021-06-153 | 200 | US |
| 5305-00-815-9312 | 2017-09-256 | 50 | United States |
| 5305-00-815-9312 | 2014-07-195 | 30 | United States |
Cross Reference | NSN 5305-00-815-9312
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 003-07941-015 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 12Z1049-321 | 94135 | NAVAL ORDNANCE STANDARDS |
| 8599617-108 | 24617 | GENERAL MOTORS CORP |
| 8599617-108 | 99974 | DELCO ELECTRONICS CORP DELCO SYSTEMS OPNS |
| A07997 | K0967 | MBDA UK LTD |
| MS51021-15 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS51021-15 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-815-9312
Technical Data | NSN 5305-00-815-9312
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |

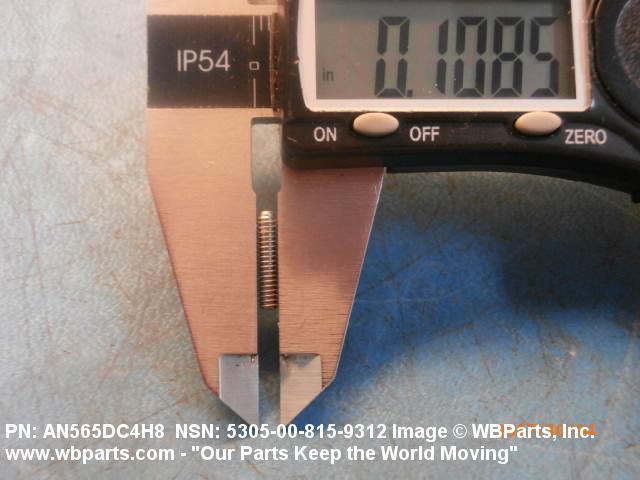

| NOMINAL THREAD DIAMETER | 0.112 INCHES |

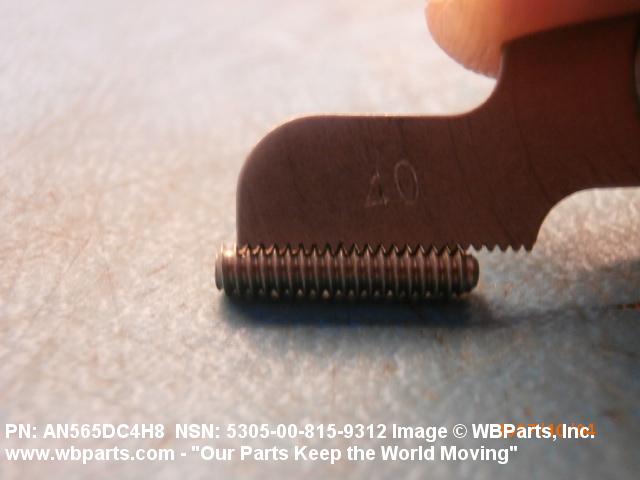

| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.500 INCHES MAXIMUM |

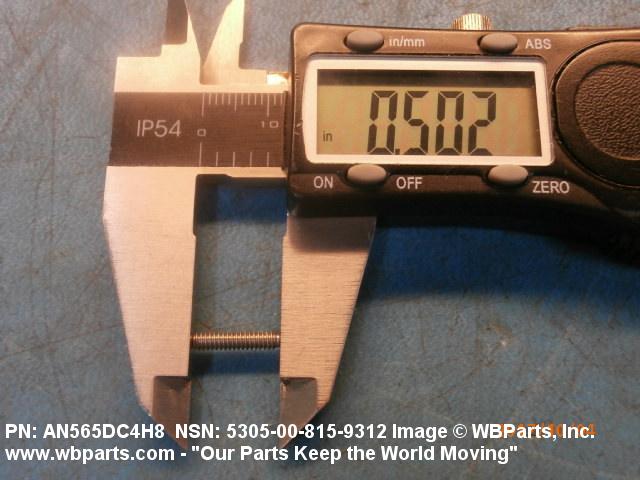

| FASTENER LENGTH | 0.500 INCHES NOMINAL |
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7720 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HEAD STYLE | C101 HEADLESS |
| INTERNAL DRIVE STYLE | D5 HEXAGON |

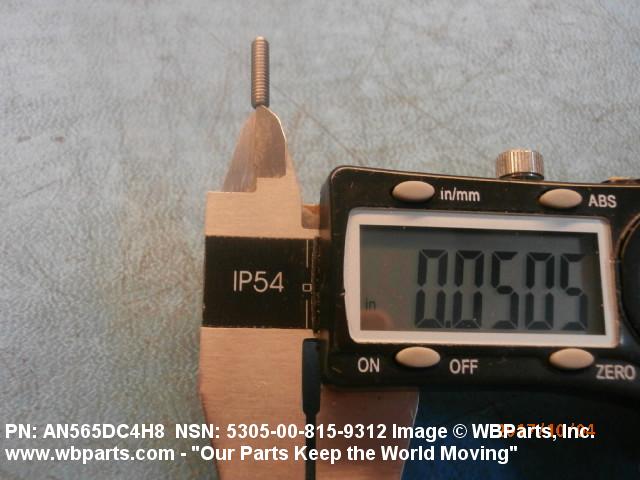

| WIDTH ACROSS FLATS | 0.050 INCHES MINIMUM AND 0.051 INCHES MAXIMUM |
| POINT STYLE | F20 CUP |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN565DC4H8 |
Restrictions/Controls & Freight Information | NSN 5305-00-815-9312
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
