NSN 5305-00-896-0775 AIC811514, AIC811-5-14, AOL4166513
Product Details | SOCKET HEAD CAP SCREW

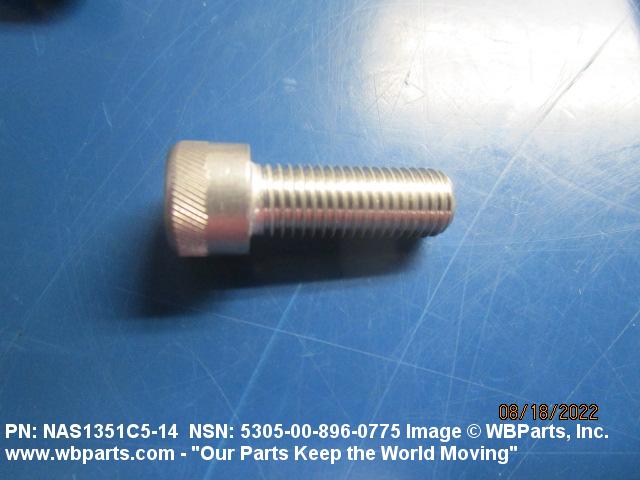

5305-00-896-0775 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: AIC811514, AIC811-5-14, AOL4166513, AOL4166-513, NAS1351C514, NAS1351C5-14, BCP50001513C, BCP50001-513C, CBS811514, CBS811-5-14, E723513, E723-513, FS20015513C, FS2001-5-513C, PBF1069513C, PBF1069-513C, 3V2111513C, 3V2111-513C, 61406055056, 73573514C, 73573-5-14C, 8219513, 8219-513, 965811513C, 965811-513C, 5305-00-896-0775, 00-896-0775, 5305008960775, 008960775
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 FEB 1967 | 00-896-0775 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

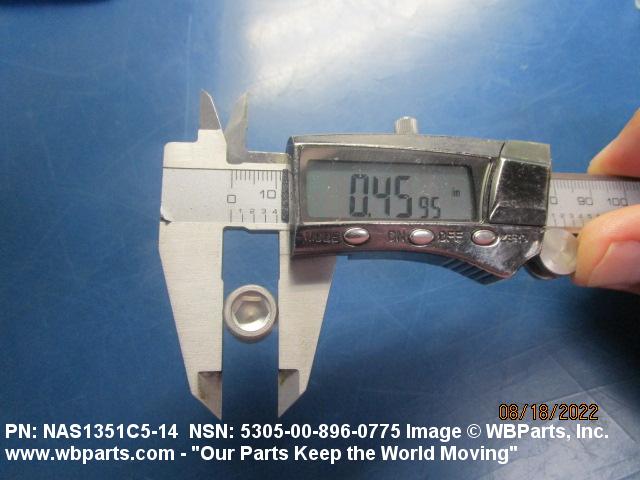

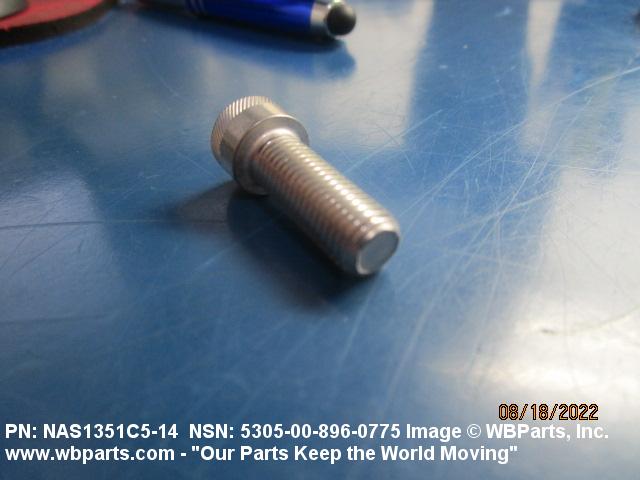

Drawings & Photos | NSN 5305-00-896-0775
Demand History | NSN 5305-00-896-0775
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3V2111-513C | 2024-05-135 | 1129 | DIBBS |
| 73573-5-14C | 2024-05-135 | 1129 | DIBBS |
| 965811-513C | 2024-05-135 | 1129 | DIBBS |
| AIC811-5-14 | 2024-05-135 | 1129 | DIBBS |
| AOL4166-513 | 2024-05-135 | 1129 | DIBBS |
| BCP50001-513C | 2024-05-135 | 1129 | DIBBS |
| CBS811-5-14 | 2024-05-135 | 1129 | DIBBS |
| E723-513 | 2024-05-135 | 1129 | DIBBS |
| FS2001-5-513C | 2024-05-135 | 1129 | DIBBS |
| NAS1351C5-14 | 2024-05-135 | 1129 | DIBBS |
| PBF1069-513C | 2024-05-135 | 1129 | DIBBS |
| NAS1351C514 | 2022-08-242 | 110 | Taiwan |
| 5305-00-896-0775 | 2022-07-193 | 300 | TW |
| NAS1351C514 | 2022-07-189 | 100 | United States |
| NAS1351C514 | 2022-07-188 | 100 | United States |
| NAS1351C514 | 2021-10-286 | 25 | United States |
| 5305-00-896-0775 | 2018-02-42 | 1321 | DIBBS |
| 5305-00-896-0775 | 2016-12-340 | 326 | DIBBS |
| 5305-00-896-0775 | 2016-03-63 | 226 | DIBBS |
| 5305-00-896-0775 | 2015-07-210 | 213 | DIBBS |
| 5305-00-896-0775 | 2014-02-42 | 355 | DIBBS |
| 5305-00-896-0775 | 2014-02-41 | 102 | DIBBS |
| 5305-00-896-0775 | 2012-08-223 | 150 | United States |
| 5305-00-896-0775 | 2011-02-34 | 22 | DIBBS |
| 5305-00-896-0775 | 2010-05-132 | 26 | DIBBS |
Cross Reference | NSN 5305-00-896-0775
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3V2111-513C | 1ER65 | 3-V FASTENER CO., INC. |
| 61406055056 | 89944 | KOLLSMAN, INC. |
| 73573-5-14C | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 8219-513 | 58251 | FIRST AMERICAN SALES CO INC |
| 965811-513C | 6F810 | IDEAL FASTENERS INC. |
| 965811-513C | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| AIC811-5-14 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| AOL4166-513 | 57472 | ALL MANUFACTURERS, INC. DBA ALLIED HARBOR AEROSPACE |
| BCP50001-513C | 62206 | B & B SPECIALTIES, INC |
| CBS811-5-14 | 0F620 | C B S FASTENERS, INC |
| E723-513 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| FS2001-5-513C | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
| NAS1351C5-14 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| PBF1069-513C | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-896-0775
Related Products | NSN 5305-00-896-0775
Technical Data | NSN 5305-00-896-0775
| Characteristic | Specifications |
|---|---|

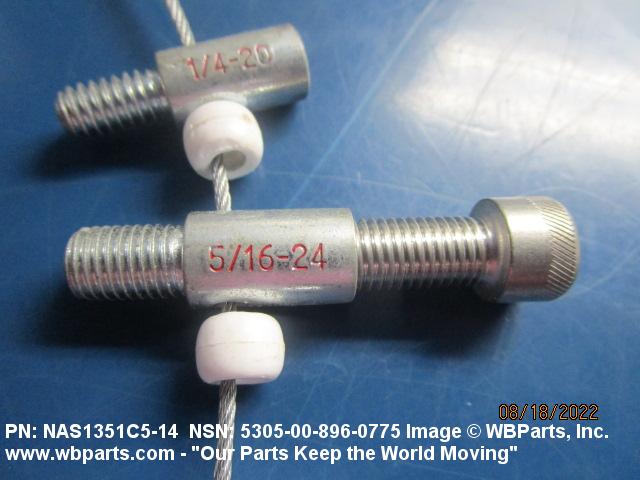

| THREAD SERIES DESIGNATOR | UNRF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.762 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |

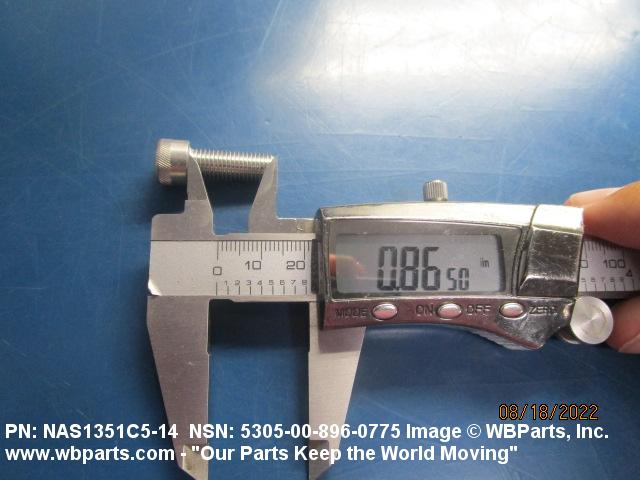

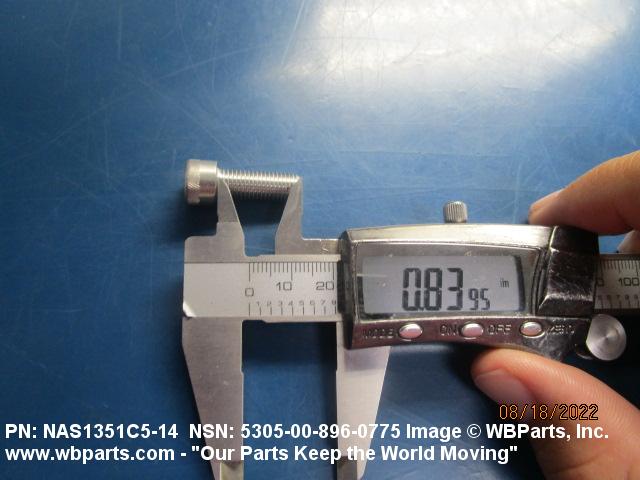

| FASTENER LENGTH | 0.845 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 384 OR STEEL COMP XM-7 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD 1ST MATERIAL RESPONSE OR 66 FED STD 2ND MATERIAL RESPONSE OR 66 FED STD 3RD MATERIAL RESPONSE OR 66 FED STD 4TH MATERIAL RESPONSE OR 66 FED STD 5TH MATERIAL RESPONSE OR ASTM A493 ASSN STD 6TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 80.0 ROCKWELL B MINIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 80000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 30000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |

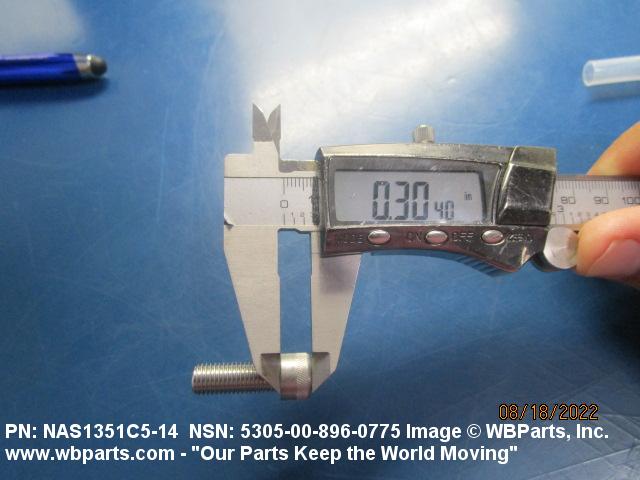

| HEAD DIAMETER | 0.457 INCHES MINIMUM AND 0.469 INCHES MAXIMUM |
| HEAD HEIGHT | 0.306 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |

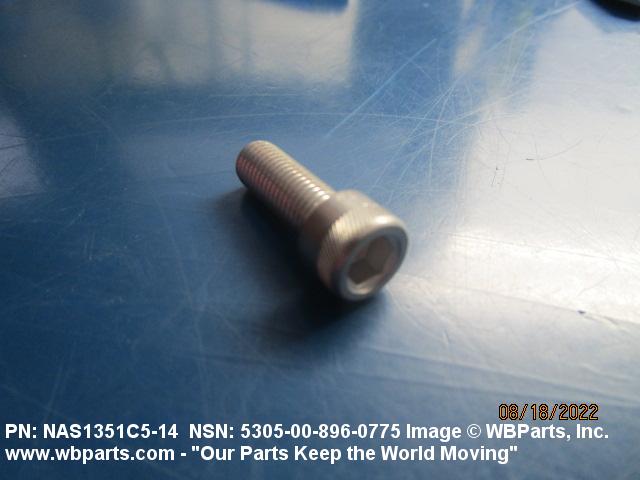

| INTERNAL DRIVE STYLE | D5 HEXAGON |

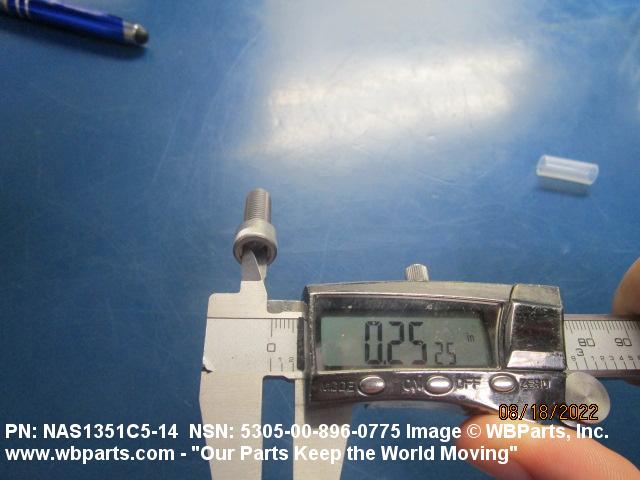

| WIDTH ACROSS FLATS | 0.250 INCHES MINIMUM AND 0.253 INCHES MAXIMUM |
