Product Details | SETSCREW

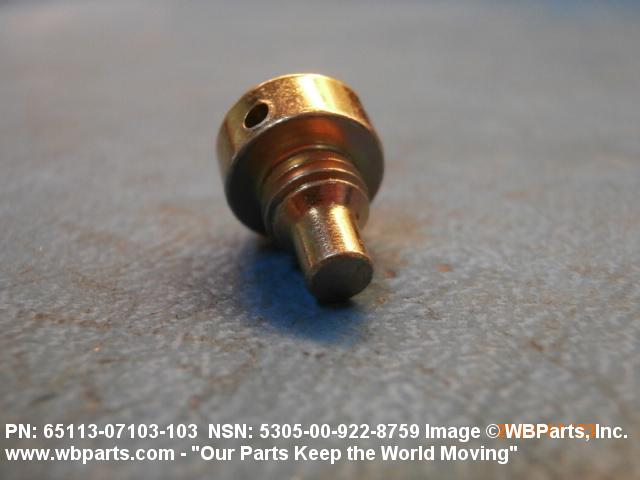

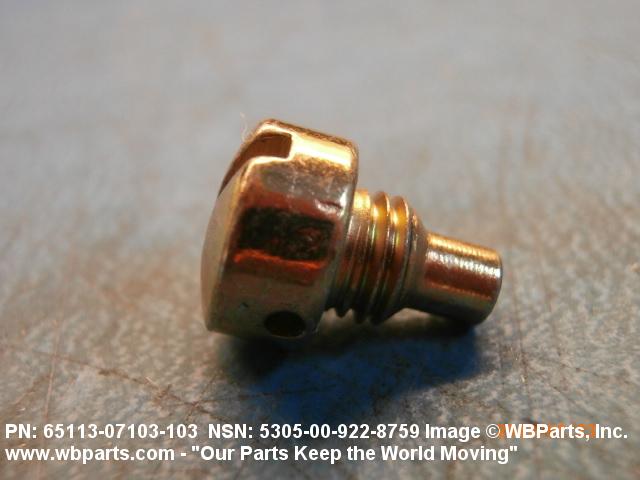

5305-00-922-8759 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 65113-07103-103, 5305-00-922-8759, 00-922-8759, 5305009228759, 6511307103103, 009228759
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 DEC 1965 | 00-922-8759 | 06672 ( SETSCREW ) |

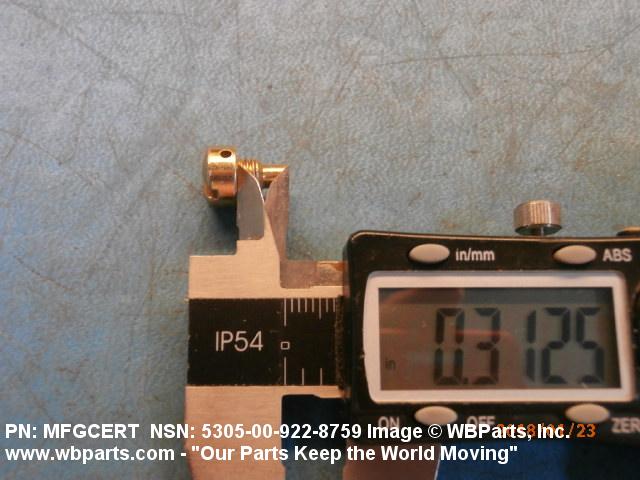

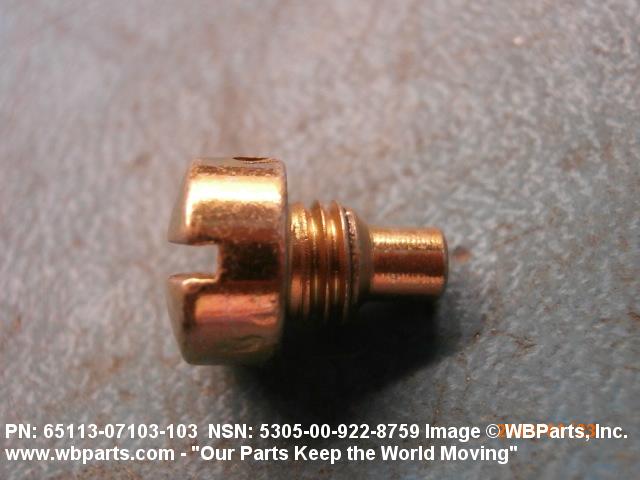

Drawings & Photos | NSN 5305-00-922-8759
Demand History | NSN 5305-00-922-8759
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 65113-07103-103 | 2025-12-341 | 5255 | DIBBS |
| 65113-07103-103 | 2025-11-317 | 178 | DIBBS |
| 65113-07103-103 | 2025-10-275 | 3578 | DIBBS |
| 65113-07103-103 | 2025-09-266 | 3578 | DIBBS |
| 65113-07103-103 | 2025-09-252 | 2746 | DIBBS |
| 65113-07103-103 | 2025-08-219 | 3578 | DIBBS |
| 65113-07103-103 | 2025-08-219 | 2746 | DIBBS |
| 5305-00-922-8759 | 2024-05-151 | 3830 | DIBBS |
| 5305-00-922-8759 | 2024-03-85 | 2 | us |
| 5305-00-922-8759 | 2024-03-81 | 4 | United States |
| 5305-00-922-8759 | 2024-03-80 | 4 | United States |
| 5305-00-922-8759 | 2024-03-72 | 4 | United States |
| 5305-00-922-8759 | 2024-03-64 | 4 | United States |
| 5305-00-922-8759 | 2024-02-51 | 4 | United States |
| 5305-00-922-8759 | 2024-02-47 | 4 | United States |
| 5305-00-922-8759 | 2023-12-353 | 90 | US |
| 6511-30-710-3103 | 2023-06-173 | 2 | Australia |
| 5305-00-922-8759 | 2022-03-79 | 2028 | DIBBS |
| 5305-00-922-8759 | 2021-11-333 | 316 | DIBBS |
| 5305-00-922-8759 | 2021-11-322 | 316 | DIBBS |
| 5305-00-922-8759 | 2021-11-307 | 2 | United States |
| 5305-00-922-8759 | 2020-11-324 | 6907 | DIBBS |
| 5305-00-922-8759 | 2020-11-313 | 6907 | DIBBS |
| 5305-00-922-8759 | 2020-04-100 | 2047 | DIBBS |
| 5305-00-922-8759 | 2020-04-92 | 2047 | DIBBS |
| 5305-00-922-8759 | 2020-02-59 | 4359 | DIBBS |
| 5305-00-922-8759 | 2020-02-43 | 4359 | DIBBS |
| 5305-00-922-8759 | 2019-10-280 | 4130 | DIBBS |
| 5305-00-922-8759 | 2019-05-149 | 10 | US |
| 5305-00-922-8759 | 2019-01-17 | 3650 | DIBBS |
| 5305-00-922-8759 | 2018-12-337 | 1015 | DIBBS |
| 5305-00-922-8759 | 2018-10-282 | 2355 | DIBBS |
| 5305-00-922-8759 | 2018-08-232 | 2678 | DIBBS |
| 5305-00-922-8759 | 2018-04-105 | 7510 | DIBBS |
| 6511-30-710-3103 | 2017-12-347 | 20 | United States |
| 6511-30-710-3103 | 2017-11-333 | 20 | United States |
| 6511-30-710-3103 | 2017-11-331 | 20 | IL |
| 5305-00-922-8759 | 2017-11-309 | 211 | DIBBS |
| 6511-30-710-3103 | 2017-09-249 | 2 | United States |
| 5305-00-922-8759 | 2017-06-152 | 11000 | DIBBS |
| 5305-00-922-8759 | 2016-08-238 | 4508 | DIBBS |
| 5305-00-922-8759 | 2016-05-136 | 5001 | DIBBS |
| 5305-00-922-8759 | 2015-02-42 | 3897 | DIBBS |
| 5305-00-922-8759 | 2009-06-163 | 5624 | DIBBS |
| 5305-00-922-8759 | 2008-09-253 | 22500 | DIBBS |
| 5305-00-922-8759 | 2008-05-130 | 15000 | DIBBS |
| 5305-00-922-8759 | 2008-05-128 | 12907 | DIBBS |
| 5305-00-922-8759 | 2008-01-28 | 12637 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-922-8759
Related Products | NSN 5305-00-922-8759
Technical Data | NSN 5305-00-922-8759

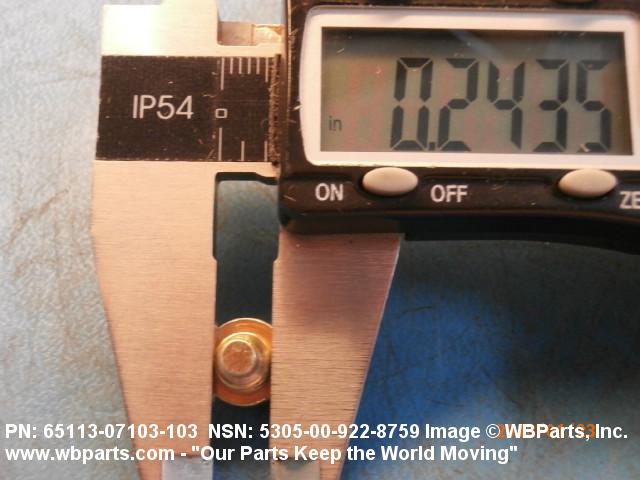

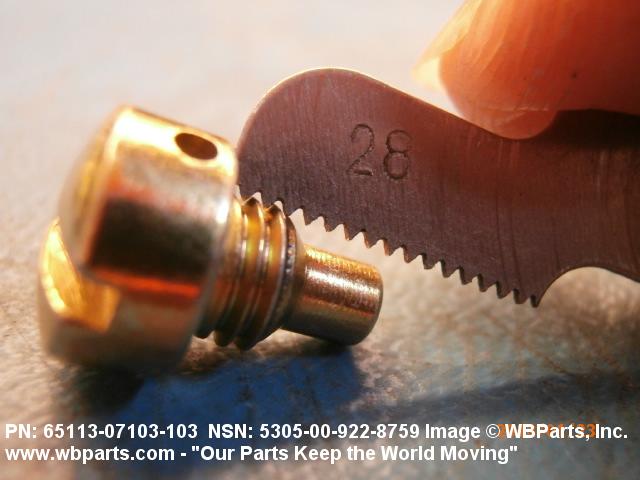

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

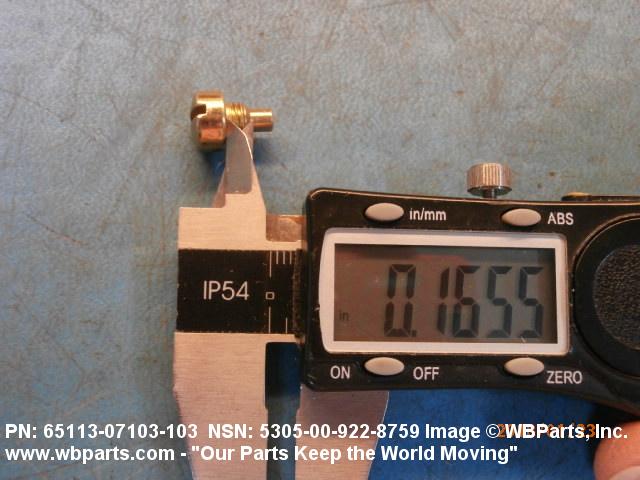

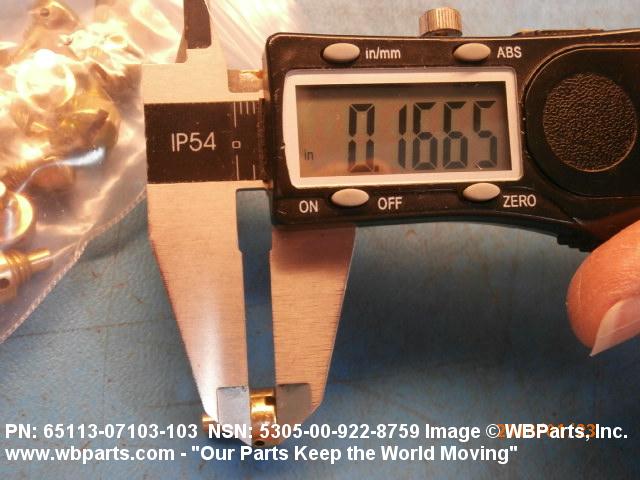

| THREAD LENGTH | 0.165 INCHES MINIMUM AND 0.170 INCHES MAXIMUM |

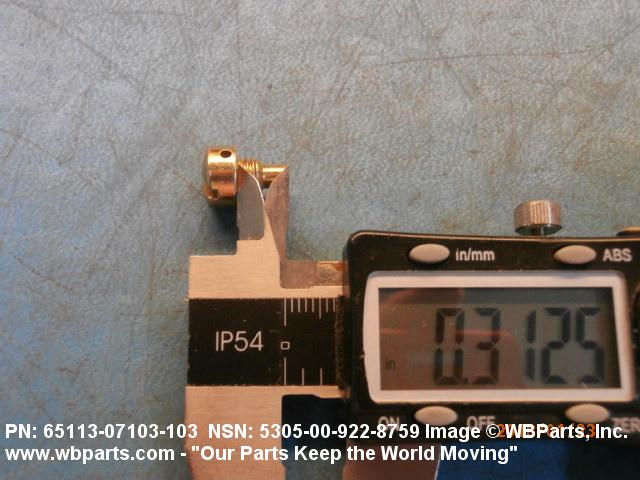

| FASTENER LENGTH | 0.312 INCHES NOMINAL |
| MATERIAL | STEEL COMP 1010 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-634 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

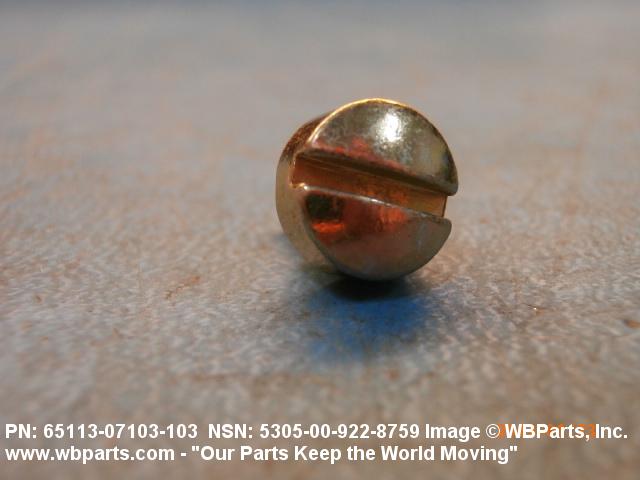

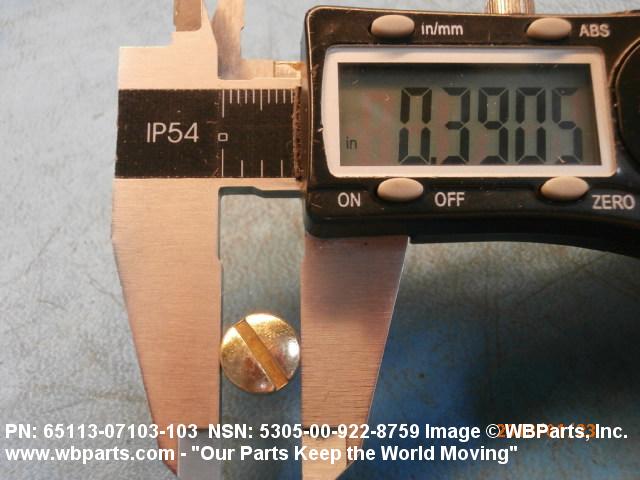

| HEAD STYLE | C44 FILLISTER |
| HEAD DIAMETER | 0.389 INCHES MINIMUM AND 0.414 INCHES MAXIMUM |
| HEAD HEIGHT | 0.161 INCHES MINIMUM AND 0.170 INCHES MAXIMUM |

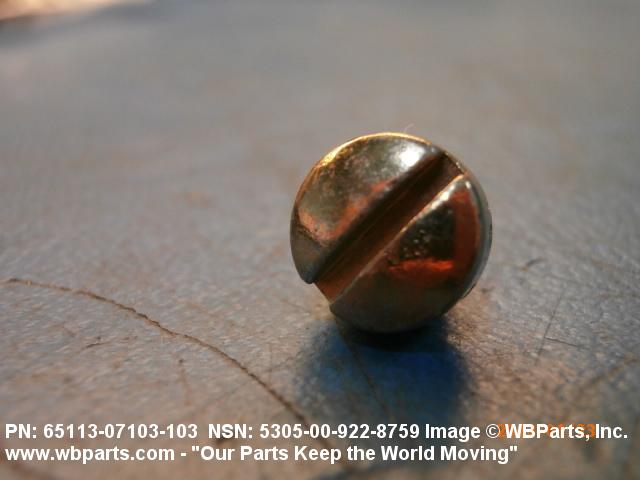

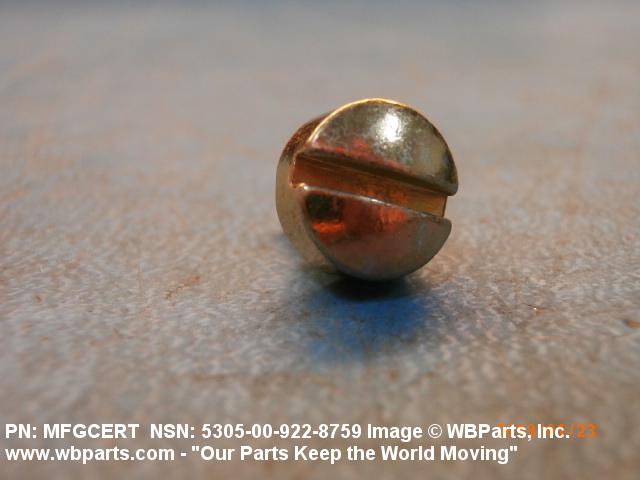

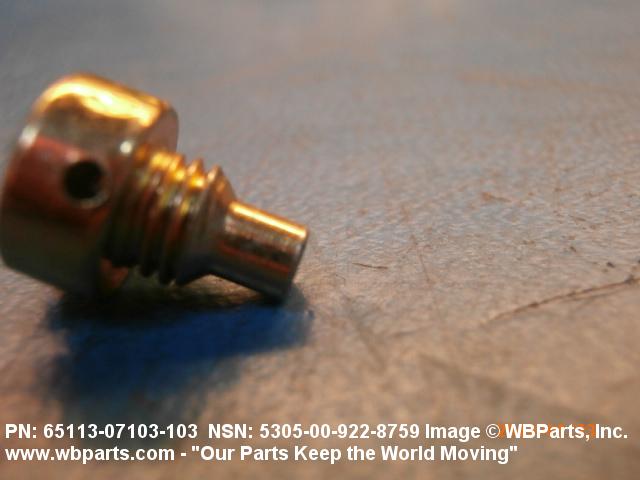

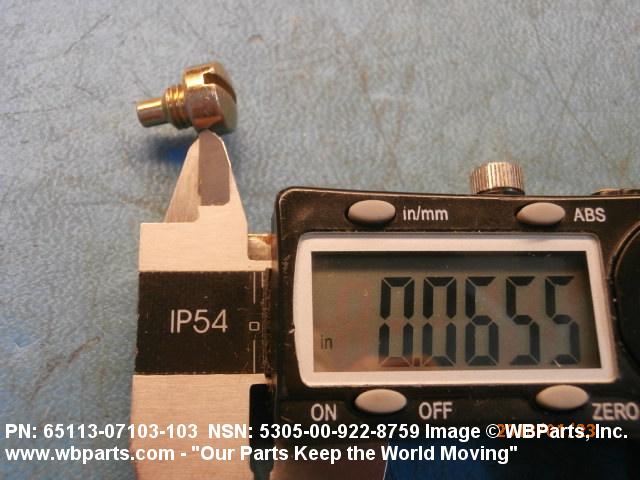

| INTERNAL DRIVE STYLE | D14 SLOT |
| HOLE CONFIGURATION STYLE | E9 ROUND |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 1 |
| HOLE DIAMETER | 0.062 INCHES NOMINAL |
| POINT STYLE | F9 FLAT |

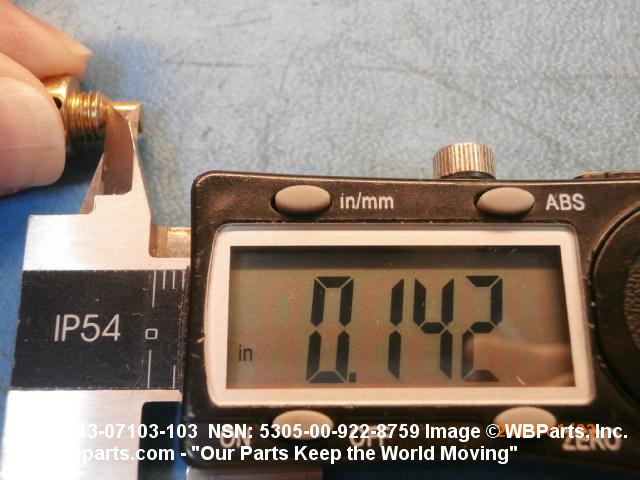

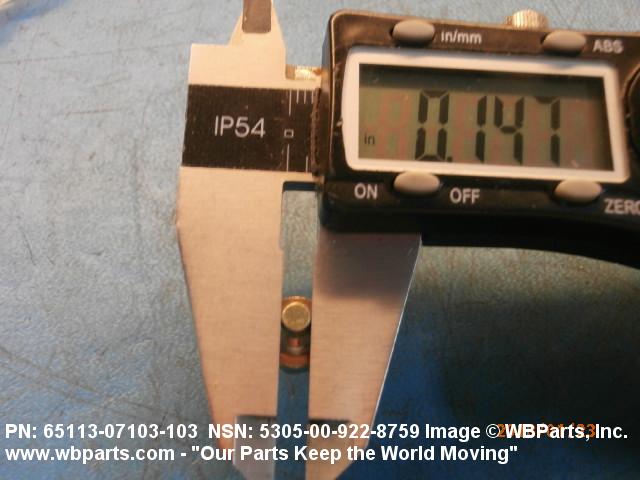

| POINT LENGTH | 0.142 INCHES MINIMUM AND 0.147 INCHES MAXIMUM |
