NSN 5305-00-936-4983 M73CR82014P, M73CR820-14P, AES40K500878EE0A15
Product Details | SETSCREW
5305-00-936-4983 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: M73CR82014P, M73CR820-14P, AES40K500878EE0A15, FFS200, FF-S-200, MILDTL18240, MIL-DTL-18240, MILDTL18240F1, 5305-00-936-4983, 00-936-4983, 5305009364983, 009364983
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 MAR 1967 | 00-936-4983 | 06672 ( SETSCREW ) |

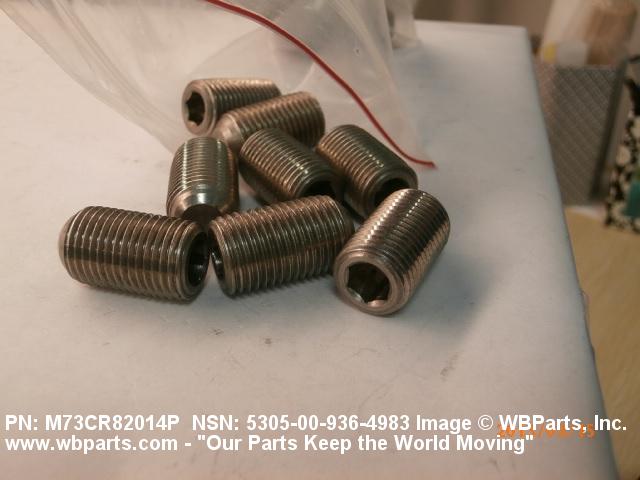

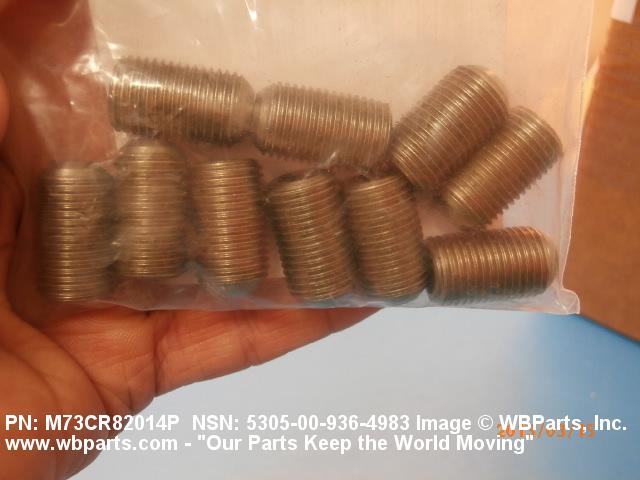

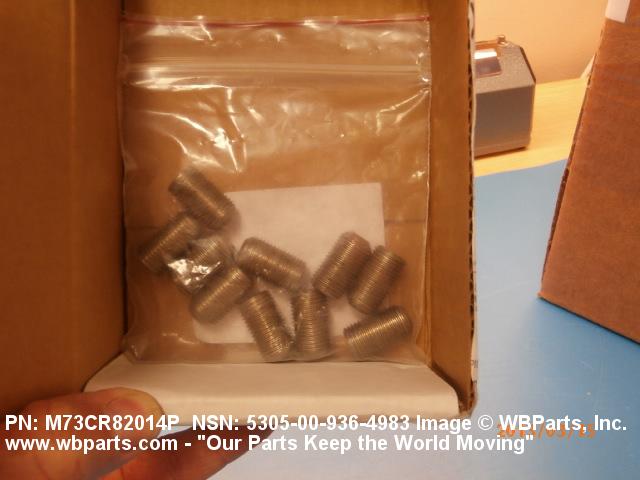

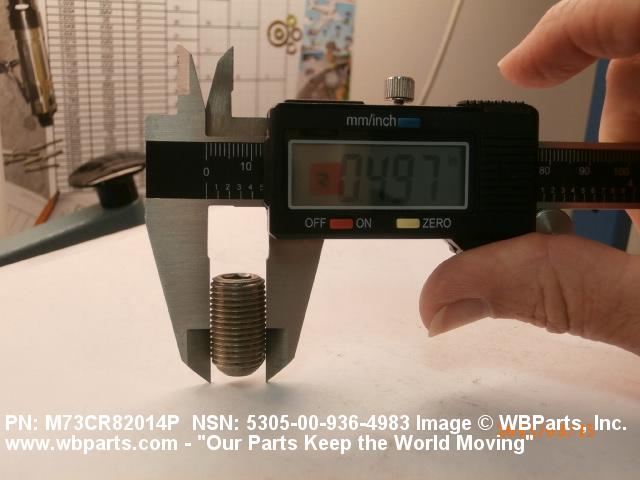

Drawings & Photos | NSN 5305-00-936-4983
Demand History | NSN 5305-00-936-4983
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILDTL18240 | 2025-02-45 | 8 | United States |
| M73CR82014P | 2013-03-66 | 10 | United Kingdom |
| M73CR820-14P | 2013-03-65 | 10 | United Kingdom |
| FFS200 | 2011-10-280 | 28 | United States |
| FFS200 | 2009-12-344 | 20 | Canada |
| FFS200 | 2009-10-288 | 100 | US |
| 5305-00-936-4983 | 2009-05-133 | 332 | DIBBS |
| 5305-00-936-4983 | 2008-06-170 | 101 | DIBBS |
Cross Reference | NSN 5305-00-936-4983
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-936-4983
Technical Data | NSN 5305-00-936-4983
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.875 INCHES MINIMUM |

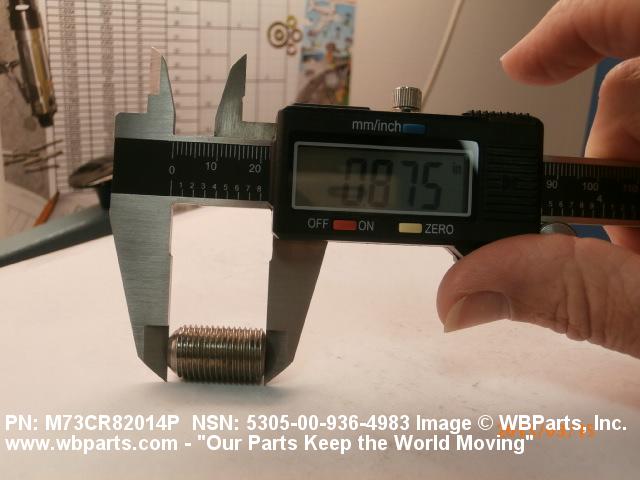

| FASTENER LENGTH | 0.875 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| HEAD STYLE | C101 HEADLESS |

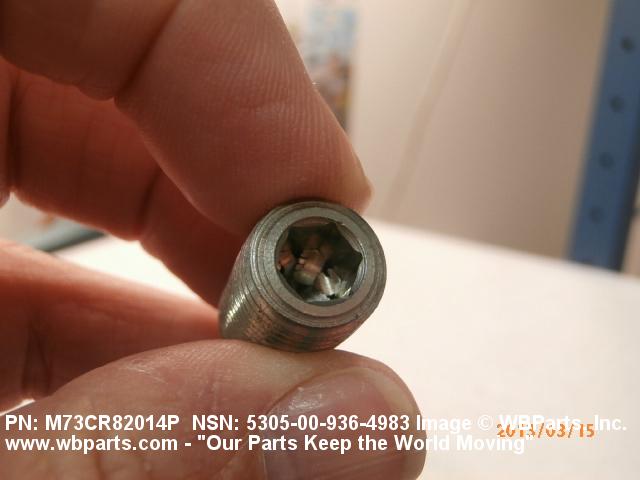

| INTERNAL DRIVE STYLE | D5 HEXAGON |

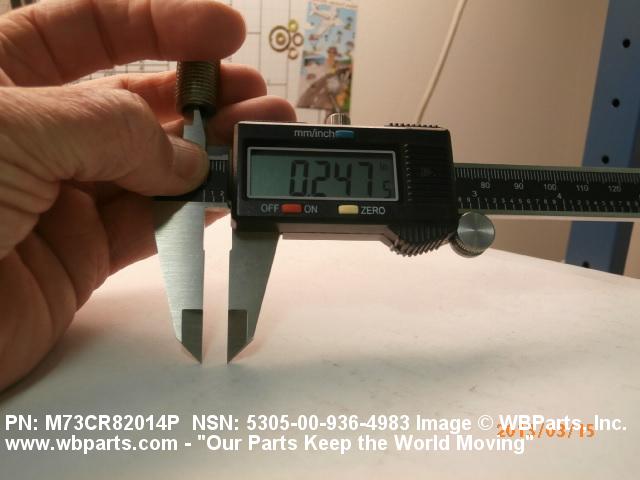

| WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |
| LOCKING FEATURE | STRIP THREADS |
| POINT STYLE | F19 FLAT |
Restrictions/Controls & Freight Information | NSN 5305-00-936-4983
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | 48 | Federal Aviation Administration Oklahoma City, OK 73125 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-936-4983
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
