NSN 5305-00-969-4350 MS180662, MS18066-2, FFS200
Product Details | SETSCREW
5305-00-969-4350 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: MS180662, MS18066-2, FFS200, FF-S-200, 5305-00-969-4350, 00-969-4350, 5305009694350, 009694350
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 JUN 1966 | 00-969-4350 | 06672 ( SETSCREW ) |

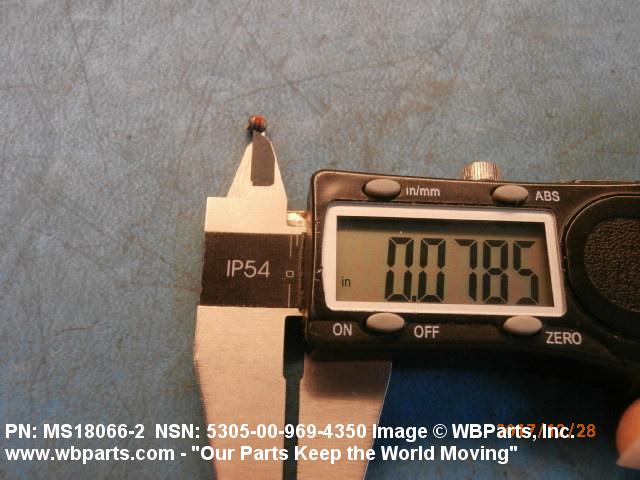

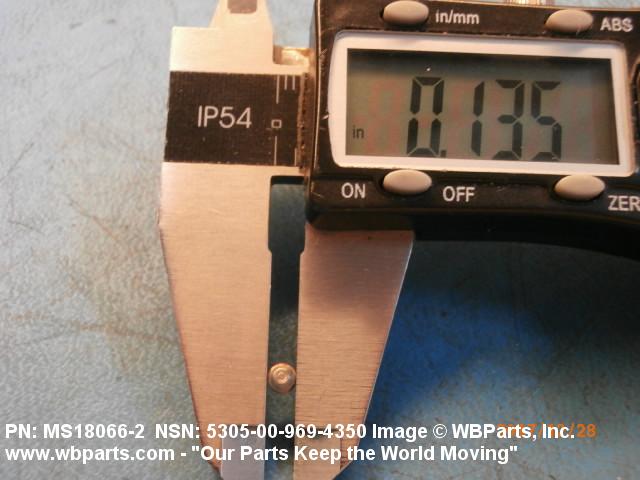

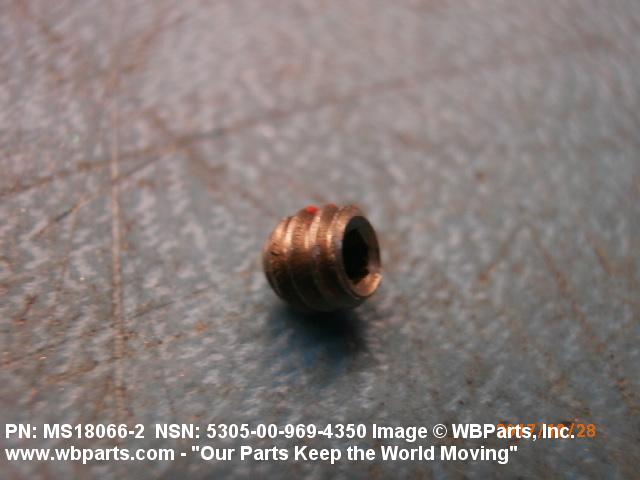

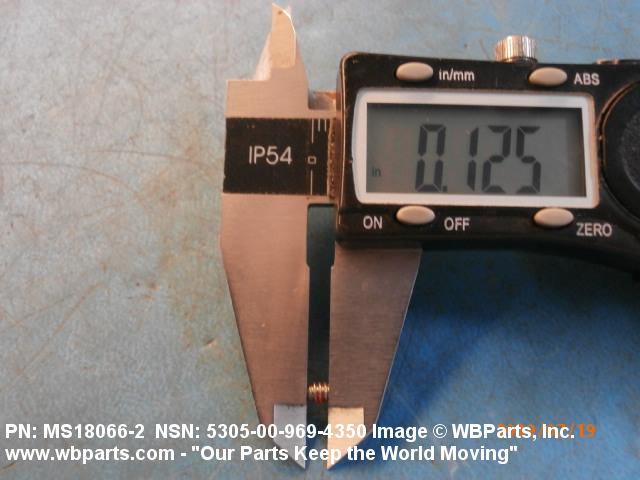

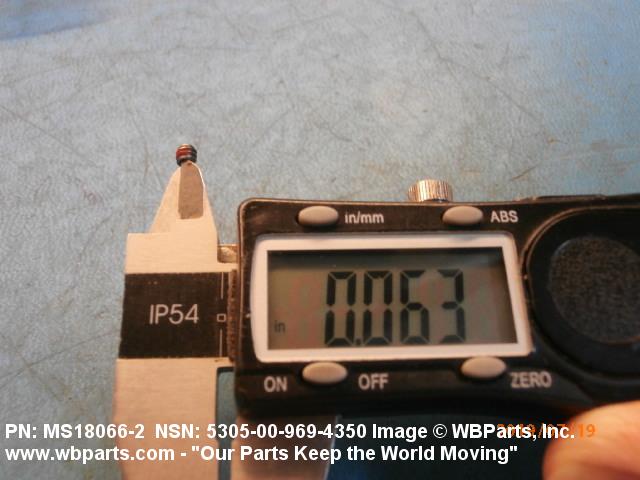

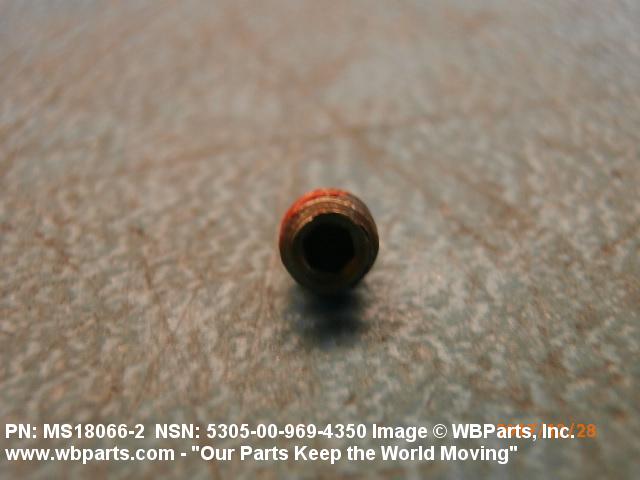

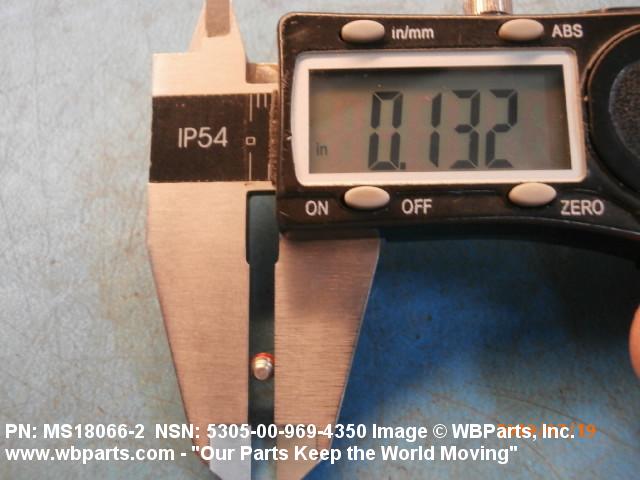

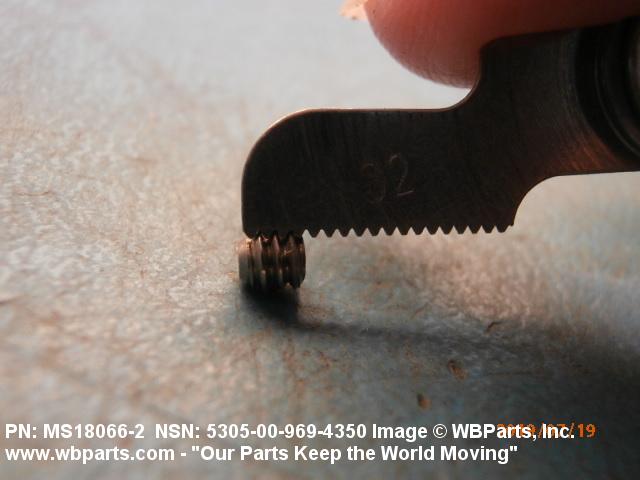

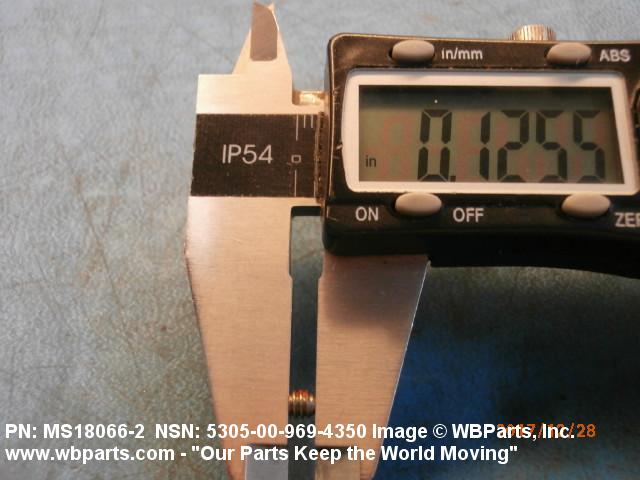

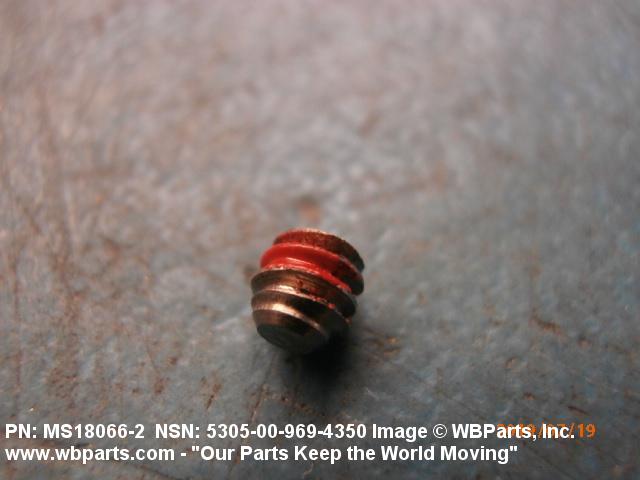

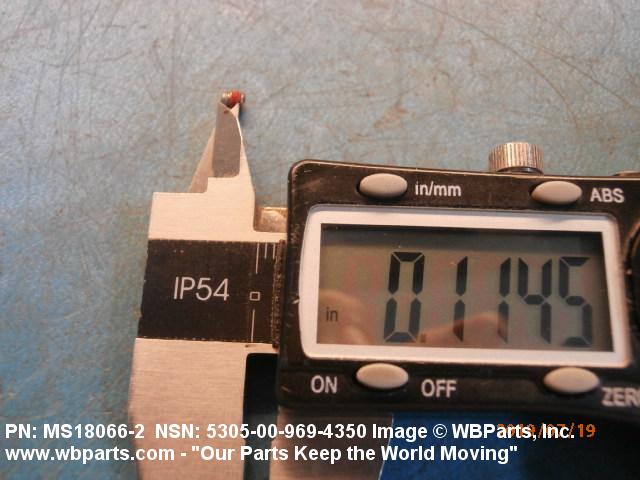

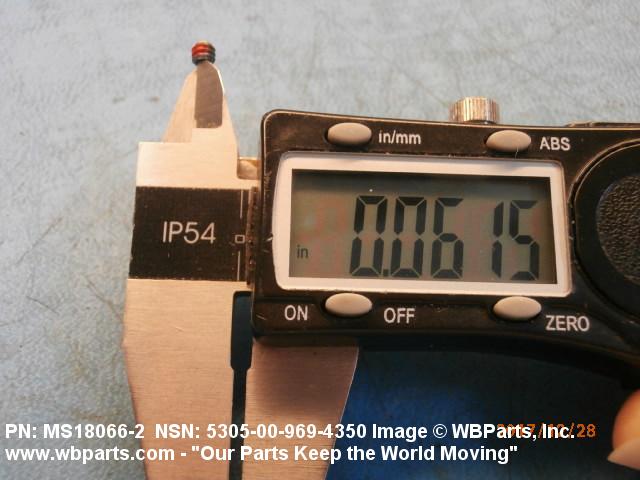

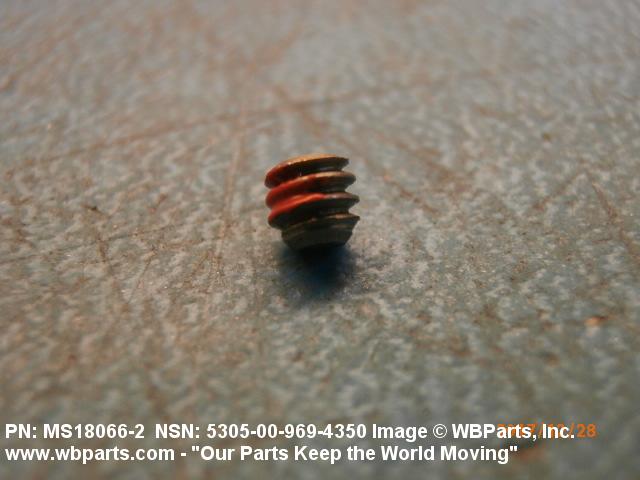

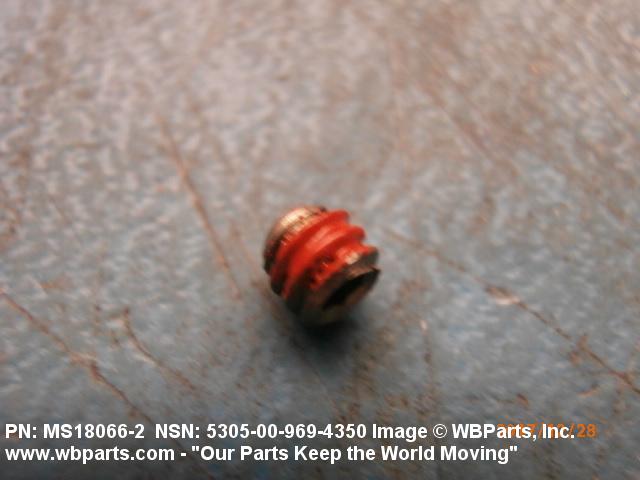

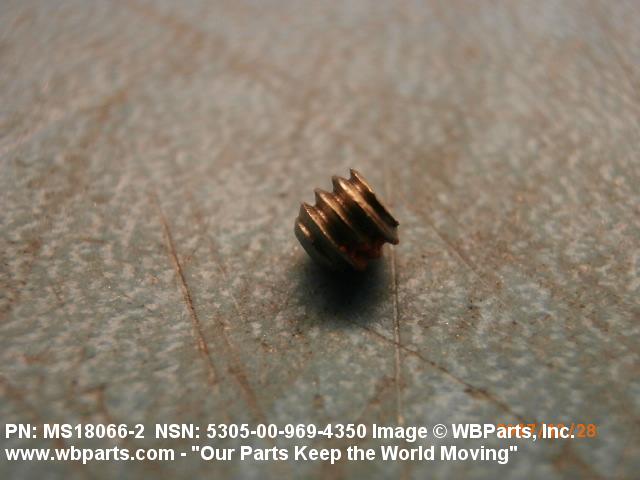

Drawings & Photos | NSN 5305-00-969-4350
Demand History | NSN 5305-00-969-4350
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS180662 | 2025-08-238 | 50 | United States |
| MS180662 | 2025-07-197 | 50 | United States |
| MS180662 | 2019-07-193 | 100 | South Korea |
| MS18066-2 | 2019-02-45 | 80 | South Korea |
| MS18066-2 | 2019-01-17 | 80 | South Korea |
| MS18066-2 | 2018-05-135 | 29 | South Korea |
| MS180662 | 2017-12-349 | 100 | South Korea |
| MS18066-2 | 2017-11-324 | 62 | South Korea |
| MS18066-2 | 2017-01-19 | 130 | South Korea |
| MS180662 | 2016-07-187 | 50 | South Korea |
| FFS200 | 2011-10-280 | 28 | United States |
| FFS200 | 2009-12-344 | 20 | Canada |
| FFS200 | 2009-10-288 | 100 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-969-4350
Technical Data | NSN 5305-00-969-4350
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD LENGTH | 0.125 INCHES MAXIMUM |
| FASTENER LENGTH | 0.125 INCHES NOMINAL |
| MATERIAL | STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.062 INCHES MINIMUM AND 0.063 INCHES MAXIMUM |
| LOCKING FEATURE | PATCH OR PELLET OR STRIP THREADS |
| POINT STYLE | F19 FLAT |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 1 STYLE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-S-200 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS18066-2 |
Restrictions/Controls & Freight Information | NSN 5305-00-969-4350
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5305-00-969-4350
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
