Product Details | SOCKET HEAD CAP SCREW

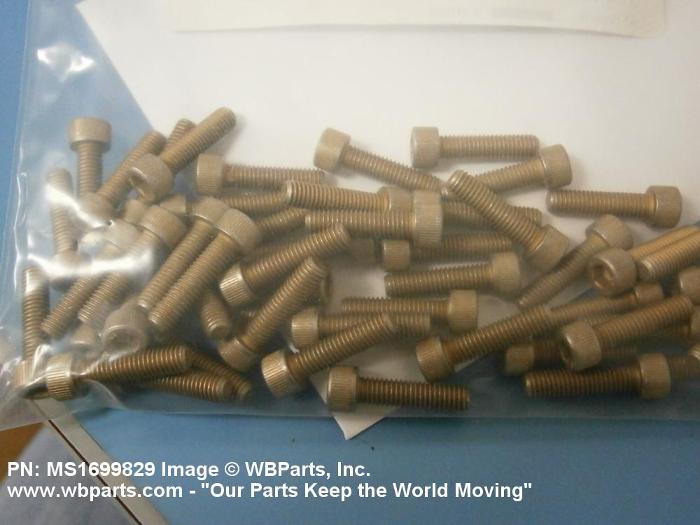

5305-00-983-6652 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: MS1699829, MS16998-29, FFS86, FF-S-86, 0818289, 0818-289, 131C738H01, 200973F12C, 20097-3F12C, 224947, 3241497000, 324-1497-000, 345628PC205, 59793892, 5979389-2, 6300766-29, 6300798312, 6300798-3-12, 87040700, 870407-00, 5305-00-983-6652, 00-983-6652, 5305009836652, 009836652, 630076629
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-983-6652 | 16282 ( SCREW, CAP, SOCKET HEAD ) |
Drawings & Photos | NSN 5305-00-983-6652
Demand History | NSN 5305-00-983-6652
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-983-6652 | 2023-07-12 | 4 | Germany |
| FFS86 | 2022-05-23 | 40 | United States |
| FFS86 | 2021-12-13 | 40 | US |
| 5305-00-983-6652 | 2021-09-07 | 16 | Germany |
| MS1699829 | 2017-12-18 | 9600 | US |
| MS1699829 | 2017-08-07 | 50 | US |
| MS1699829 | 2016-05-11 | 20 | us |
| 5305-00-983-6652 | 2015-07-15 | 12 | US |
| MS16998-29 | 2014-03-12 | 83 | United States |
| FFS86 | 2013-08-17 | 80 | Canada |
| FFS86 | 2012-03-14 | 2 | US |
| MS16998-29 | 2011-11-09 | 50 | US |
| MS16998-29 | 2011-11-09 | 50 | US |
| MS16998-29 | 2011-10-11 | 50 | United States |
| FFS86 | 2011-08-10 | 50 | US |
| FFS86 | 2011-08-02 | 50 | US |
| MS1699829 | 2011-06-16 | 2 | US |
| FFS86 | 2011-03-02 | 8 | US |
| FFS86 | 2011-03-01 | 5000 | US |
| MS1699829 | 2011-02-15 | 24 | United States |
| 5305-00-983-6652 | 2009-11-06 | 1 | US |
| 5305-00-983-6652 | 2009-11-06 | 2 | US |
| 5305-00-983-6652 | 2009-06-04 | 18791 | DIBBS |
| 5305-00-983-6652 | 2008-09-02 | 18791 | DIBBS |
| 5305-00-983-6652 | 2008-02-15 | 100 | Taiwan |
Cross Reference | NSN 5305-00-983-6652
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0818-289 | 07187 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 131C738H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 20097-3F12C | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 224947 | K4413 | EATON AEROSPACE, POWER & MOTIONCONTROL DIVISION |
| 3176207-A-075 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 324-1497-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 345628PC205 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 5305009836652 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5979389-2 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 6300766-29 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 6300798-3-12 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 870407-00 | 32345 | DEFENSE REDUCTION AGENCY |
| FF-S-86 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS16998-29 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS16998-29 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NAS1351-12P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
