NSN 5305-00-984-4992 MS35206232, MS35206-232, MS35206232B

Product Details | MACHINE SCREW

5305-00-984-4992 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS35206232, MS35206-232, MS35206232B, MS35206-232B, MS3522332, MS35223-32, MS3522532, MS35225-32, MS931304, MS9313-04 , N80P13012C6, NASM35206, NASM35206232, NASM35206-232, AN515612, AN515-6-12, AN5156R12, AN515-6R12, SC20658, SC2065-8, FFS92, LS255012, LS2550-12, 53577-10-16, 612750, 65564493232, 655-644-93232, 71136232, 71136-232, 7S4612, 7S4-6-12, 81589800, 815898-00, 8220740075, 82-2074-0075, 935.63.11.045, 9356311045, 1027301612, 1027301-6-12, 1177612, 1177-6-12, 1487HX, 154998, 19048, 19048ADX, 2018574, 3029540147, 30-295-401-47, 415 522, 415522, 4177205032, 4177205-032, 5305-00-984-4992, 00-984-4992, 5305009844992, 009844992, 535771016

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-984-4992	06657 ( SCREW, MACHINE )

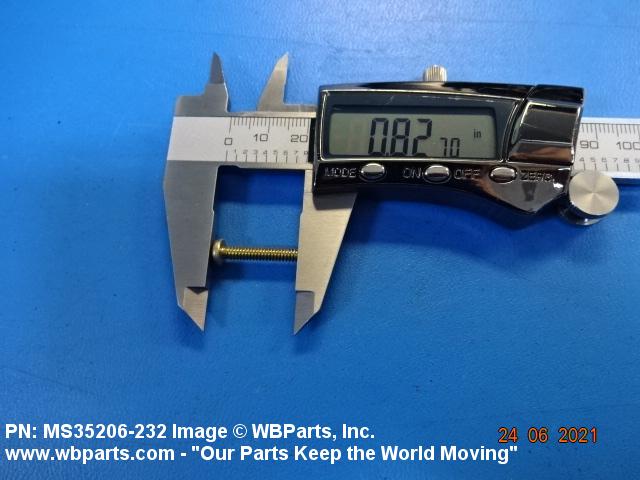

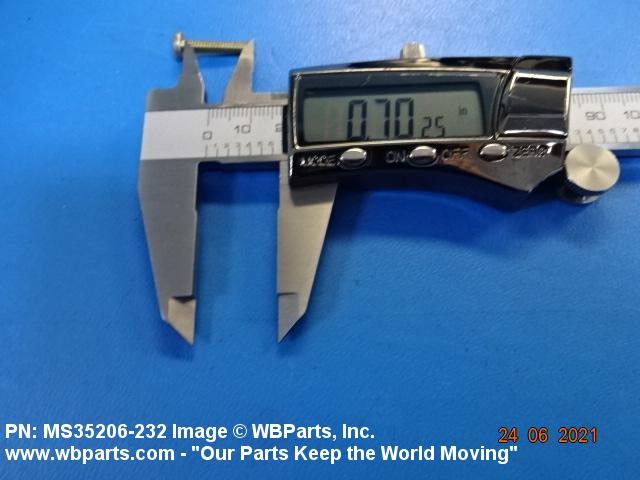

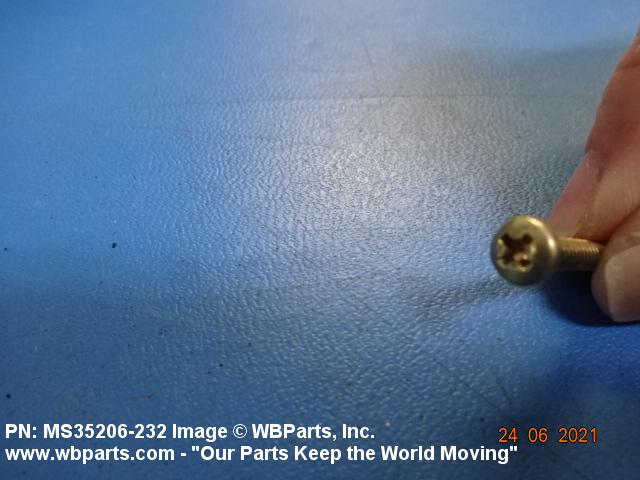

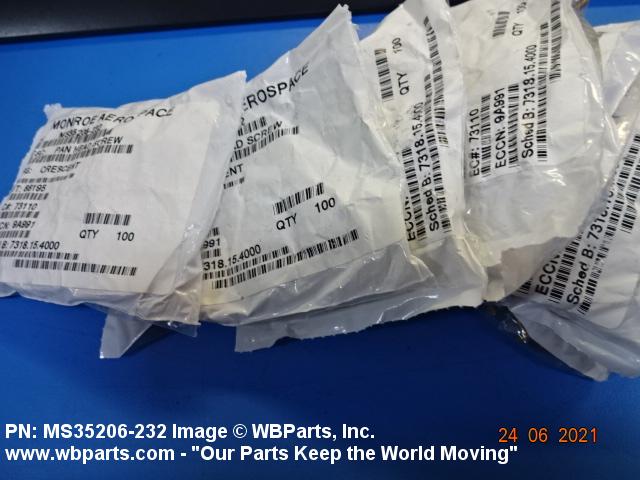

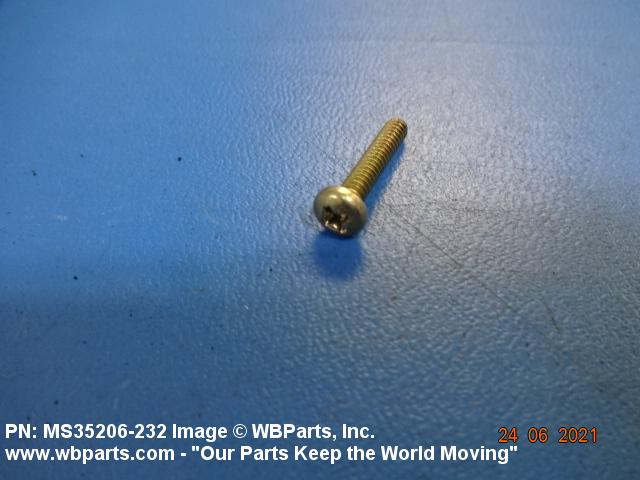

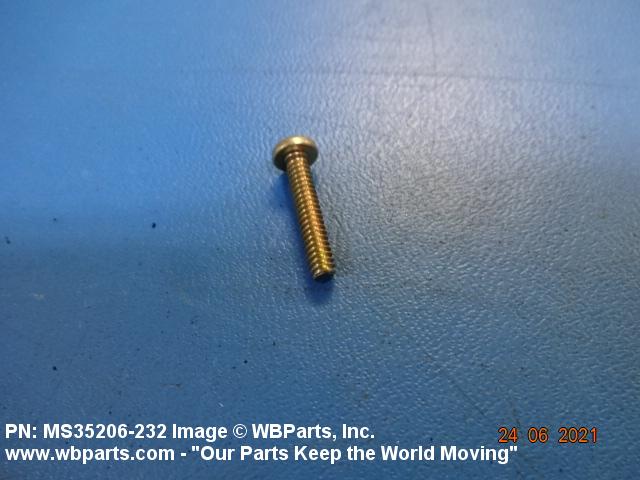

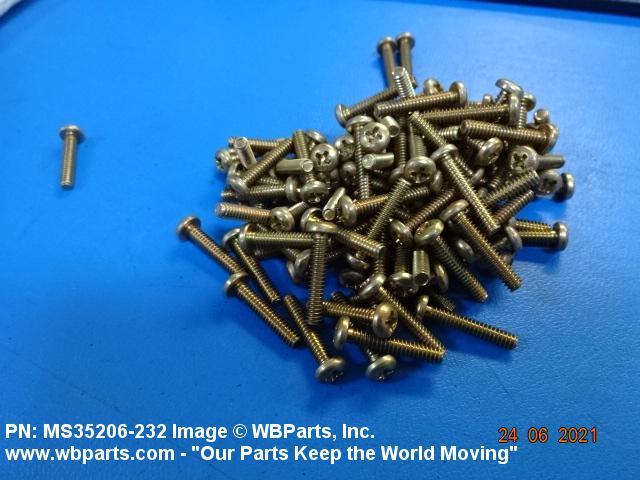

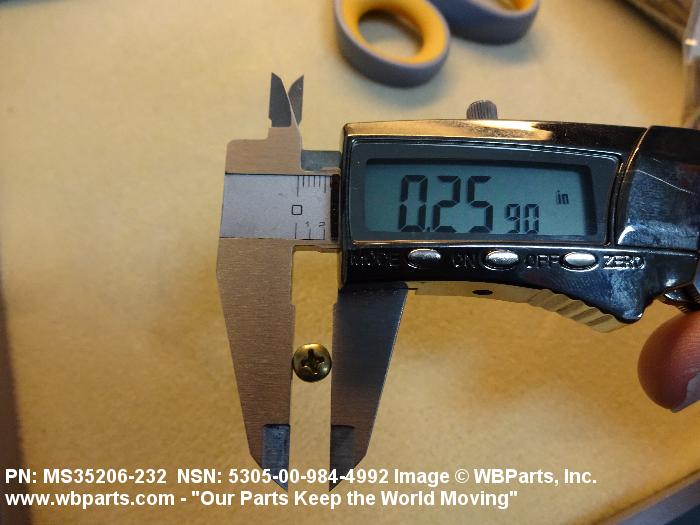

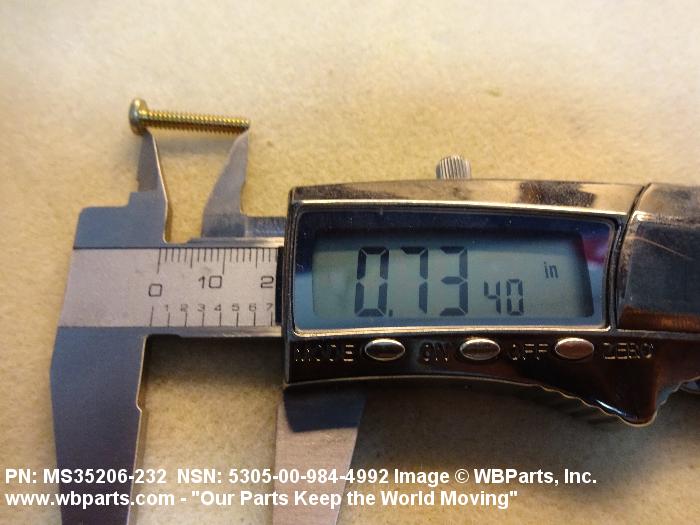

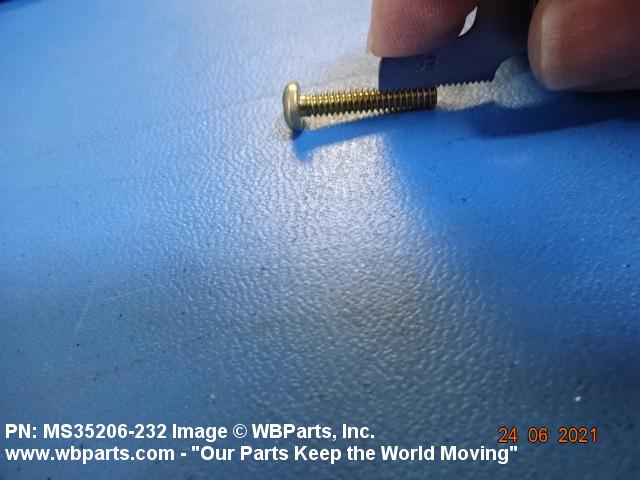

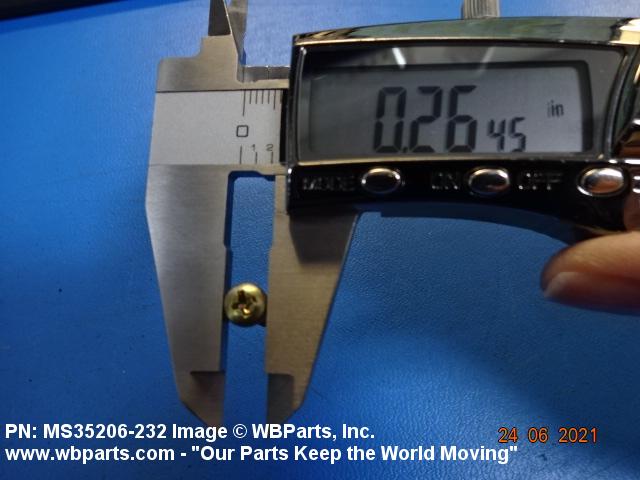

Drawings & Photos | NSN 5305-00-984-4992

Part Number	Request Date	QTY	Origin
MS35206232	2025-11-309	144	Israel
FFS92	2023-08-236	14	US
MS931304	2021-01-29	4000	Taiwan
MS35206232	2017-09-256	21	United States
5305-00-984-4992	2016-11-327	1	DIBBS-RFPs
MS35206-232	2015-07-203	100	US
MS35206232	2015-04-92	1000	US
MS35206-232	2014-03-71	23	United States
FFS92	2011-02-49	5	US
FFS92	2011-02-49	50	US
5305-00-984-4992	2011-01-12	2	US
FFS92	2010-11-323	165	US
5305-00-984-4992	2010-11-314	100	PK
5305-00-984-4992	2010-11-314	100	PK
5305-00-984-4992	2010-11-311	200	PK
5305-00-984-4992	2010-08-218	48	US
5305-00-984-4992	2010-05-133	48	United Arab Emirates
FFS92	2009-12-338	100	US
FFS92	2009-10-292	50	United States
NASM35206232	2009-09-272	20	CH
5305-00-984-4992	2009-07-208	800	United States
NASM35206	2009-06-174	1624	US
FFS92	2008-03-80	50	United States

Cross Reference | NSN 5305-00-984-4992

Part Number	Cage Code	Manufacturer
1027301-6-12	18355	BOEING COMPANY, THE DBA BOEING
1177-6-12	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
1487HX	45152	OSHKOSH CORPORATION
1487HX	75Q65	OSHKOSH DEFENSE, LLC
154998	00000	ORDNANCE CORPS
19048	73734	FEDERAL SCREW PRODUCTS INC.
19048ADX	1VN02	AIRDALE EXPRESS LLC
2018574	001JK	EMBRAER S/A
2018574	FB459	EMBRAER AVIATION INTERNATIONAL
2018574	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
30-295-401-47	K0802	MEGGITT (UK) LTD DBA MEGGITT SENSING SYSTEMS
415 522	77294	PIPER AIRCRAFT INC.
4177205-032	05869	RAYTHEON COMPANY DBA RAYTHEON
4177205-032	82577	RAYTHEON COMPANY DBA RAYTHEON
5305009844992	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
53577-10-16	94833	KECO INDUSTRIES INC.
612750	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
655-644-93232	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
71136-232	95097	LITTLE GIANT CRANE AND SHOVEL INC
7S4-6-12	43999	BOEING COMPANY, THE DBA BOEING
815898-00	32345	DEFENSE REDUCTION AGENCY
82-2074-0075	04664	PIERCE MANUFACTURING, INC.
935.63.11.045	S4080	PILATUS AIRCRAFT LTD
AN515-6-12	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN515-6R12	81352	AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS
FFS92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
LS2550-12	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
MS35206-232	0158B	PSA PEUGEOT-CITROEN ESPA?A, SA
MS35206-232	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
MS35206-232	63020	CRESCENT MANUFACTURING OPERATING COMPANY
MS35206-232	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS35206-232	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35206-232B	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35223-32	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35225-32	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
N80P13012C6	24446	GENERAL ELECTRIC CO
NASM35206	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NASM35206-232	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
SC2065-8	01843	AMBAC INTERNATIONAL CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-984-4992

Compare

Related Products | NSN 5305-00-984-4992

5305-00-984-4993, 5305-00-984-5672, 5305-00-984-5674, 5305-00-984-5675, 5305-00-984-5676

Technical Data | NSN 5305-00-984-4992

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.688 INCHES MINIMUM AND 0.750 INCHES MAXIMUM
FASTENER LENGTH	0.750 INCHES NOMINAL
SCREW MATERIAL	STEEL COMP 1010 OR STEEL COMP 1011 OR STEEL COMP 1013
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE
MINIMUM TENSILE STRENGTH	60000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN
HEAD DIAMETER	0.256 INCHES MINIMUM AND 0.270 INCHES MAXIMUM
HEAD HEIGHT	0.087 INCHES MINIMUM AND 0.097 INCHES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFS92

Restrictions/Controls & Freight Information | NSN 5305-00-984-4992

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-984-4992

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
