NSN 5305-01-091-7917 AN565CC8H10, FFS200, FF-S-200
Product Details | SETSCREW
5305-01-091-7917 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: AN565CC8H10, FFS200, FF-S-200, 5305-01-091-7917, 01-091-7917, 5305010917917, 010917917
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 MAR 1980 | 01-091-7917 | 06672 ( SETSCREW ) |
Drawings & Photos | NSN 5305-01-091-7917
Demand History | NSN 5305-01-091-7917
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFS200 | 2011-10-280 | 28 | United States |
| FFS200 | 2009-12-344 | 20 | Canada |
| FFS200 | 2009-10-288 | 100 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-091-7917
Technical Data | NSN 5305-01-091-7917
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.535 INCHES MINIMUM AND 0.555 INCHES MAXIMUM |
| FASTENER LENGTH | 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 303 OR STEEL COMP 303SE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C101 HEADLESS |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.0781 INCHES MINIMUM AND 0.0791 INCHES MAXIMUM |

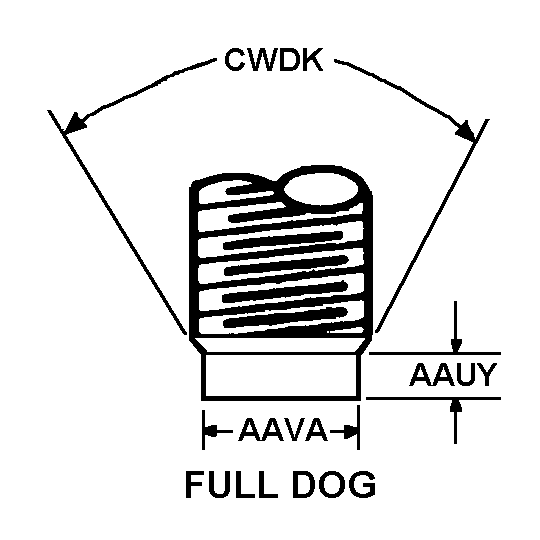

| POINT STYLE | F17 FULL DOG |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 5 STYLE |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN565CC8H10 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-S-200 |
