Product Details | SETSCREW

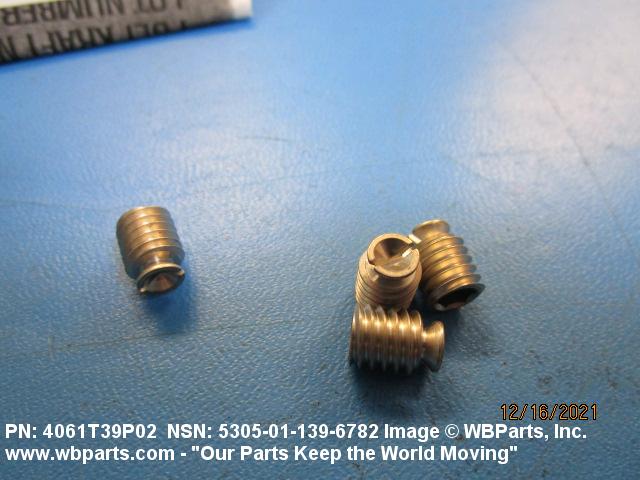

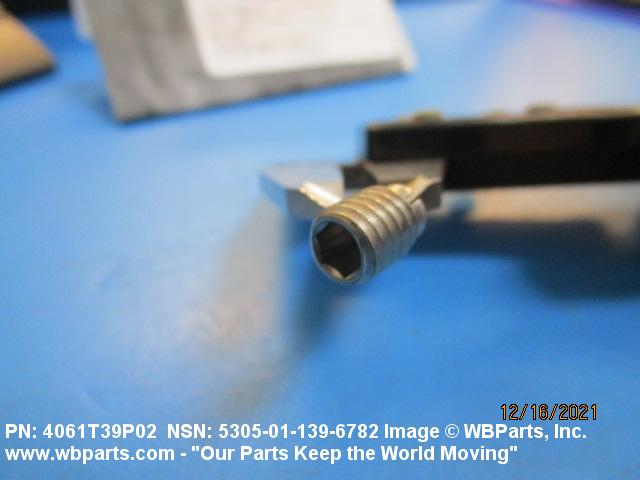

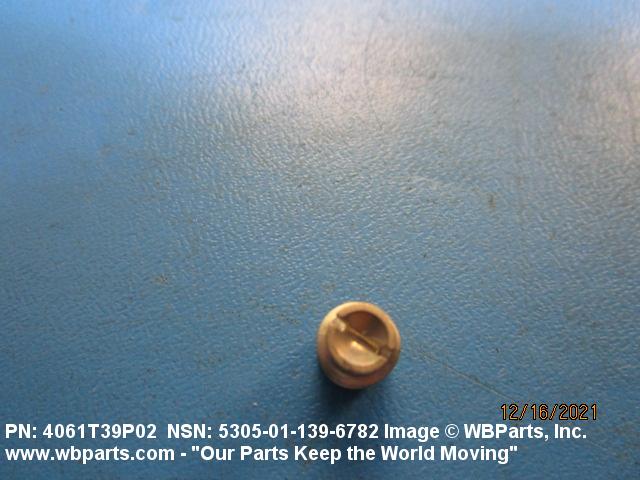

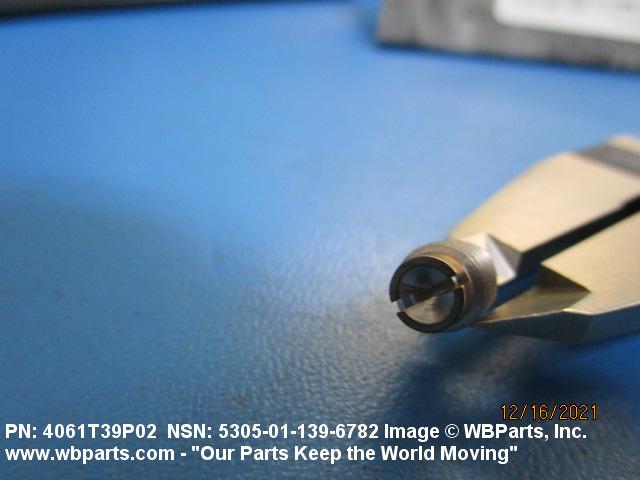

5305-01-139-6782 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 10115403 , 4061T39P02, 5305-01-139-6782, 01-139-6782, 5305011396782, 011396782
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 OCT 1982 | 01-139-6782 | 06672 ( SETSCREW ) |

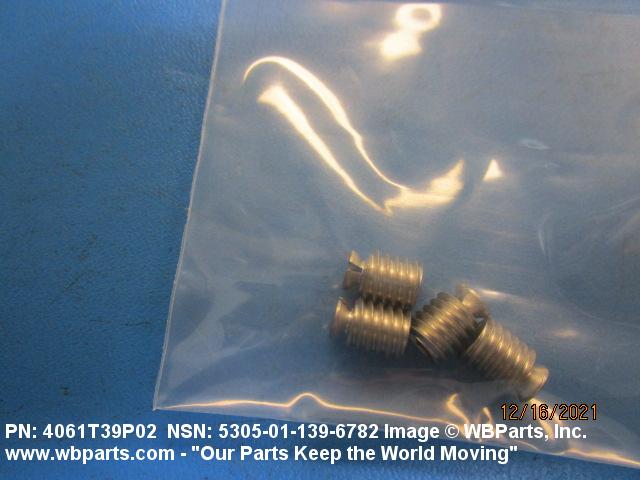

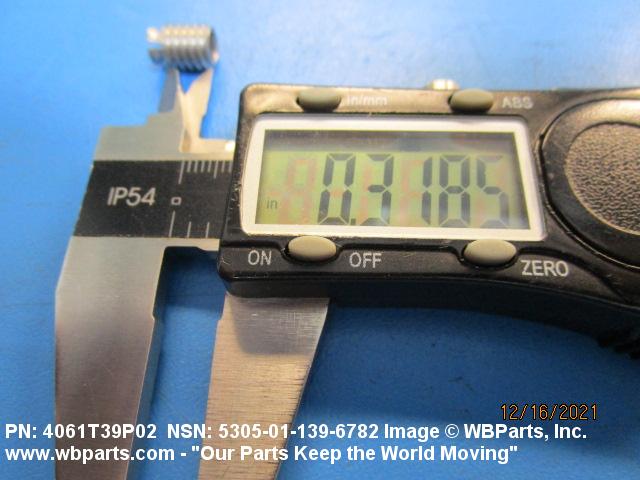

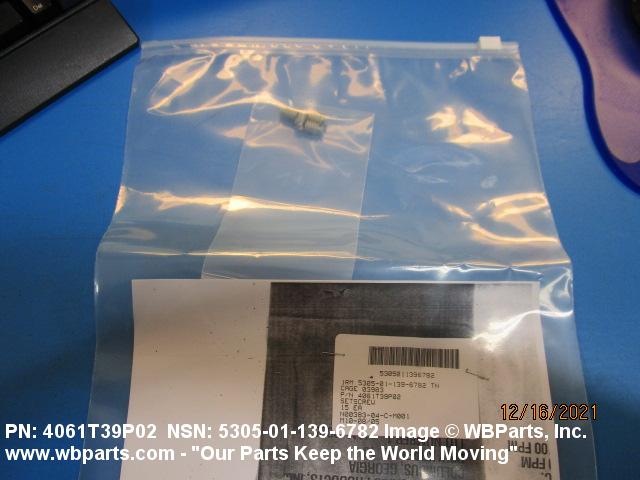

Drawings & Photos | NSN 5305-01-139-6782
Demand History | NSN 5305-01-139-6782
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4061T39P02 | 2021-11-334 | 4 | Netherlands |
| 5305-01-139-6782 | 2010-01-11 | 1131 | DIBBS |
Cross Reference | NSN 5305-01-139-6782
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4061T39P02 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-139-6782
Related Products | NSN 5305-01-139-6782
Technical Data | NSN 5305-01-139-6782
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNS |

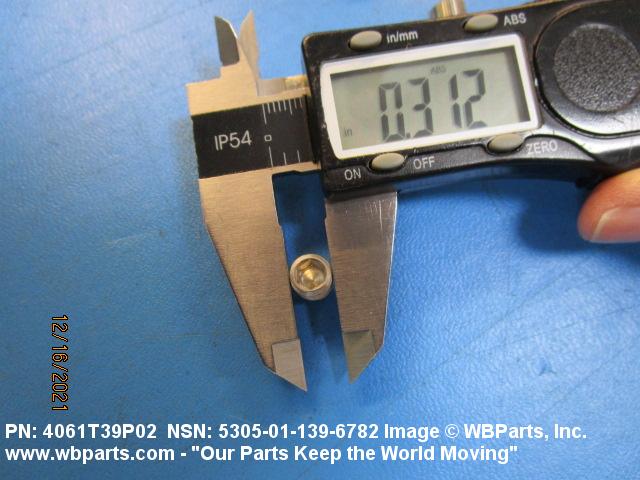

| NOMINAL THREAD DIAMETER | 0.313 INCHES |
| THREAD QUANTITY PER INCH | 27 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

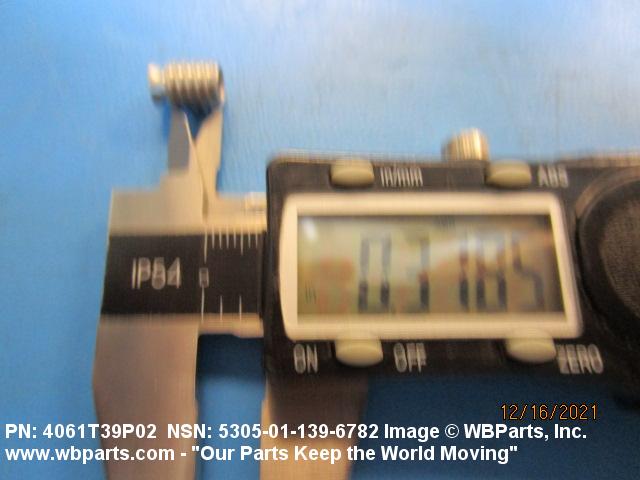

| THREAD LENGTH | 0.315 INCHES MINIMUM AND 0.325 INCHES MAXIMUM |
| FASTENER LENGTH | 0.315 INCHES MINIMUM AND 0.325 INCHES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5646 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | C50 FLAT COUNTERSUNK |

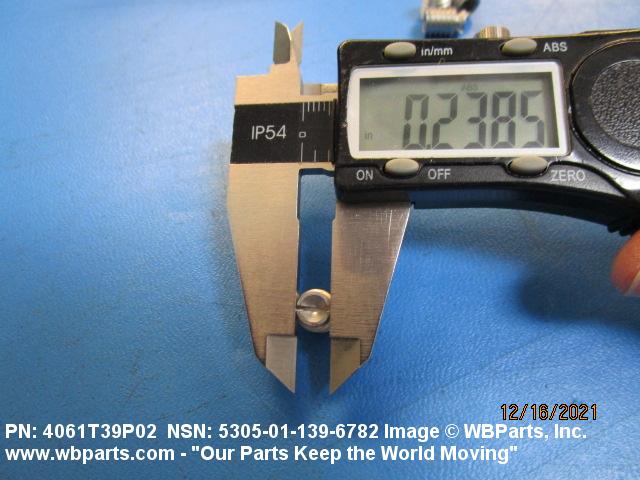

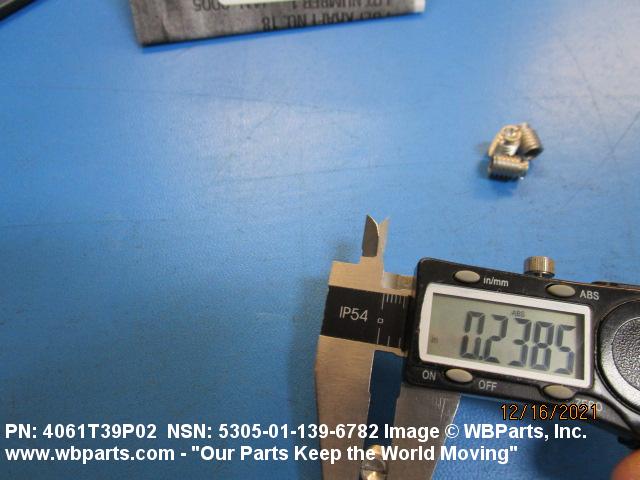

| HEAD DIAMETER | 0.245 INCHES NOMINAL |
| COUNTERSINK ANGLE | 48.0 DEGREES NOMINAL |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.188 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| POINT STYLE | F22 POINTLESS |
| FEATURES PROVIDED | FINISHED HEAD |
| SPECIAL FEATURES | MICROINCH FINISH 63 |
| MANUFACTURERS CODE | 99207 |
| DESIGN CONTROL REFERENCE | 4061T39P02 |
