Product Details | CLOSE TOLERANCE SCREW
5305-01-333-2719 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: AIC1652413, AIC1652-4-13, HR240413, HR240-4-13, SC3102413, SC3102-4-13, SLB146413, SLB146-4-13, T009413, T009-4-13, PBF1417413, PBF1417-4-13, PBP1417413, PBP1417-4-13, 03A1744103A174413, 03A174-4-103A174-4-13, 03A174413, 03A174-4-13, 123743-4-13, 12743413, 12743-4-13, 5305-01-333-2719, 01-333-2719, 5305013332719, 123743413, 013332719
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 JAN 1991 | 01-333-2719 | 29294 ( SCREW, CLOSE TOLERANCE ) |

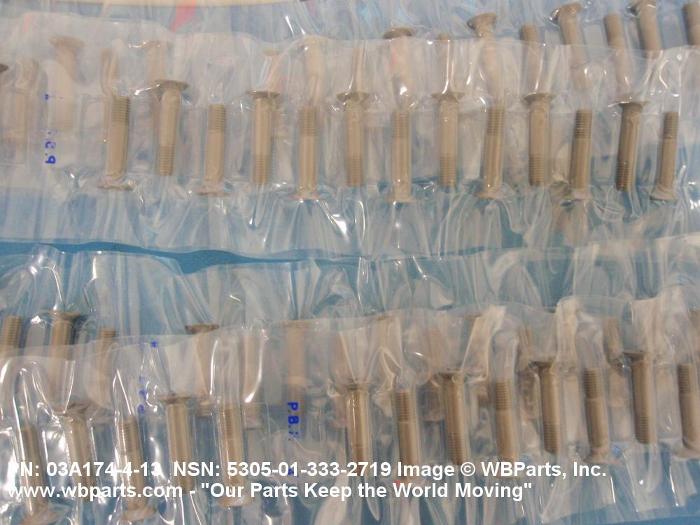

Drawings & Photos | NSN 5305-01-333-2719
Demand History | NSN 5305-01-333-2719
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 03A174-4-103A174-4-13 | 2021-05-24 | 1726 | DIBBS |
| 123743-4-13 | 2021-05-24 | 1726 | DIBBS |
| AIC1652-4-13 | 2021-05-24 | 1726 | DIBBS |
| 03A174-4-103A174-4-13 | 2020-03-04 | 1503 | DIBBS |
| 123743-4-13 | 2020-03-04 | 1503 | DIBBS |
| AIC1652-4-13 | 2020-03-04 | 1503 | DIBBS |
| 03A174-4-103A174-4-13 | 2019-08-22 | 117 | DIBBS |
| 123743-4-13 | 2019-08-22 | 117 | DIBBS |
| AIC1652-4-13 | 2019-08-22 | 117 | DIBBS |
| 03A174-4-103A174-4-13 | 2019-05-29 | 572 | DIBBS |
| 123743-4-13 | 2019-05-29 | 572 | DIBBS |
| AIC1652-4-13 | 2019-05-29 | 572 | DIBBS |
| 03A174-4-103A174-4-13 | 2019-03-21 | 532 | DIBBS |
| 123743-4-13 | 2019-03-21 | 532 | DIBBS |
| AIC1652-4-13 | 2019-03-21 | 532 | DIBBS |
| 5305-01-333-2719 | 2017-09-21 | 900 | DIBBS |
| 5305-01-333-2719 | 2017-08-03 | 418 | DIBBS |
| 5305-01-333-2719 | 2017-05-06 | 75 | DIBBS |
| 5305-01-333-2719 | 2017-04-27 | 75 | DIBBS |
| 5305-01-333-2719 | 2017-03-19 | 504 | DIBBS |
| 5305-01-333-2719 | 2016-09-21 | 21 | DIBBS |
| 5305-01-333-2719 | 2016-05-15 | 600 | DIBBS |
| 5305-01-333-2719 | 2015-10-29 | 117 | DIBBS |
| 5305-01-333-2719 | 2015-08-26 | 414 | US |
| 5305-01-333-2719 | 2015-08-25 | 414 | DIBBS |
| 5305-01-333-2719 | 2012-03-29 | 100 | us |
| 5305-01-333-2719 | 2011-10-07 | 119 | us |
| 03A1744103A174413 | 2011-09-12 | 119 | us |
| 5305-01-333-2719 | 2011-09-03 | 119 | DIBBS |
| 5305-01-333-2719 | 2011-03-15 | 160 | DIBBS |
Cross Reference | NSN 5305-01-333-2719
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03A174-4-103A174-4-13 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| 03A174-4-103A174-4-13 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 03A174-4-103A174-4-13 | 16258 | SPACELOK INC. |
| 03A174-4-103A174-4-13 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| 03A174-4-103A174-4-13 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| 03A174-4-103A174-4-13 | 73167 | HERMAN MACHINE INC |
| 03A174-4-103A174-4-13 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 03A174-4-13 | 0JRC1 | NORTHROP GRUMMAN TECHNICAL SERVICES, INC. |
| 03A174-4-13 | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 03A174-4-13 | 73197 | HI-SHEAR CORPORATION |
| 03A174-4-13 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 123743-4-13 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 12743-4-13 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| AIC1652-4-13 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HR240-4-13 | 73197 | HI-SHEAR CORPORATION |
| PBF1417-4-13 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| PBP1417-4-13 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| SC3102-4-13 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| SC3102-4-13 | 0PTK6 | SPS TECHNOLOGIES INC |
| SLB146-4-13 | 16258 | SPACELOK INC. |
| T009-4-13 | 97928 | HUCK INTL INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5305-01-333-2719
Related Products | NSN 5305-01-333-2719
5305-01-333-2720, 5305-01-333-2721, 5305-01-333-2722, 5305-01-333-2723, 5305-01-333-2725
Technical Data | NSN 5305-01-333-2719
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.425 INCHES NOMINAL |
| FASTENER LENGTH | 1.222 INCHES MINIMUM AND 1.252 INCHES MAXIMUM |
| MATERIAL | TITANIUM ALLOY UNS R56400 OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C50 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.449 INCHES MINIMUM AND 0.507 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | D8 TORQUE SET |
| GRIP LENGTH | 0.802 INCHES MINIMUM AND 0.822 INCHES MAXIMUM |
| GRIP DIAMETER | 0.2485 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES BEARING SURFACE OF HEAD 32.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS |
| III END ITEM IDENTIFICATION | SUPPORT EQUIPMENT (SE),B-2 BOMBER;AIRCRAFT,B-2 BOMBER (ATB) |
Restrictions/Controls & Freight Information | NSN 5305-01-333-2719
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096660 | SCREWS NOI SILVER PLATED |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-333-2719
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
