Product Details | CLOSE TOLERANCE SCREW

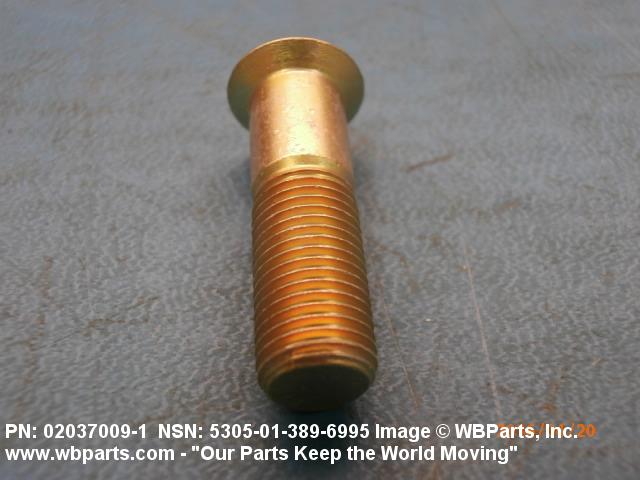

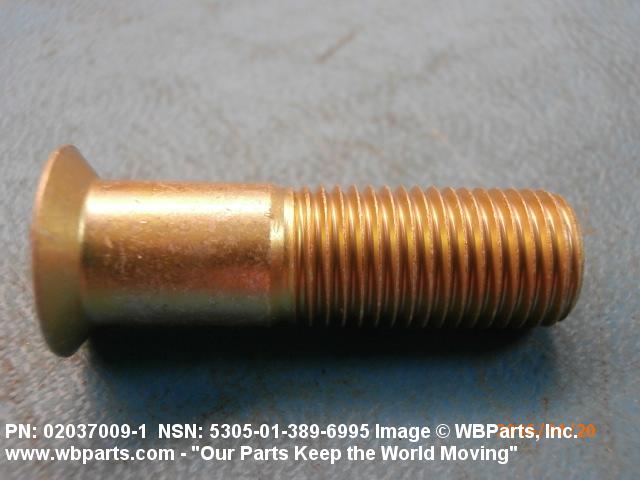

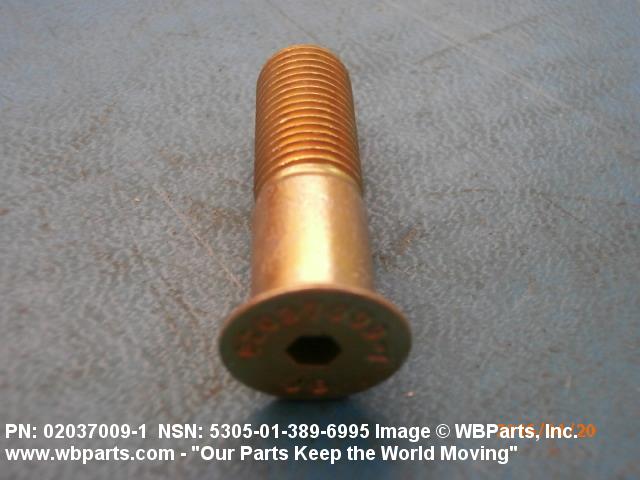

5305-01-389-6995 A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 02037009-1, 5305-01-389-6995, 01-389-6995, 5305013896995, 020370091, 013896995
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 APR 1994 | 01-389-6995 | 29294 ( SCREW, CLOSE TOLERANCE ) |
Drawings & Photos | NSN 5305-01-389-6995
Demand History | NSN 5305-01-389-6995
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-389-6995 | 2016-11-22 | 1 | DIBBS-RFPs |
| 5305-01-389-6995 | 2016-10-26 | 1022 | DIBBS |
| 020370091 | 2016-04-27 | 456 | United States |
| 5305-01-389-6995 | 2016-04-20 | 1167 | DIBBS |
| 020370091 | 2016-04-14 | 48 | United States |
| 020370091 | 2016-04-14 | 504 | United States |
| 5305-01-389-6995 | 2015-09-20 | 559 | DIBBS |
| 5305-01-389-6995 | 2011-04-26 | 1135 | DIBBS |
| 5305-01-389-6995 | 2009-11-03 | 60 | US |
| 5305-01-389-6995 | 2009-04-17 | 3215 | DIBBS |
| 5305-01-389-6995 | 2009-03-24 | 249 | DIBBS |
| 5305-01-389-6995 | 2008-05-27 | 3050 | DIBBS |
| 5305-01-389-6995 | 2008-05-23 | 2298 | DIBBS |
| 5305-01-389-6995 | 2008-04-08 | 746 | DIBBS |
| 5305-01-389-6995 | 2008-03-11 | 1800 | DIBBS |
Cross Reference | NSN 5305-01-389-6995
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02037009-1 | 0BWV6 | AERO ELECTRONICS INC. DBA AEROFRAME AIREPAIRS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5305-01-389-6995
5305-01-389-7009, 5305-01-389-7018, 5305-01-389-7178, 5305-01-389-7179, 5305-01-389-7185
Technical Data | NSN 5305-01-389-6995
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

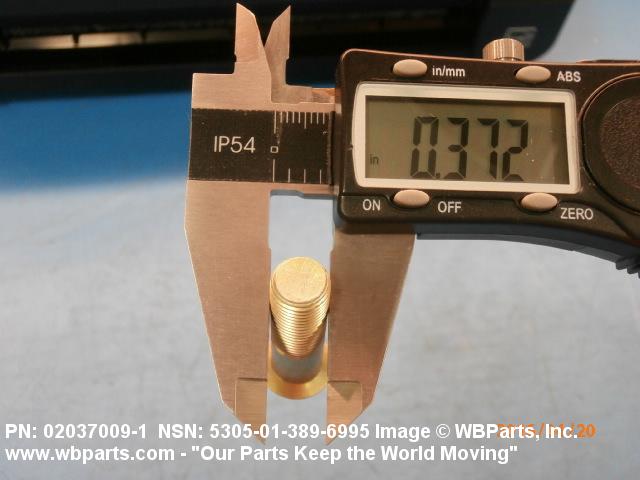

| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

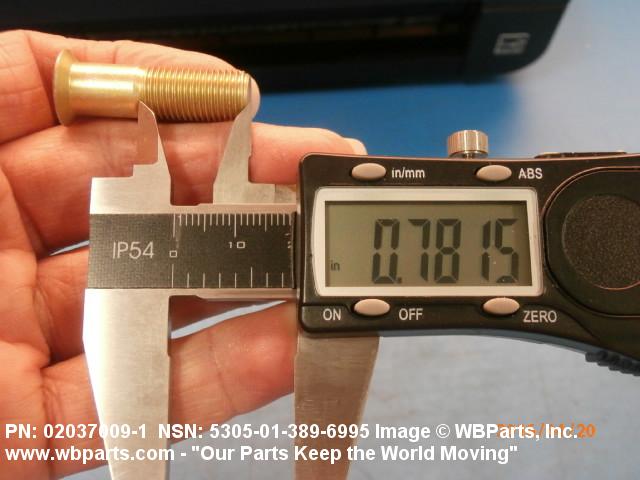

| THREAD LENGTH | 0.780 INCHES NOMINAL |

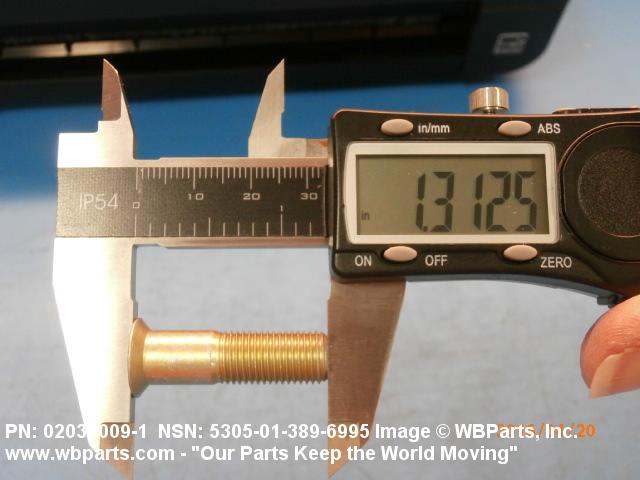

| FASTENER LENGTH | 1.312 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY2 CL3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

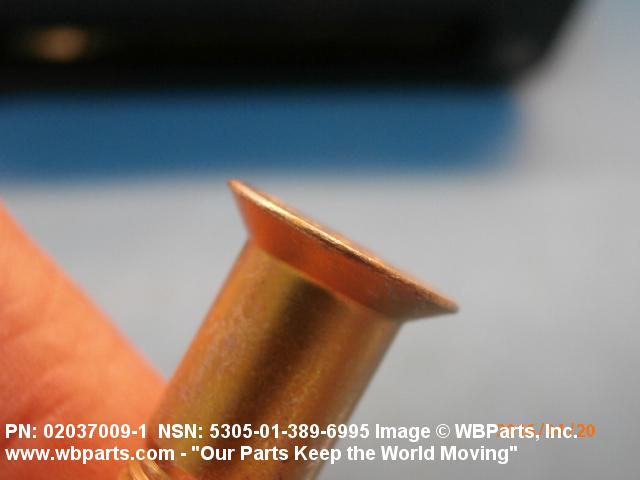

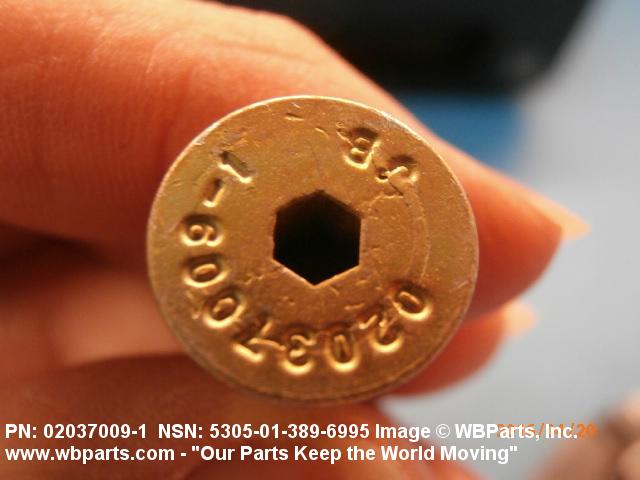

| HEAD STYLE | C50 FLAT COUNTERSUNK |

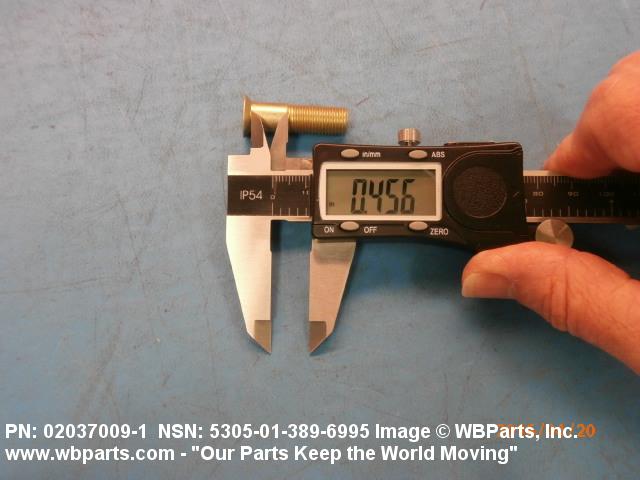

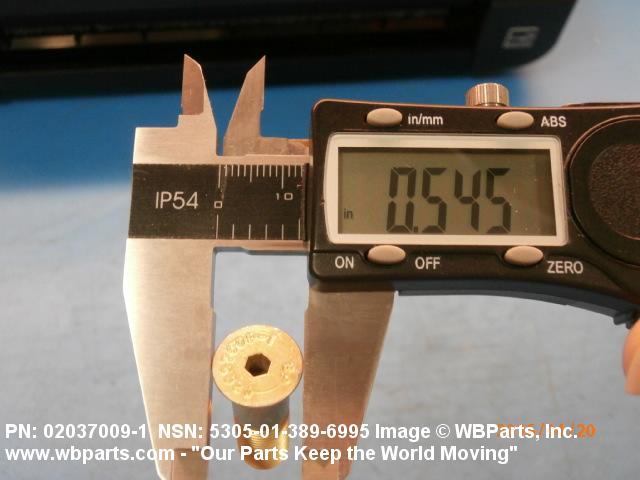

| HEAD DIAMETER | 0.505 INCHES NOMINAL |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

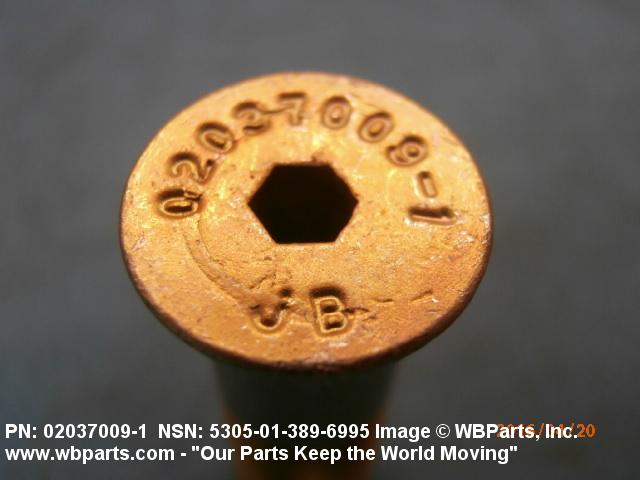

| INTERNAL DRIVE STYLE | D5 HEXAGON |

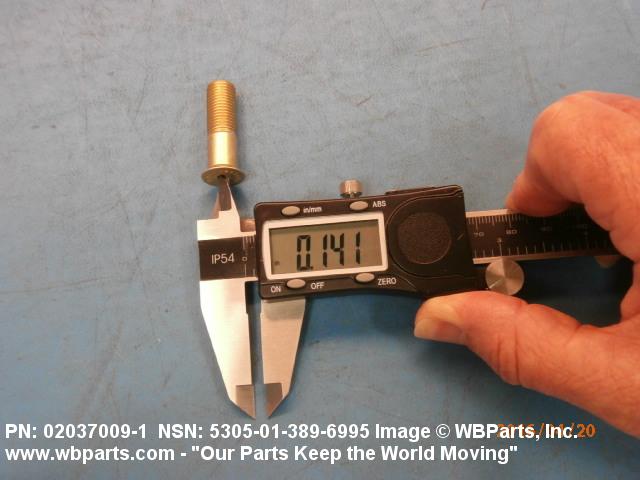

| WIDTH ACROSS FLATS | 0.141 INCHES NOMINAL |
| GRIP LENGTH | 0.449 INCHES NOMINAL |

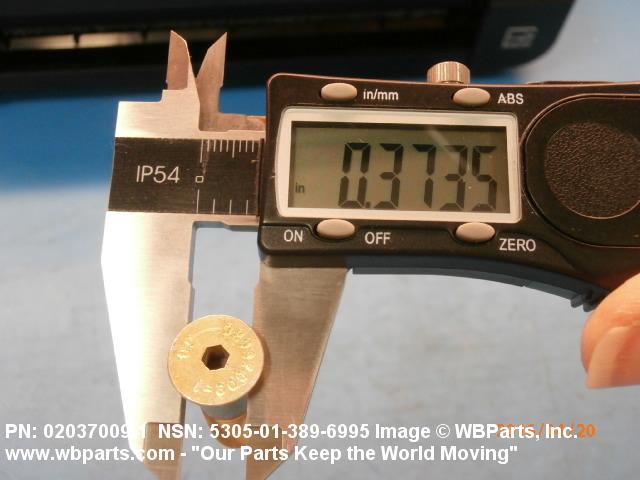

| GRIP DIAMETER | 0.3730 INCHES MINIMUM AND 0.3745 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5305-01-389-6995
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093490 | BOLT/NUT/SCREW/CLIPS/FASTENER/ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
