NSN 5305-01-338-1308 BACS12GU3K10, 01-338-1308, 013381308
Product Details | MACHINE SCREW
5305-01-338-1308 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: BACS12GU3K10, 5305-01-338-1308, 01-338-1308, 5305013381308, 013381308
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 APR 1991 | 01-338-1308 | 06657 ( SCREW, MACHINE ) |

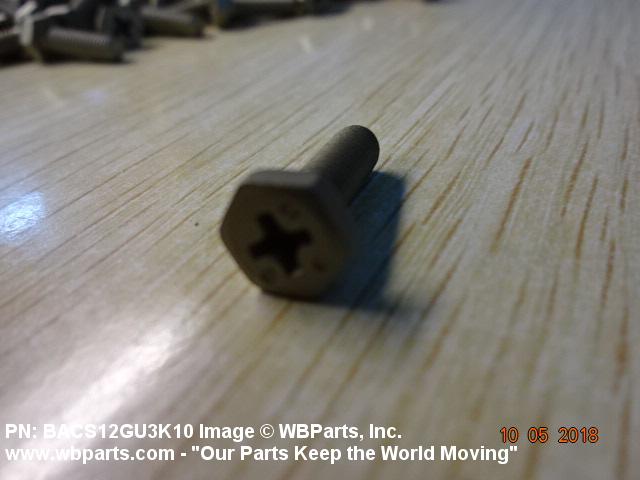

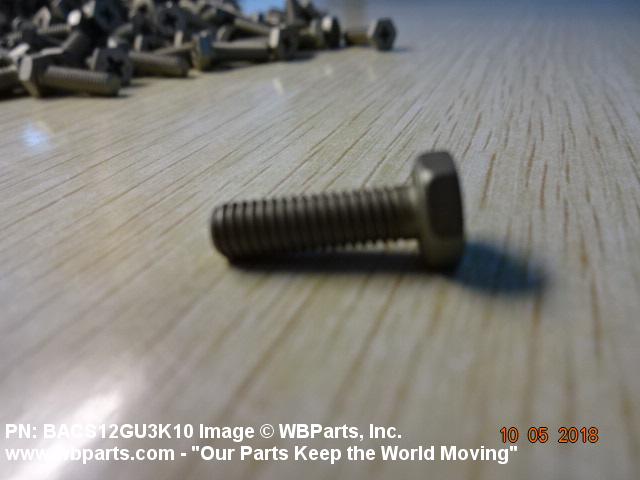

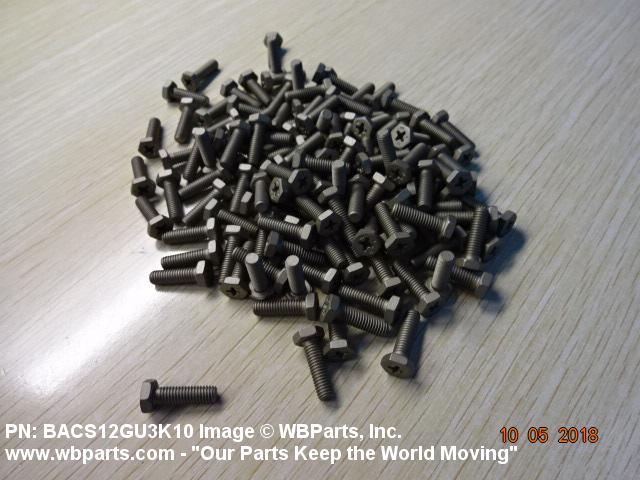

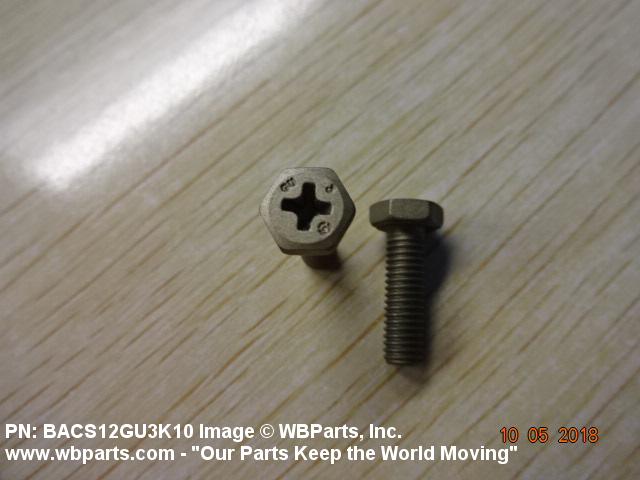

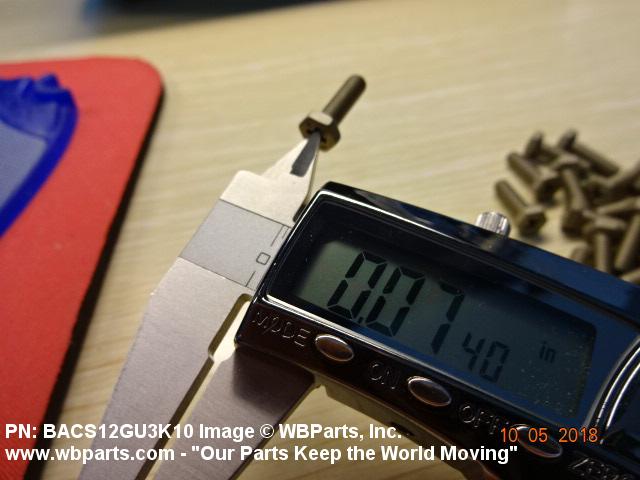

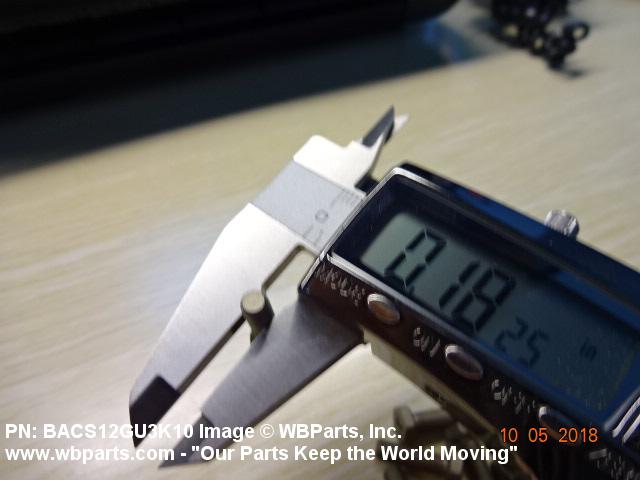

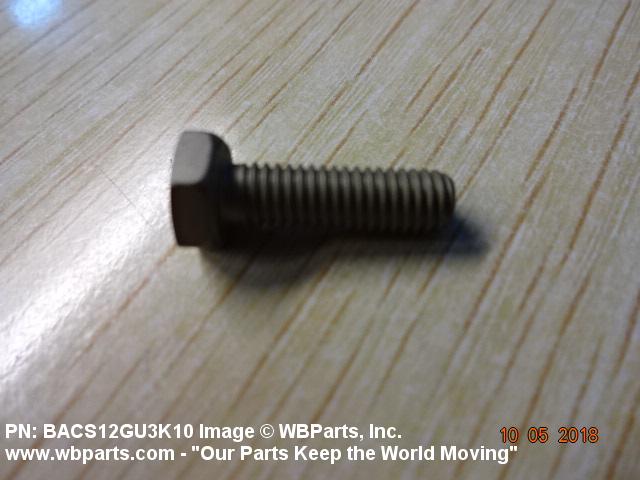

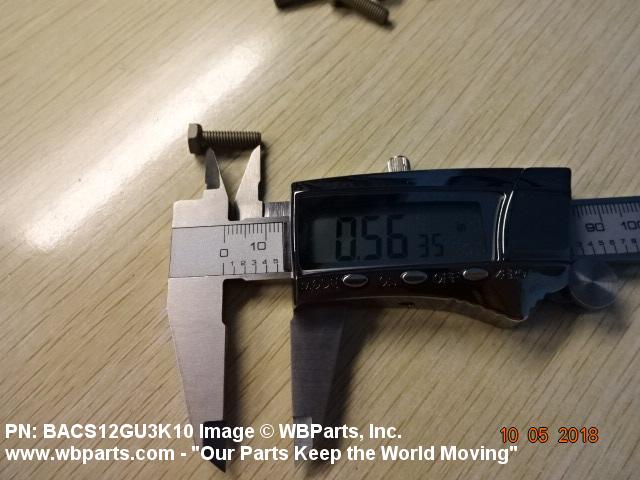

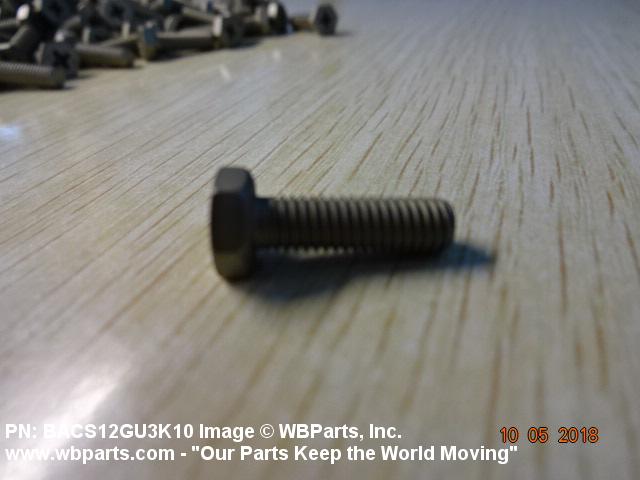

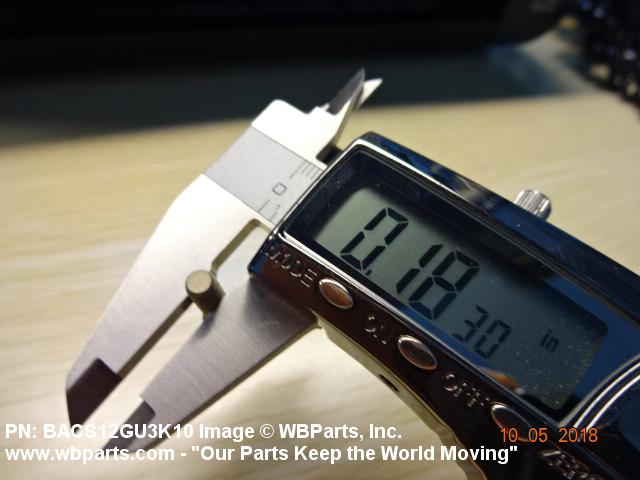

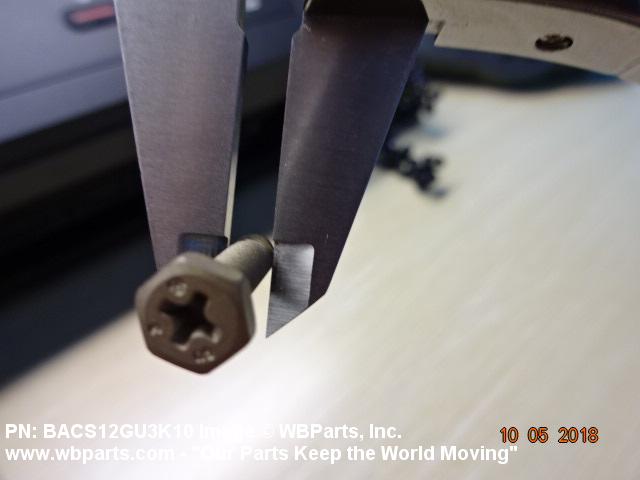

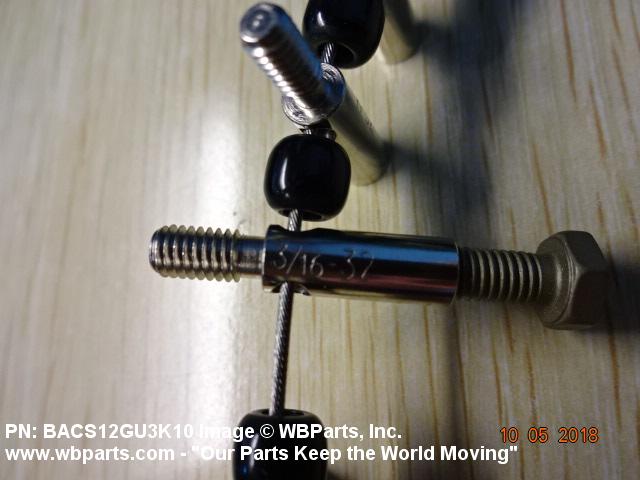

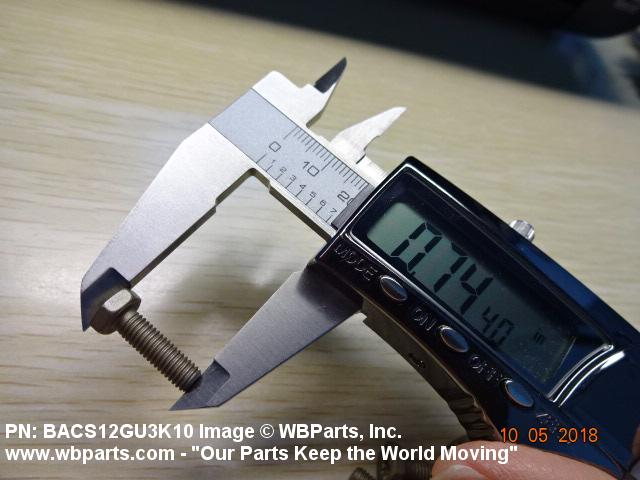

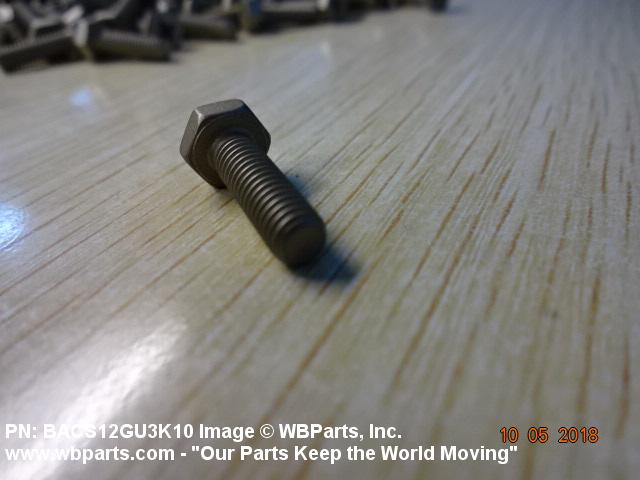

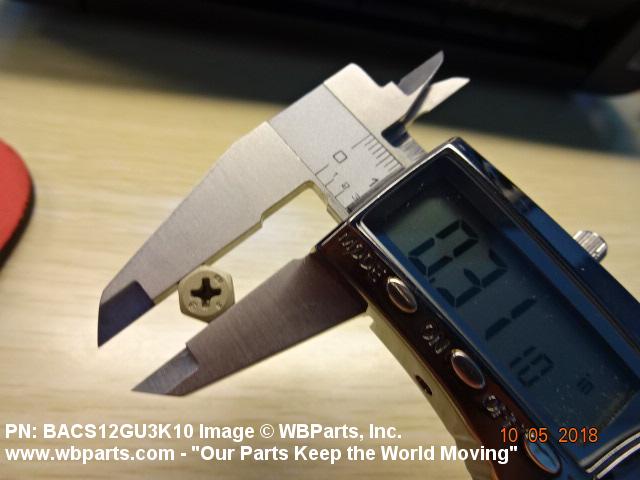

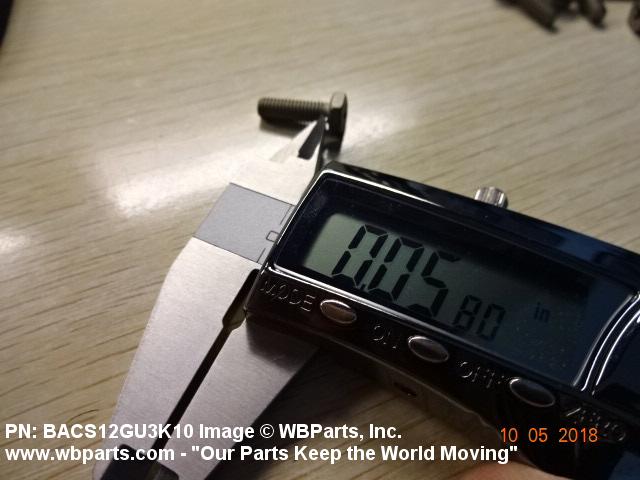

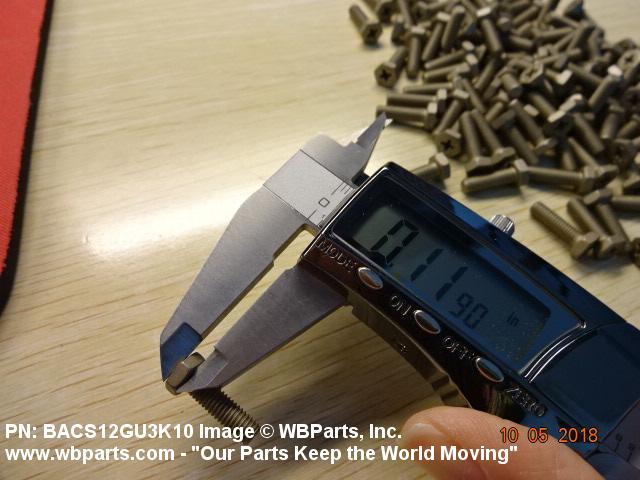

Drawings & Photos | NSN 5305-01-338-1308
