NSN 5305-01-359-7994 AN565A1032H10, FFS200, FF-S-200
Product Details | SETSCREW

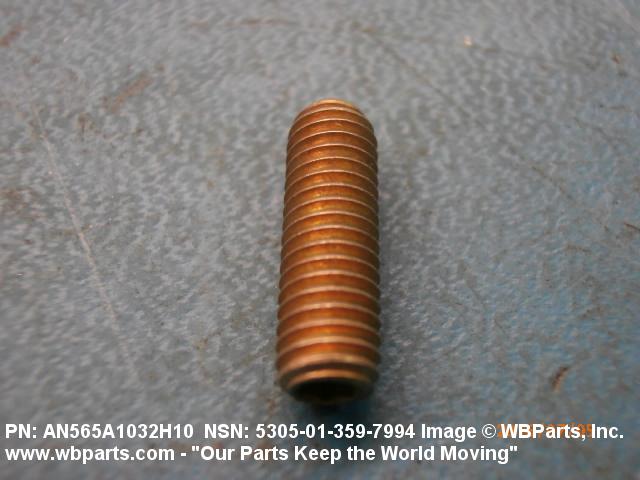

5305-01-359-7994 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: AN565A1032H10, FFS200, FF-S-200, 5305-01-359-7994, 01-359-7994, 5305013597994, 013597994
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 JUN 1992 | 01-359-7994 | 06672 ( SETSCREW ) |

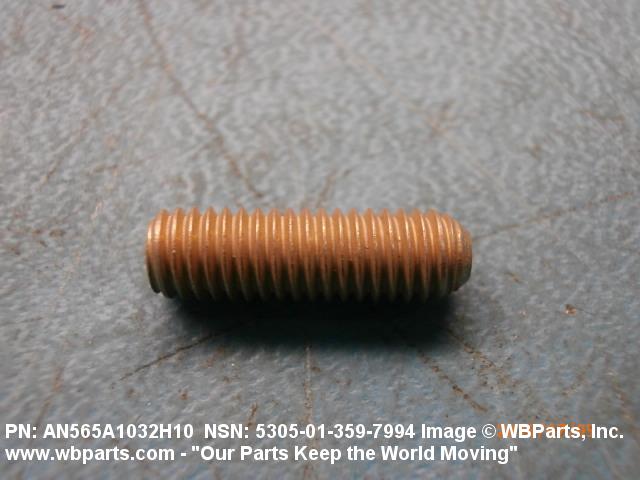

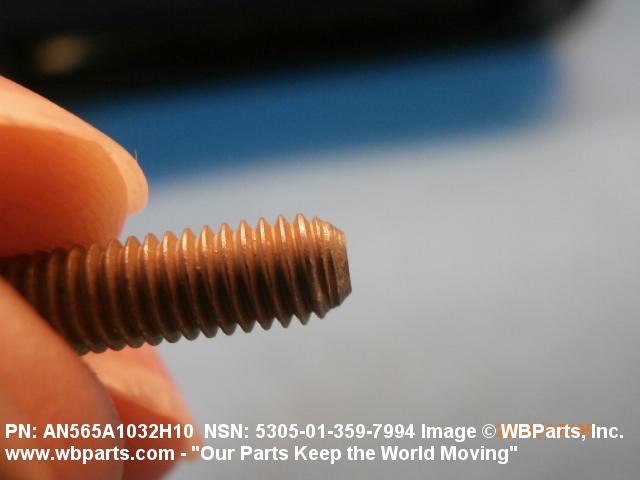

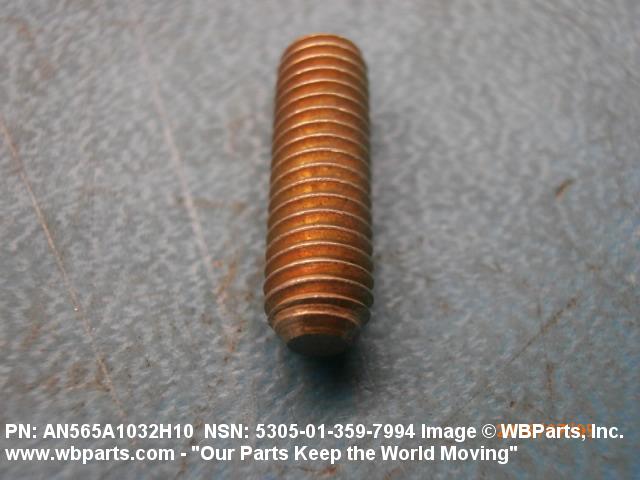

Drawings & Photos | NSN 5305-01-359-7994
Demand History | NSN 5305-01-359-7994
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-359-7994 | 2023-03-81 | 214 | DIBBS |
| 5305-01-359-7994 | 2023-01-10 | 214 | DIBBS |
| AN565A1032H10 | 2016-06-180 | 18 | South Korea |
| 5305-01-359-7994 | 2016-03-66 | 92 | DIBBS |
| FFS200 | 2011-10-280 | 28 | United States |
| FFS200 | 2009-12-344 | 20 | Canada |
| FFS200 | 2009-10-288 | 100 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-359-7994
Related Products | NSN 5305-01-359-7994
Technical Data | NSN 5305-01-359-7994

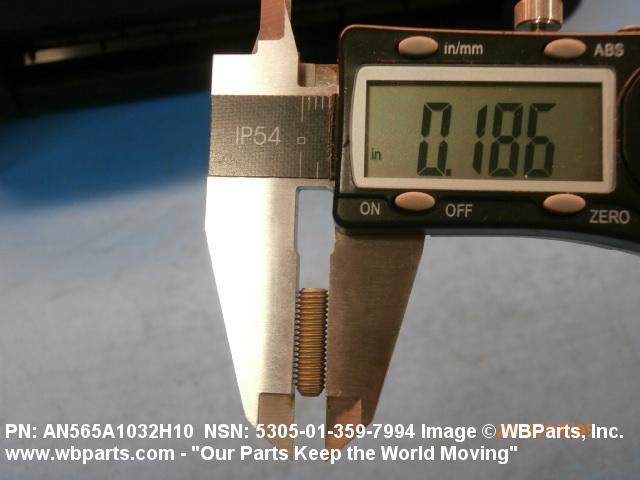

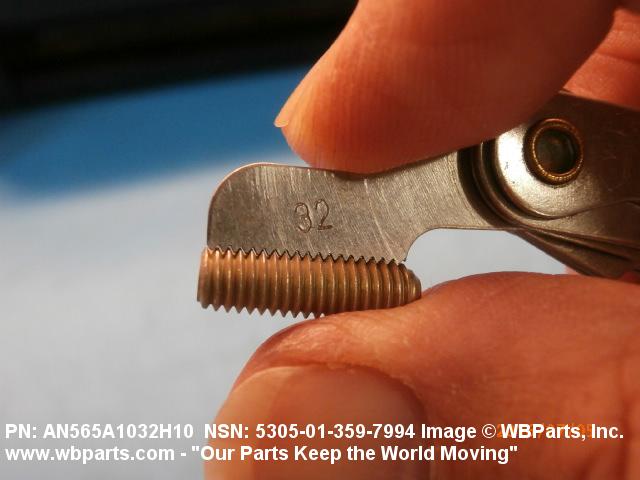

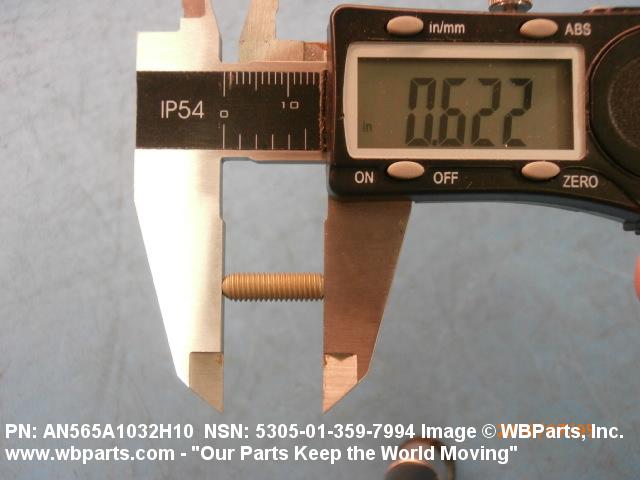

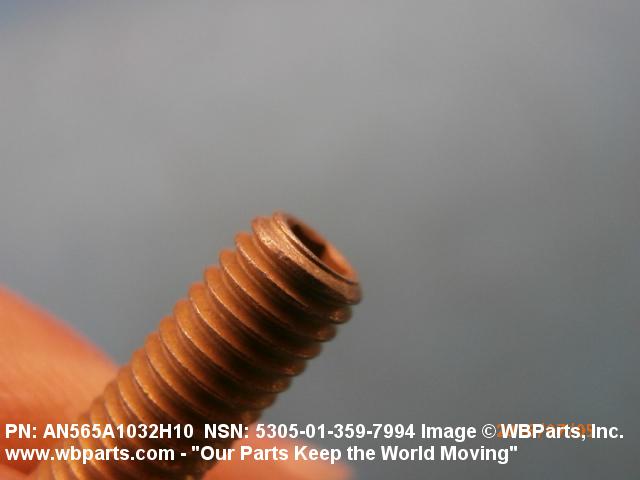

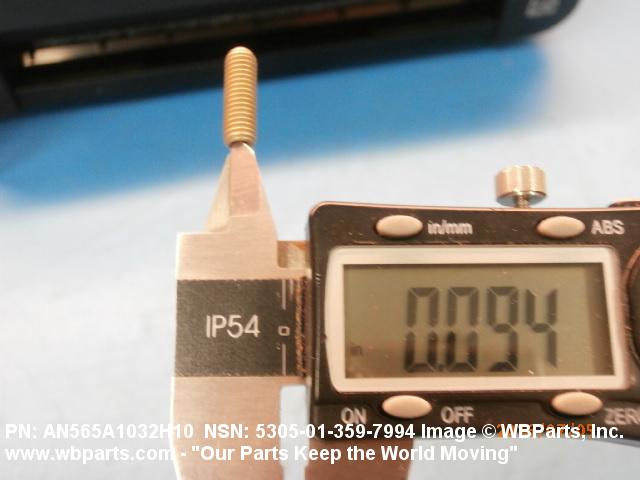

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| FASTENER LENGTH | 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4137 OR STEEL COMP 8630 OR STEEL COMP 8740 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY2 CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 45.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM OVERALL |
| HEAD STYLE | C101 HEADLESS |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.093 INCHES MINIMUM AND 0.967 INCHES MAXIMUM |
| POINT STYLE | F19 FLAT |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN565A1032H10 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-S-200 |
Restrictions/Controls & Freight Information | NSN 5305-01-359-7994
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
