NSN 5305-01-361-8436 12372C18, 12372C18A, 01-361-8436
Product Details | SETSCREW
5305-01-361-8436 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 12372C18, 12372C18A, 5305-01-361-8436, 01-361-8436, 5305013618436, 013618436
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 JUL 1992 | 01-361-8436 | 06672 ( SETSCREW ) |

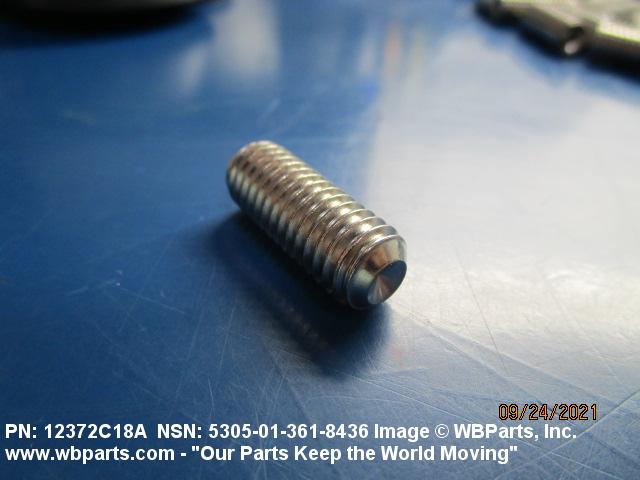

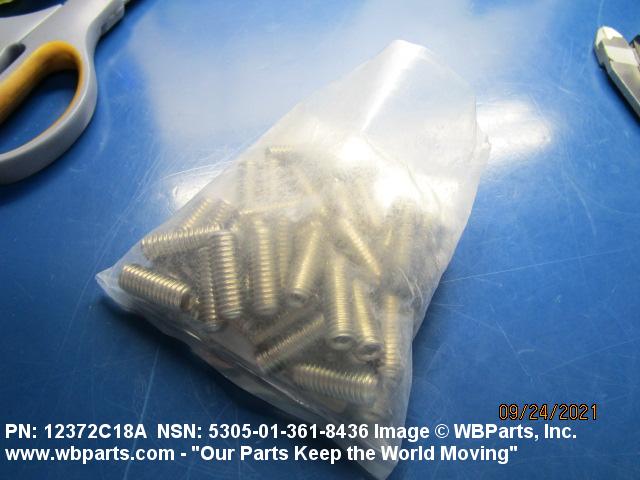

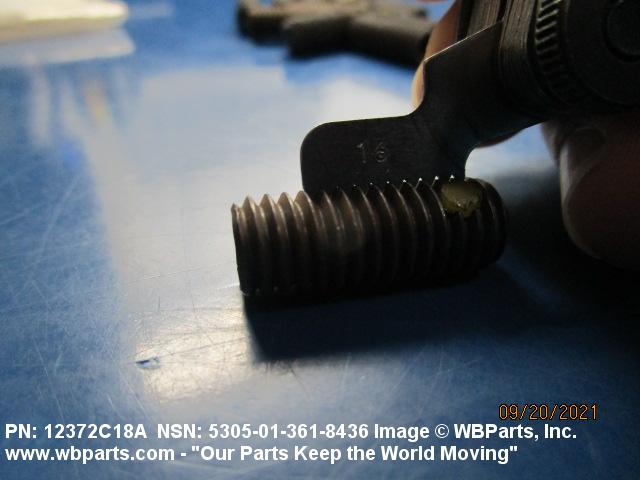

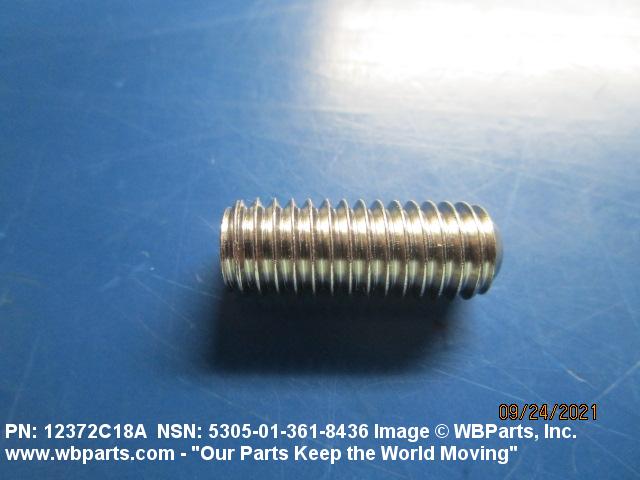

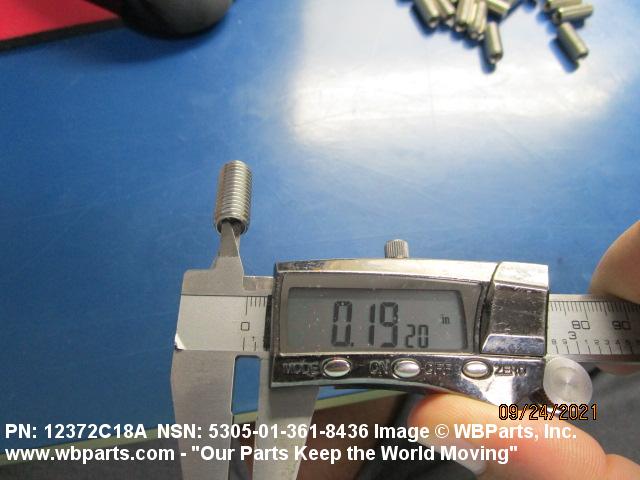

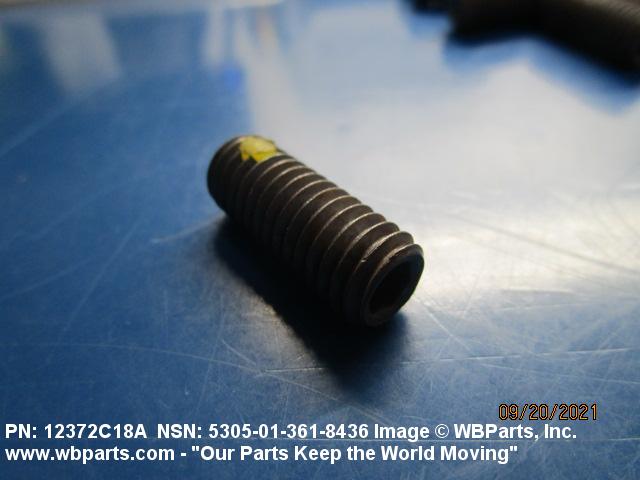

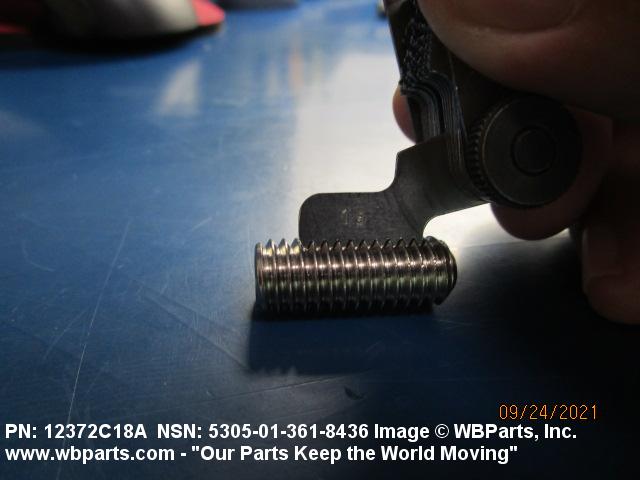

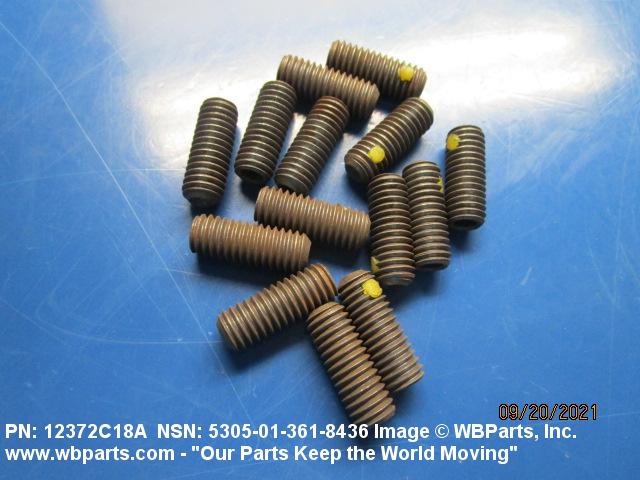

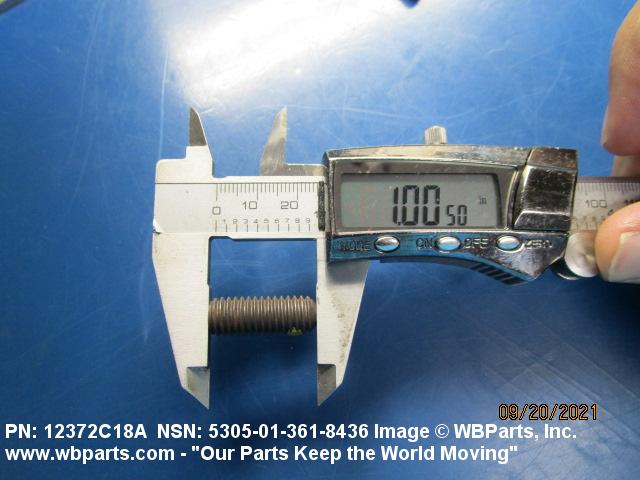

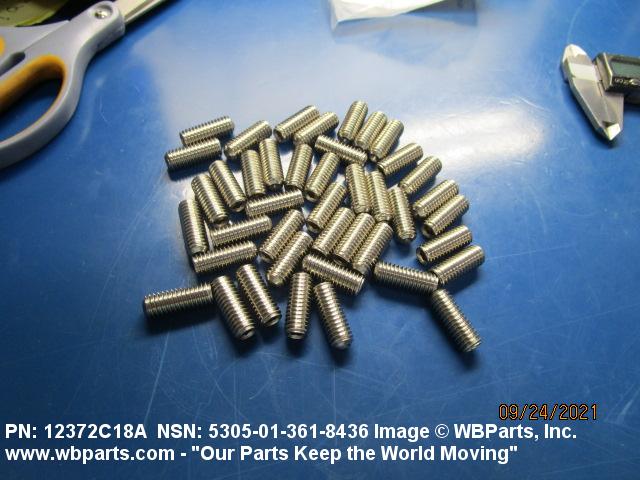

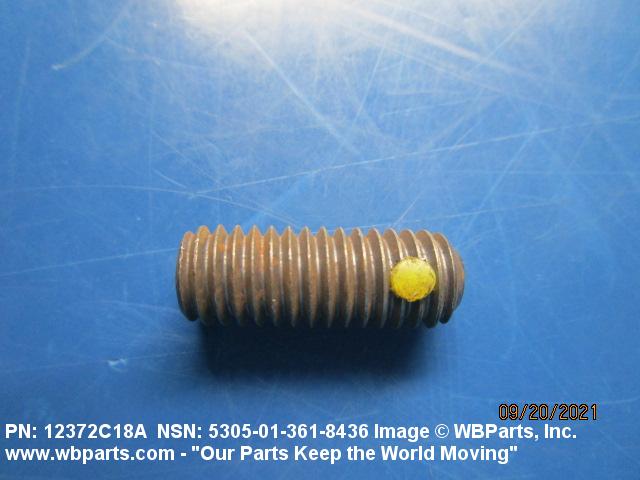

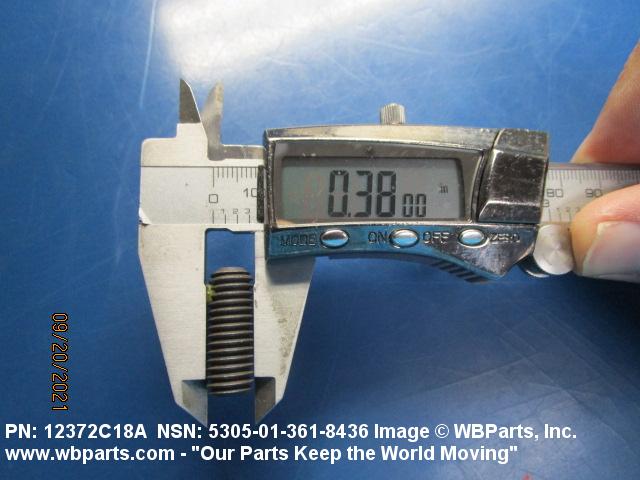

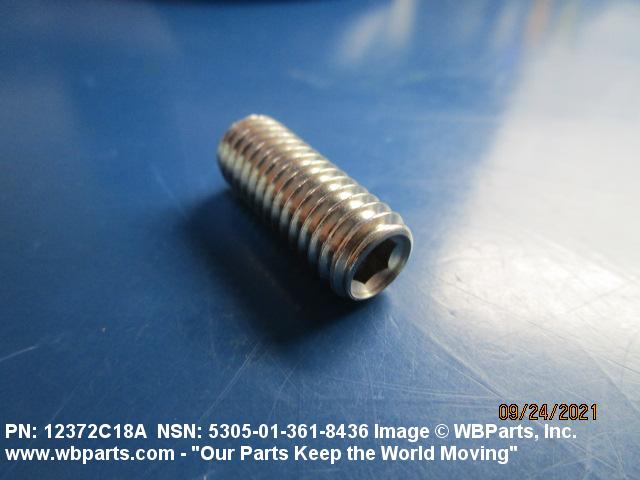

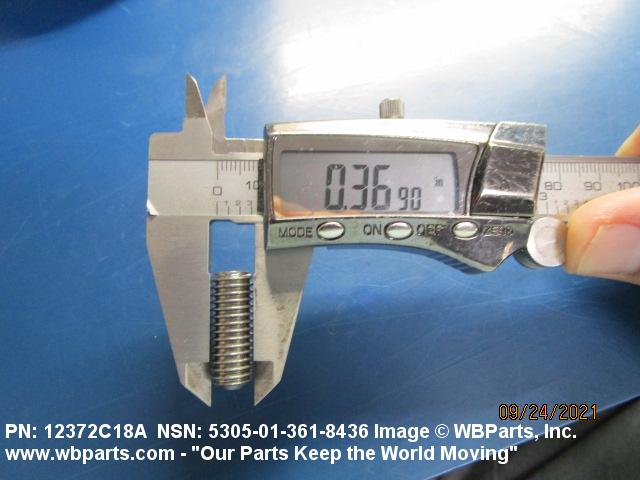

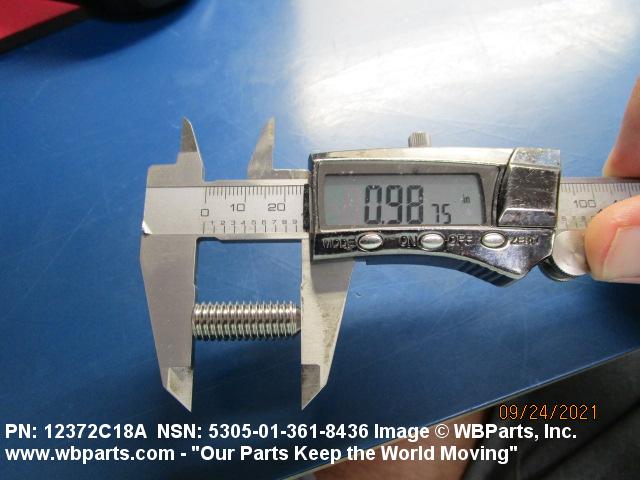

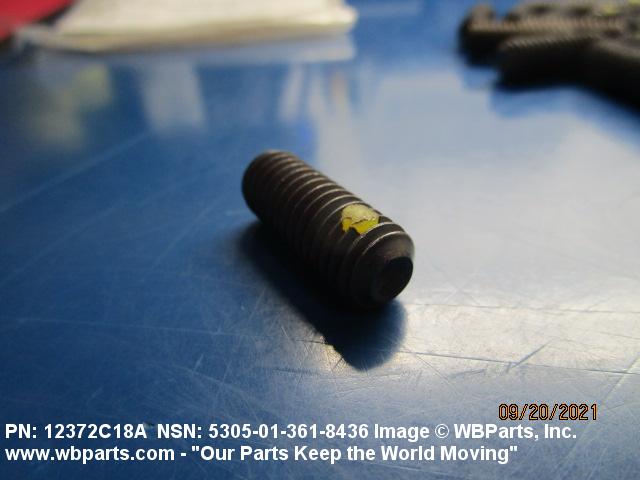

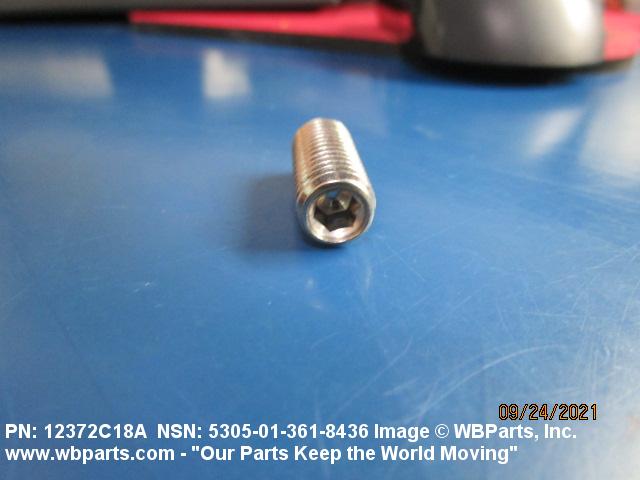

Drawings & Photos | NSN 5305-01-361-8436
Demand History | NSN 5305-01-361-8436
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12372C18A | 2025-05-129 | 46 | DIBBS |
| 12372C18A | 2025-03-82 | 46 | DIBBS |
| 12372C18A | 2024-06-176 | 16 | DIBBS |
| 12372C18A | 2024-06-168 | 16 | DIBBS |
| 12372C18A | 2024-02-60 | 27 | DIBBS |
| 12372C18A | 2024-02-52 | 27 | DIBBS |
| 12372C18A | 2023-10-285 | 24 | DIBBS |
| 12372C18A | 2023-09-260 | 24 | DIBBS |
| 12372C18A | 2023-04-106 | 20 | DIBBS |
| 5305-01-361-8436 | 2021-09-258 | 56 | United States |
| 12372C18A | 2021-07-192 | 56 | DIBBS |
| 12372C18A | 2021-05-137 | 32 | DIBBS |
| 12372C18A | 2021-05-125 | 32 | DIBBS |
| 12372C18A | 2021-03-81 | 24 | DIBBS |
| 12372C18A | 2021-03-66 | 24 | DIBBS |
| 12372C18A | 2021-03-62 | 18 | DIBBS |
| 12372C18A | 2021-02-46 | 18 | DIBBS |
| 12372C18A | 2020-11-321 | 28 | DIBBS |
| 12372C18A | 2020-11-309 | 28 | DIBBS |
| 5305-01-361-8436 | 2018-12-354 | 17 | DIBBS |
| 5305-01-361-8436 | 2018-12-345 | 17 | DIBBS |
| 5305-01-361-8436 | 2018-04-92 | 100 | DIBBS |
| 5305-01-361-8436 | 2018-03-75 | 29 | DIBBS |
| 5305-01-361-8436 | 2018-02-35 | 29 | DIBBS |
| 5305-01-361-8436 | 2018-01-24 | 17 | DIBBS |
| 5305-01-361-8436 | 2018-01-15 | 17 | DIBBS |
| 5305-01-361-8436 | 2016-10-300 | 48 | DIBBS |
| 5305-01-361-8436 | 2016-04-92 | 28 | DIBBS |
| 5305-01-361-8436 | 2016-03-83 | 28 | DIBBS |
| 5305-01-361-8436 | 2014-10-303 | 37 | DIBBS |
| 5305-01-361-8436 | 2014-07-187 | 42 | DIBBS |
| 5305-01-361-8436 | 2013-02-45 | 30 | DIBBS |
| 5305-01-361-8436 | 2012-07-191 | 18 | DIBBS |
| 5305-01-361-8436 | 2012-06-171 | 13 | DIBBS |
| 5305-01-361-8436 | 2011-06-157 | 15 | DIBBS |
| 5305-01-361-8436 | 2010-02-36 | 31 | DIBBS |
| 5305-01-361-8436 | 2009-11-313 | 15 | DIBBS |
| 5305-01-361-8436 | 2009-06-152 | 41 | DIBBS |
| 5305-01-361-8436 | 2009-02-41 | 18 | DIBBS |
| 5305-01-361-8436 | 2008-12-352 | 18 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-361-8436
Related Products | NSN 5305-01-361-8436
Technical Data | NSN 5305-01-361-8436
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.380 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.000 INCHES NOMINAL |
| FASTENER LENGTH | 1.000 INCHES NOMINAL |
| MATERIAL | STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 302B OR STEEL COMP 303 OR STEEL COMP 303SE OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 305 OR STEEL COMP 308 OR STEEL COMP 309 OR STEEL COMP 309S AND STEEL COMP 310 AND STEEL COMP 310S OR STEEL COMP 314 OR STEEL COMP 316 OR STEEL COMP 316L OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 348 OR STEEL COMP 384 OR STEEL COMP 385 OVERALL |
| HEAD STYLE | C101 HEADLESS |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.190 INCHES NOMINAL |
| POINT STYLE | F20 CUP |
Restrictions/Controls & Freight Information | NSN 5305-01-361-8436
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-361-8436
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
