NSN 5305-01-451-0283 26800336, 9240-004-37, 01-451-0283
Product Details | SETSCREW
5305-01-451-0283 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 26800336, 9240-004-37, 5305-01-451-0283, 01-451-0283, 5305014510283, 014510283, 924000437
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 DEC 1997 | 01-451-0283 | 06672 ( SETSCREW ) |

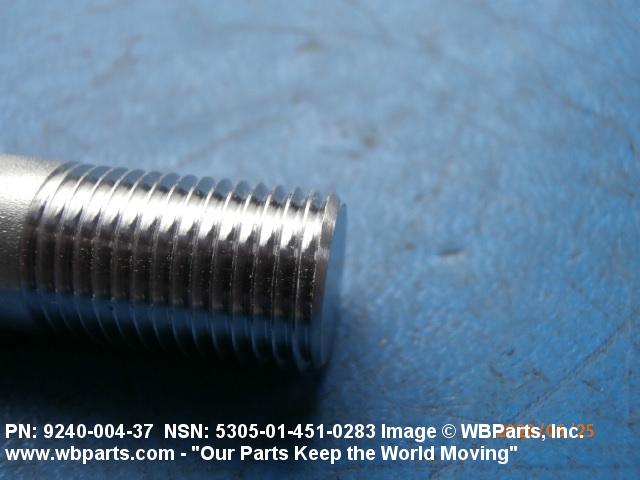

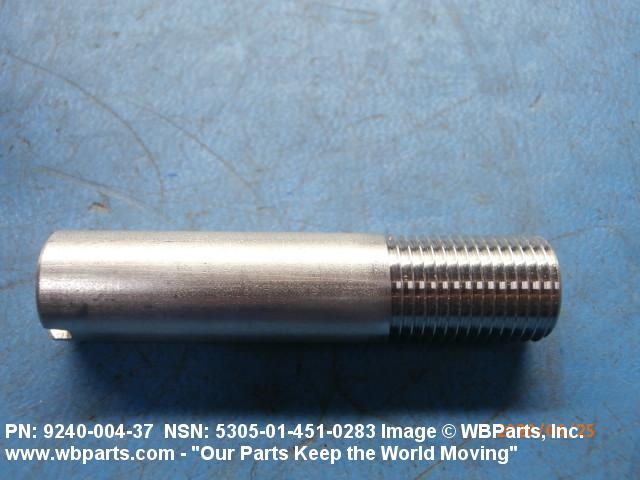

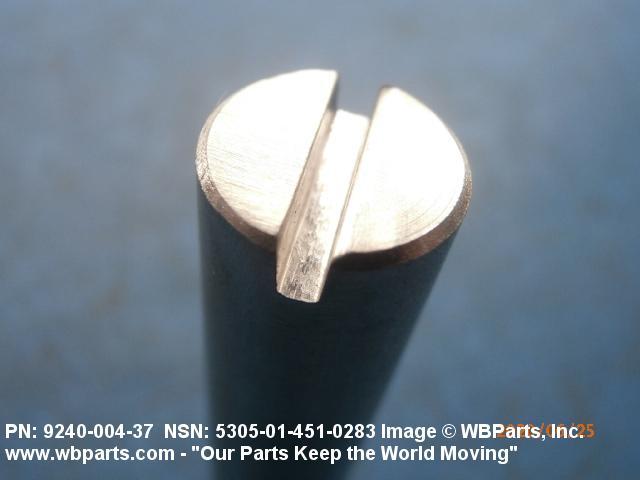

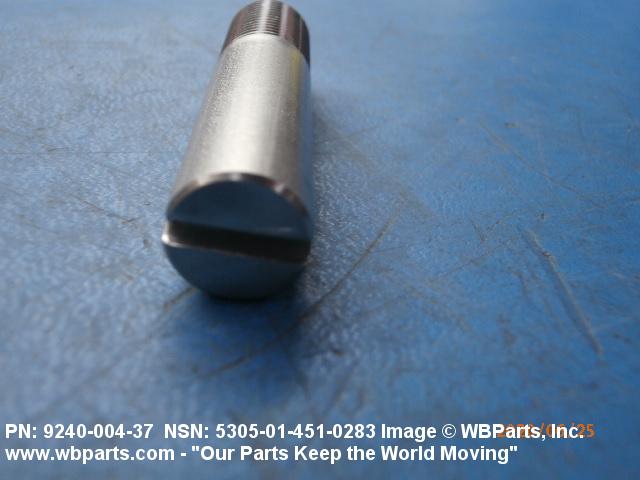

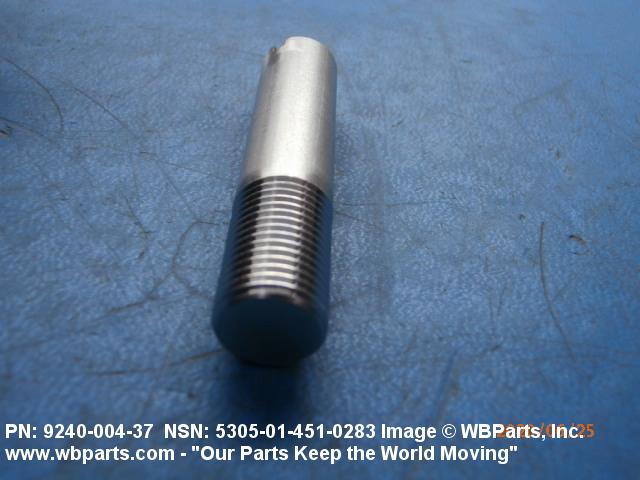

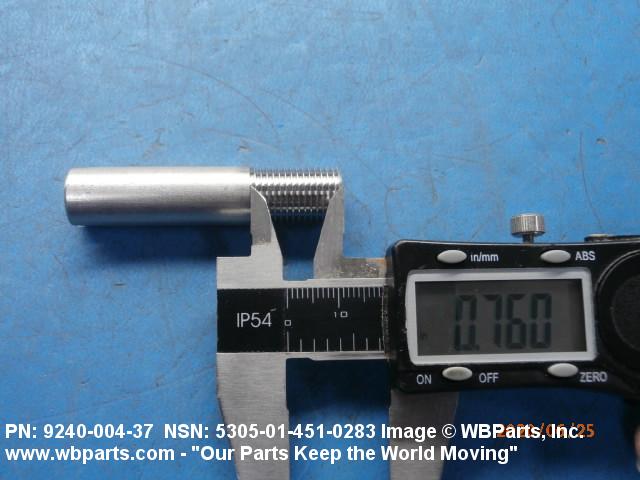

Drawings & Photos | NSN 5305-01-451-0283
Demand History | NSN 5305-01-451-0283
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 26800336 | 2023-04-110 | 1000 | US |
| 5305-01-451-0283 | 2020-06-169 | 1 | United States |
| 924000437 | 2011-09-263 | 6 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-451-0283
Technical Data | NSN 5305-01-451-0283
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

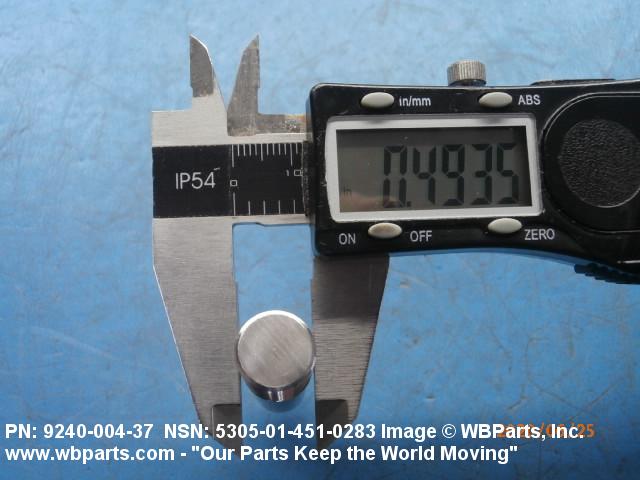

| NOMINAL THREAD DIAMETER | 0.500 INCHES |

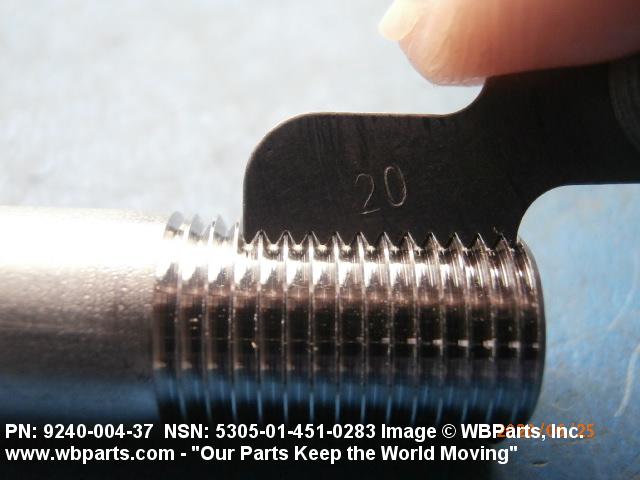

| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.750 INCHES NOMINAL |

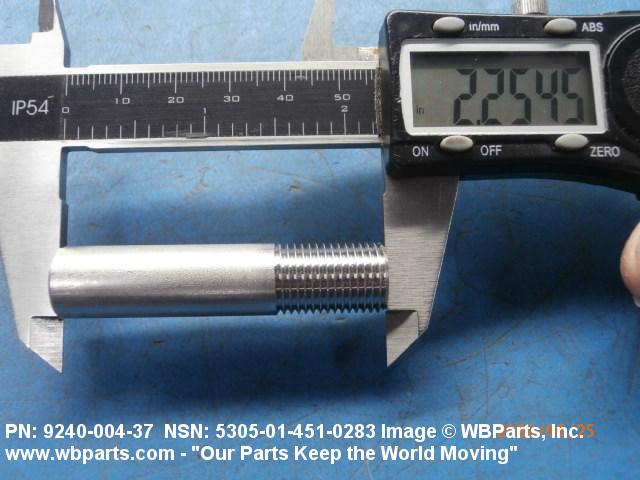

| FASTENER LENGTH | 2.250 INCHES NOMINAL |
| MATERIAL | STEEL COMP 303 OR STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763, COND C FED SPEC ALL MATERIAL RESPONSES OVERALL |
| HEAD STYLE | C101 HEADLESS |
| INTERNAL DRIVE STYLE | D21 WITHOUT INTERNAL DRIVE |
| POINT STYLE | F22 POINTLESS |
Restrictions/Controls & Freight Information | NSN 5305-01-451-0283
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
