NSN 5306-00-151-0784 AN310A, AN3-10A, Z00.N5101301010

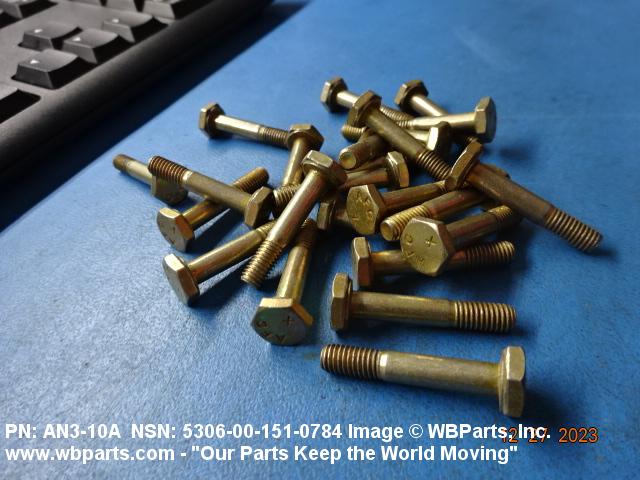

Product Details | MACHINE BOLT

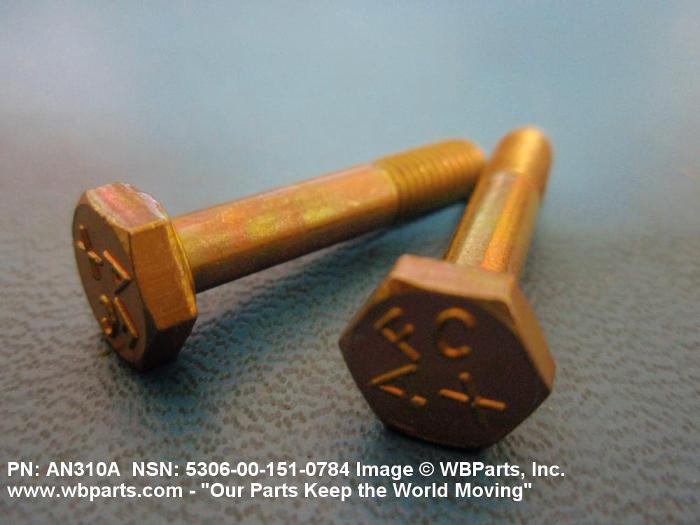

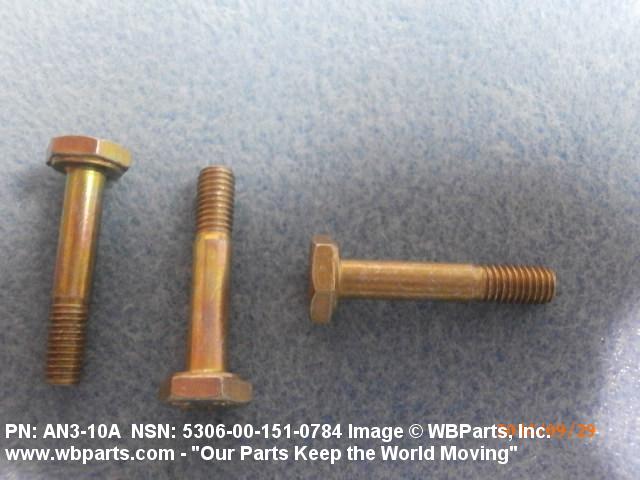

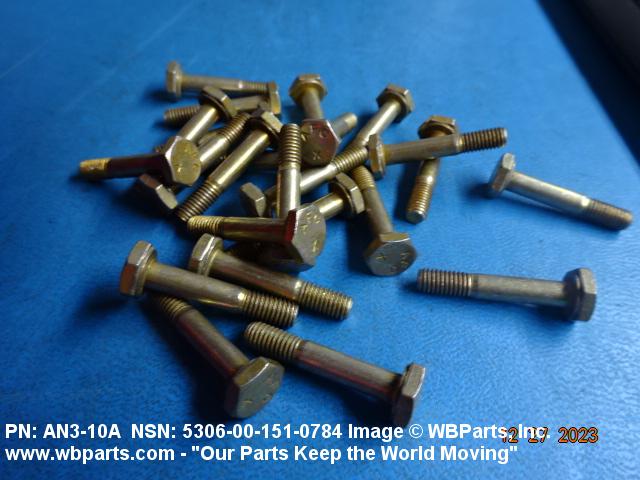

5306-00-151-0784 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: AN310A, AN3-10A, Z00.N5101301010, Z00N5101301010, 2010138, 401 269, 401269, 801015, 932.19.21.030, 9321921030, 5306-00-151-0784, 00-151-0784, 5306001510784, 001510784

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-151-0784	01847 ( BOLT, MACHINE )

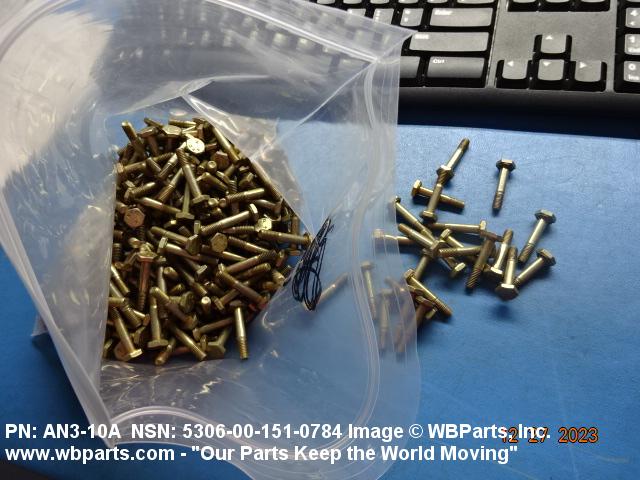

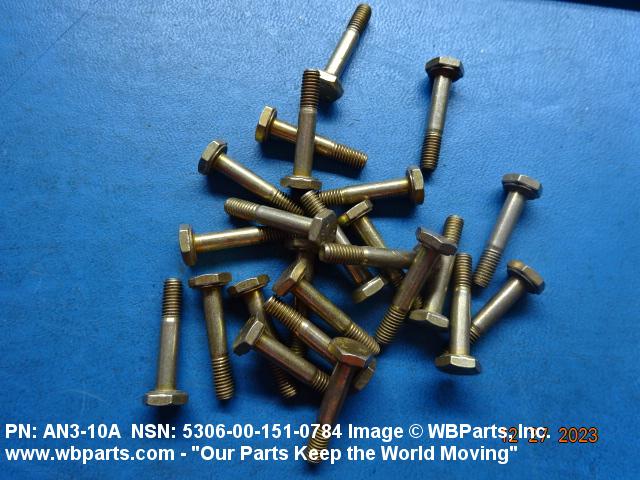

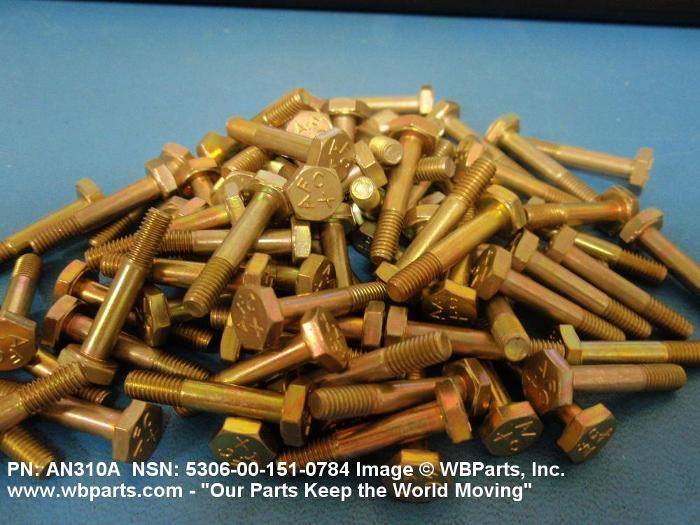

Drawings & Photos | NSN 5306-00-151-0784

Part Number	Request Date	QTY	Origin
AN310A	2025-10-304	400	United States
AN310A	2025-10-304	400	United States
5306-00-151-0784	2025-08-239	142	DIBBS
5306-00-151-0784	2025-08-231	142	DIBBS
5306-00-151-0784	2025-06-165	120	AE
5306-00-151-0784	2025-04-111	6	DIBBS
AN310A	2025-01-08	350	United States
AN310A	2024-12-348	72	Malaysia
AN310A	2024-12-347	72	Malaysia
AN310A	2024-05-150	250	United States
AN310A	2023-12-354	400	United States
AN310A	2023-12-352	200	United States
AN310A	2023-11-314	4195	us
AN310A	2023-09-264	400	United States
AN310A	2023-09-249	400	United States
AN310A	2023-06-157	50	us
AN310A	2023-04-117	100	US
AN310A	2023-04-103	52	South Africa
AN310A	2022-09-244	5000	United States
AN310A	2020-07-190	10	US
5306-00-151-0784	2020-06-182	32	MANUAL
AN310A	2020-01-06	50	United States
401269	2019-07-183	20	South Africa
AN310A	2019-03-63	20	China
AN310A	2019-03-63	20	China
5306-00-151-0784	2019-01-22	2	DIBBS-KIT
5306-00-151-0784	2017-12-350	100	United States
AN310A	2017-12-345	1	US
5306-00-151-0784	2017-06-181	5	DIBBS-KIT
AN3-10A	2017-06-181	5
AN310A	2016-09-273	10	United States
AN310A	2016-07-204	20	CA
AN310A	2015-06-163	25	CN
5306-00-151-0784	2015-06-153	500	US
AN310A	2015-06-153	500	US
AN3-10A	2015-05-138	8	United States
AN3-10A	2015-05-138	1	United States
AN3-10A	2015-05-138	1	United States
AN3-10A	2015-05-138	8	United States
AN3-10A	2015-05-138	1	United States
AN3-10A	2015-05-138	1	United States
5306-00-151-0784	2015-03-72	3600	PK
5306-00-151-0784	2014-11-320	1700	DIBBS
5306-00-151-0784	2014-10-293	746	DIBBS
AN3-10A	2014-05-142	5000	United States
5306-00-151-0784	2013-09-253	100	Canada
5306001510784	2012-11-311	16	Singapore
AN3-10A	2012-11-310	50
AN310A	2011-06-179	4	US
5306-00-151-0784	2011-06-175	4	US
AN310A	2011-04-94	80	United States
5306-00-151-0784	2010-04-102	200	PK
5306-00-151-0784	2009-08-238	20	PK
AN310A	2009-05-138	30	China
5306-00-151-0784	2008-03-81	10	Singapore

Cross Reference | NSN 5306-00-151-0784

Part Number	Cage Code	Manufacturer
2010138	001JK	EMBRAER S/A
2010138	FB459	EMBRAER AVIATION INTERNATIONAL
2010138	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
401 269	77294	PIPER AIRCRAFT INC.
5306001510784	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
801015	19203	PICATINNY ARSENAL
932.19.21.030	S4080	PILATUS AIRCRAFT LTD
AN3-10A	0RFT4	MAC FASTENERS, INC.
AN3-10A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
Z00.N5101301010	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-151-0784

Compare

Related Products | NSN 5306-00-151-0784

5306-00-151-0785, 5306-00-151-0786, 5306-00-151-0787, 5306-00-151-0788, 5306-00-151-0789

Technical Data | NSN 5306-00-151-0784

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

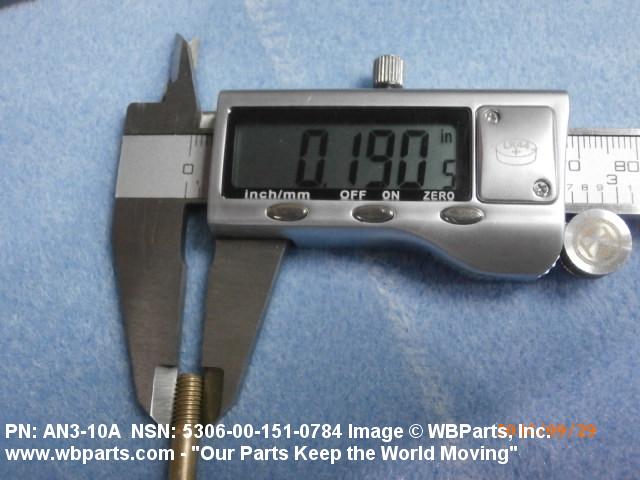

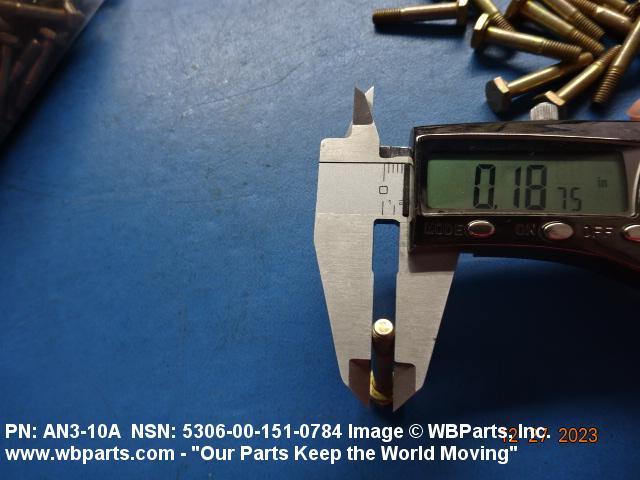

NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

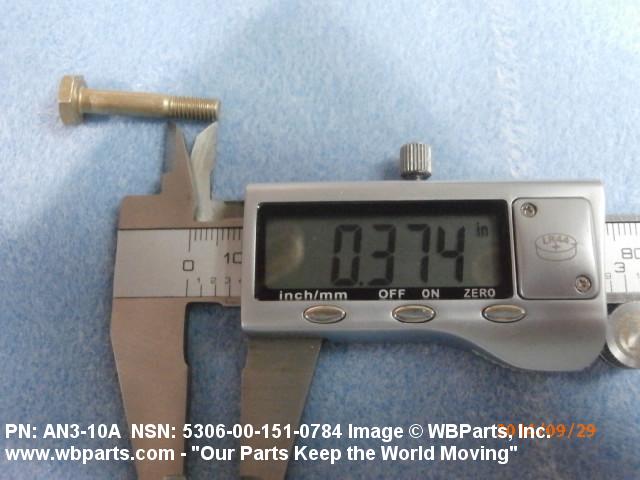

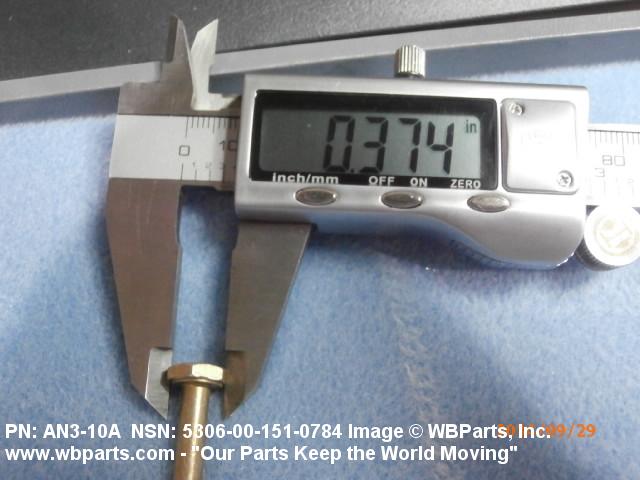

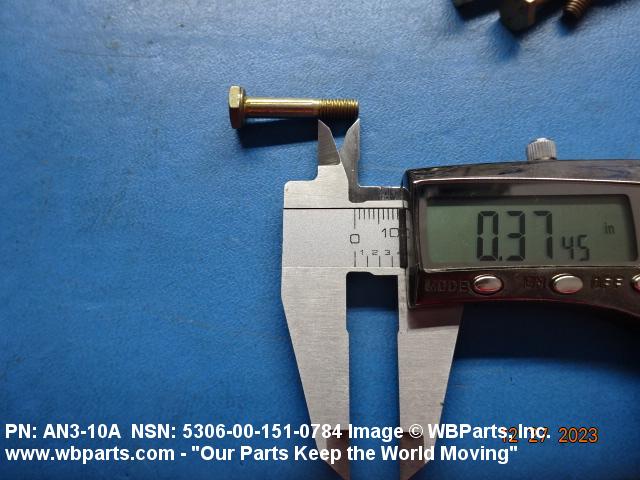

THREAD LENGTH	0.374 INCHES MINIMUM AND 0.453 INCHES MAXIMUM

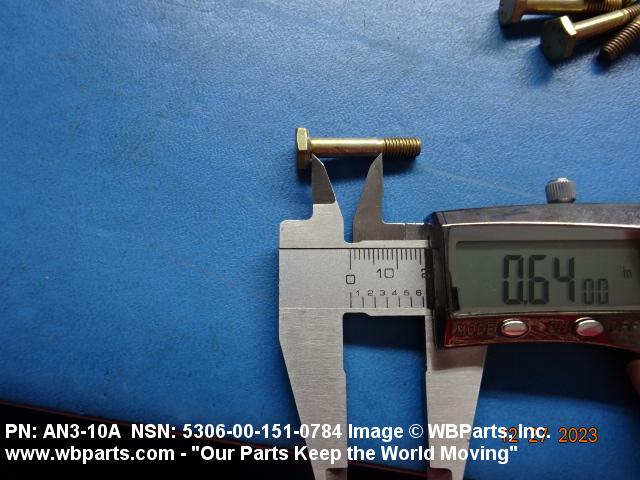

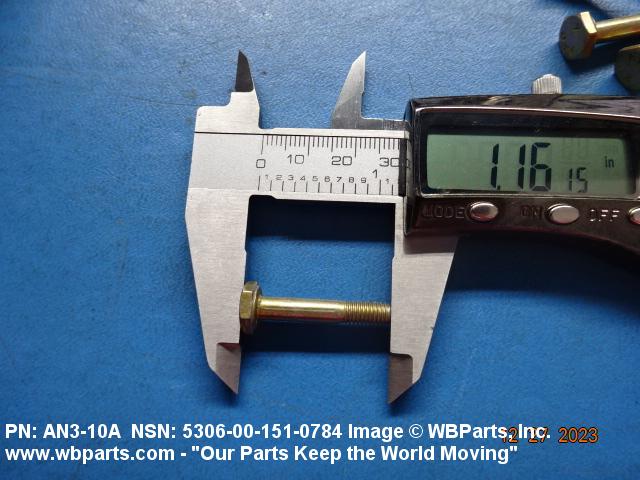

FASTENER LENGTH	1.016 INCHES MINIMUM AND 1.062 INCHES MAXIMUM
MATERIAL	STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 4130 OR STEEL COMP 4037 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 5TH MATERIAL RESPONSE OR AMS 6300 ASSN STD 6TH MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 3 FED SPEC ALL TREATMENT RESPONSES OVERALL
HARDNESS RATING	26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	125000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON

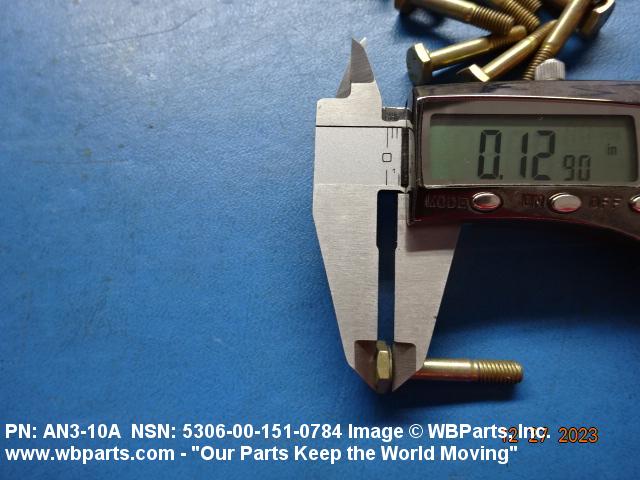

HEAD HEIGHT	0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM

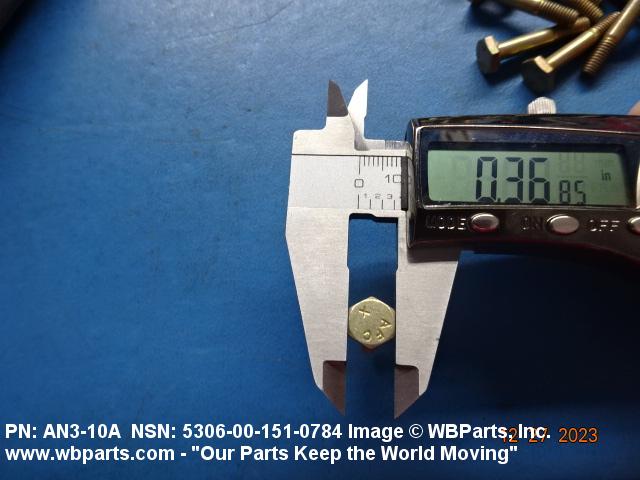

WIDTH BETWEEN FLATS	0.365 INCHES MINIMUM AND 0.377 INCHES MAXIMUM

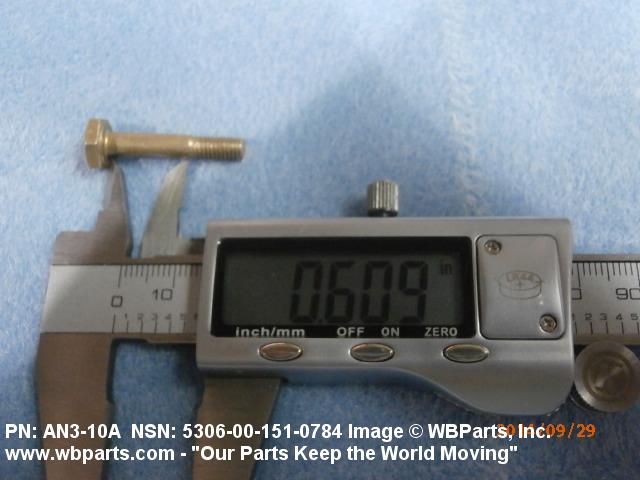

GRIP LENGTH	0.609 INCHES MINIMUM AND 0.641 INCHES MAXIMUM
FEATURES PROVIDED	FINISHED HEAD
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN3-10A
