NSN 5306-00-206-1386 P484150, 00-206-1386, 002061386
Product Details | INTERNALLY RELIEVED BODY BOLT
5306-00-206-1386 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Part Alternates: P484150, 5306-00-206-1386, 00-206-1386, 5306002061386, 002061386
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-206-1386 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5306-00-206-1386
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-206-1386
Technical Data | NSN 5306-00-206-1386
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.086 INCHES |
| THREAD QUANTITY PER INCH | 64 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.078 INCHES MINIMUM |
| FASTENER LENGTH | 0.078 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY OVERALL |

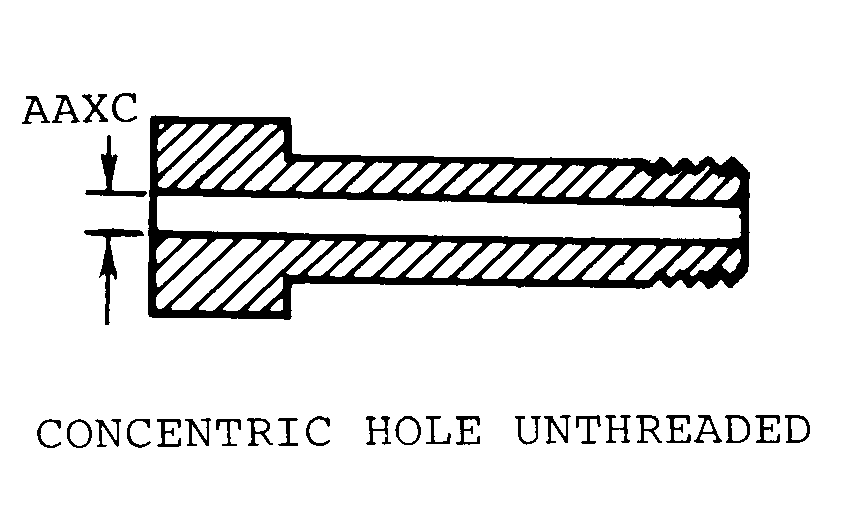

| STYLE DESIGNATOR | B42 CONCENTRIC HOLE UNTHREADED |
| CONCENTRIC HOLE DIAMETER | 0.047 INCHES NOMINAL |

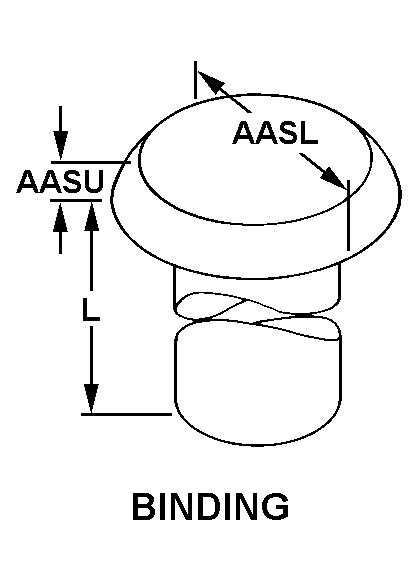

| HEAD STYLE | C29 BINDING |
| HEAD DIAMETER | 0.144 INCHES NOMINAL |
| HEAD HEIGHT | 0.030 INCHES NOMINAL |
