Product Details | RIBBED SHOULDER BOLT
5306-00-383-4957 An externally threaded fastener whose threaded portion is of one nominal diameter. It has a series of longitudinal ribs, splines or serrations on all or a part of the shoulder. The minor diameter of the ribs must be greater than the major diameter of the threads. See also BOLT, RIBBED NECK.
Part Alternates: MS519462, MS51946-2, A14572, 0511404A, 14572, 18A68248E, 2140131, 3109188, 501245, 621007, 667772, 68248, 68248E, 7339238, 82017, 5306-00-383-4957, 00-383-4957, 5306003834957, 003834957
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-383-4957 | 16014 ( BOLT, RIBBED SHOULDER ) |

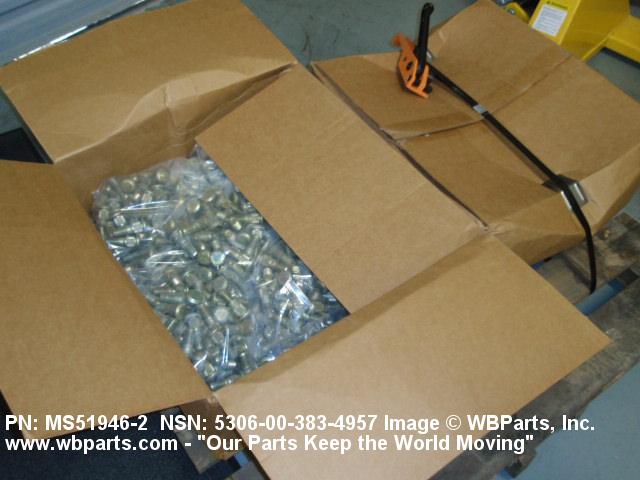

Drawings & Photos | NSN 5306-00-383-4957
Demand History | NSN 5306-00-383-4957
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-383-4957 | 2023-12-09 | 12 | US |
| 5306-00-383-4957 | 2023-06-06 | 24 | Taiwan |
| MS51946-2 | 2019-12-12 | 6 | US |
| 5306-00-383-4957 | 2019-07-08 | 130 | United States |
| 5306-00-383-4957 | 2019-07-08 | 2400 | United States |
| 5306-00-383-4957 | 2019-06-19 | 100 | United States |
| 5306-00-383-4957 | 2017-02-09 | 1 | DIBBS-RFPs |
| 5306-00-383-4957 | 2015-03-17 | 1495 | DIBBS |
| MS519462 | 2012-06-07 | 2760 | US |
| MS519462 | 2010-08-16 | 1500 | United States |
| MS519462 | 2009-06-02 | 12 | US |
| 5306-00-383-4957 | 2009-02-14 | 1 | US |
| MS519462 | 2008-01-10 | 1 | US |
Cross Reference | NSN 5306-00-383-4957
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0511404A | 51665 | RIVINIUS INC LITTLEFORD MACHINERY DIV |
| 14572 | 83120 | PRESSED METALS OF AMERICA INC |
| 18A68248E | 23382 | FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP |
| 18A68248E | 82132 | EAGLE MFG CO |
| 2140131 | 23862 | MILITARY VEHICLES OPN GENERAL MOTORS TRUCK AND BUS GROUP |
| 2140131 | 24617 | GENERAL MOTORS CORP |
| 3109188 | 73830 | GERSTENLAGER CO THE |
| 501245 | 21450 | ARMY WEAPONS COMMAND ATTN AMSWE-REE-S |
| 5306003834957 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 621007 | 12793 | AQUA-CHEM INC CLEAVER-BROOKS DIV |
| 667772 | 58275 | SASCO INC CANADIAN DIV |
| 68248 | 09386 | ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| 68248E | 09386 | ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| 68248E | 71282 | BUDD CO THE |
| 7339238 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 82017 | 41885 | HAYES WHEELS INTL INC AKRON OPNS |
| A14572 | 34623 | AM GENERAL, LLC |
| MS51946-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5306-00-383-4957
Related Products | NSN 5306-00-383-4957
5306-00-383-6258, 5306-00-383-7088, 5306-00-383-7126, 5306-00-383-7978, 5306-00-383-8491
Technical Data | NSN 5306-00-383-4957
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.156 INCHES MINIMUM |
| FASTENER LENGTH | 2.469 INCHES NOMINAL |
| MATERIAL | STEEL COMP 8640 OR STEEL COMP 8740 OR STEEL COMP 3135 OR STEEL COMP 4140 OR STEEL COMP 4140 OR STEEL COMP 4135 OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC 1ST TREATMENT RESPONSE OR QQ-Z-325,TY 2,CL 3 FED SPEC 2ND TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 300.0 BRINELL STANDARD MINIMUM AND 350.0 BRINELL STANDARD MAXIMUM OVERALL |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 1.188 INCHES NOMINAL |
| HEAD HEIGHT | 0.312 INCHES NOMINAL |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |
| SHOULDER DIAMETER | 0.840 INCHES NOMINAL FIRST SHOULDER |
| SHOULDER LENGTH | 0.906 INCHES NOMINAL FIRST SHOULDER |
| RIB QUANTITY | 25 |
| RIB MAJOR DIAMETER | 0.875 INCHES NOMINAL |
| RIB LENGTH | 0.781 INCHES NOMINAL |
| DISTANCE FROM LARGEST DIAMETER OF BEARING SURFACE OF HEAD TO RIBS | 0.125 INCHES NOMINAL |
| FEATURES PROVIDED | CASEHARDENED |
| SPECIAL FEATURES | 5/32 IN. BY 45 DEG CHAMFER ON HEAD END |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51946-2 |
Restrictions/Controls & Freight Information | NSN 5306-00-383-4957
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-383-4957
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
H EA : Each |
