NSN 5306-00-544-9118 MC658A41664, MC658A4-16-64, 00-544-9118
Product Details | U BOLT
5306-00-544-9118 An externally threaded fastener bent approximately 180 degrees (3.141 radians) in the shape of the letter U and with both ends threaded.
Part Alternates: MC658A41664, MC658A4-16-64, 5306-00-544-9118, 00-544-9118, 5306005449118, 005449118
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 OCT 1974 | 00-544-9118 | 06665 ( BOLT, U ) |

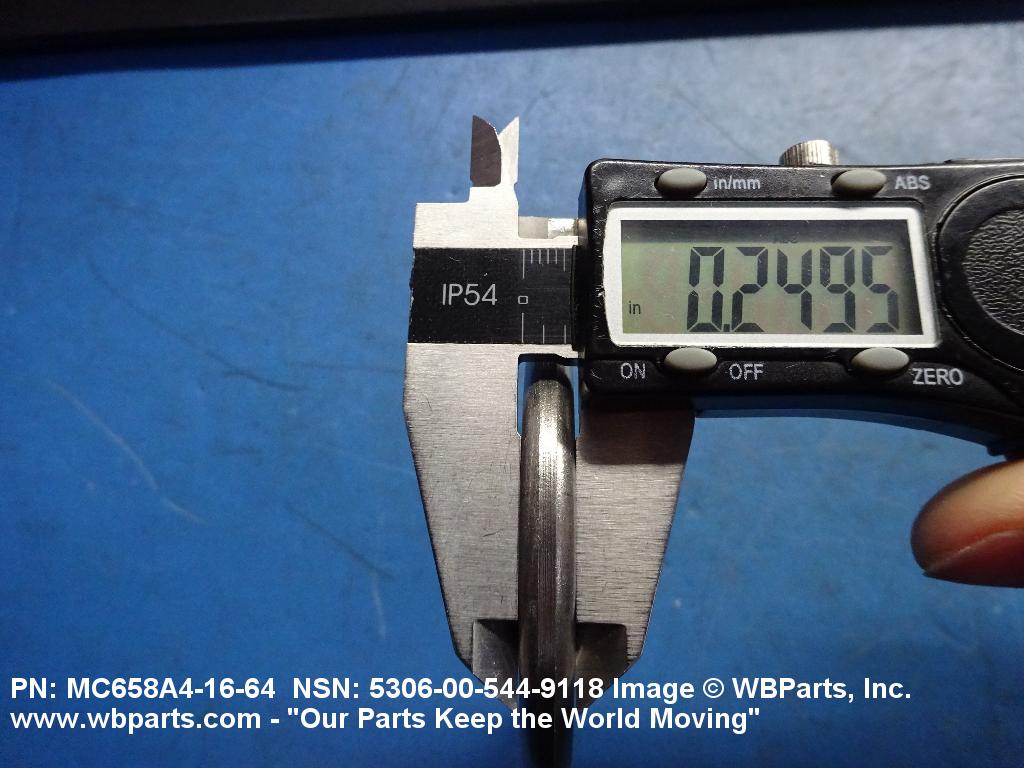

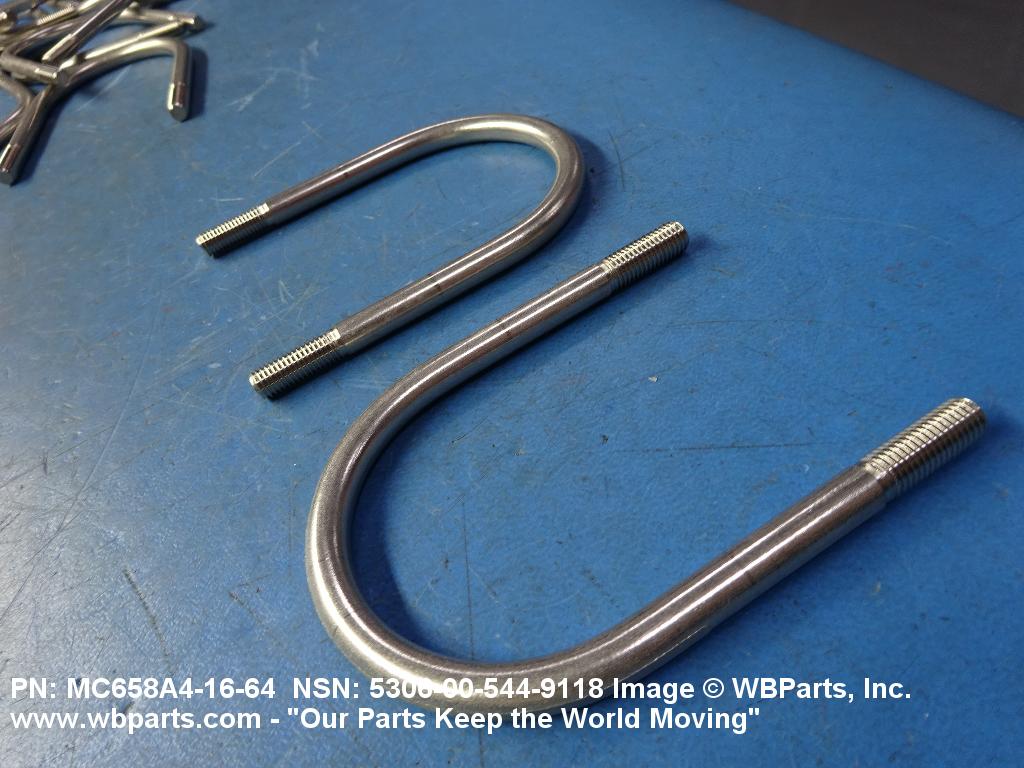

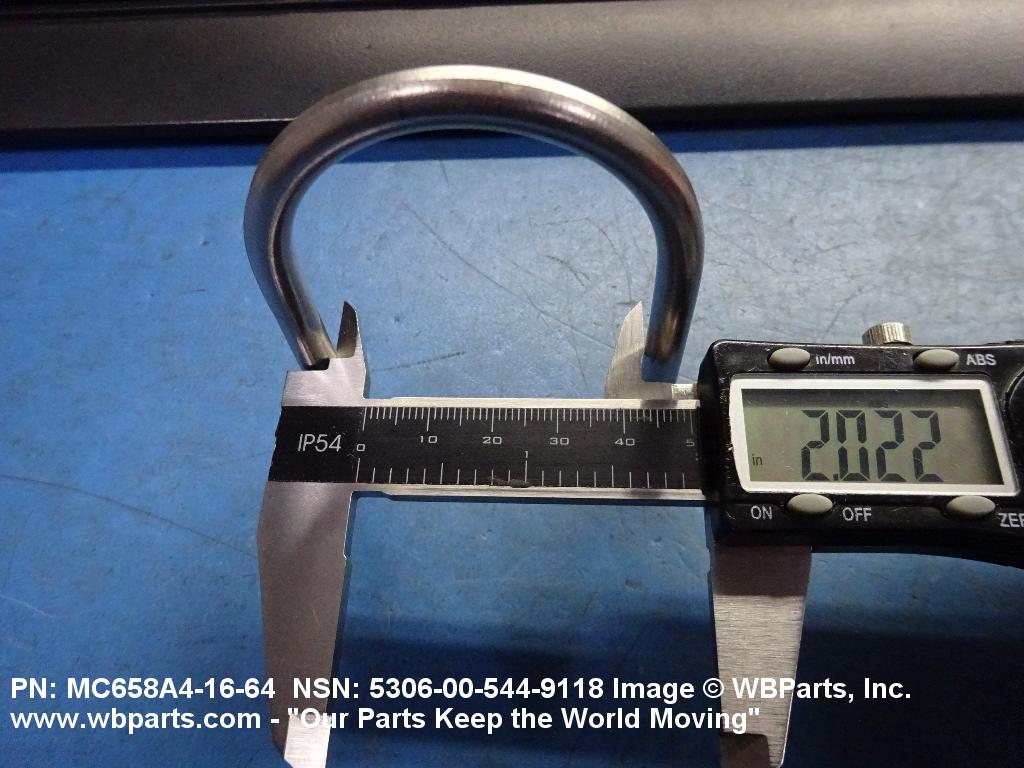

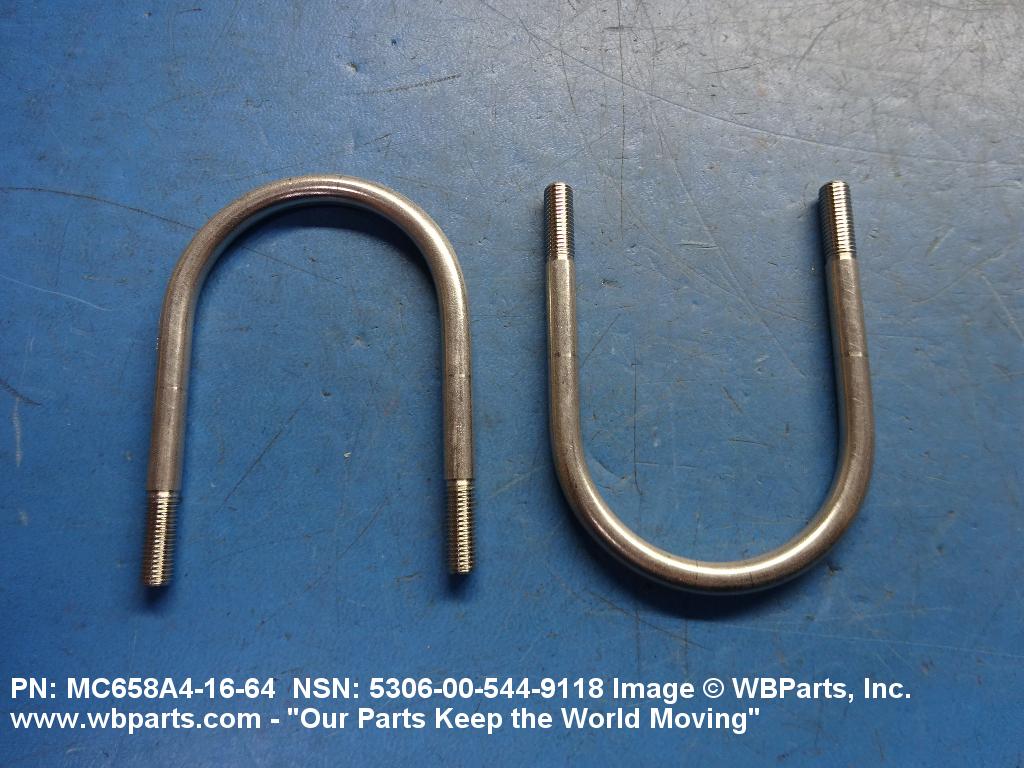

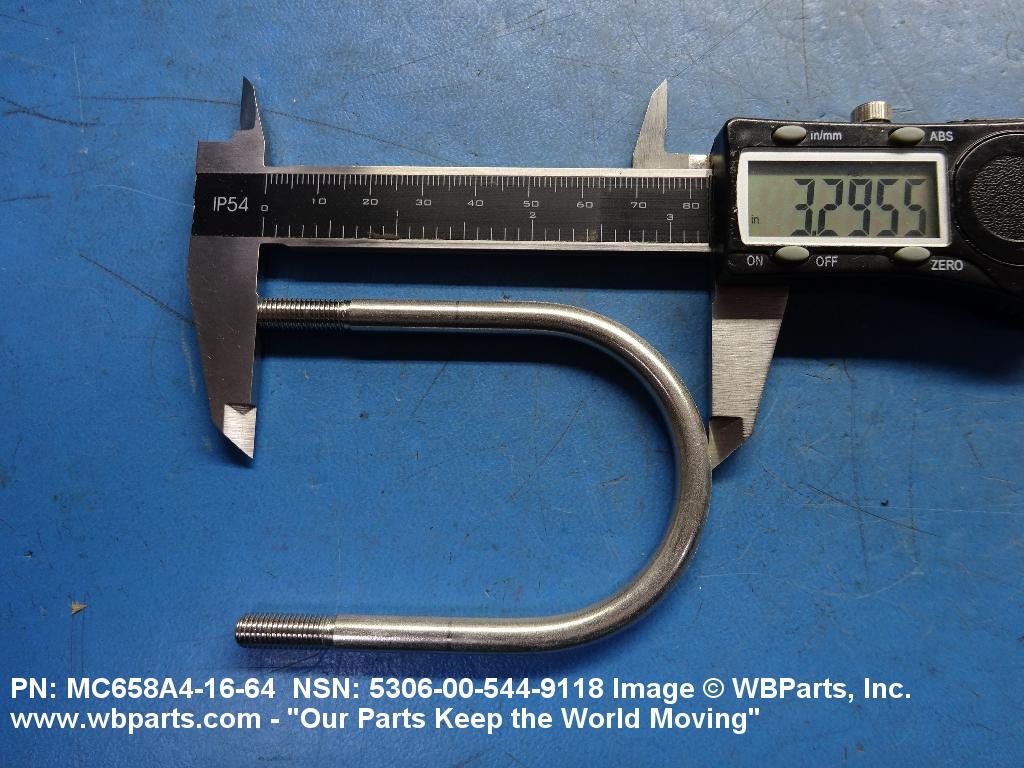

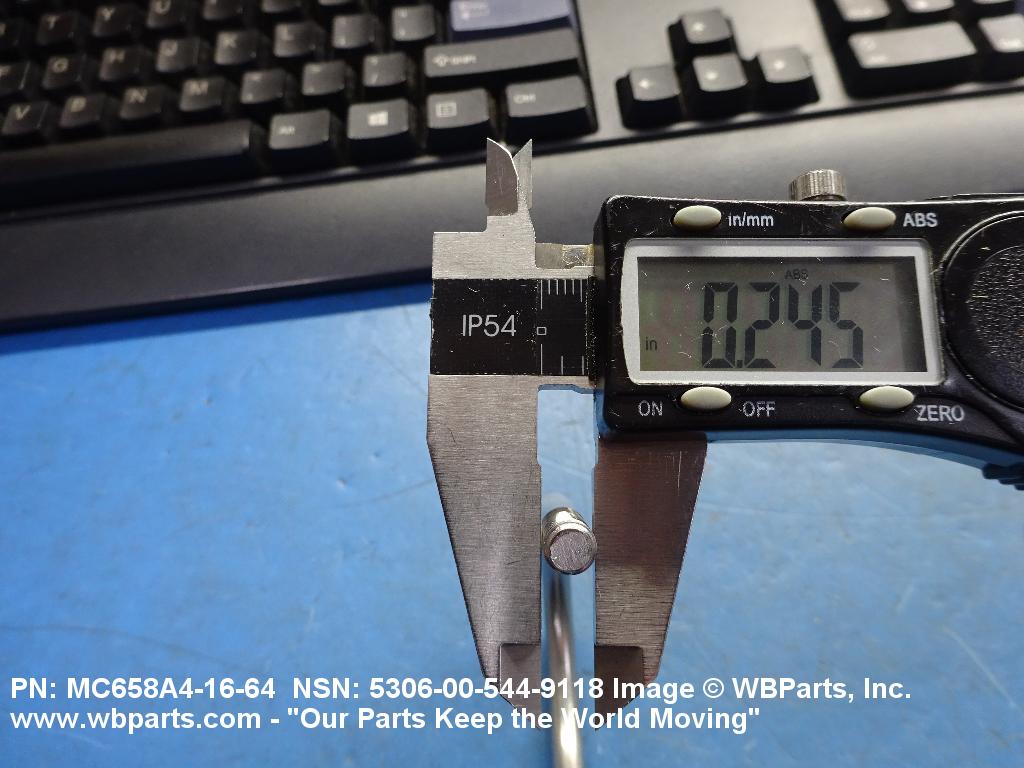

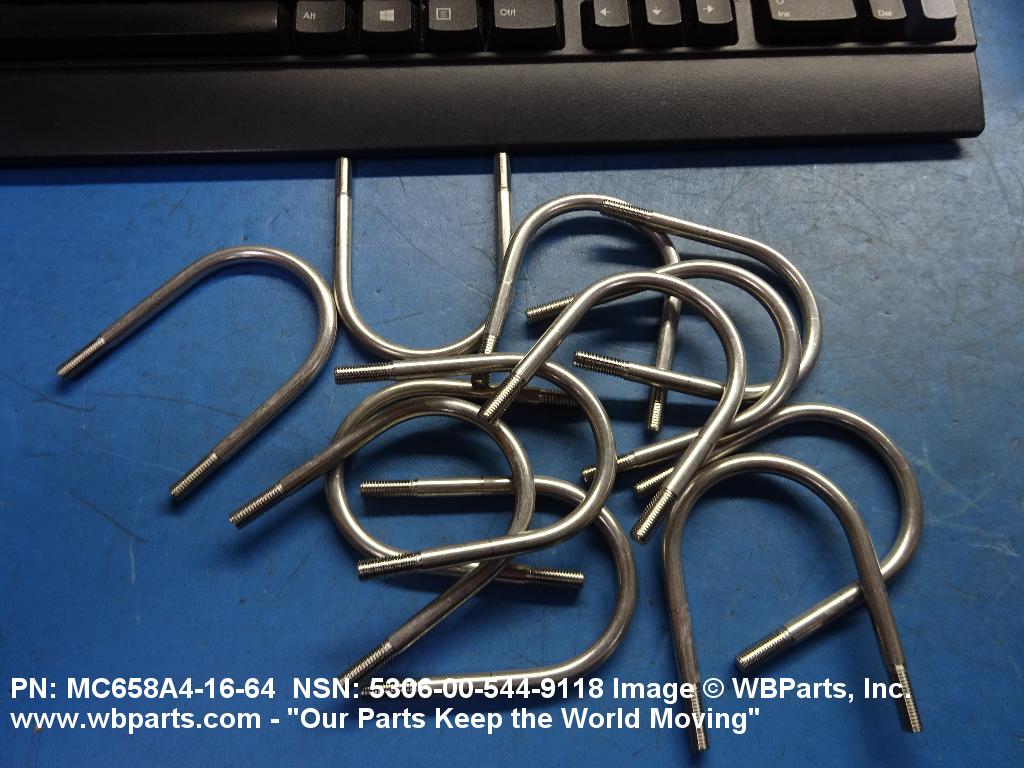

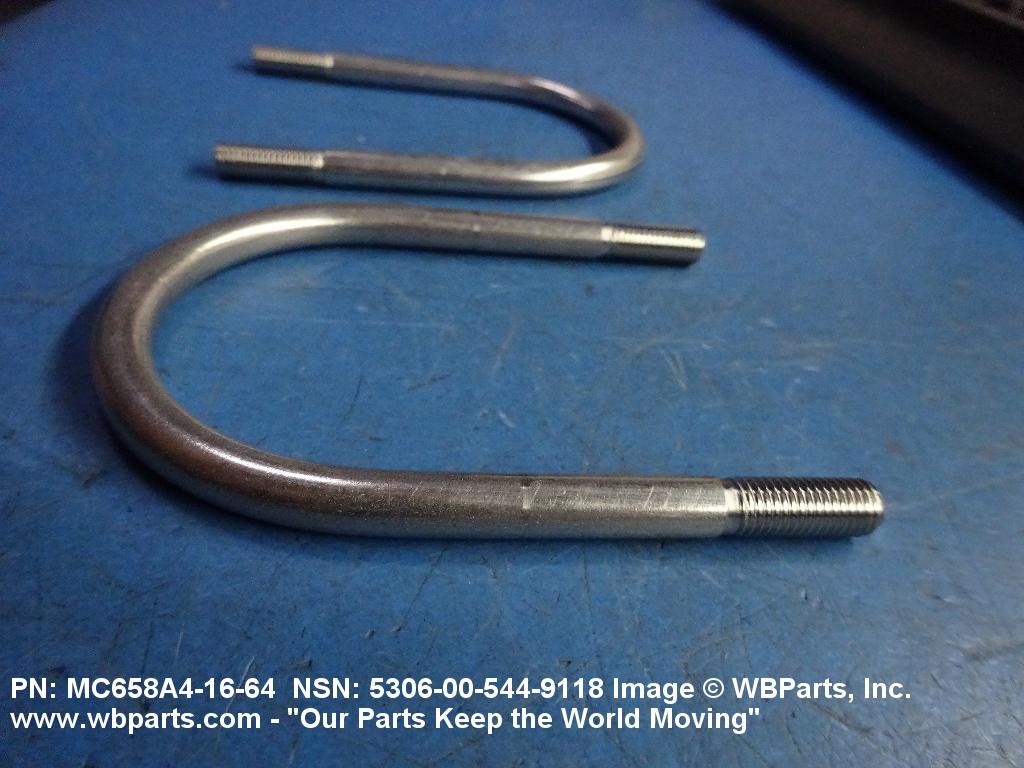

Drawings & Photos | NSN 5306-00-544-9118
Demand History | NSN 5306-00-544-9118
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MC658A41664 | 2022-09-271 | 100 | United States |
Cross Reference | NSN 5306-00-544-9118
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MC658A4-16-64 | 73145 | HINDLEY MANUFACTURING COMPANY INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-544-9118
Related Products | NSN 5306-00-544-9118
Technical Data | NSN 5306-00-544-9118
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| MATERIAL | STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | B30 ROUND BEND |
| INSIDE DISTANCE BETWEEN SHANKS | 2.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5306-00-544-9118
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
