NSN 5306-00-655-9403 8363974, 00-655-9403, 006559403
Product Details | U BOLT

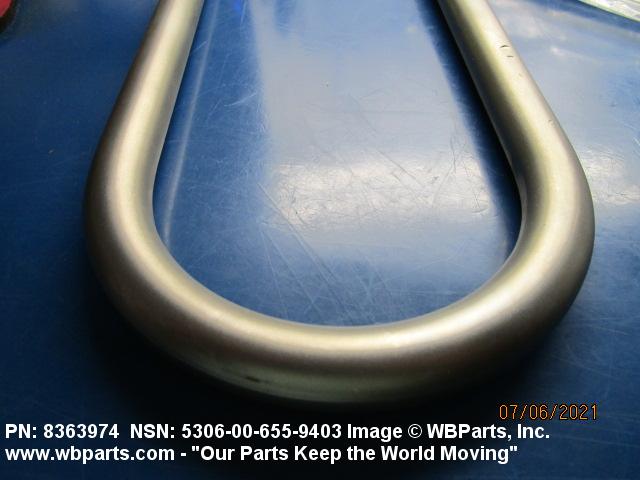

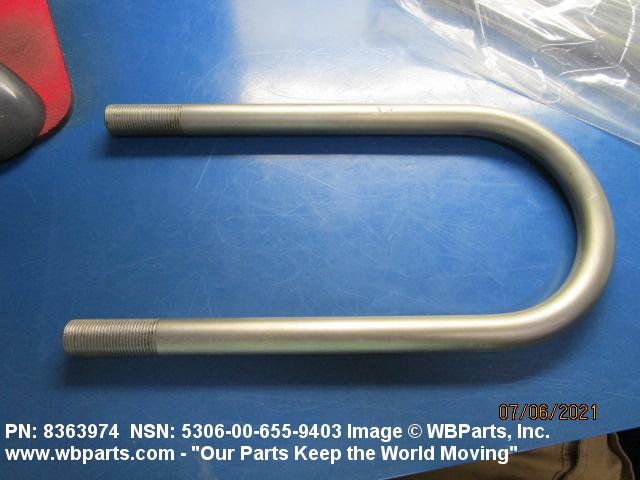

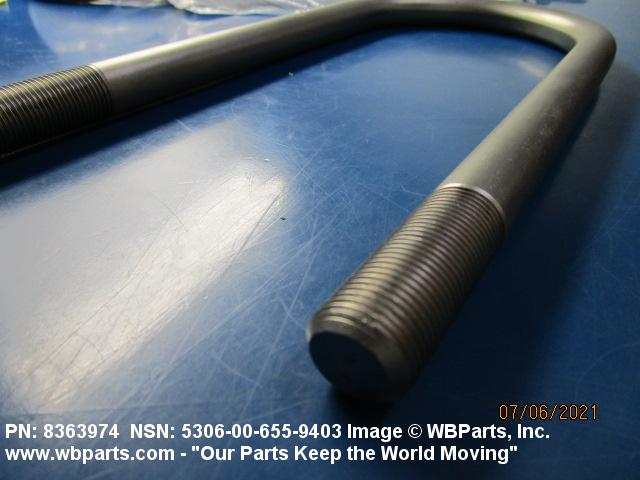

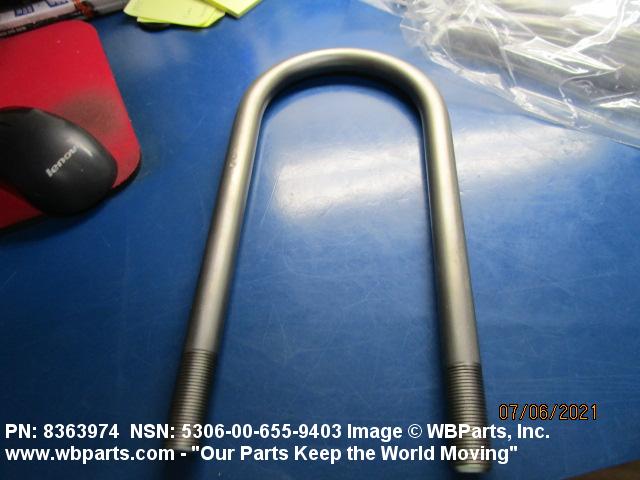

5306-00-655-9403 An externally threaded fastener bent approximately 180 degrees (3.141 radians) in the shape of the letter U and with both ends threaded.
Part Alternates: 8363974, 5306-00-655-9403, 00-655-9403, 5306006559403, 006559403
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-655-9403 | 06665 ( BOLT, U ) |

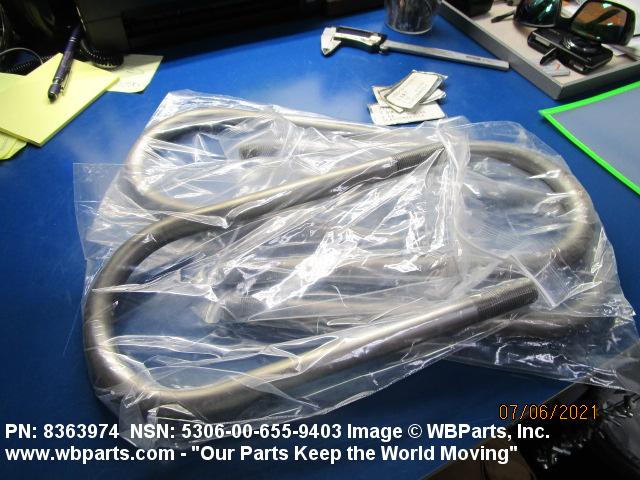

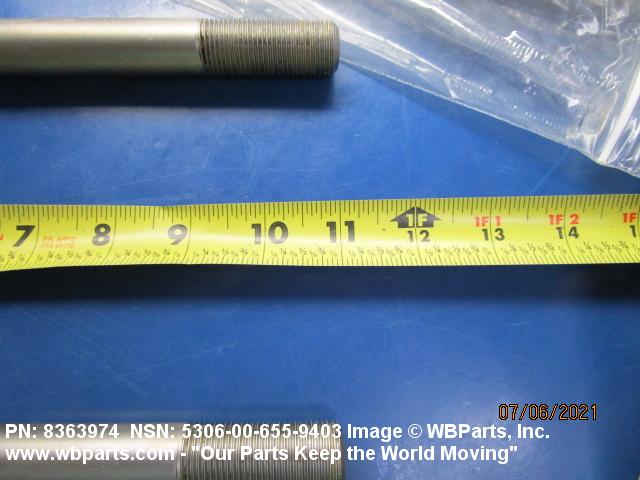

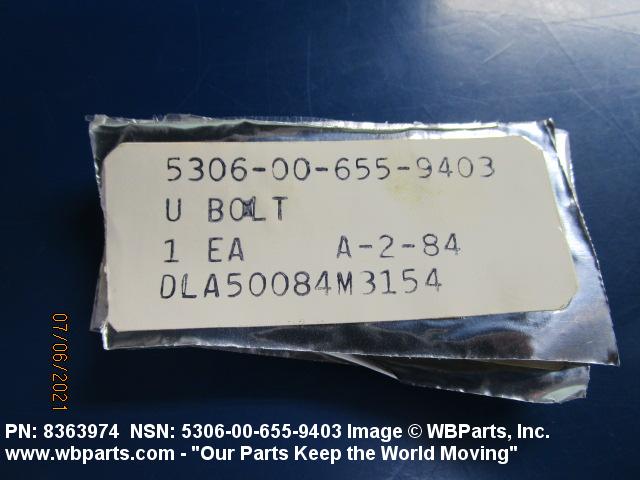

Drawings & Photos | NSN 5306-00-655-9403
Demand History | NSN 5306-00-655-9403
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-655-9403 | 2021-06-173 | 4 | United States |
Cross Reference | NSN 5306-00-655-9403
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8389628 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-655-9403
Related Products | NSN 5306-00-655-9403
Technical Data | NSN 5306-00-655-9403
| Characteristic | Specifications |
|---|---|

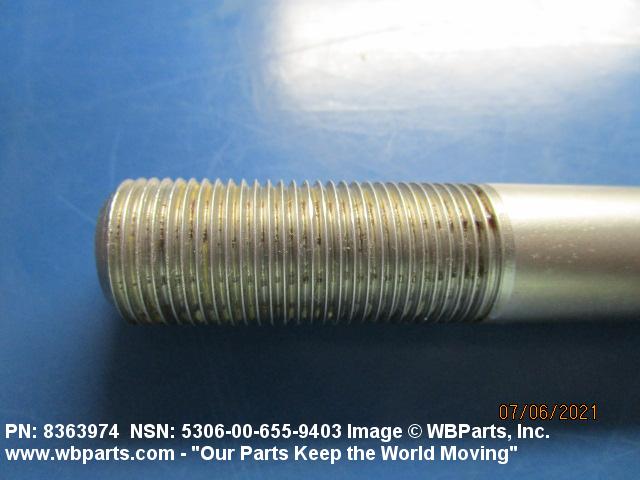

| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

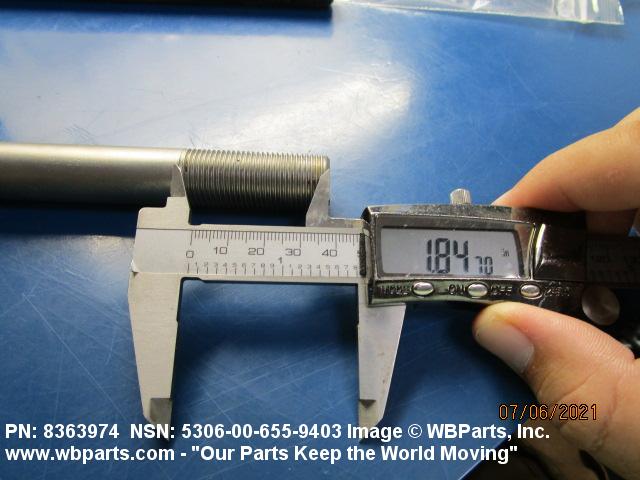

| THREAD LENGTH | 1.750 INCHES MINIMUM |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-11415 CL E MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | B30 ROUND BEND |
| DISTANCE FROM INSIDE CENTER OF BEND TO BOLT END | 11.000 INCHES NOMINAL |

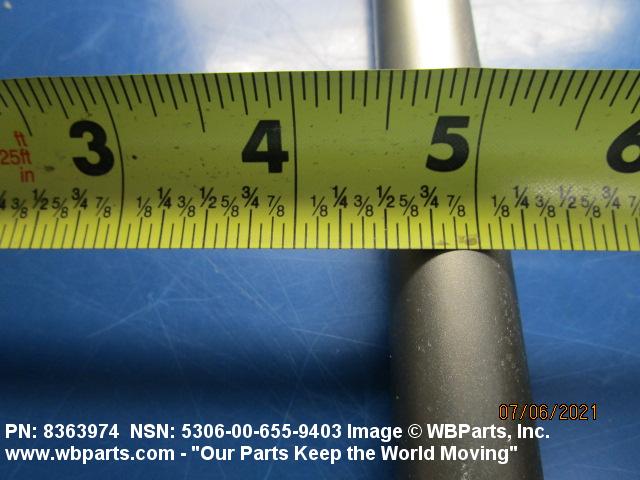

| INSIDE DISTANCE BETWEEN SHANKS | 4.500 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5306-00-655-9403
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
