NSN 5306-00-935-7558 B352220, B3522-20, 00-935-7558
Product Details | INTERNALLY RELIEVED BODY BOLT
5306-00-935-7558 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Part Alternates: B352220, B3522-20, 5306-00-935-7558, 00-935-7558, 5306009357558, 009357558
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 MAY 1968 | 00-935-7558 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5306-00-935-7558
Demand History | NSN 5306-00-935-7558
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-935-7558 | 2012-01-09 | 10 | Germany |
| 5306-00-935-7558 | 2012-01-09 | 20 | Germany |
| 5306-00-935-7558 | 2011-05-129 | 10 | Germany |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-935-7558
Technical Data | NSN 5306-00-935-7558
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 10 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | LEFT-HAND |
| THREAD LENGTH | 1.058 INCHES MINIMUM AND 1.068 INCHES MAXIMUM |
| FASTENER LENGTH | 1.375 INCHES NOMINAL |
| MATERIAL | STEEL COMP 1144 OR STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD 1ST MATERIAL RESPONSE OR 66 FED STD 2ND MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 32.0 ROCKWELL C MINIMUM AND 35.0 ROCKWELL C MAXIMUM OVERALL |

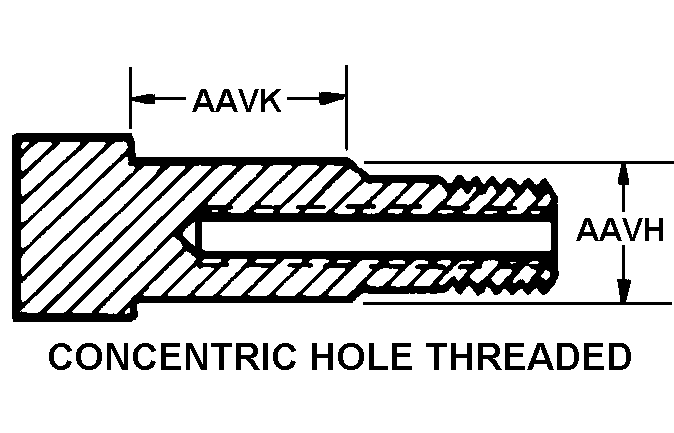

| STYLE DESIGNATOR | B44A CONCENTRIC HOLE THREADED |
| SHOULDER DIAMETER | 1.240 INCHES MINIMUM AND 1.250 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.062 INCHES MINIMUM AND 0.067 INCHES MAXIMUM |
| CONCENTRIC HOLE DEPTH | 1.250 INCHES MINIMUM AND 1.375 INCHES MAXIMUM |
| CONCENTRIC HOLE DIAMETER | 0.250 INCHES NOMINAL |
| THREAD SERIES | UNF CONCENTRIC HOLE |
| NOMINAL THREAD SIZE | 0.250 INCHES CONCENTRIC HOLE |
| THREADS PER INCH | 28 CONCENTRIC HOLE |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.188 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 2.000 INCHES NOMINAL |
| SPECIAL FEATURES | CONCENTRIC HOLE THREAD IS LEFT HAND |
| MANUFACTURERS CODE | 16128 |
| DESIGN CONTROL REFERENCE | B3522-20 |
