NSN 5306-01-012-8367 NAS3104C1616, NAS3104C16-16, 01-012-8367
Product Details | U BOLT

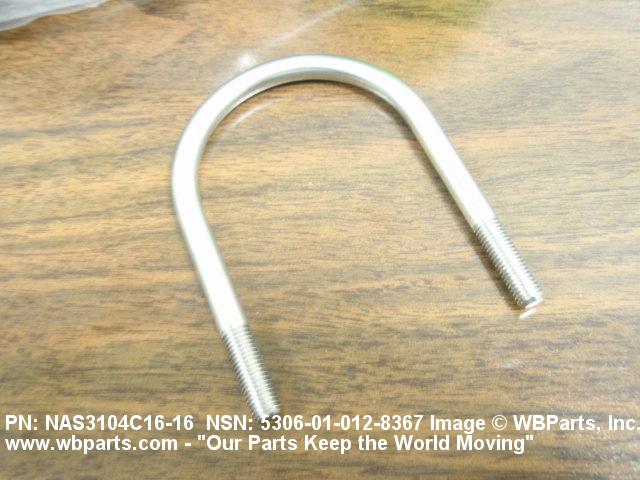

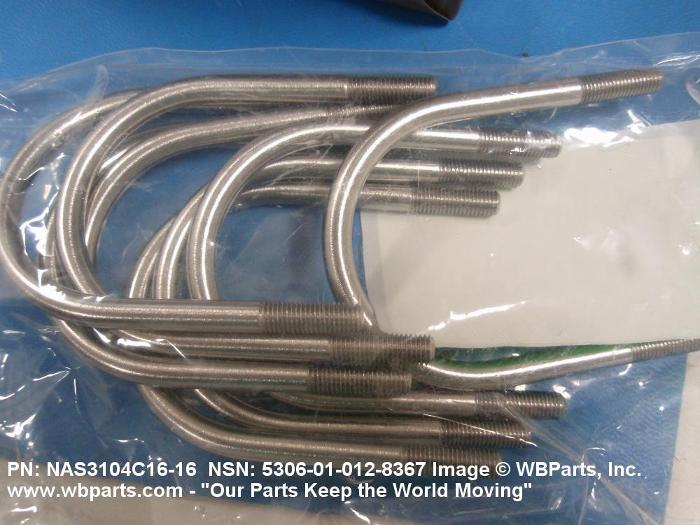

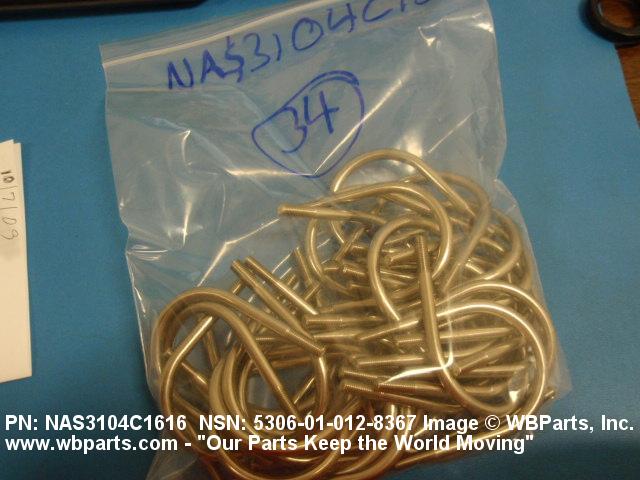

5306-01-012-8367 An externally threaded fastener bent approximately 180 degrees (3.141 radians) in the shape of the letter U and with both ends threaded.
Part Alternates: NAS3104C1616, NAS3104C16-16, 5306-01-012-8367, 01-012-8367, 5306010128367, 010128367
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 NOV 1975 | 01-012-8367 | 06665 ( BOLT, U ) |

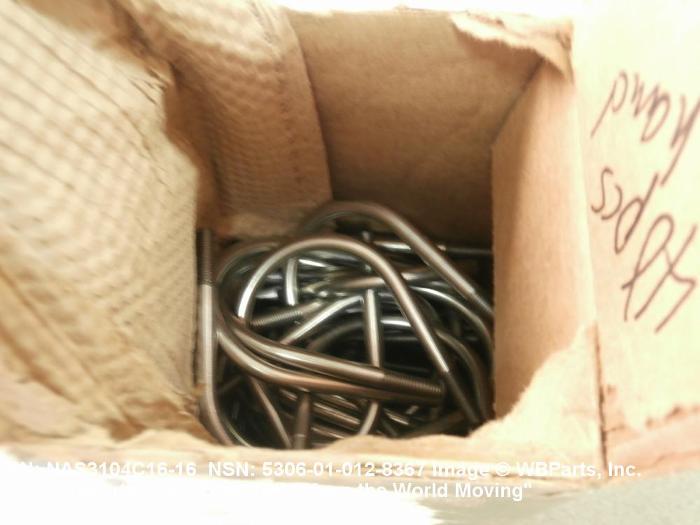

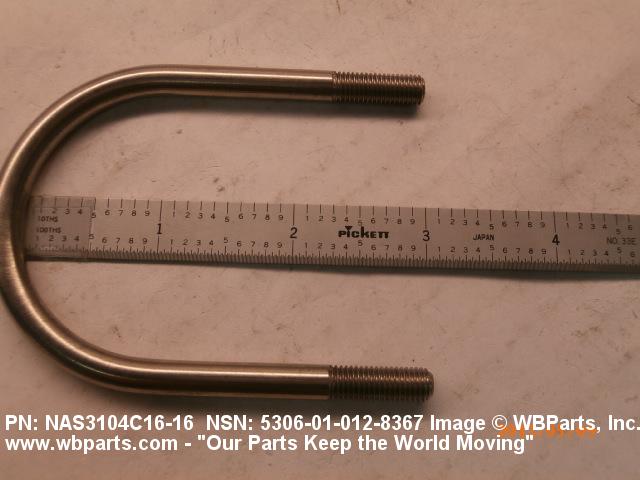

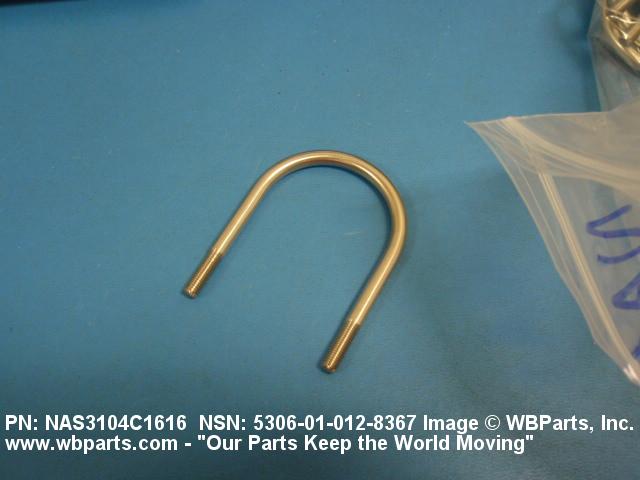

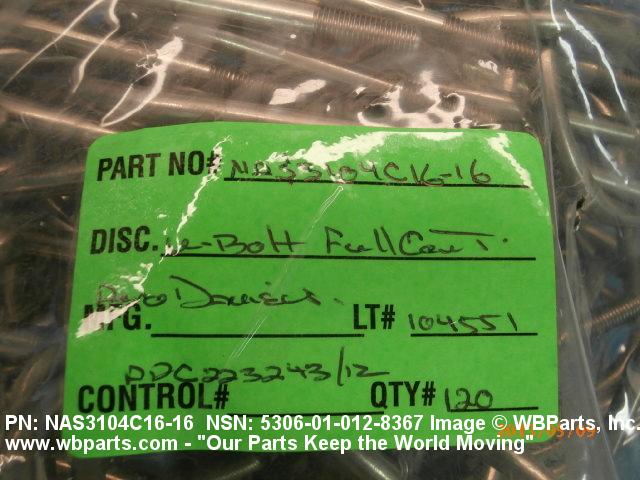

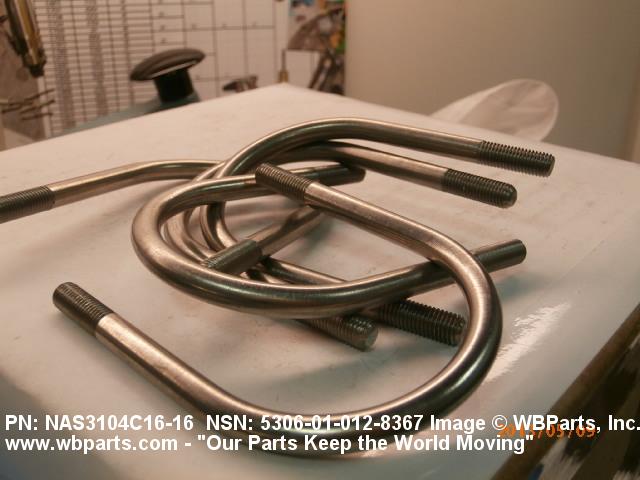

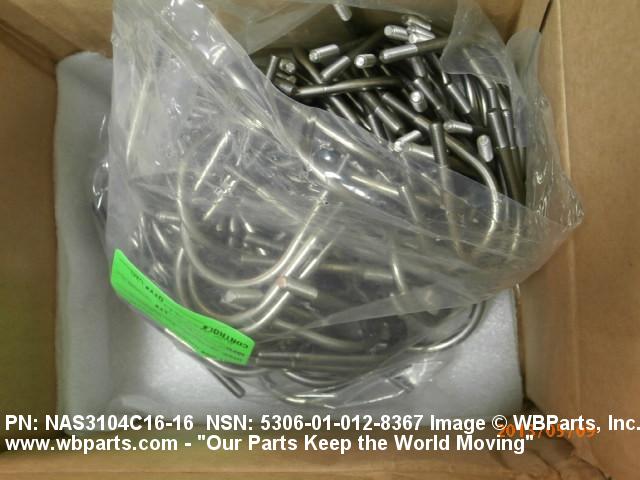

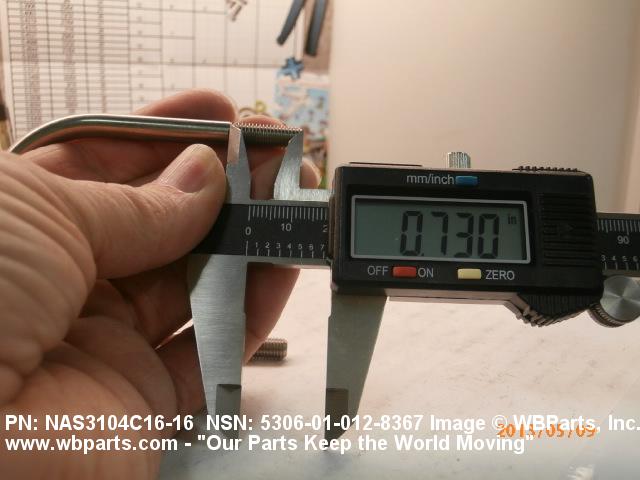

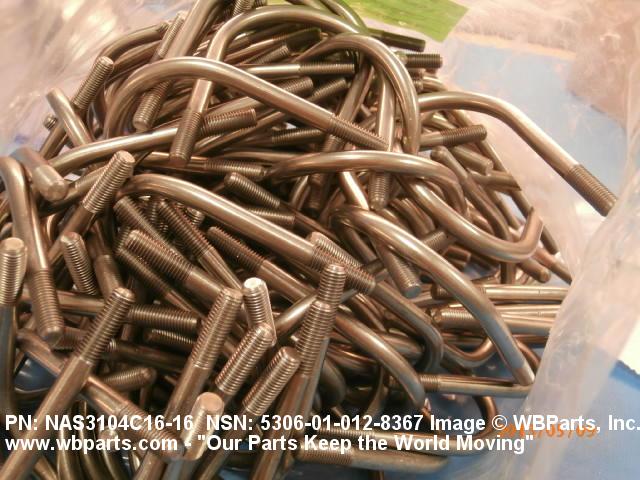

Drawings & Photos | NSN 5306-01-012-8367
Demand History | NSN 5306-01-012-8367
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-012-8367 | 2017-01-13 | 8 | us |
| NAS3104C1616 | 2013-04-112 | 120 | United States |
| NAS3104C1616 | 2012-10-283 | 40 | United States |
| 5306-01-012-8367 | 2012-04-117 | 48 | US |
| NAS3104C1616 | 2011-11-305 | 16 | United States |
| NAS3104C1616 | 2011-11-305 | 48 | United States |
| NAS3104C1616 | 2011-10-292 | 116 | United States |
| NAS3104C1616 | 2011-08-224 | 112 | United States |
| NAS3104C1616 | 2011-08-224 | 162 | United States |
| NAS3104C1616 | 2011-07-192 | 12 | United States |
| NAS3104C1616 | 2011-06-166 | 8 | United States |
| NAS3104C1616 | 2011-06-166 | 15 | United States |
| NAS3104C1616 | 2010-05-145 | 210 | United States |
| NAS3104C1616 | 2010-05-145 | 240 | United States |
| NAS3104C1616 | 2009-10-274 | 60 | United States |
| NAS3104C1616 | 2009-10-274 | 100 | United States |
| NAS3104C1616 | 2009-10-274 | 60 | United States |
| NAS3104C1616 | 2009-06-163 | 12 | US |
Cross Reference | NSN 5306-01-012-8367
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS3104C16-16 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-012-8367
Related Products | NSN 5306-01-012-8367
Technical Data | NSN 5306-01-012-8367
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

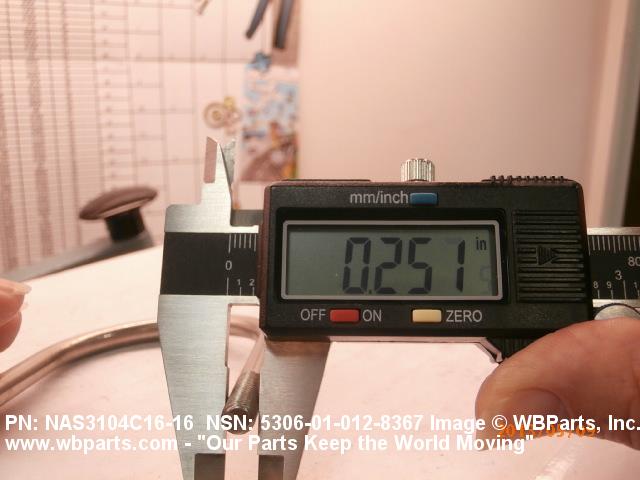

| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.625 INCHES MINIMUM AND 0.781 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 303SE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| MINIMUM TENSILE STRENGTH | 55000 POUNDS PER SQUARE INCH |
| STYLE DESIGNATOR | B30 ROUND BEND |

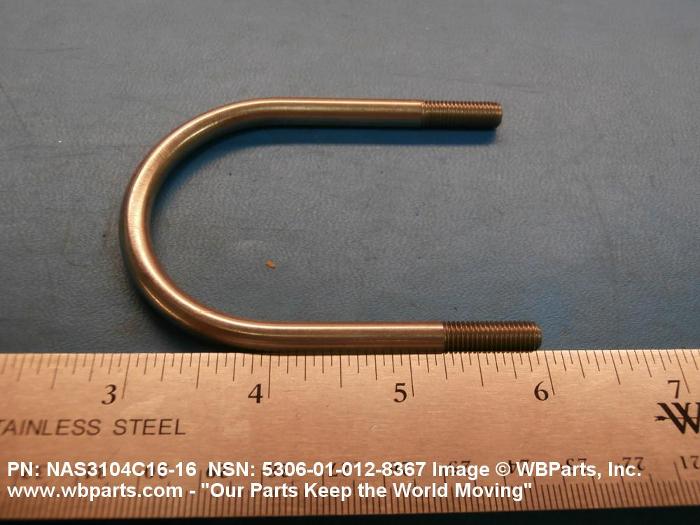

| DISTANCE FROM INSIDE CENTER OF BEND TO BOLT END | 3.000 INCHES NOMINAL |

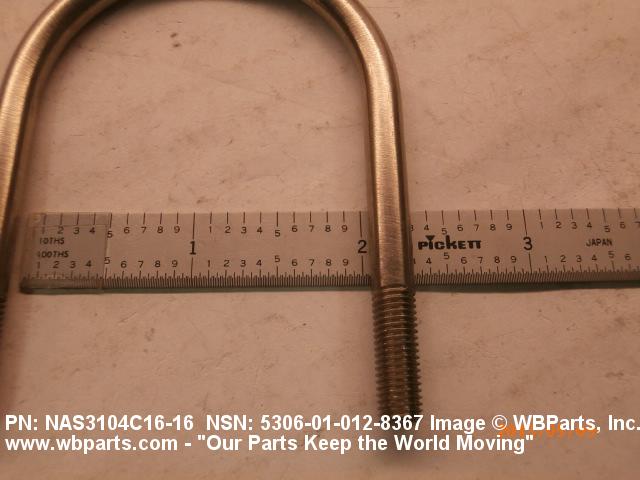

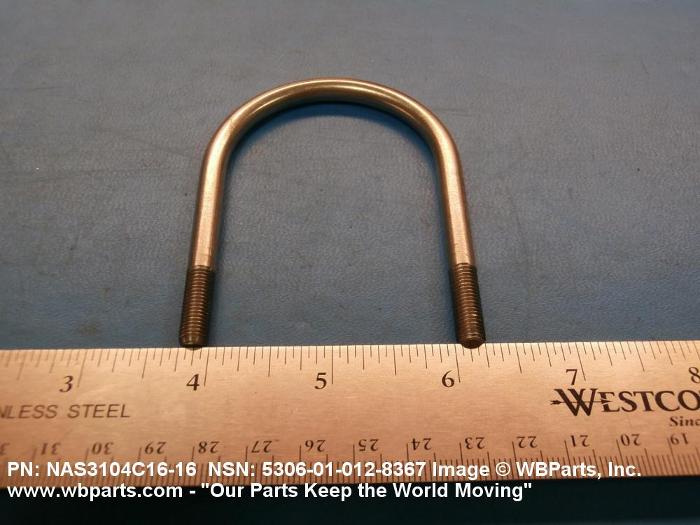

| INSIDE DISTANCE BETWEEN SHANKS | 2.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5306-01-012-8367
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5306-01-012-8367
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
