NSN 5306-01-096-1238 SS511004H15, SS5110-04H15, 01-096-1238
Product Details | SHEAR BOLT

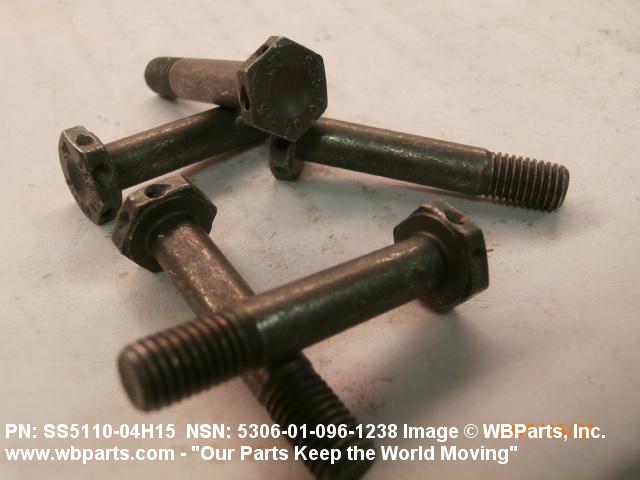

5306-01-096-1238 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: SS511004H15, SS5110-04H15, 5306-01-096-1238, 01-096-1238, 5306010961238, 010961238
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 JUN 1980 | 01-096-1238 | 15903 ( BOLT, SHEAR ) |

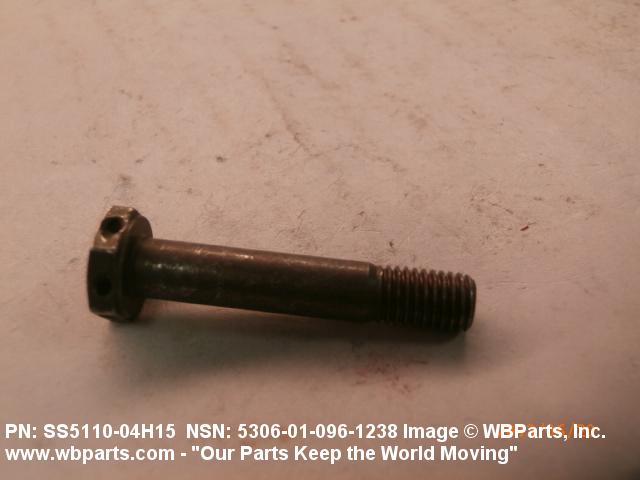

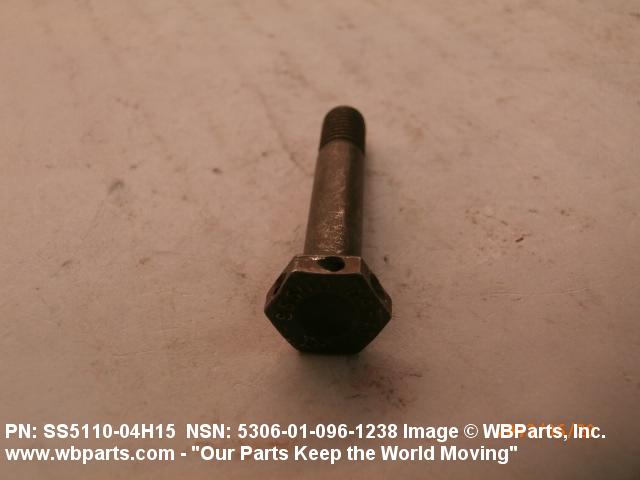

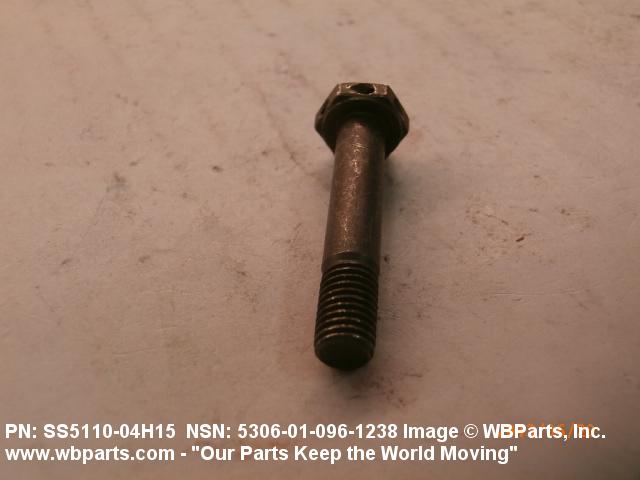

Drawings & Photos | NSN 5306-01-096-1238
Demand History | NSN 5306-01-096-1238
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SS5110-04H15 | 2018-05-142 | 100 | Canada |
| SS5110-04H15 | 2013-11-315 | 200 | Canada |
| SS511004H15 | 2013-06-155 | 60 | Canada |
| SS511004H15 | 2013-03-77 | 50 | Canada |
Cross Reference | NSN 5306-01-096-1238
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SS5110-04H15 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-096-1238
Technical Data | NSN 5306-01-096-1238
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |

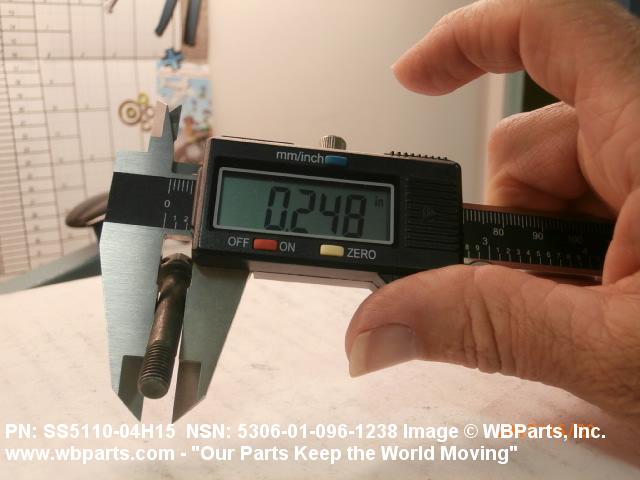

| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.425 INCHES NOMINAL |

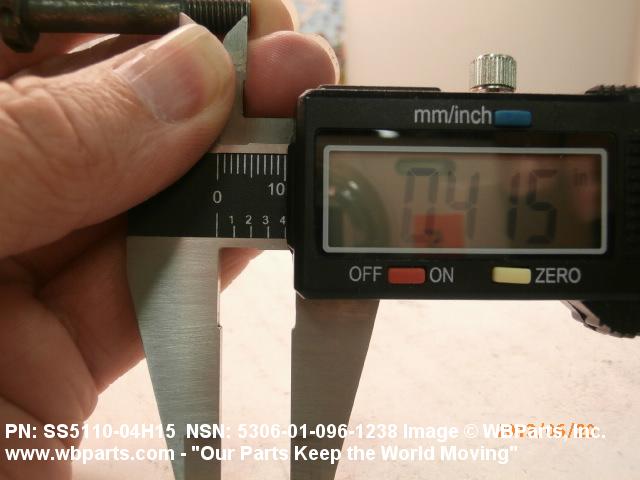

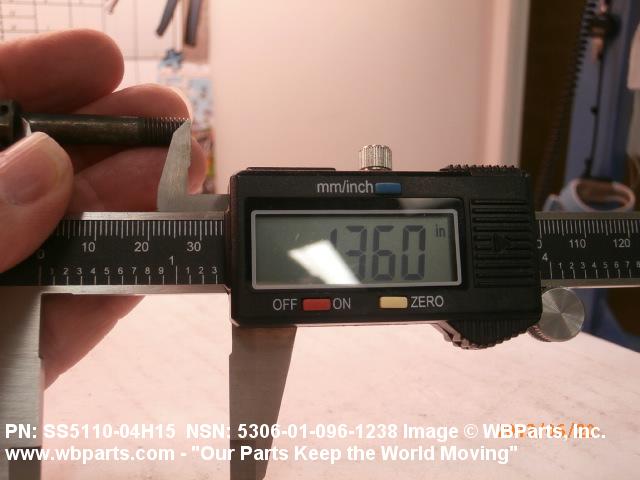

| FASTENER LENGTH | 1.363 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-7838 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | SS8488 MFR REF SINGLE TREATMENT RESPONSE OR AMS2416 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |

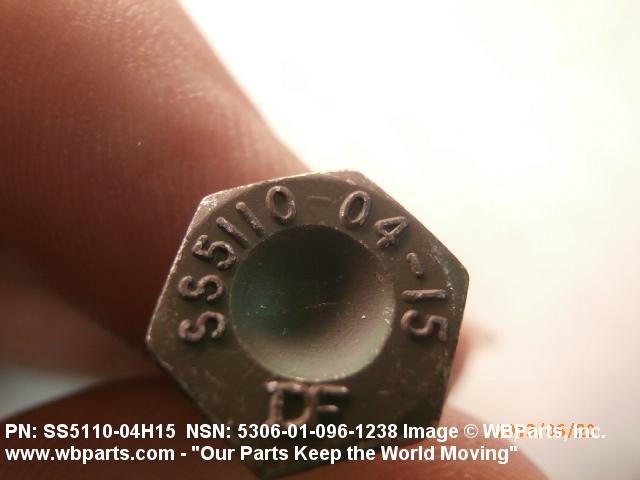

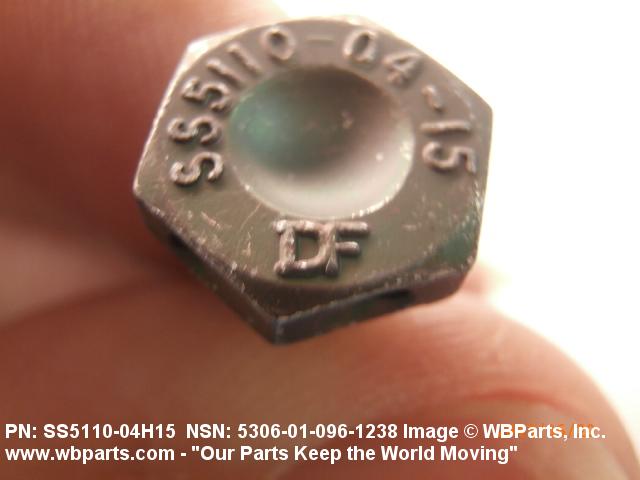

| HEAD STYLE | C3 DISHED HEXAGON |

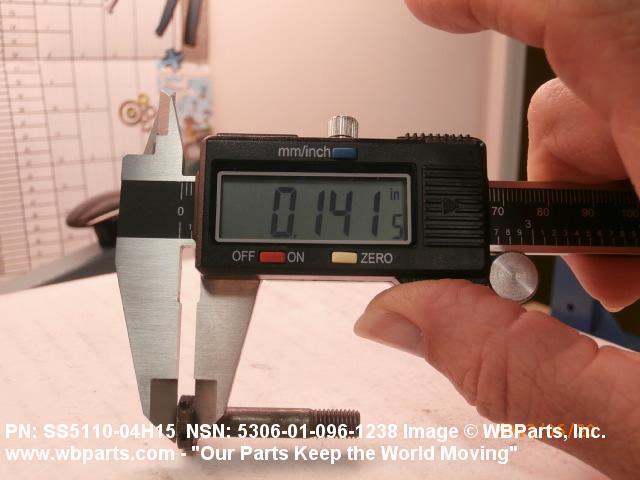

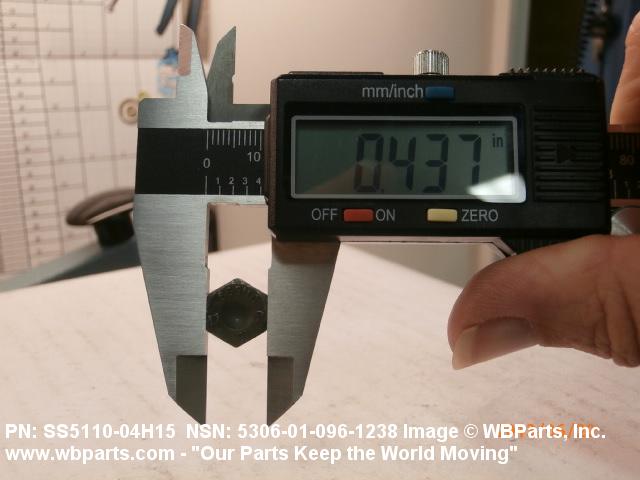

| HEAD HEIGHT | 0.125 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.430 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E4 HEXAGON CORNERS |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 3 |
| HOLE DIAMETER | 0.046 INCHES NOMINAL |

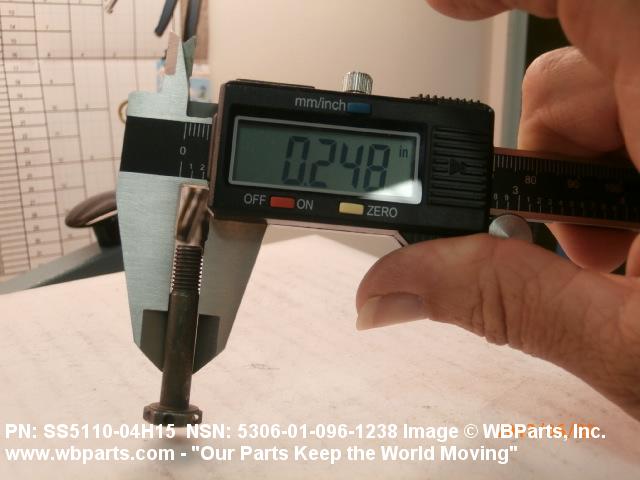

| GRIP LENGTH | 0.046 INCHES NOMINAL |
| GRIP DIAMETER | 0.2485 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | SS5110-04H15 |
