NSN 5306-01-343-3534 17P1C21521, 17P1C2152-1, 01-343-3534
Product Details | INTERNALLY RELIEVED BODY BOLT
5306-01-343-3534 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Part Alternates: 17P1C21521, 17P1C2152-1, 5306-01-343-3534, 01-343-3534, 5306013433534, 013433534
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 AUG 1991 | 01-343-3534 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5306-01-343-3534
Cross Reference | NSN 5306-01-343-3534
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17P1C2152-1 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-343-3534
Technical Data | NSN 5306-01-343-3534
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.5000 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 9.9910 INCHES NOMINAL |
| FASTENER LENGTH | 10.7800 INCHES NOMINAL |
| MATERIAL | TITANIUM ALLOY OVERALL |

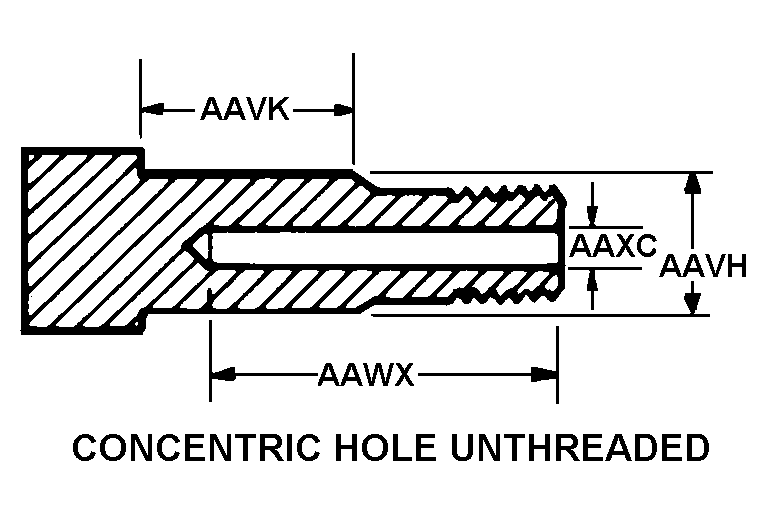

| STYLE DESIGNATOR | B44 CONCENTRIC HOLE UNTHREADED |
| SHOULDER DIAMETER | 0.2810 INCHES NOMINAL |
| SHOULDER LENGTH | 0.6250 INCHES MINIMUM AND 0.6370 INCHES MAXIMUM |
| CONCENTRIC HOLE DIAMETER | 0.4919 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| HEAD STYLE | C7 HEXAGON EXTENDED WASHER |
| HEAD HEIGHT | 0.6000 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.6250 INCHES NOMINAL |
| EXTENDED WASHER DIAMETER | 1.0000 INCHES NOMINAL |
| EXTENDED WASHER THICKNESS | 0.1000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5306-01-343-3534
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5306-01-343-3534
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
