NSN 5306-01-450-3254 12981725-2, 01-450-3254, 129817252
Product Details | INTERNALLY RELIEVED BODY BOLT
5306-01-450-3254 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Part Alternates: 12981725-2, 5306-01-450-3254, 01-450-3254, 5306014503254, 129817252, 014503254
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 NOV 1997 | 01-450-3254 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5306-01-450-3254
Demand History | NSN 5306-01-450-3254
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-450-3254 | 2009-09-269 | 6 | DIBBS |
| 5306-01-450-3254 | 2008-07-185 | 10 | DIBBS |
Cross Reference | NSN 5306-01-450-3254
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12981725-2 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-450-3254
Related Products | NSN 5306-01-450-3254
Technical Data | NSN 5306-01-450-3254
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 13 |
| THREAD CLASS | 2A |
| NONSTANDARD THREAD PITCH DIAMETER | 0.4448 TO 0.4500 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.747 INCHES MINIMUM AND 0.757 INCHES MAXIMUM |
| FASTENER LENGTH | 1.658 INCHES MINIMUM AND 1.668 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A276,A479,A581, OR A582 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-STD-171, PARA 5.4.1, DIMENSIONAL LIMITS APPLY AFTER FINISH MIL STD SINGLE TREATMENT RESPONSE OVERALL |

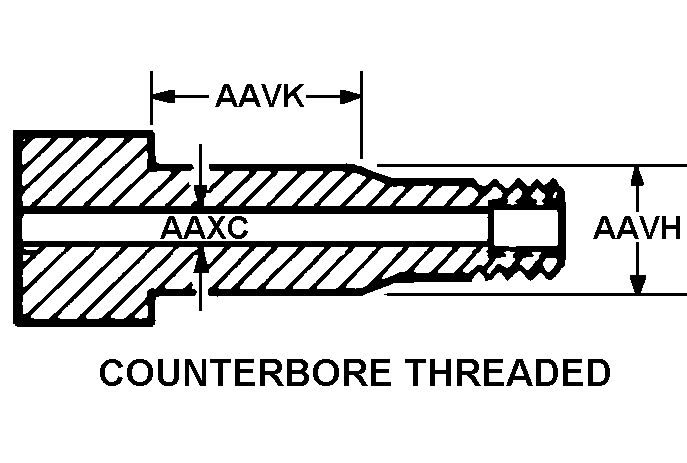

| STYLE DESIGNATOR | B53A COUNTERBORE THREADED |
| SHOULDER DIAMETER | 0.557 INCHES MINIMUM AND 0.567 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.846 INCHES MINIMUM AND 0.856 INCHES MAXIMUM |
| CONCENTRIC HOLE DIAMETER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| THREAD SERIES | UNC COUNTERBORE |
| HEAD STYLE | C48 FLAT FILLISTER |
| HEAD DIAMETER | 0.620 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |
| HEAD HEIGHT | 0.502 INCHES MINIMUM AND 0.512 INCHES MAXIMUM |
