Product Details | BLIND RIVET PLAIN NUT
5310-00-049-9281 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. Is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. See also NUT (1) SELF-LOCKING, BLIND RIVET. Excludes NUT (1), SLEEVE.
Part Alternates: 8675431, 5310-00-049-9281, 00-049-9281, 5310000499281, 000499281
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-049-9281 | 01873 ( NUT, PLAIN, BLIND RIVET ) |
Drawings & Photos | NSN 5310-00-049-9281
Cross Reference | NSN 5310-00-049-9281
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8675431 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-049-9281
Related Products | NSN 5310-00-049-9281
Technical Data | NSN 5310-00-049-9281
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1117 OR STEEL COMP 1120 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A21 BLIND RIVET W/HEX SHANK |
| NUT LENGTH | 0.515 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.312 INCHES NOMINAL |
| NUT GRIP RANGE | 0.515 TO 0.531 INCHES |

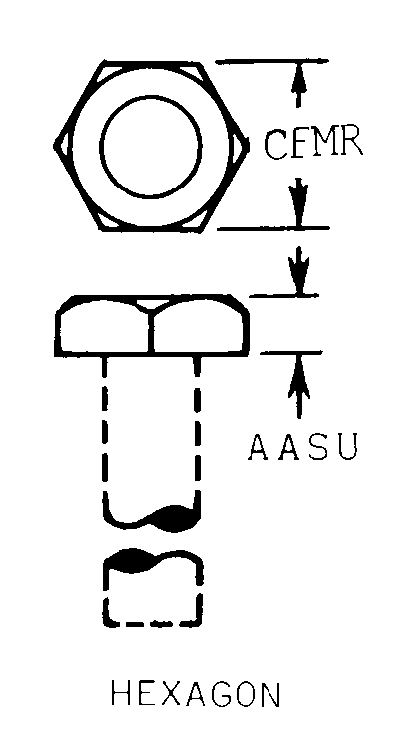

| HEAD STYLE | D23 HEXAGON |
| HEAD HEIGHT | 0.110 INCHES NOMINAL |
| OUTSIDE WIDTH ACROSS FLATS | 0.312 INCHES NOMINAL |
| SHANK END TYPE | OPEN |
| TEMP RATING | NOT RATED |
| SPECIAL FEATURES | HOLE 0.063 IN. PORM 0.001 IN. DIA,LOCATED 0.250 IN. FROM SHANK END; 63MICROINCH AA FINISH ON SHANK |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 8675431 |
