NSN 5310-00-052-0728 A02E23402, A02E2340-2, RG5102J824
Product Details | GANG CHANNEL SELF-LOCKING NUT ASSEMBLY
5310-00-052-0728 An item composed of a specially designed channel and a series of nuts having integral self-locking features assembled in predetermined spacing.
Part Alternates: A02E23402, A02E2340-2, RG5102J824, RG51-02J8-24, RG5102J8249, RG51-02J8-24-9, 5310-00-052-0728, 00-052-0728, 5310000520728, 000520728
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-052-0728 | 01864 ( NUT ASSEMBLY, SELF-LOCKING, GANG CHANNEL ) |

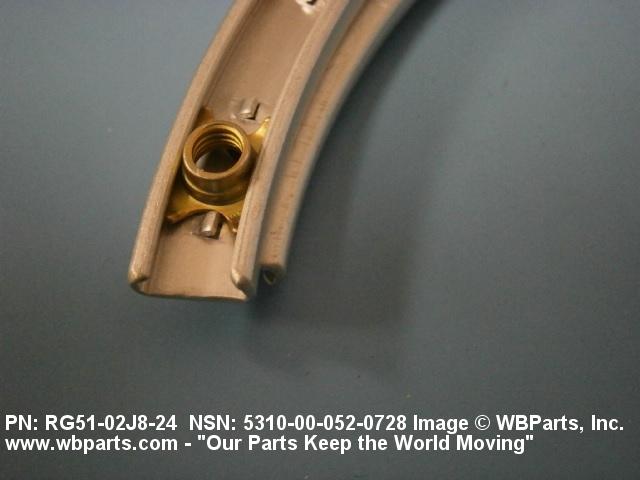

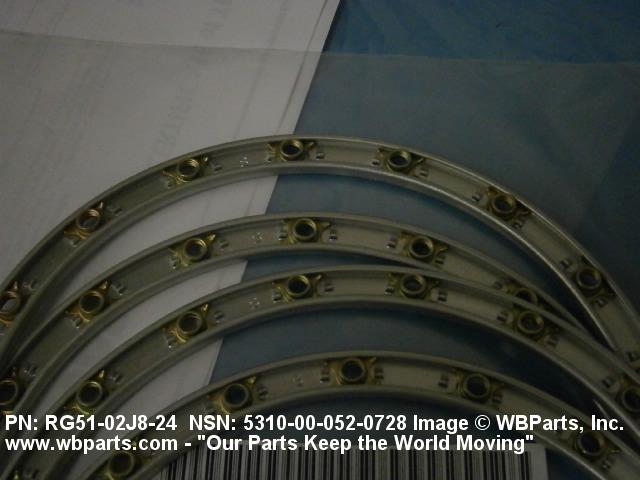

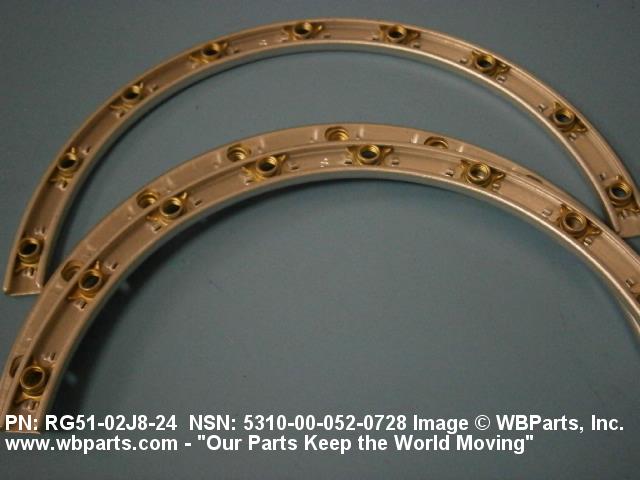

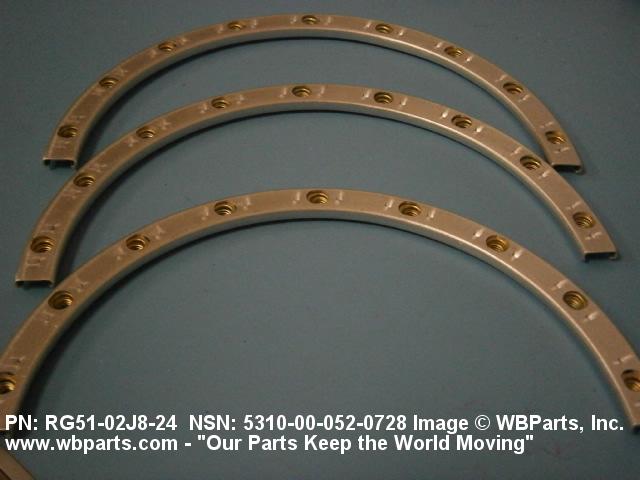

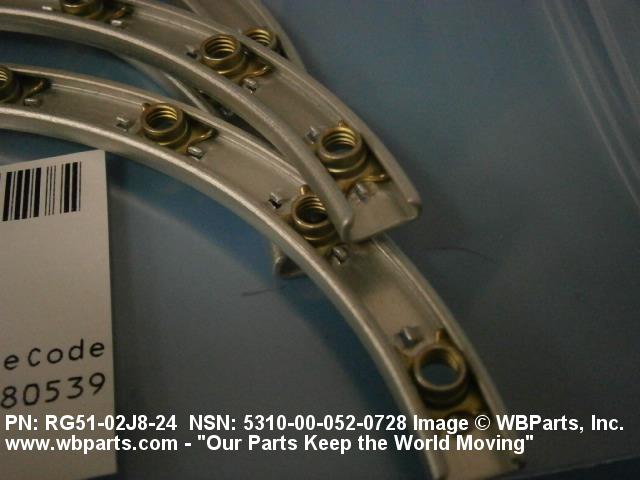

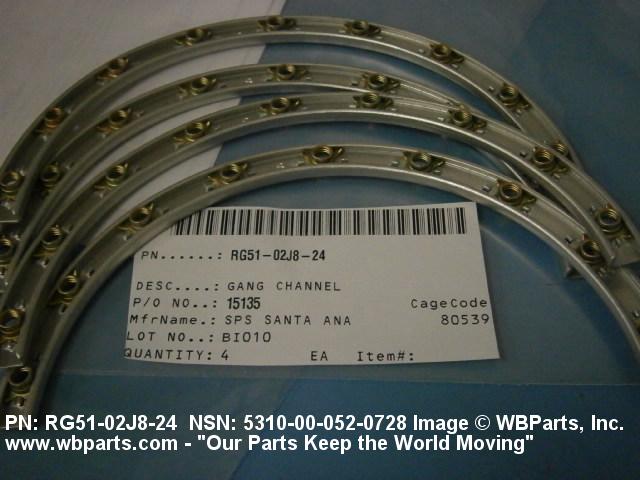

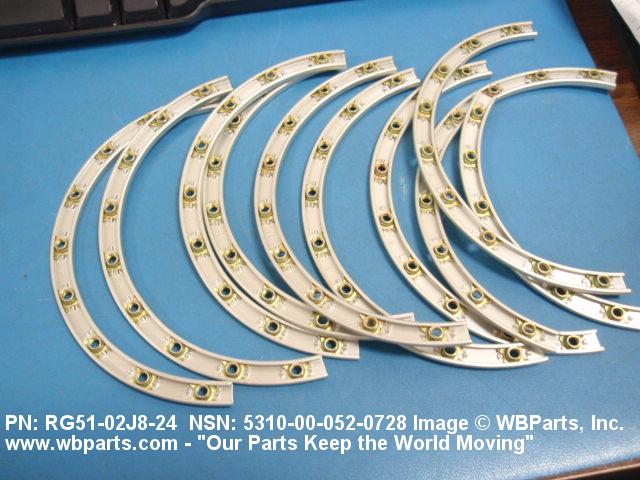

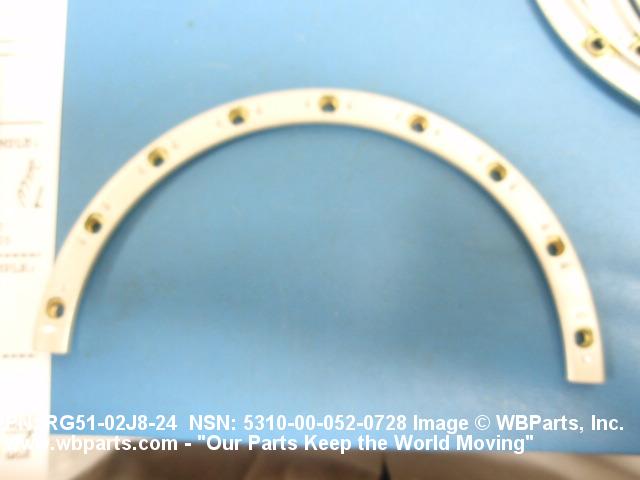

Drawings & Photos | NSN 5310-00-052-0728
Demand History | NSN 5310-00-052-0728
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-052-0728 | 2024-06-179 | 10 | US |
| 5310-00-052-0728 | 2024-04-103 | 13 | US |
| RG51-02J8-24 | 2024-04-100 | 13 | DIBBS |
| RG51-02J8-24-9 | 2024-04-100 | 13 | DIBBS |
| RG51-02J8-24 | 2022-10-285 | 4 | DIBBS |
| RG51-02J8-24-9 | 2022-10-285 | 4 | DIBBS |
| 5310-00-052-0728 | 2022-06-174 | 2 | Singapore |
| RG51-02J8-24 | 2022-06-159 | 4 | DIBBS |
| RG51-02J8-24-9 | 2022-06-159 | 4 | DIBBS |
| RG51-02J8-24 | 2021-09-256 | 2 | DIBBS |
| RG51-02J8-24-9 | 2021-09-256 | 2 | DIBBS |
| RG51-02J8-24 | 2021-07-199 | 2 | DIBBS |
| RG51-02J8-24-9 | 2021-07-199 | 2 | DIBBS |
| RG51-02J8-24 | 2021-07-186 | 2 | DIBBS |
| RG51-02J8-24-9 | 2021-07-186 | 2 | DIBBS |
| 5310-00-052-0728 | 2017-12-340 | 3 | DIBBS |
| 5310-00-052-0728 | 2017-10-274 | 3 | DIBBS |
| 5310-00-052-0728 | 2012-01-17 | 6 | United States |
| 5310-00-052-0728 | 2011-12-348 | 10 | United States |
| 5310-00-052-0728 | 2011-10-299 | 3 | United States |
| 5310-00-052-0728 | 2011-09-251 | 40 | DIBBS |
| RG5102J824 | 2011-03-62 | 166 | IN |
| 5310-00-052-0728 | 2011-03-61 | 40 | DIBBS |
| 5310-00-052-0728 | 2010-08-217 | 40 | DIBBS |
| 5310-00-052-0728 | 2010-06-158 | 10 | United States |
| 5310-00-052-0728 | 2010-05-134 | 10 | DIBBS |
| 5310-00-052-0728 | 2010-05-130 | 10 | US |
| 5310-00-052-0728 | 2010-01-04 | 10 | DIBBS |
Cross Reference | NSN 5310-00-052-0728
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A02E2340-2 | 77272 | THE BOEING COMPANY DBA BOEING |
| RG51-02J8-24 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| RG51-02J8-24 | 72962 | HARVARD INDUSTRIES INC |
| RG51-02J8-24 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| RG51-02J8-24-9 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| RG51-02J8-24-9 | 72962 | HARVARD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-052-0728
Related Products | NSN 5310-00-052-0728
Technical Data | NSN 5310-00-052-0728
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY CHANNEL STEEL NUT |
| SURFACE TREATMENT | CADMIUM NUT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A20 GANG CHANNEL, SELF LOCKING |
| BASE WIDTH | ANY ACCEPTABLE |
| NUT LENGTH | ANY ACCEPTABLE |
| BASE THICKNESS | ANY ACCEPTABLE |
| NUT HEIGHT | 0.180 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| CHANNEL STYLE | C2 RADIUS TYPE |
| RADIUS | 3.0000 INCHES NOMINAL |
| OVERALL WIDTH | 0.416 INCHES NOMINAL |
| ASSEMBLY OVERALL HEIGHT | 0.205 INCHES NOMINAL |
| CHANNEL HEIGHT | 0.125 INCHES NOMINAL |
| NUT SPACING | 1.042 INCHES NOMINAL |
| NUT QUANTITY | 9 |
| NUT COUNTERBORE DEPTH | 0.062 INCHES NOMINAL NUT |
| TEMP RATING | NOT RATED |
| FEATURES PROVIDED | FLOATING NUT |
| MANUFACTURERS CODE | 72962 |
| DESIGN CONTROL REFERENCE | RG51-02J8-24 |
Restrictions/Controls & Freight Information | NSN 5310-00-052-0728
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-052-0728
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
