NSN 5310-00-058-1455 MF603106, MF6031-06, LHA22862

Product Details | PLATE SELF-LOCKING NUT

5310-00-058-1455 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MF603106, MF6031-06, LHA22862, LHA228-62, 132455, 13245-5, 3008616, 502C1121, 502C112-1, 6608091, 660809-1, 68A27A43, 9182738, 5310-00-058-1455, 00-058-1455, 5310000581455, 000581455

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-058-1455	05280 ( NUT, SELF-LOCKING, PLATE )

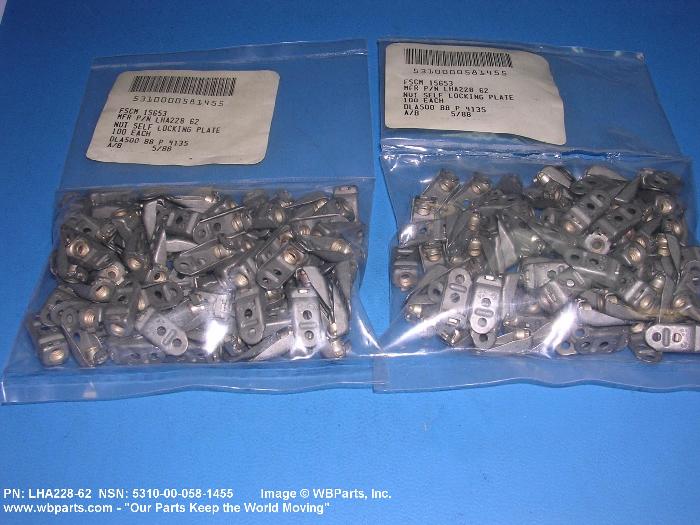

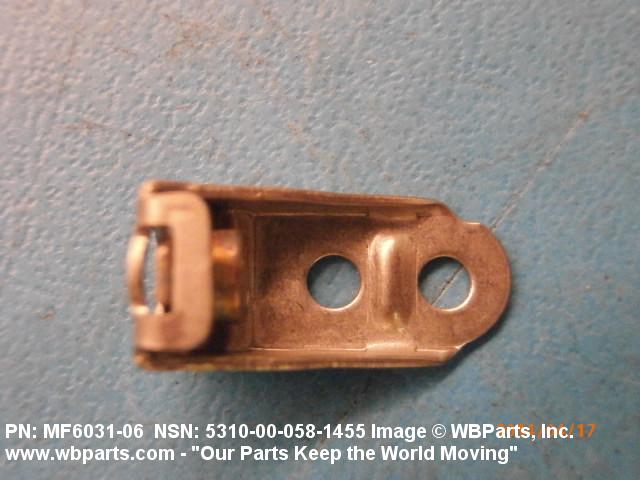

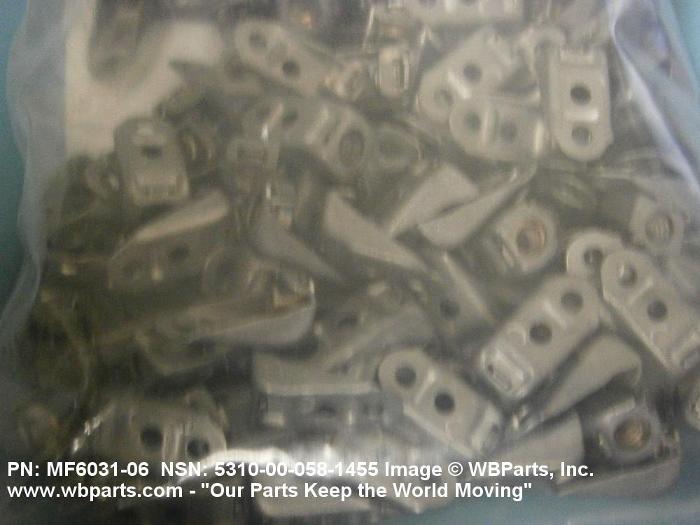

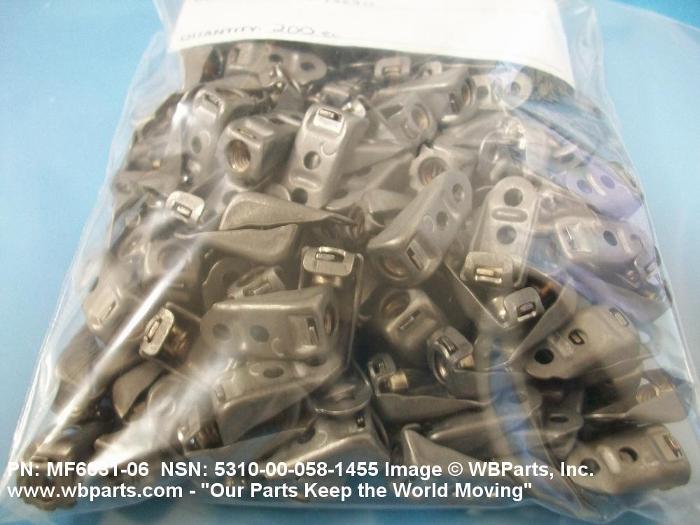

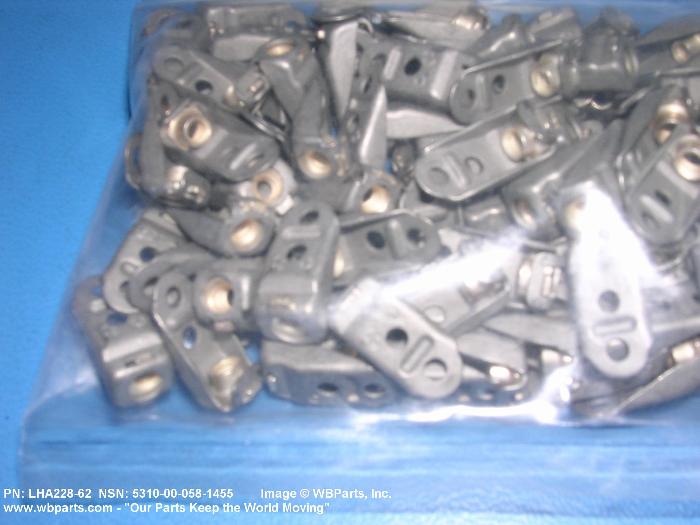

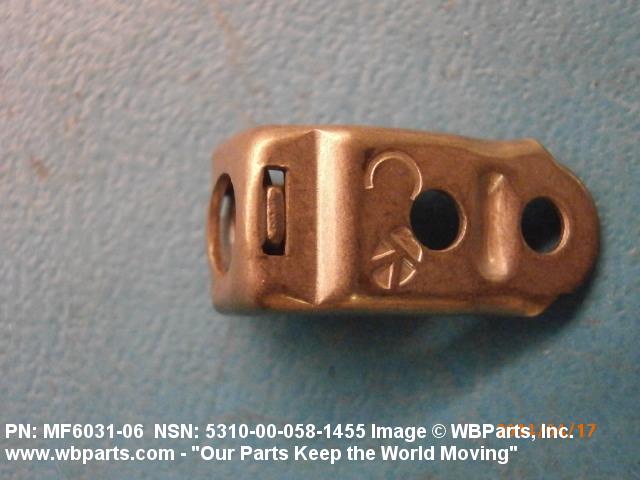

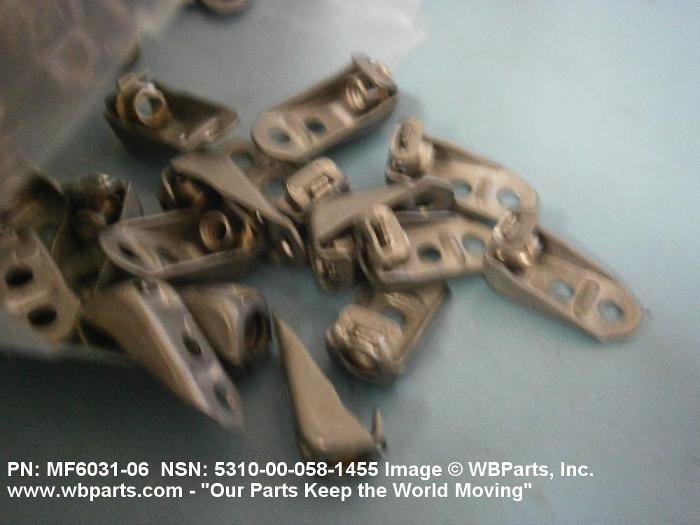

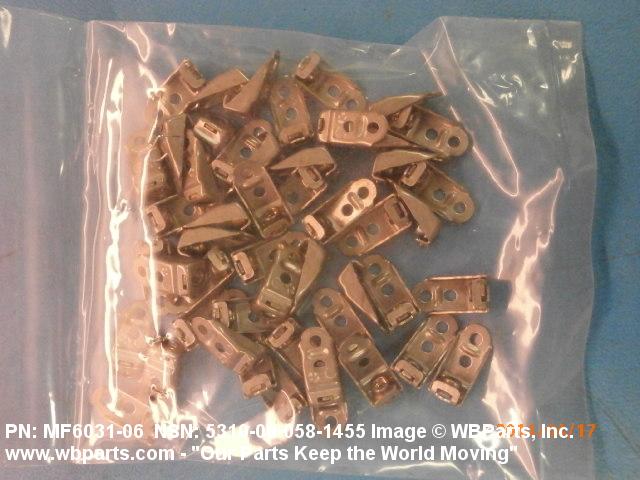

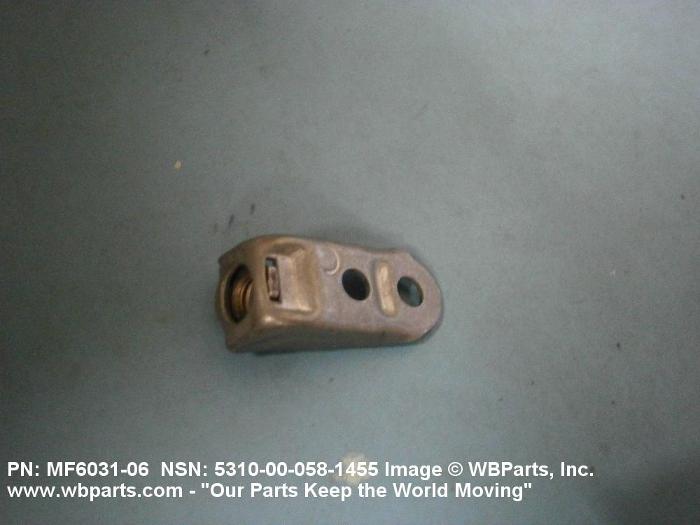

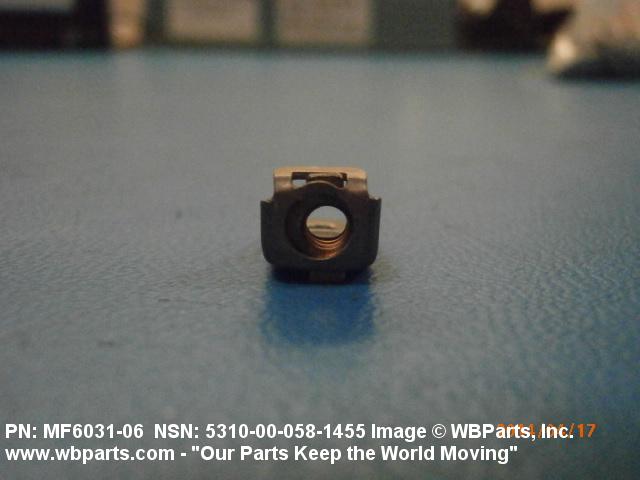

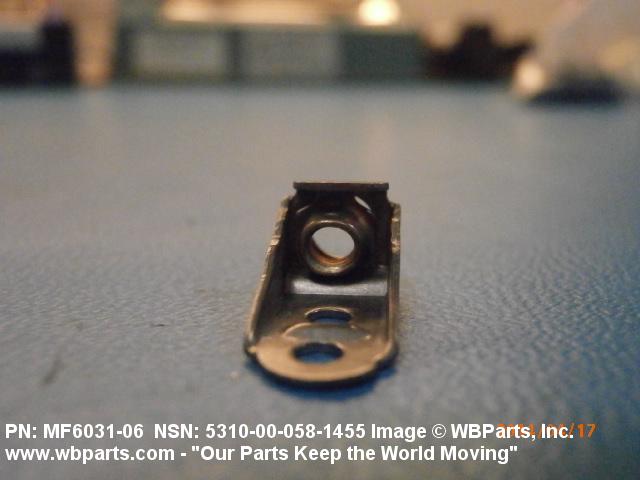

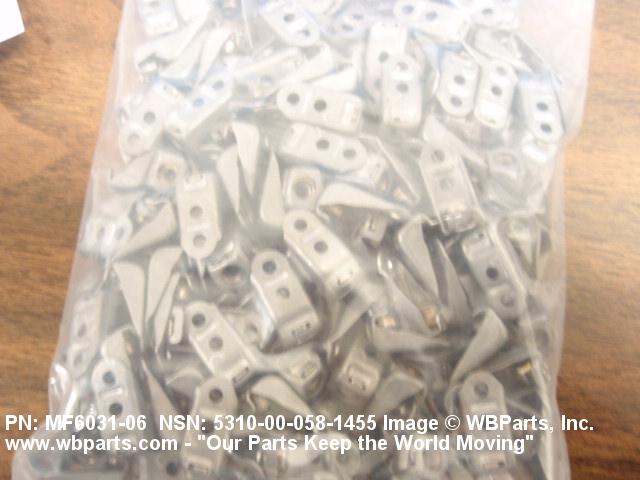

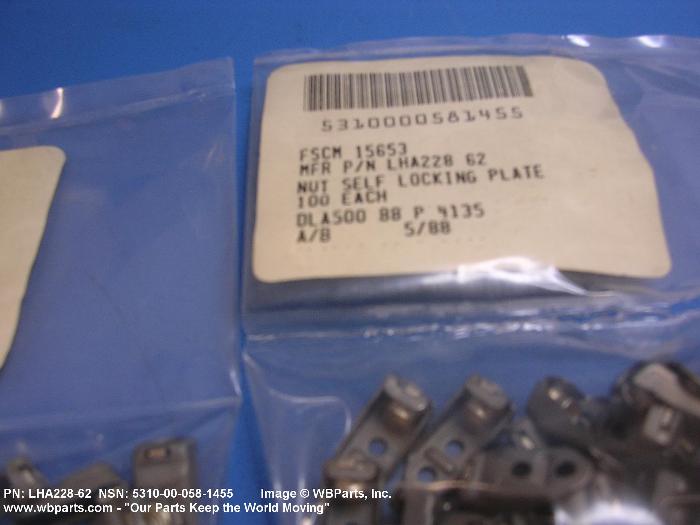

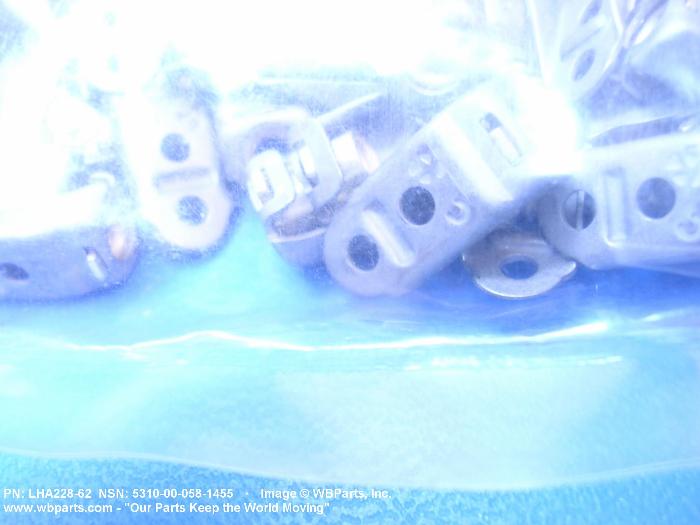

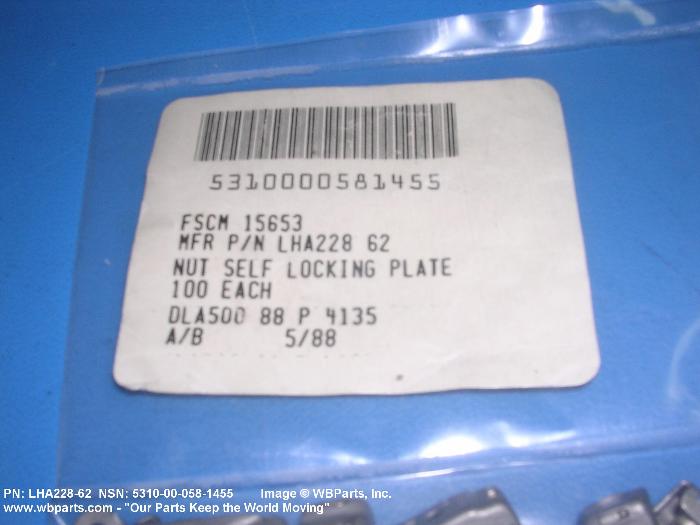

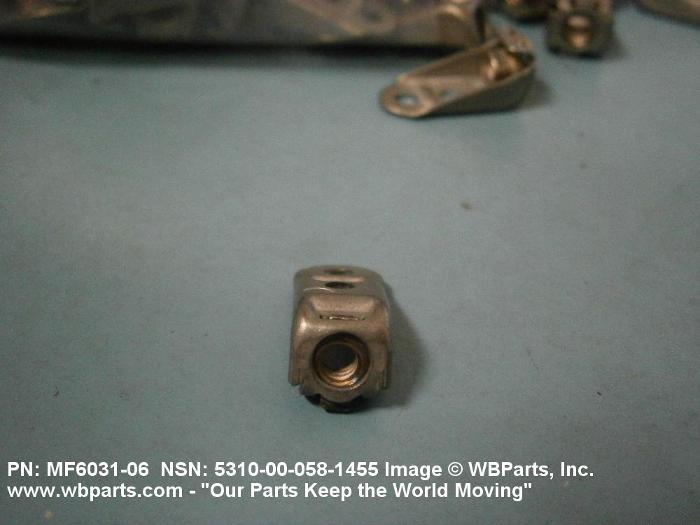

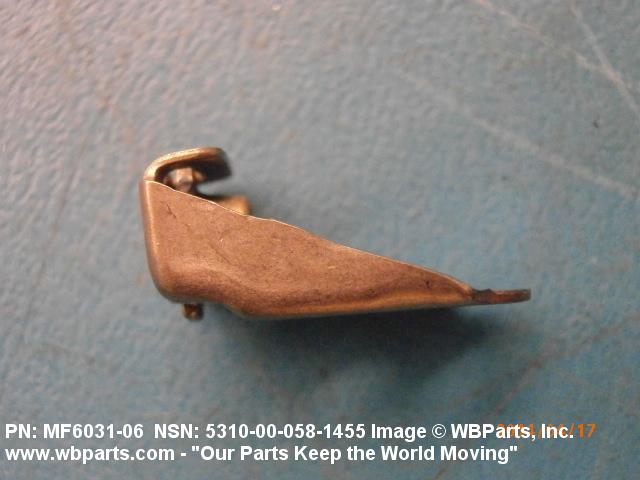

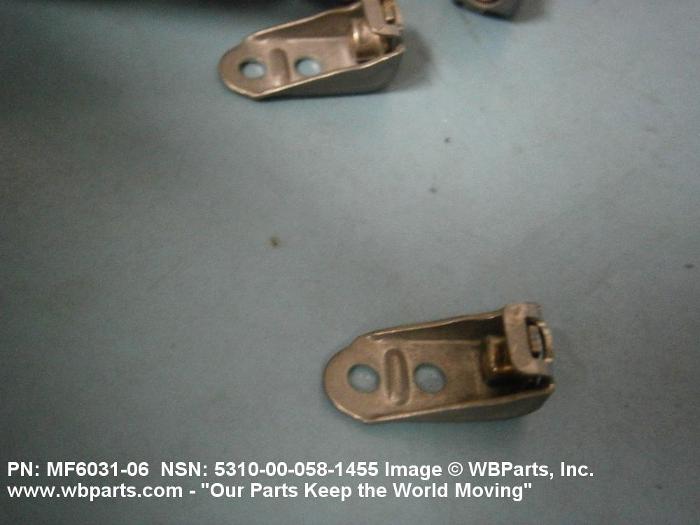

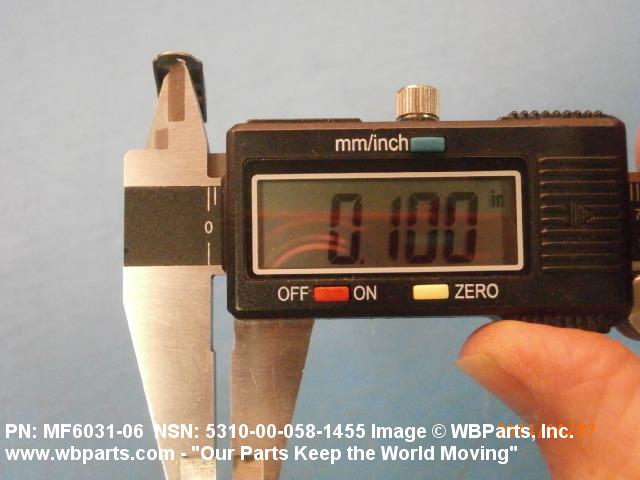

Drawings & Photos | NSN 5310-00-058-1455

Part Number	Request Date	QTY	Origin
5310-00-058-1455	2025-05-125	50	US
5310-00-058-1455	2025-04-114	500	United States
5310-00-058-1455	2024-09-253	200	US
5310-00-058-1455	2024-09-253	200	IL
5310-00-058-1455	2024-07-204	500	United States
MF603106	2024-07-193	200	United States
MF603106	2024-05-129	500	United States
MF603106	2024-03-73	170	United States
MF603106	2024-02-44	1500	us
5310-00-058-1455	2023-11-306	190	us
MF603106	2023-09-248	3300	UM
MF603106	2023-09-248	3300	United States
5310-00-058-1455	2022-08-213	160	US
5310-00-058-1455	2022-07-194	7400	GU
5310-00-058-1455	2022-06-164	20	United States
MF603106	2014-07-189	100	United States
MF603106	2014-02-37	200	United States
MF603106	2012-04-111	200	United States
MF603106	2011-09-258	200	United States
LHA22862	2011-06-178	10	United States
5310-00-058-1455	2010-09-258	200	United States
MF603106	2010-08-216	200	United States
LHA22862	2008-05-148	200	United States

Cross Reference | NSN 5310-00-058-1455

Part Number	Cage Code	Manufacturer
13245-5	00638	TRIO LABORATORIES INC
3008616	00198	PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP.
3008616	R1120	SATAIR A/S
502C112-1	94033	CARDWELL CONDENSER CORP LAPOINTE-ADMIRAL DIV
660809-1	80249	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
68A27A43	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
9182738	18876	U S ARMY AVIATION AND MISSILE COMMAND
LHA228-62	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
LHA228-62	72962	HARVARD INDUSTRIES INC
LHA228-62	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MF6031-06	15653	ALCOA GLOBAL FASTENERS, INC.
MF6031-06	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
MF6031-06	R1120	SATAIR A/S

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-058-1455

Compare

Related Products | NSN 5310-00-058-1455

5310-00-058-1462, 5310-00-058-1488, 5310-00-058-1499, 5310-00-058-1500, 5310-00-058-1501

Technical Data | NSN 5310-00-058-1455

Characteristic	Specifications
THREAD SERIES	UNC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL CORROSION RESISTING OVERALL
SURFACE TREATMENT	SILVER OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A122 PLATE
NUT LENGTH	0.664 INCHES MINIMUM AND 0.684 INCHES MAXIMUM
DISTANCE FROM BASE TO CENTER OF APERTURE	0.165 INCHES MINIMUM AND 0.175 INCHES MAXIMUM
NUT HEIGHT	0.143 INCHES MINIMUM AND 0.173 INCHES MAXIMUM
PLATE THICKNESS	0.020 INCHES MINIMUM AND 0.030 INCHES MAXIMUM
PLATE WIDTH	0.295 INCHES MINIMUM AND 0.325 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F3 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM MOUNTING HOLE CENTER TO BASE	0.320 INCHES MINIMUM AND 0.330 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.217 INCHES MINIMUM AND 0.221 INCHES MAXIMUM
TEMP RATING	900.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED	FLOATING NUT
III PRECIOUS MATERIAL	SILVER

Restrictions/Controls & Freight Information | NSN 5310-00-058-1455

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093490	BOLT/NUT/SCREW/CLIPS/FASTENER/ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-058-1455

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
