NSN 5310-00-084-9335 BACN10MK385, BACN10MK3-85, RM52LHA71802

Product Details | PLATE SELF-LOCKING NUT

5310-00-084-9335 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: BACN10MK385, BACN10MK3-85, RM52LHA71802, RM52LHA71-8-02, T8059S1032B3, T8059S1032-B3, T8059S1032B-3, 5310-00-084-9335, 00-084-9335, 5310000849335, 000849335

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-084-9335	05280 ( NUT, SELF-LOCKING, PLATE )

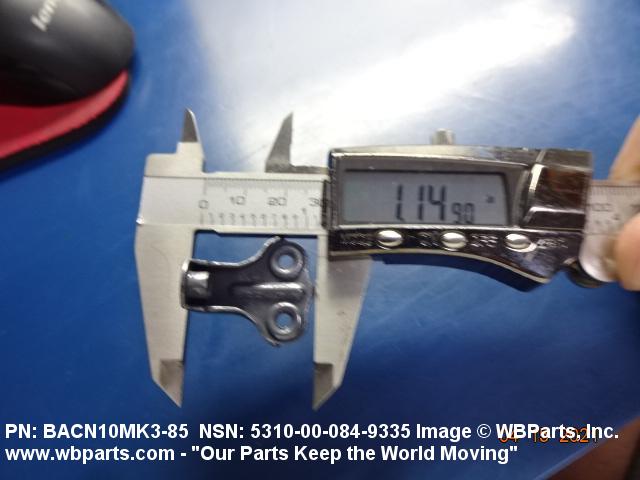

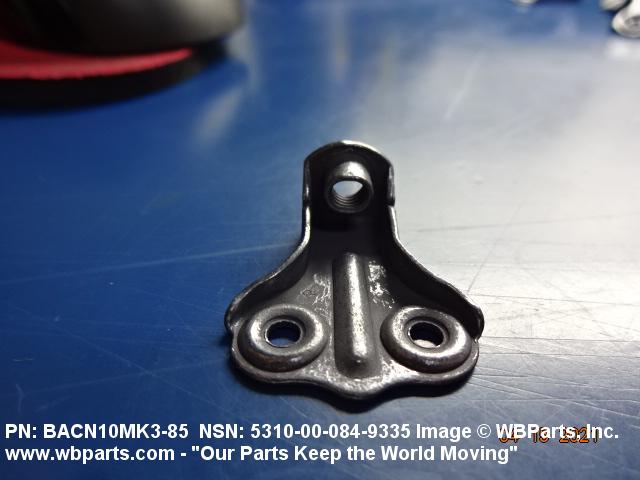

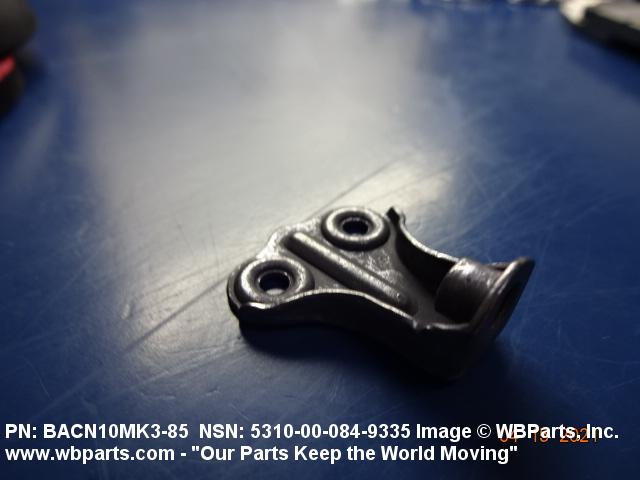

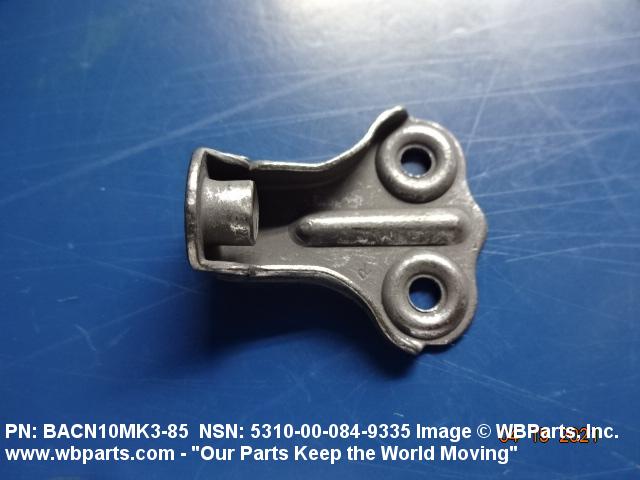

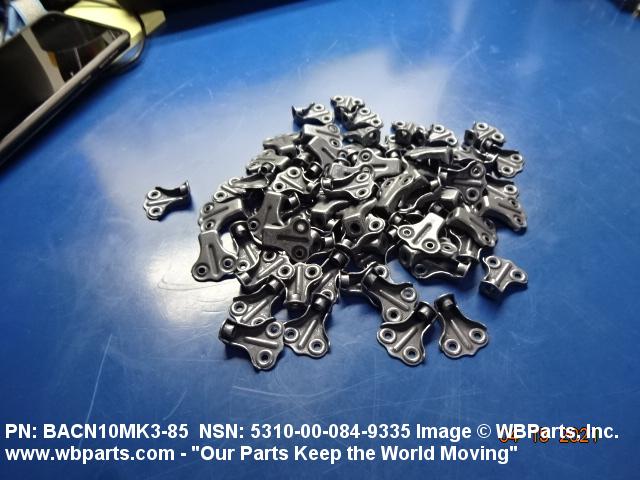

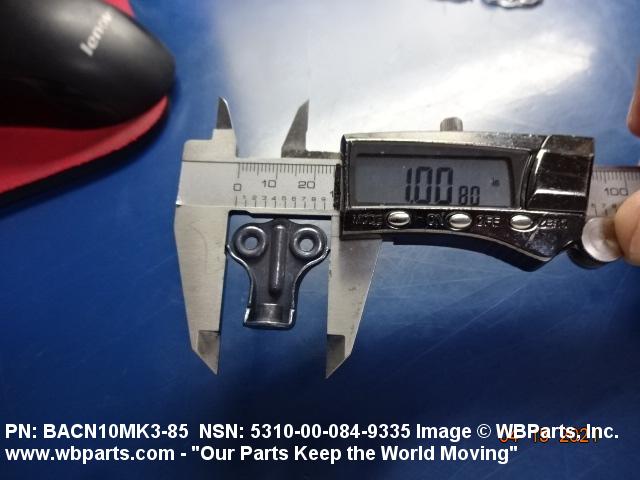

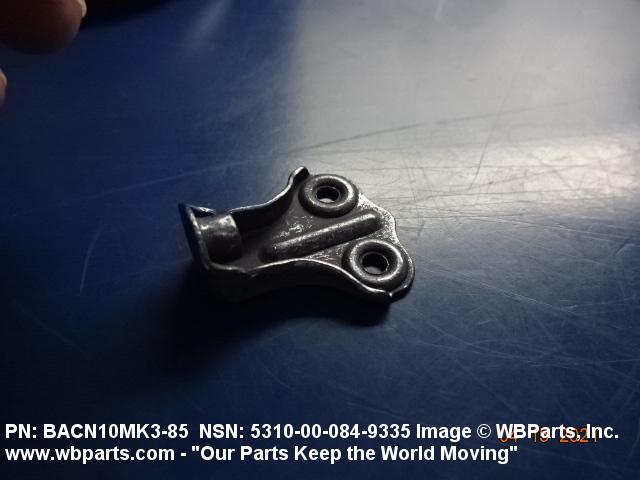

Drawings & Photos | NSN 5310-00-084-9335

Part Number	Request Date	QTY	Origin
T8059S1032B3	2025-10-290	50	United States
T8059S1032B3	2025-10-290	50	United States
BACN10MK3-85	2025-10-289	819	DIBBS
5310-00-084-9335	2025-05-133	535	DIBBS
BACN10MK3-85	2025-02-36	1004	DIBBS
BACN10MK3-85	2025-01-21	1004	DIBBS
5310-00-084-9335	2024-08-240	30	United States
T8059S1032B3	2023-10-278	25	US
BACN10MK385	2023-03-74	5	United States
BACN10MK385	2021-11-316	10	KR
BACN10MK385	2021-11-313	20	United States
BACN10MK3-85	2021-09-256	1302	DIBBS
BACN10MK3-85	2021-09-244	1302	DIBBS
5310-00-084-9335	2021-06-181	25	us
BACN10MK385	2021-06-160	10	United States
BACN10MK385	2021-04-98	75	United States
BACN10MK385	2021-01-12	63	United States
T8059S1032B3	2019-05-147	10	Israel
5310-00-084-9335	2015-09-272	2035	DIBBS
5310-00-084-9335	2015-09-251	1978	DIBBS
T8059S1032B3	2013-12-339	100	Israel
RM52LHA71802	2013-10-282	20	US
5310-00-084-9335	2012-12-349	852	DIBBS
5310-00-084-9335	2012-11-306	25	US
5310-00-084-9335	2012-08-216	455	DIBBS
5310-00-084-9335	2012-06-163	648	DIBBS
5310-00-084-9335	2012-05-150	1242	DIBBS
5310-00-084-9335	2012-05-128	725	DIBBS
BACN10MK385	2010-11-330	500	NL
5310-00-084-9335	2010-03-70	5520	DIBBS
5310-00-084-9335	2009-04-119	266	US
5310-00-084-9335	2008-08-226	1753	United Arab Emirates
BACN10MK385	2008-08-226	1753	United Arab Emirates
T8059S1032B3	2008-03-74	40	United States

Cross Reference | NSN 5310-00-084-9335

Part Number	Cage Code	Manufacturer
BACN10MK3-85	52828	REPUBLIC FASTENER MFG. CORP.
BACN10MK3-85	71087	REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.
BACN10MK3-85	77272	THE BOEING COMPANY DBA BOEING
BACN10MK3-85	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
BACN10MK3-85	81205	THE BOEING COMPANY DBA BOEING
RM52LHA71-8-02	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RM52LHA71-8-02	72962	HARVARD INDUSTRIES INC
T8059S1032-B3	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
T8059S1032B-3	71087	REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-084-9335

Compare

Related Products | NSN 5310-00-084-9335

5310-00-084-9336, 5310-00-084-9372, 5310-00-084-9539, 5310-00-085-0603, 5310-00-085-0604

Technical Data | NSN 5310-00-084-9335

Characteristic	Specifications
THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A122 PLATE
NUT LENGTH	1.130 INCHES NOMINAL
DISTANCE FROM BASE TO CENTER OF APERTURE	0.281 INCHES NOMINAL
NUT HEIGHT	0.200 INCHES NOMINAL
PLATE THICKNESS	0.032 INCHES MINIMUM AND 0.037 INCHES MAXIMUM
PLATE WIDTH	1.038 INCHES NOMINAL
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
NUT COUNTERBORE DEPTH	0.062 INCHES MINIMUM NUT
COUNTERBORE DIAMETER	0.194 INCHES MINIMUM NUT
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F2 2 HOLES
MOUNTING HOLE DIAMETER	0.130 INCHES MINIMUM AND 0.135 INCHES MAXIMUM
DISTANCE FROM MOUNTING HOLE CENTER TO BASE	0.850 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH	0.560 INCHES MINIMUM AND 0.564 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
SPECIFICATION/STANDARD DATA	81205-BACN10MK MANUFACTURERS STANDARD

Restrictions/Controls & Freight Information | NSN 5310-00-084-9335

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-084-9335

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
