NSN 5310-00-167-1285 AN3104, AN310-4, N5338302305

Product Details | HEXAGON CASTELLATED PLAIN NUT

5310-00-167-1285 A nut having 6 flat sides, flat on the bottom and having a slotted cylindrical or dome shaped upper portion. It is designed to provide positive locking when used with a solid or split (cotter) pin. Excludes NUT (1), PLAIN, SLOTTED, HEXAGON.

Part Alternates: AN3104, AN310-4, N5338302305, Z00.N5338302305, Z00N5338302305, 2210015, 401 101, 401101, 938.08.21.102, 9380821102, 5310-00-167-1285, 00-167-1285, 5310001671285, 001671285

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-167-1285	01854 ( NUT, PLAIN, CASTELLATED, HEXAGON )

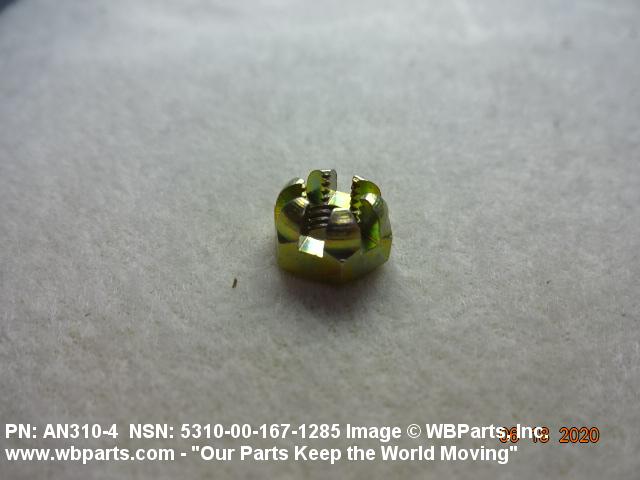

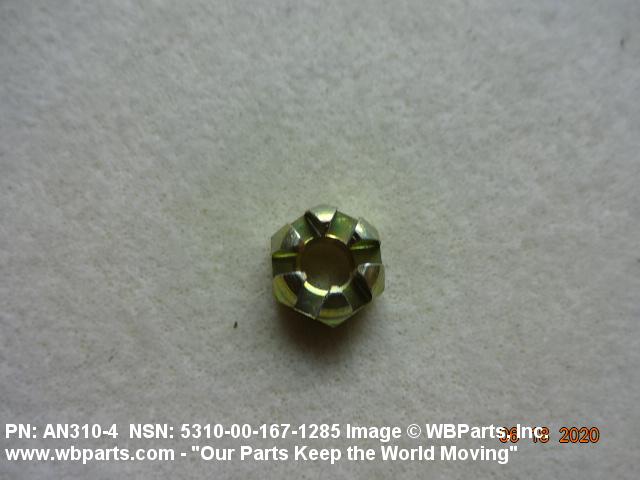

Drawings & Photos | NSN 5310-00-167-1285

Part Number	Request Date	QTY	Origin
5310-00-167-1285	2025-06-165	200	AE
AN3104	2023-06-160	1	United States
AN3104	2023-06-152	50	Norway
5310-00-167-1285	2023-05-144	25	US
AN3104	2020-10-297	1	US
AN3104	2020-09-254	36	US
5310-00-167-1285	2020-06-178	1	DIBBS-RFPs
AN3104	2020-06-167	50	United States
AN3104	2020-03-78	50	United States
AN3104	2020-02-49	100	US
AN3104	2019-11-315	10	IN
AN3104	2019-09-263	25	United States
5310-00-167-1285	2018-11-308	6	DIBBS
AN3104	2018-09-269	25	US
5310-00-167-1285	2018-06-158	319	DIBBS
5310-00-167-1285	2018-05-136	1323	DIBBS
5310-00-167-1285	2017-11-310	1379	DIBBS
AN3104	2017-08-236	30	SG
5310-00-167-1285	2017-07-186	464	DIBBS
5310-00-167-1285	2017-06-165	463	DIBBS
5310-00-167-1285	2017-02-37	1262	DIBBS
5310-00-167-1285	2016-12-355	161	DIBBS
5310-00-167-1285	2016-11-312	1000	DIBBS
5310-00-167-1285	2016-09-265	500	DIBBS
5310-00-167-1285	2016-06-175	148	DIBBS
AN3104	2016-05-143	1	Australia
5310-00-167-1285	2016-05-122	271	DIBBS
AN310-4	2016-04-118	6	UY
5310-00-167-1285	2015-11-312	331	DIBBS
AN3104	2015-10-285	2	US
5310-00-167-1285	2015-09-256	253	DIBBS
AN310-4	2015-05-138	2	United States
AN310-4	2015-05-138	2	United States
5310-00-167-1285	2015-05-137	153	DIBBS
5310-00-167-1285	2015-04-116	152	DIBBS
AN310-4	2015-03-76	50	TH
AN3104	2015-01-14	1	United States
AN3104	2015-01-06	20	MM
AN310-4	2014-11-308	5000	United States
AN3104	2012-12-346	60	Switzerland
AN3104	2012-12-344	60	Switzerland
AN310-4	2012-11-310	50
5310-00-167-1285	2012-08-214	1128	DIBBS
AN3104	2012-01-20	20	US
5310-00-167-1285	2011-09-257	714	DIBBS
5310-00-167-1285	2011-08-230	714	DIBBS
AN310-4	2011-08-214	100	United States
5310-00-167-1285	2010-09-272	14	US
5310-00-167-1285	2010-01-25	225	DIBBS
AN3104	2009-08-222	2	US
AN3104	2008-10-283	156	us
AN3104	2008-07-210	20	US
5310-00-167-1285	2008-03-83	5	us
5310-00-167-1285	2008-03-83	6	us

Cross Reference | NSN 5310-00-167-1285

Part Number	Cage Code	Manufacturer
2210015	001JK	EMBRAER S/A
2210015	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
401 101	77294	PIPER AIRCRAFT INC.
938.08.21.102	S4080	PILATUS AIRCRAFT LTD
AN310-4	27687	GREER STOP NUT INC.
AN310-4	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
AN310-4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN310-4	8K112	FREUNDLICH SUPPLY COMPANY, INC.
N5338302305	F0210	AIRBUS HELICOPTERS (ETS DEMARIGNANE)
Z00.N5338302305	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-167-1285

Compare

Related Products | NSN 5310-00-167-1285

5310-00-167-1286, 5310-00-167-1287, 5310-00-167-1288, 5310-00-167-1289, 5310-00-167-1290

Technical Data | NSN 5310-00-167-1285

Characteristic	Specifications

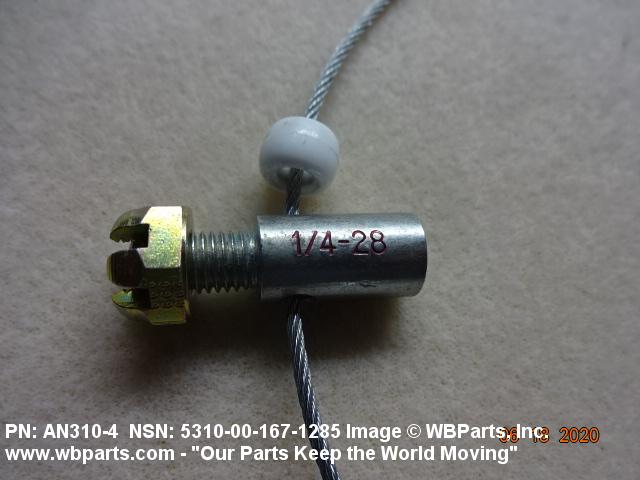

THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A1 CASTELLATED, HEXAGON
NUT HEIGHT	0.265 INCHES MINIMUM AND 0.297 INCHES MAXIMUM

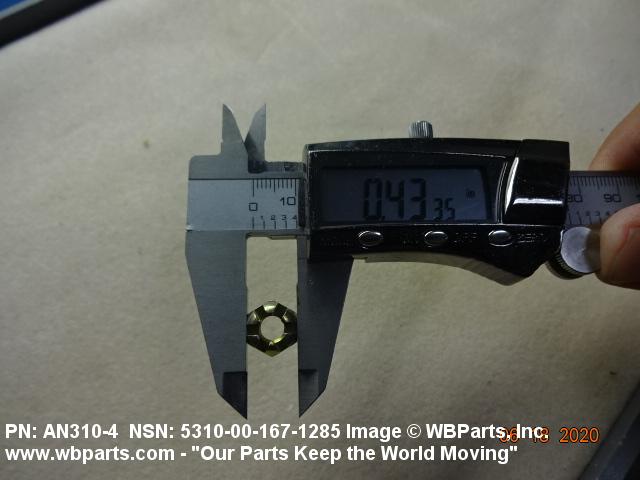

WIDTH ACROSS FLATS	0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED OR WASHER FACED
TEMP RATING	NOT RATED

Restrictions/Controls & Freight Information | NSN 5310-00-167-1285

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	013540	ALUM NUTS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable
