NSN 5310-00-176-8110 A30097PC7, A3009-7PC7, A63456

Product Details | HEXAGON SLOTTED PLAIN NUT

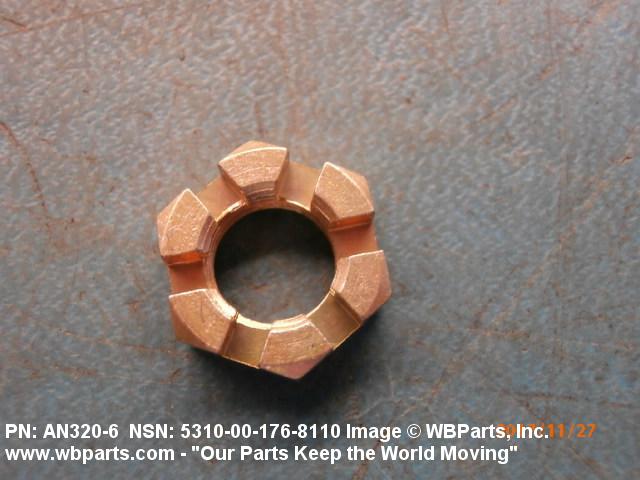

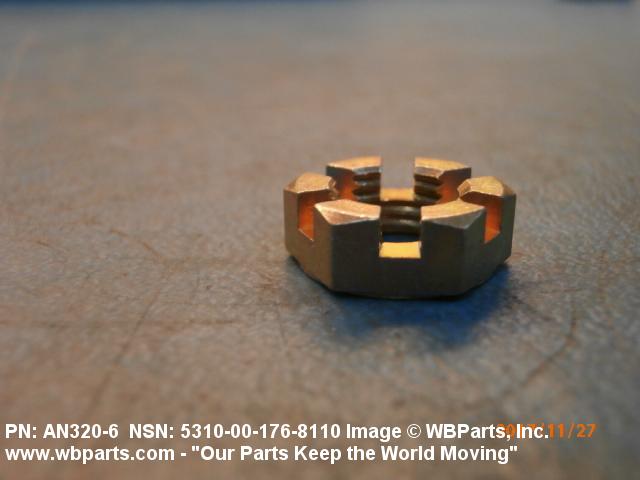

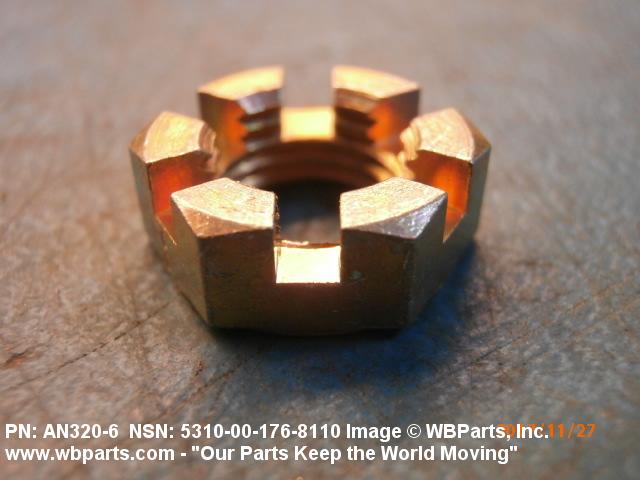

5310-00-176-8110 A nut having a flat bearing surface and 6 flat sides with slots in its upper portion. It is designed to provide positive locking when used with a solid or split (cotter) pin. Excludes NUT (1), PLAIN, CASTELLATED, HEXAGON.

Part Alternates: A30097PC7, A3009-7PC7, A63456, A63-45-6, A63457, A63-45-7 , AN3206, AN320-6, AN3207, AN320-7 , F52S320624, F52S320-624, F52SC320624, F52SC320-624, FFN836, FF-N-836 , LM20731, LM207-31, MILN6034, Z43N3089360, Z43N3089-360, 0438 , 0515, 12Z521PC21, 17510, 175-10 , 175S10 , 175S12, 1D44 , 2210310, 2210326 , 23AN3207, 23AN320-7 , 23X32, 28754, 287-54, 70510, 72-5850-737, 7538986, 81417S41552PC7, 81417S41-552PC7, 5310-00-176-8110, 00-176-8110, 5310001768110, 001768110, 725850737

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-176-8110	01859 ( NUT, PLAIN, SLOTTED, HEXAGON )

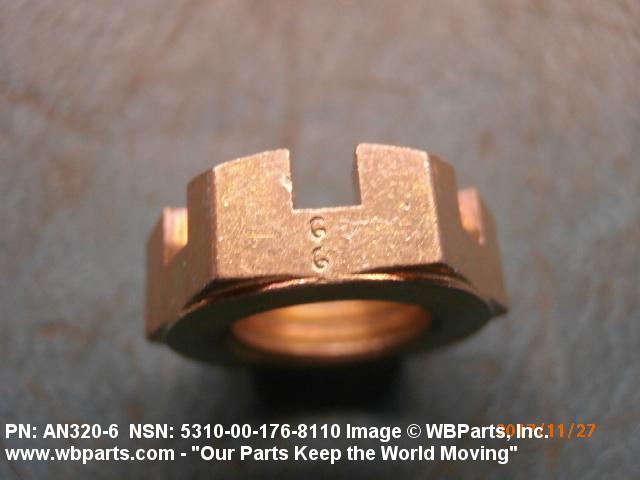

Drawings & Photos | NSN 5310-00-176-8110

Part Number	Request Date	QTY	Origin
AN3207	2025-12-356	2	US
AN3206	2025-12-350	20	AE
5310-00-176-8110	2025-10-303	74	US
FFN836	2025-03-84	32	Japan
5310-00-176-8110	2025-03-79	10	United States
5310-00-176-8110	2025-01-02	1	US
FFN836	2024-10-291	190	US
5310-00-176-8110	2024-07-198	404	DIBBS
5310-00-176-8110	2024-07-190	404	DIBBS
5310-00-176-8110	2023-12-353	10	United States
AN3206	2023-11-319	100	us
AN3206	2023-10-290	10	South Korea
AN3206	2023-09-265	100	US
FFN836	2023-09-258	100	TR
AN3206	2023-07-192	1	US
AN3206	2023-05-136	10	South Korea
AN3206	2023-05-122	8	South Korea
FFN836	2021-11-307	200	United States
FFN836	2021-08-228	100	United States
5310-00-176-8110	2021-07-209	2	US
AN3206	2021-04-103	1	US
FFN836	2019-02-44	288	US
5310-00-176-8110	2018-03-71	17470	DIBBS
5310-00-176-8110	2018-03-65	11200	DIBBS
5310-00-176-8110	2018-02-56	11200	DIBBS
5310-00-176-8110	2018-02-51	26727	DIBBS
FFN836	2018-02-32	2	US
5310-00-176-8110	2018-01-24	41183	DIBBS
5310-00-176-8110	2017-11-327	41183	DIBBS
5310-00-176-8110	2017-10-277	50	Malaysia
AN3206	2017-07-192	1	CL
AN3206	2017-07-192	2	CL
5310-00-176-8110	2017-06-179	10294	DIBBS
AN3206	2017-06-166	15	US
FFN836	2017-05-123	25	United States
AN3206	2017-03-88	128	US
5310-00-176-8110	2016-11-325	14241	DIBBS
5310-00-176-8110	2016-10-288	10	US
5310-00-176-8110	2016-09-269	22000	DIBBS
5310-00-176-8110	2016-05-151	7723	DIBBS
FF-N-836	2016-05-145	48	Spain
5310-00-176-8110	2015-09-258	5988	DIBBS
5310-00-176-8110	2015-06-179	10375	DIBBS
AN320-6	2014-11-308	5000	United States
AN320-7	2014-11-308	5000	United States
5310-00-176-8110	2014-10-287	16043	DIBBS
5310-00-176-8110	2014-07-194	8126	DIBBS
AN320-7	2013-12-350	20	Lebanon
AN3206	2013-10-283	570	United States
5310-00-176-8110	2013-10-281	29700	DIBBS
AN3207	2013-08-240	25	US
AN320-7	2013-06-170	20	Lebanon
FFN836	2012-12-341	1	US
AN320-6	2012-11-310	50
AN320-7	2012-11-310	50
5310-00-176-8110	2012-10-290	29619	DIBBS
AN3206	2011-06-152	1	BB
AN3206	2010-12-361	6	United States
5310-00-176-8110	2010-12-357	6	US
FFN836	2010-11-322	100	United Kingdom
AN3206	2010-09-272	8	United States
5310-00-176-8110	2010-08-229	16043	DIBBS
5310-00-176-8110	2010-08-229	33780	DIBBS
5310-00-176-8110	2010-08-228	16043	DIBBS
5310-00-176-8110	2010-08-228	33780	DIBBS
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-03-90	4	us
FFN836	2010-03-81	50	United States
FFN836	2010-02-46	50	United States
5310-00-176-8110	2009-12-338	1	US
FFN836	2009-07-183	1000	US
FFN836	2009-05-141	580	US
AN3206	2009-05-125	100	Italy
AN3206	2008-08-240	5100	US
5310-00-176-8110	2008-07-206	2	United States
FFN836	2008-07-195	20	US
FFN836	2008-06-171	200	US
FFN836	2008-02-39	1	US
FFN836	2007-10-298	100	US

Cross Reference | NSN 5310-00-176-8110

Part Number	Cage Code	Manufacturer
0515	75547	LAWRENCE AERONAUTICAL CORP
12Z521PC21	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
175S12	06848	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
2210310	001JK	EMBRAER S/A
2210310	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
23X32	70188	FRANKLIN ENGINE CO INC
287-54	99167	HAMILTON SUNDSTRAND CORPORATION
70510	19315	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND
70510	99551	GOODRICH CORPORATION DIV POWER TRANSMISSION SYSTEMS
72-5850-737	50024	COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE FM/ALCO
7538986	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
81417S41-552PC7	80064	NAVAL SHIP SYSTEMS COMMAND
A3009-7PC7	50024	COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE FM/ALCO
A63-45-6	74080	HARVARD INDUSTRIES
AN320-6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
AN320-6	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
F52S320-624	27687	GREER STOP NUT INC.
F52SC320-624	27687	GREER STOP NUT INC.
LM207-31	76005	LORD CORPORATION DBA AEROSPACE DIVISION
MILN6034	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
Z43N3089-360	94135	NAVAL ORDNANCE STANDARDS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-176-8110

Compare

Related Products | NSN 5310-00-176-8110

5310-00-176-8111, 5310-00-176-8112, 5310-00-176-8113, 5310-00-176-8114, 5310-00-176-8115

Technical Data | NSN 5310-00-176-8110

Characteristic	Specifications

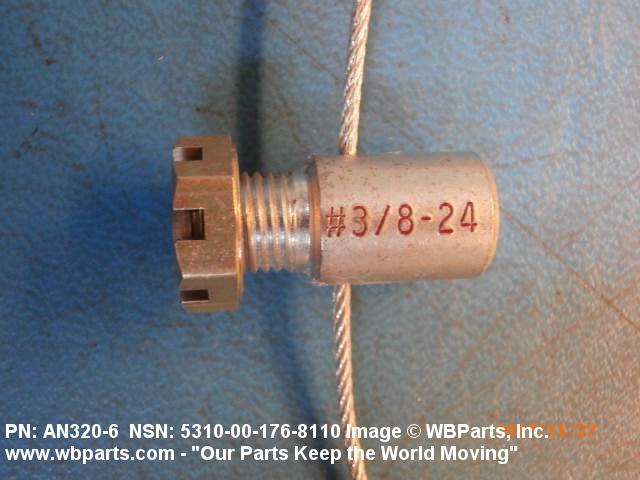

THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A17 SLOTTED, HEXAGON

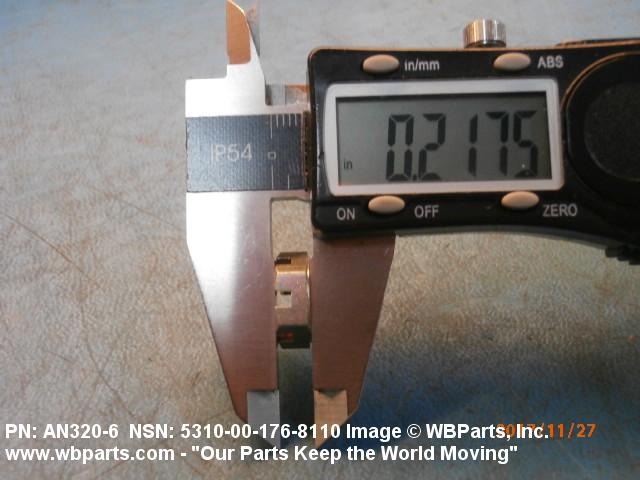

NUT HEIGHT	0.203 INCHES MINIMUM AND 0.234 INCHES MAXIMUM

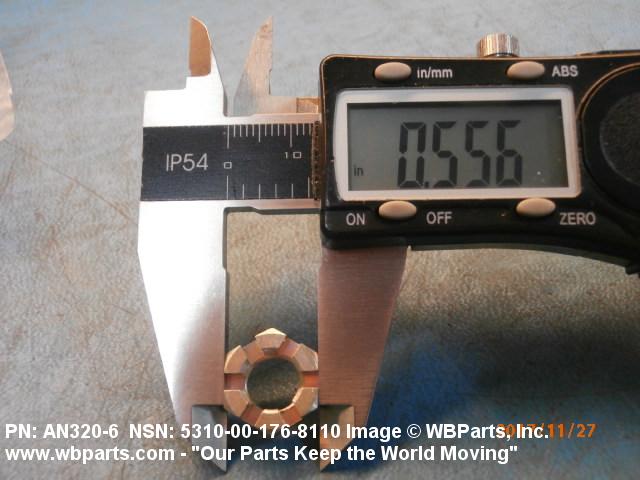

WIDTH ACROSS FLATS	0.553 INCHES MINIMUM AND 0.565 INCHES MAXIMUM

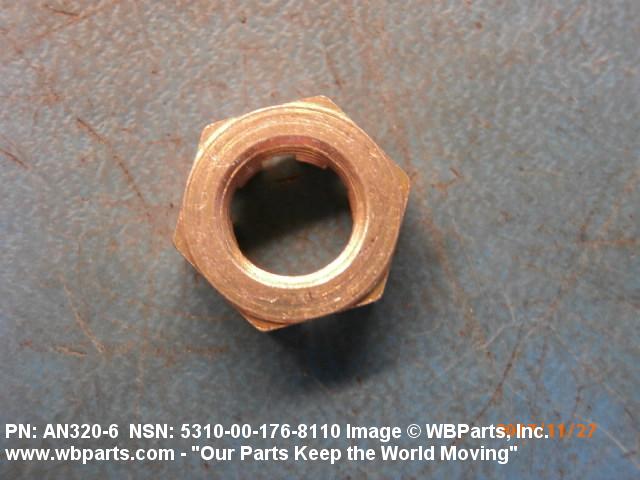

BEARING SURFACE TYPE	CHAMFERED OR WASHER FACED
TEMP RATING	NOT RATED
III BEARING SURFACE FINISH	125.0 MICROINCHES
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MILN6034

Restrictions/Controls & Freight Information | NSN 5310-00-176-8110

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-176-8110

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 PG : Package

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 PG : Package

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	7	An item that has been reviewed and determined not to fit the definition of codes 0 thru 6. These items are not assigned a specific application within the Marine Corps.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 PG : Package

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 PG : Package
