NSN 5310-00-269-4040 MS5192249, MS51922-49, M45913/1-10CG5C

Product Details | HEXAGON SELF-LOCKING NUT


5310-00-269-4040 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: MS5192249, MS51922-49, M45913/1-10CG5C, M45913110CG5C, SK44004, SK-4400-4, MIL-DTL-45913/1, MILDTL459131, 10082476, 10332, 10B000218P46, 2BD70, 3668653, 403418, 503289, 5302611, 5302-611, 82-3019-007, 93400490, 5310-00-269-4040, 00-269-4040, 5310002694040 , 002694040, 823019007

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-269-4040

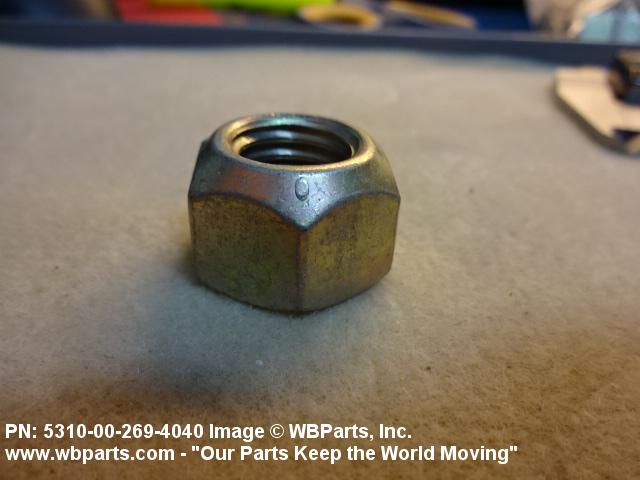

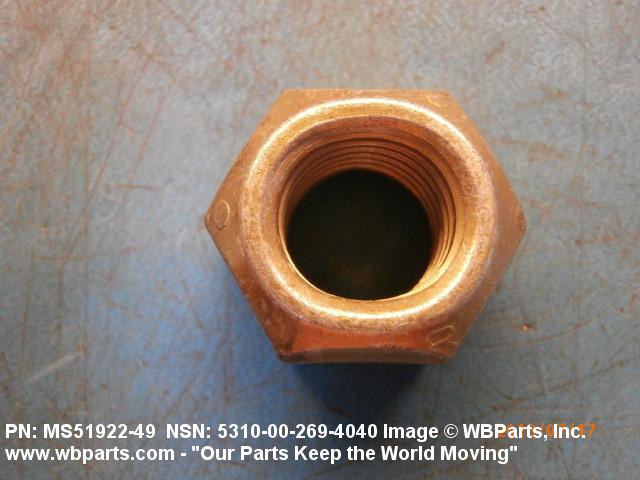

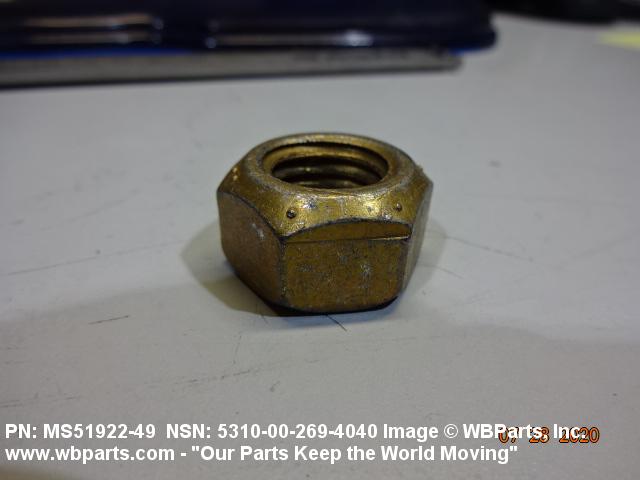

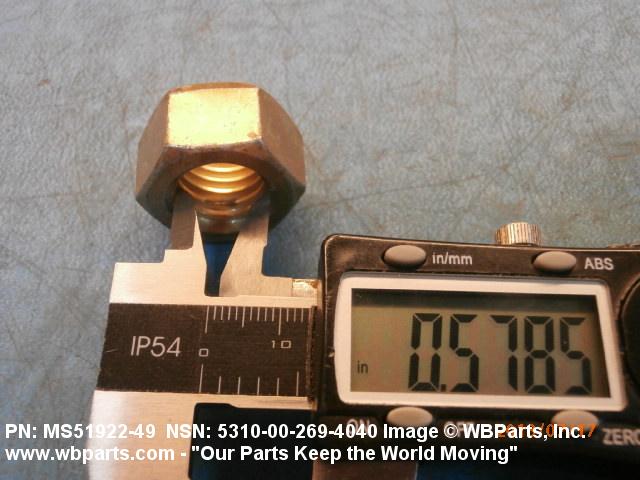

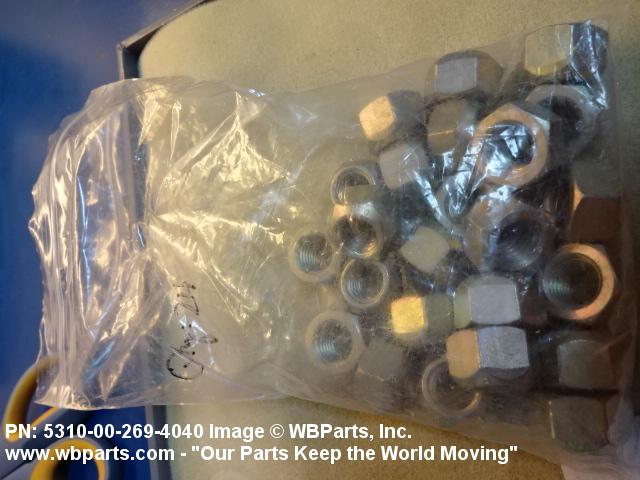

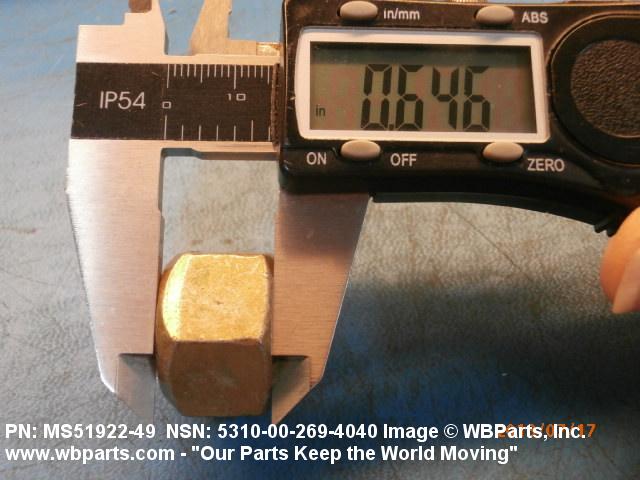

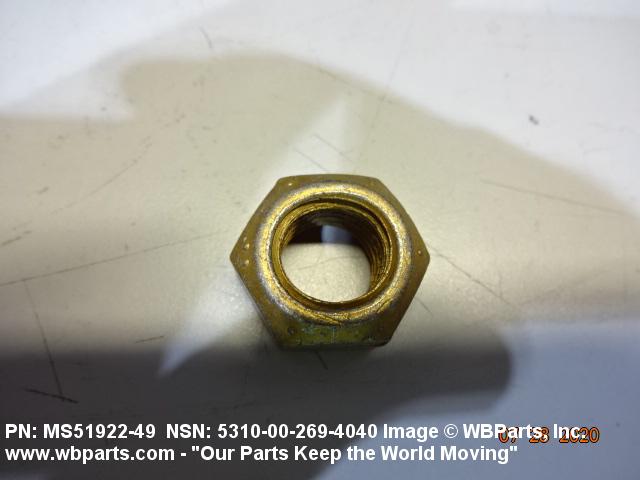

Drawings & Photos | NSN 5310-00-269-4040



Demand History | NSN 5310-00-269-4040


Part Number Request Date QTY Origin
M45913110CG5C 2023-08-07 1 US
5310-00-269-4040 2022-04-25 304 DE
5310-00-269-4040 2022-04-22 304 US
5310-00-269-4040 2021-11-29 100 us
MS5192249 2020-10-09 34 United States
5310-00-269-4040 2020-09-28 4 US
5310-00-269-4040 2020-08-19 1 Australia
MS5192249 2020-08-12 20 United States
5310-00-269-4040 2020-07-12 16098 DIBBS
MS5192249 2020-07-01 3100 United States
5310-00-269-4040 2020-04-01 23748 DIBBS
MS5192249 2020-03-31 32 US
MS5192249 2020-03-30 1 US
5310-00-269-4040 2019-07-23 8 US
MS5192249 2019-04-17 8 US
5310-00-269-4040 2018-07-02 12 United States
5310-00-269-4040 2018-05-02 59 United States
5310-00-269-4040 2017-07-19 30 United States
5310-00-269-4040 2017-01-09 75 United States
MS51922-49 2014-03-19 276 United States
MS51922-49 2014-03-12 138 United States
10332 2014-02-25 1 us
MS5192249 2013-03-26 240 United States
MS5192249 2009-08-21 8 US
MS5192249 2009-08-21 8 US
MS5192249 2009-08-21 8 US
MILDTL459131 2008-09-05 4000 US

Cross Reference | NSN 5310-00-269-4040


Part Number Cage Code Manufacturer
10332 019L2 MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
10332 72962 HARVARD INDUSTRIES INC
10B000218P46 33469 AVIONICS COMMUNICATIONS SYSTEMS INC
2BD70 45152 OSHKOSH CORPORATION
3668653 45152 OSHKOSH CORPORATION
3668653 75Q65 OSHKOSH DEFENSE, LLC
403418 5X050 CRYSTEEL MANUFACTURING, INC. DBA TBEI-CRYSTEEL
503289 21450 ARMY WEAPONS COMMAND ATTN AMSWE-REE-S
5302-611 61796 CEMEN TECH, INC.
5310002694040 SCY13 E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
82-3019-007 04664 PIERCE MANUFACTURING, INC.
93400490 98171 LEAR SIEGLER TRUCK PRODUCTS CORP NEWAY DIV
M45913/1-10CG5C 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-45913/1 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS51922-49 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SK-4400-4 0EAK3 GSE MANAGEMENT CO

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5310-00-269-4040


Technical Data | NSN 5310-00-269-4040


Characteristic Specifications
THREAD SERIES UNC
NOMINAL THREAD SIZE 0.625 INCHES
THREAD QUANTITY PER INCH 11
THREAD CLASS 2B
THREAD DIRECTION RIGHT-HAND
MATERIAL PLASTIC POLYAMIDE LOCKING INSERT STEEL NUT
MATERIAL DOCUMENT AND CLASSIFICATION SAE J995, GR 5 ASSN STD SINGLE MATERIAL RESPONSE NUT
SURFACE TREATMENT CADMIUM AND CHROMATE OVERALL EXCEPT INSERT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT
HARDNESS RATING NOT RATED
NUT STYLE A12 HEXAGON

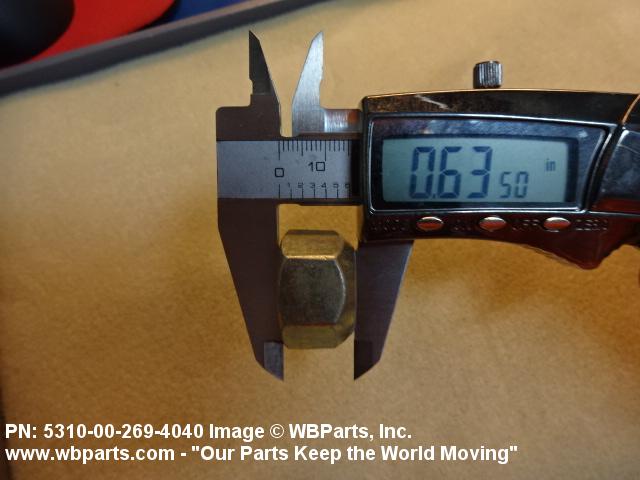

NUT HEIGHT 0.735 INCHES MINIMUM AND 0.765 INCHES MAXIMUM

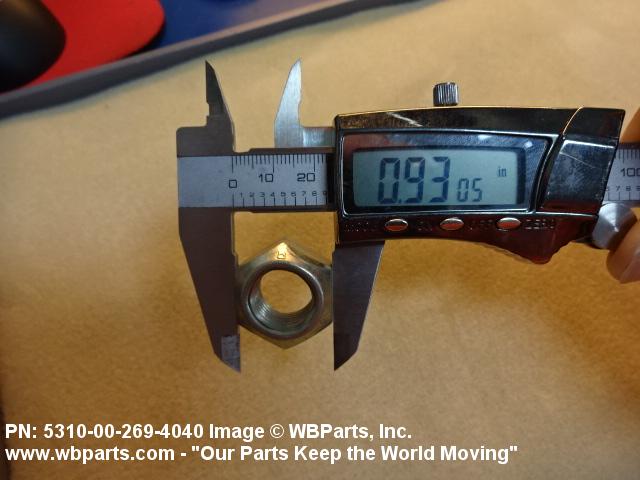

WIDTH ACROSS FLATS 0.922 INCHES MINIMUM AND 0.940 INCHES MAXIMUM
BEARING SURFACE TYPE CHAMFERED OR WASHER FACED
LOCKING FEATURE PREVAILING TORQUE WITH NONMETALLIC INSERT
LUBRICATION DRY FILM LUBRICANT
TEMP RATING 250.0 DEG FAHRENHEIT NOMINAL
III BEARING SURFACE FINISH 125.0 MICROINCHES
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-DTL-45913/1
MANUFACTURERS CODE 81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE M45913/1-10CG5C

Restrictions/Controls & Freight Information | NSN 5310-00-269-4040


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 573 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5310-00-269-4040


Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
M
EA : Each
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Price ValidationV The current standard price has been validated.
  • The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
  • The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
  • ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
M
EA : Each
Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Combat Essentiality Code2Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management CodeBAll CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification CodeKReserved
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
M
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Special Material Content9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
M
EA : Each
