Product Details | HEXAGON SELF-LOCKING NUT
5310-00-616-1586 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: 1074707, 5310-00-616-1586, 00-616-1586, 5310006161586, 006161586
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-616-1586 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

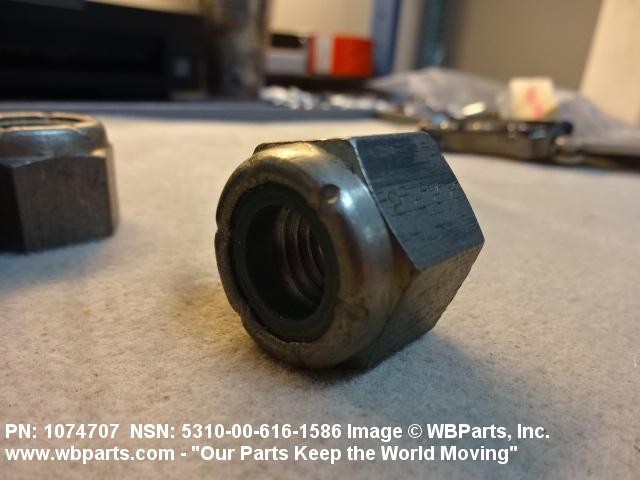

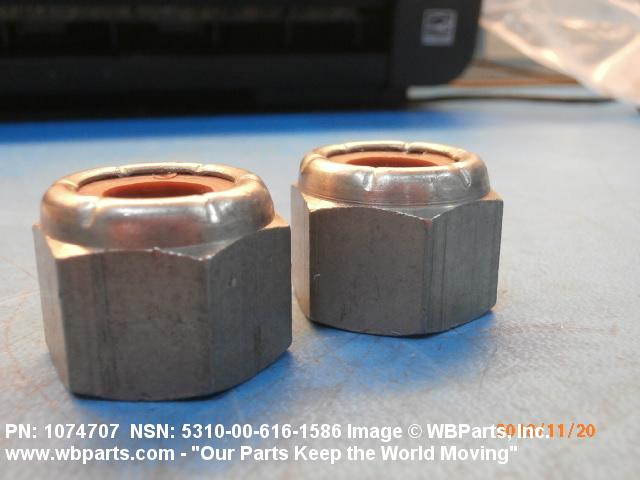

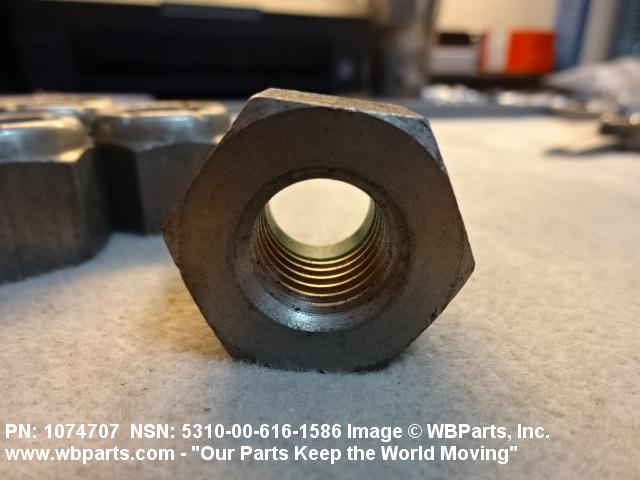

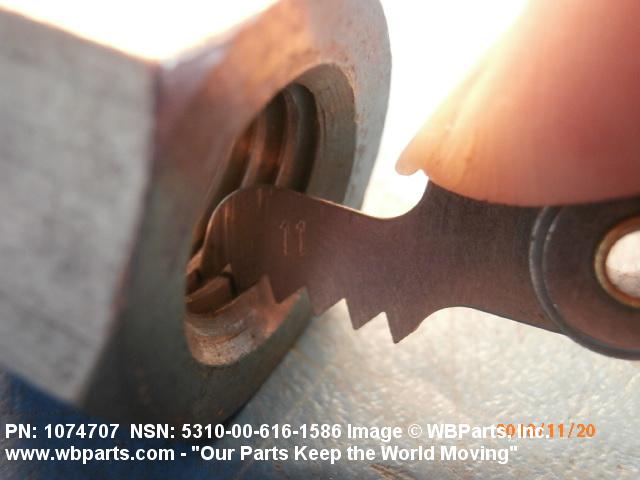

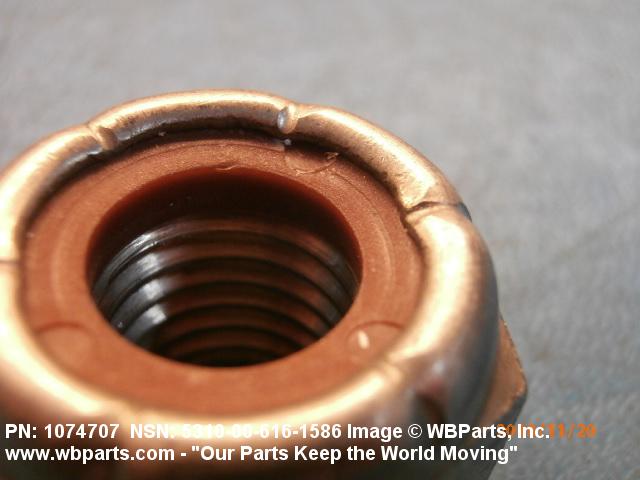

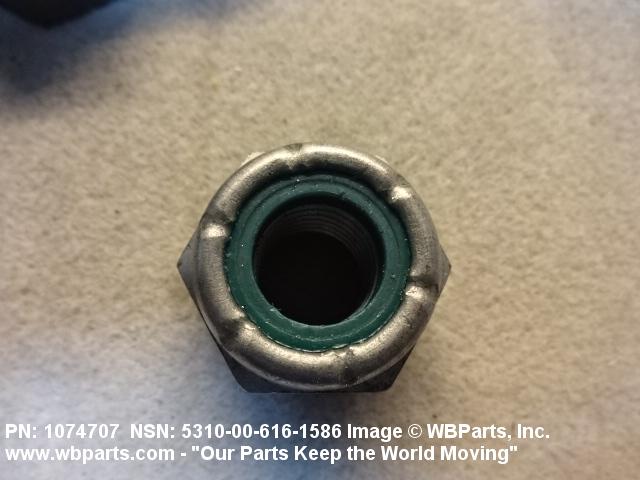

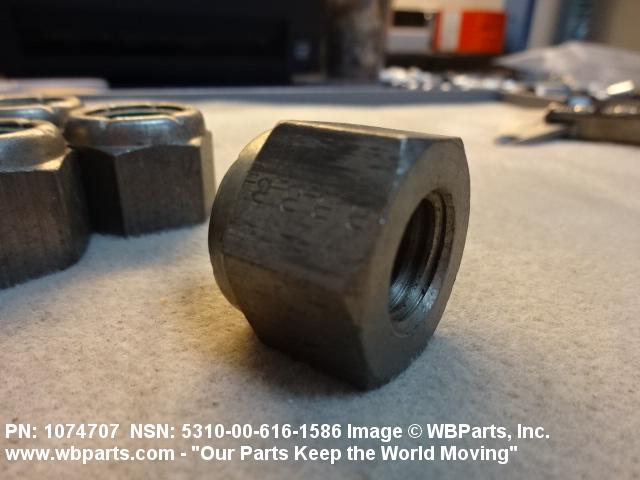

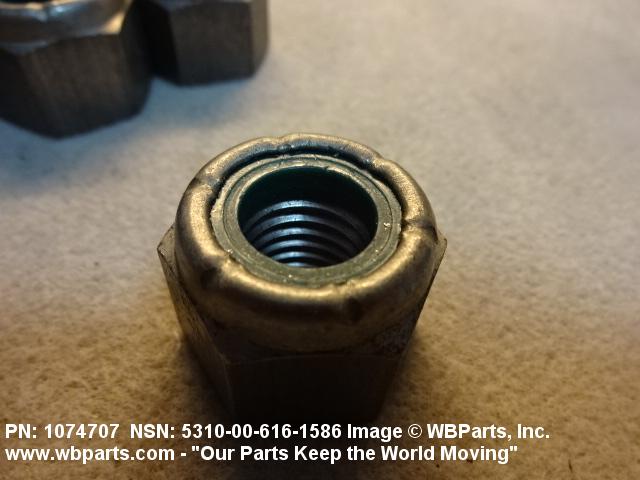

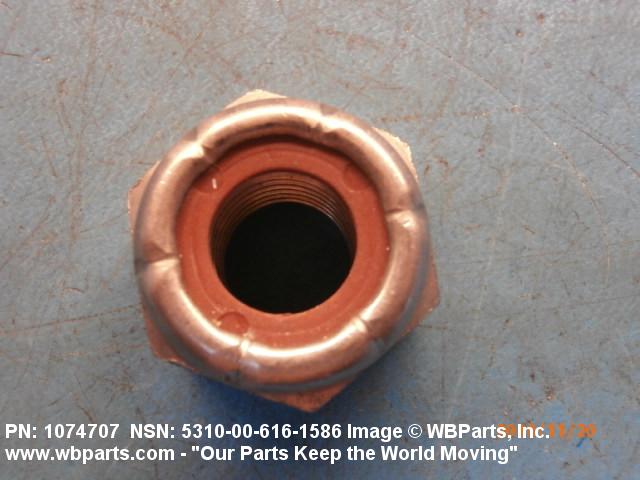

Drawings & Photos | NSN 5310-00-616-1586
Demand History | NSN 5310-00-616-1586
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-616-1586 | 2024-04-03 | 808 | DIBBS |
| 5310-00-616-1586 | 2024-03-26 | 808 | DIBBS |
| 5310-00-616-1586 | 2024-01-17 | 753 | DIBBS |
| 5310-00-616-1586 | 2024-01-09 | 753 | DIBBS |
| 5310-00-616-1586 | 2023-06-01 | 2133 | DIBBS |
| 5310-00-616-1586 | 2022-10-06 | 2133 | US |
| 5310-00-616-1586 | 2022-10-03 | 2133 | DIBBS |
| 5310-00-616-1586 | 2021-11-22 | 808 | DIBBS |
| 5310-00-616-1586 | 2021-11-09 | 808 | DIBBS |
| 5310-00-616-1586 | 2020-05-14 | 2200 | US |
| 5310-00-616-1586 | 2020-05-03 | 2129 | DIBBS |
| 5310-00-616-1586 | 2020-04-29 | 723 | DIBBS |
| 5310-00-616-1586 | 2020-03-17 | 320 | DIBBS |
| 5310-00-616-1586 | 2019-07-31 | 316 | DIBBS |
| 5310-00-616-1586 | 2018-11-14 | 20 | United States |
| 5310-00-616-1586 | 2018-11-08 | 20 | United States |
| 5310-00-616-1586 | 2014-07-02 | 1012 | DIBBS |
| 5310-00-616-1586 | 2010-02-05 | 2131 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-00-616-1586
Related Products | NSN 5310-00-616-1586
5310-00-616-1597, 5310-00-616-1598, 5310-00-616-1616, 5310-00-616-1709, 5310-00-616-1712
Technical Data | NSN 5310-00-616-1586
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 11 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT NICKEL ALLOY 400 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281,CL A FED SPEC SINGLE MATERIAL RESPONSE NUT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.859 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.062 INCHES NOMINAL |
| BEARING SURFACE TYPE | CHAMFERED |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-616-1586
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139820 | NICKEL BOLTS/NAILS/NUTS/RIVETS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-616-1586
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
H EA : Each |
