NSN 5310-00-283-4618 NAS1791C41, NAS1791C4-1, NS2020410481
Product Details | PLATE SELF-LOCKING NUT
5310-00-283-4618 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS1791C41, NAS1791C4-1, NS2020410481, NS202041-048-1, ST3M4434A1, ST3M443-4A1, BFN44341, BFN443-4-1, F1842114, F18421-1-4, F18421L14, F18421L1-4, F4924941, F49249-4-1, F49249E41, F49249E4-1, F49249E441, F49249E4-4-1, 10121270 , 3929AS12253A1, 3929AS1225-3A1 , 5310-00-283-4618, 00-283-4618, 5310002834618, 002834618
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 OCT 1973 | 00-283-4618 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

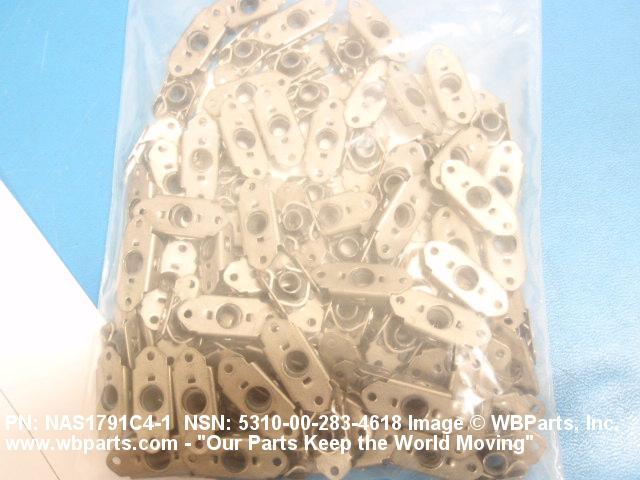

Drawings & Photos | NSN 5310-00-283-4618
Demand History | NSN 5310-00-283-4618
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-283-4618 | 2024-08-232 | 291 | DIBBS |
| 5310-00-283-4618 | 2024-08-221 | 733 | DIBBS |
| NAS1791C41 | 2024-06-177 | 1000 | Taiwan |
| ST3M4434A1 | 2024-03-86 | 2 | US |
| NAS1791C41 | 2023-09-263 | 100 | Czech Republic |
| NAS1791C41 | 2023-09-263 | 300 | Czech Republic |
| NAS1791C41 | 2023-09-262 | 100 | Czech Republic |
| 5310-00-283-4618 | 2022-05-132 | 100 | US |
| 5310-00-283-4618 | 2020-12-344 | 1000 | US |
| NAS1791C41 | 2020-06-175 | 160 | ES |
| NAS1791C41 | 2020-03-66 | 34 | United States |
| ST3M4434A1 | 2019-05-151 | 1700 | US |
| NAS1791C41 | 2016-07-190 | 100 | Germany |
| NAS1791C41 | 2016-07-190 | 300 | Germany |
| NAS1791C41 | 2016-04-117 | 70 | United States |
| NAS1791C41 | 2014-07-188 | 112 | Australia |
| NAS1791C4-1 | 2014-04-97 | 100 | UK |
| 5310-00-283-4618 | 2013-11-325 | 1 | DIBBS-RFPs |
| ST3M4434A1 | 2013-10-302 | 6 | United States |
| 5310-00-283-4618 | 2013-10-291 | 1 | DIBBS-RFPs |
| 5310-00-283-4618 | 2013-09-246 | 1 | DIBBS-RFPs |
| NAS1791C41 | 2012-11-328 | 52 | China |
| NAS1791C41 | 2012-08-219 | 10 | US |
| NAS1791C41 | 2012-04-101 | 40 | US |
| NAS1791C41 | 2012-03-82 | 20 | Taiwan |
| NAS1791C41 | 2011-12-356 | 18 | United States |
| NAS1791C41 | 2011-08-215 | 1000 | IT |
| NAS1791C41 | 2011-06-174 | 2 | US |
| NAS1791C41 | 2010-12-361 | 200 | United States |
| NAS1791C41 | 2010-12-343 | 6 | Taiwan |
| 5310-00-283-4618 | 2010-12-342 | 6 | US |
| NAS1791C41 | 2010-08-229 | 500 | SE |
| NAS1791C41 | 2010-04-120 | 10 | US |
| ST3M4434A1 | 2009-09-252 | 100 | United States |
| ST3M4434A1 | 2009-07-205 | 30 | US |
| ST3M4434A1 | 2009-07-205 | 100 | US |
| ST3M4434A1 | 2009-07-205 | 220 | US |
| ST3M4434A1 | 2009-07-205 | 30 | US |
| ST3M4434A1 | 2009-07-205 | 220 | US |
| ST3M4434A1 | 2009-07-205 | 30 | US |
| ST3M4434A1 | 2009-07-205 | 220 | US |
| NAS1791C41 | 2009-06-180 | 120 | US |
| 5310-00-283-4618 | 2009-05-148 | 240 | US |
| F49249E41 | 2009-05-138 | 220 | US |
| NAS1791C41 | 2009-05-125 | 33040 | India |
| NAS1791C41 | 2009-05-125 | 33040 | India |
| 5310-00-283-4618 | 2009-04-105 | 16008 | DIBBS |
| 5310-00-283-4618 | 2008-11-317 | 11776 | DIBBS |
| 5310-00-283-4618 | 2008-05-142 | 4 | US |
| NAS1791C41 | 2008-04-106 | 490 | US |
Cross Reference | NSN 5310-00-283-4618
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3929AS1225-3A1 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| BFN443-4-1 | 27238 | BRISTOL INDUSTRIES |
| F18421-1-4 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F18421-1-4 | 72962 | HARVARD INDUSTRIES INC |
| F18421L1-4 | 72962 | HARVARD INDUSTRIES INC |
| F18421L1-4 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| F49249-4-1 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| F49249-4-1 | R1120 | SATAIR A/S |
| F49249E4-1 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| F49249E4-1 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| F49249E4-1 | R1120 | SATAIR A/S |
| F49249E4-4-1 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| F49249E4-4-1 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| F49249E4-4-1 | R1120 | SATAIR A/S |
| NAS1791C4-1 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NS202041-048-1 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| ST3M443-4A1 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-283-4618
Related Products | NSN 5310-00-283-4618
Technical Data | NSN 5310-00-283-4618
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 SHELL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5735 ASSN STD SINGLE MATERIAL RESPONSE SHELL |
| SURFACE TREATMENT | PASSIVATE SHELL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 1.292 INCHES MAXIMUM |
| NUT HEIGHT | 0.286 INCHES MAXIMUM |
| PLATE THICKNESS | 0.028 INCHES MINIMUM AND 0.036 INCHES MAXIMUM |
| PLATE WIDTH | 0.574 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.070 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.254 INCHES MINIMUM NUT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.998 INCHES MINIMUM AND 1.002 INCHES MAXIMUM |
| TEMP RATING | NOT RATED |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIFICATION/STANDARD DATA | 76301-ST3M443 MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-00-283-4618
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013540 | ALUM NUTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-283-4618
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
