Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

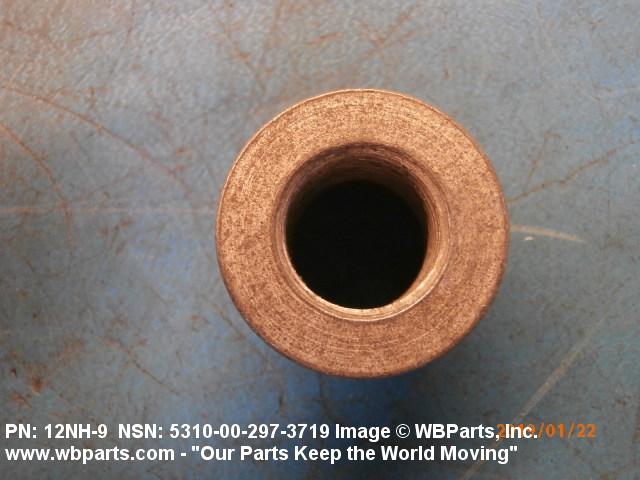

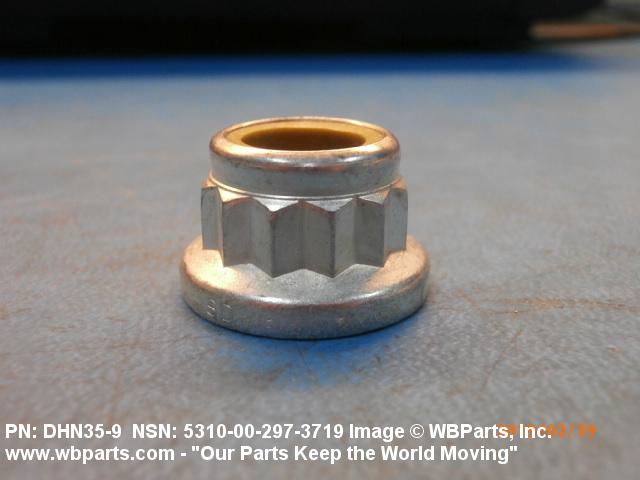

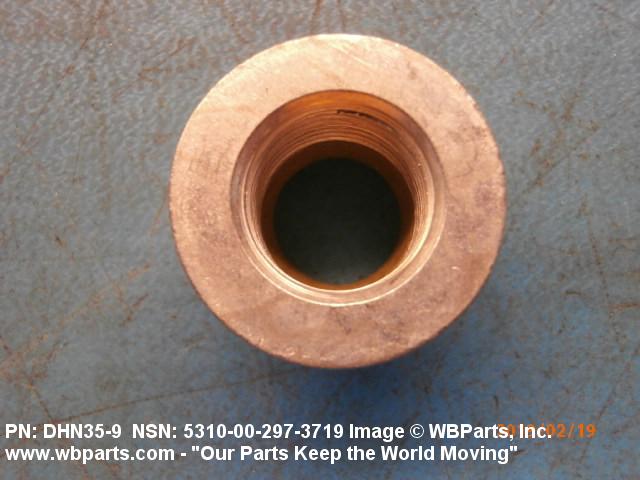

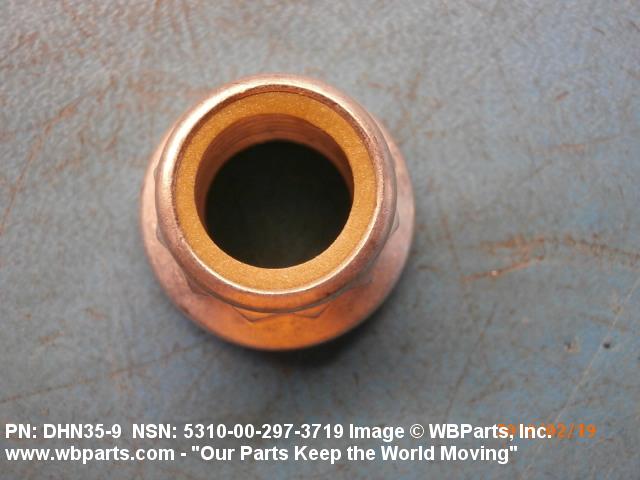

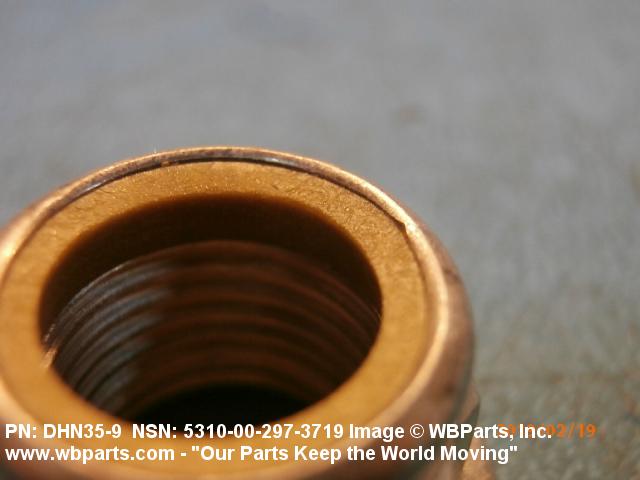

5310-00-297-3719 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: DHN 35-9, DHN359, EB098, EB-098, 033534 , 035534A, 035534B , 10177803, 1129E01 FIND 76 , 1129E01FIND76, 12NH8, 12NH-8 , 12NH9, 12NH-9, 5310-00-297-3719, 00-297-3719, 5310002973719, 002973719
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-297-3719 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

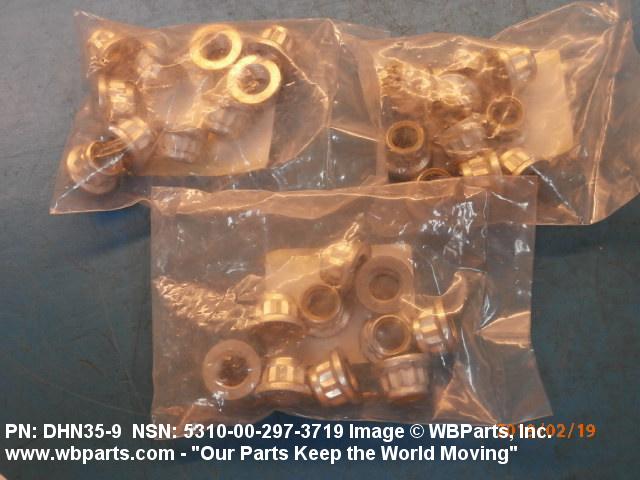

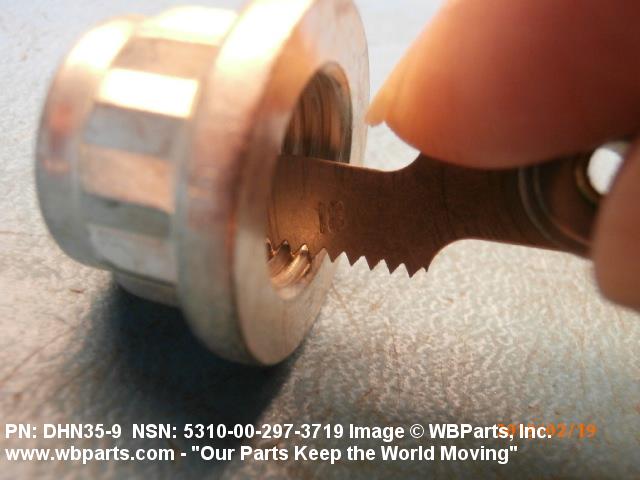

Drawings & Photos | NSN 5310-00-297-3719
Demand History | NSN 5310-00-297-3719
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-297-3719 | 2020-10-28 | 35 | United States |
| 5310-00-297-3719 | 2019-02-13 | 27 | United States |
| 5310-00-297-3719 | 2018-12-19 | 9 | United States |
| 5310-00-297-3719 | 2018-12-19 | 36 | United States |
| 5310-00-297-3719 | 2017-09-05 | 50 | US |
| 5310-00-297-3719 | 2017-08-08 | 24 | US |
| EB098 | 2015-01-05 | 4 | US |
| 5310-00-297-3719 | 2012-04-30 | 6 | US |
| 5310-00-297-3719 | 2010-12-22 | 106 | DIBBS |
| 5310-00-297-3719 | 2008-06-04 | 943 | DIBBS |
| 5310-00-297-3719 | 2008-03-13 | 250 | us |
| DHN359 | 2007-10-15 | 120000 | Turkey |
Cross Reference | NSN 5310-00-297-3719
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12NH-9 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| DHN 35-9 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| DHN 35-9 | 62554 | ALCOA GLOBAL FASTENERS INC. DBA SIMMONDS MECAERO FAS PDTS DIV |
| EB-098 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| EB098 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-00-297-3719
Related Products | NSN 5310-00-297-3719
5310-00-297-3720, 5310-00-297-3721, 5310-00-297-3722, 5310-00-297-3723, 5310-00-297-3727
Technical Data | NSN 5310-00-297-3719
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.562 INCHES |

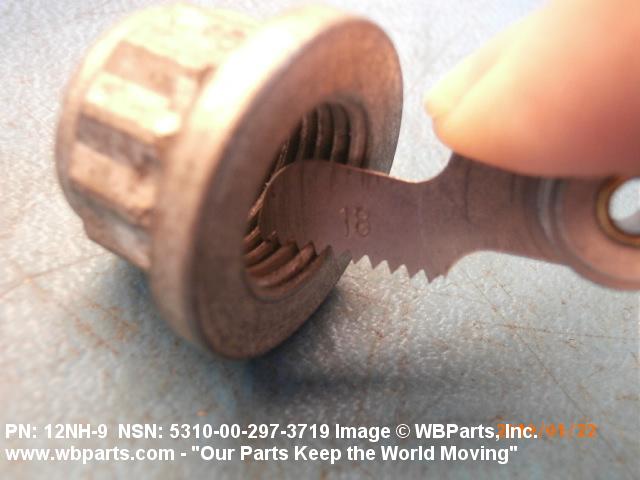

| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL COMP 4130 OR STEEL COMP 4340 OR STEEL COMP 3140 OR STEEL COMP 8740 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD ALL MATERIAL RESPONSES NUT |
| SURFACE TREATMENT | CADMIUM OVERALL EXCEPT INSERT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A293 DOUBLE HEXAGON |

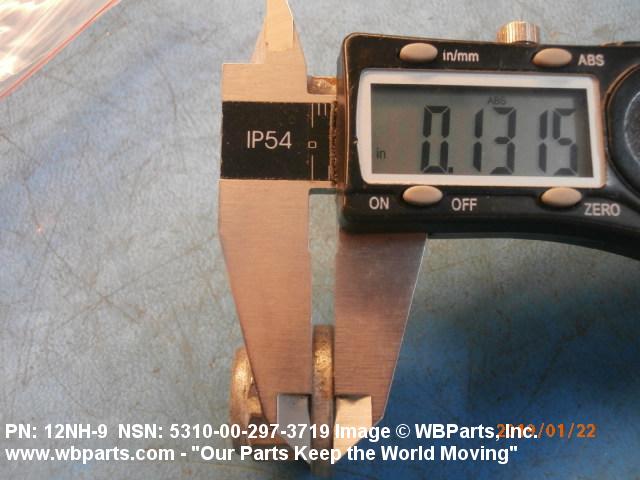

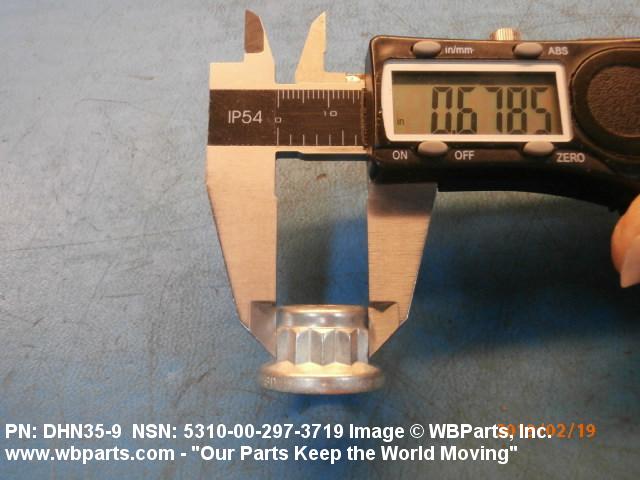

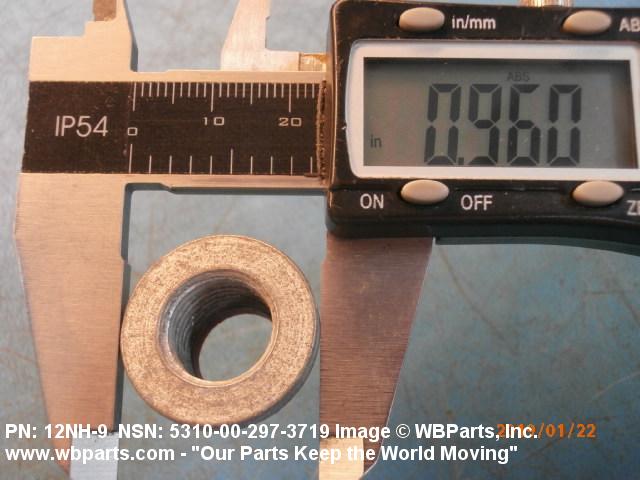

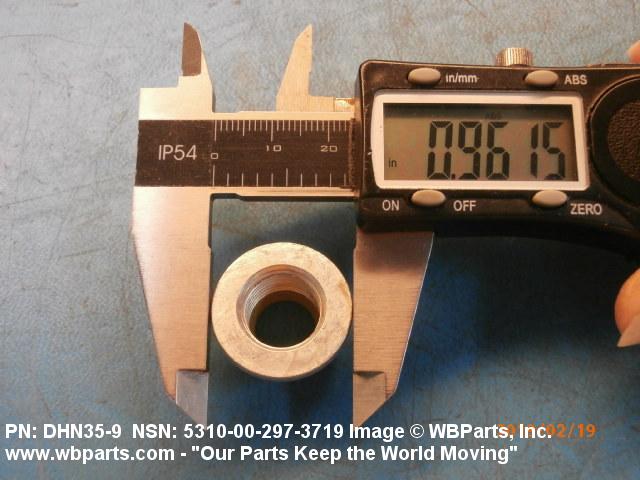

| WASHER OUTSIDE DIAMETER | 0.958 INCHES MINIMUM AND 0.968 INCHES MAXIMUM |

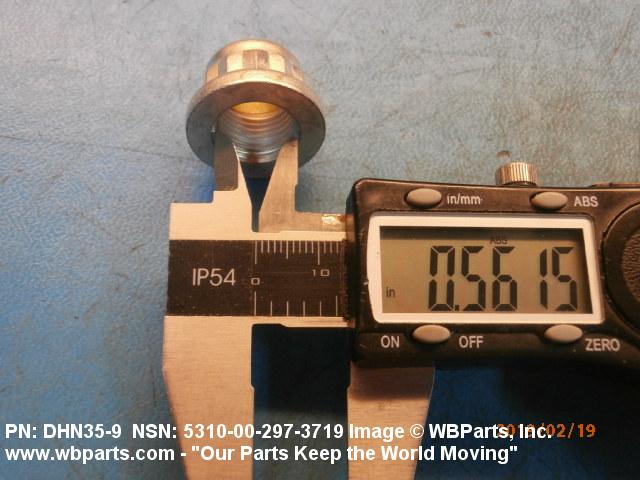

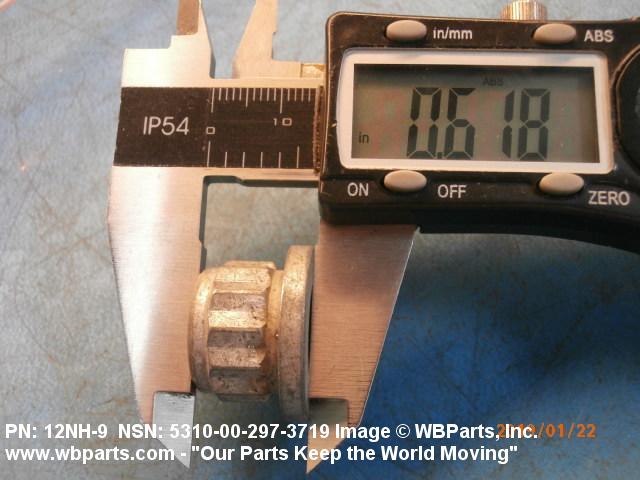

| OVERALL HEIGHT | 0.625 INCHES NOMINAL |

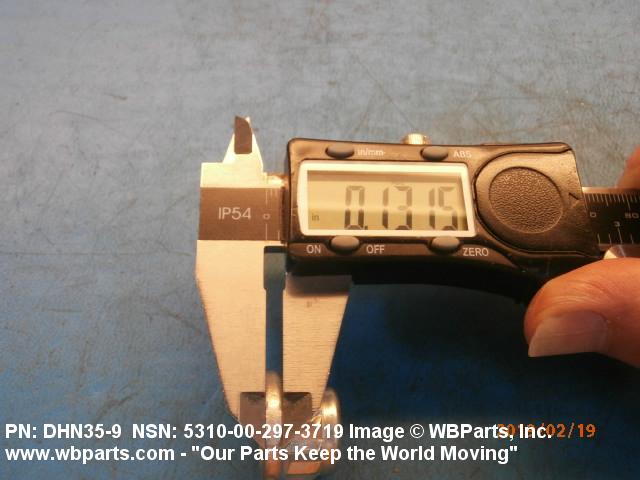

| WASHER THICKNESS | 0.127 INCHES NOMINAL |

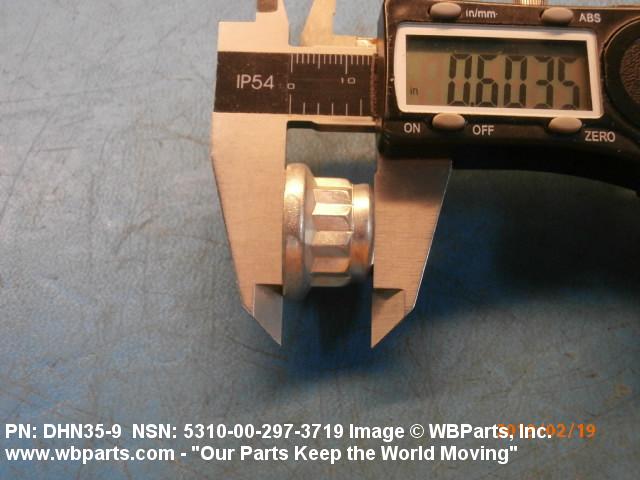

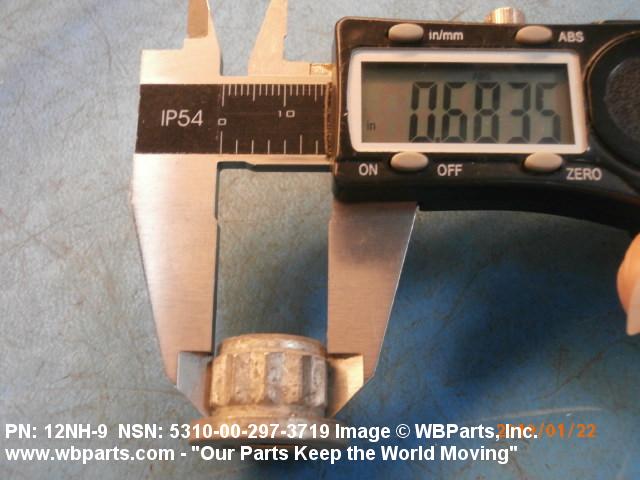

| WIDTH ACROSS FLATS | 0.675 INCHES MINIMUM AND 0.691 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING HEXAG | 250.0 DEG FAHRENHEIT NOMINAL ON |
