Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

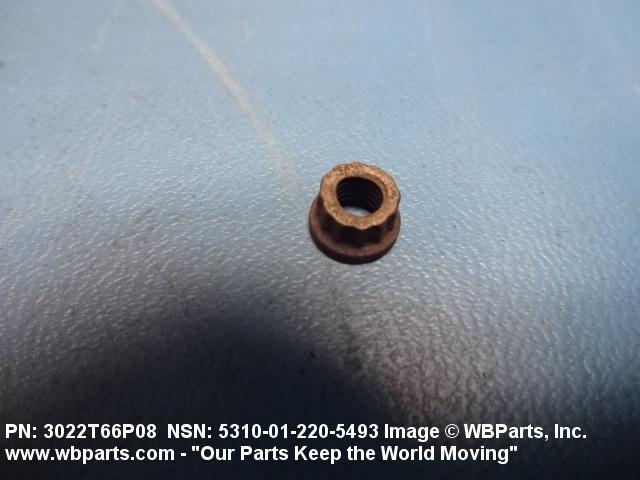

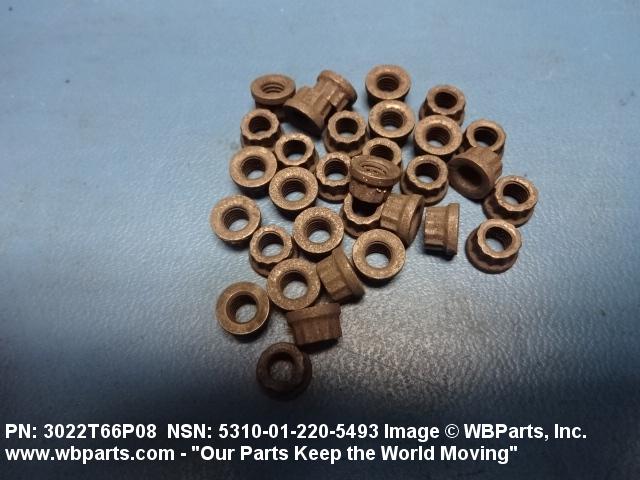

5310-01-220-5493 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: 3022T66P08, 3022T66P09, 3022T66P10, 5310-01-220-5493, 01-220-5493, 5310012205493, 012205493
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 NOV 1985 | 01-220-5493 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

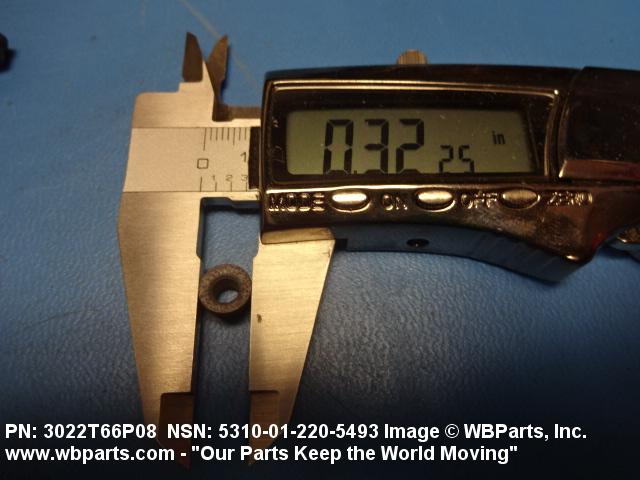

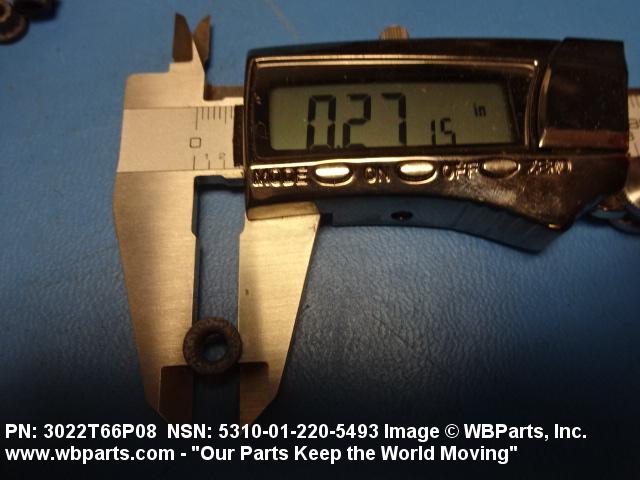

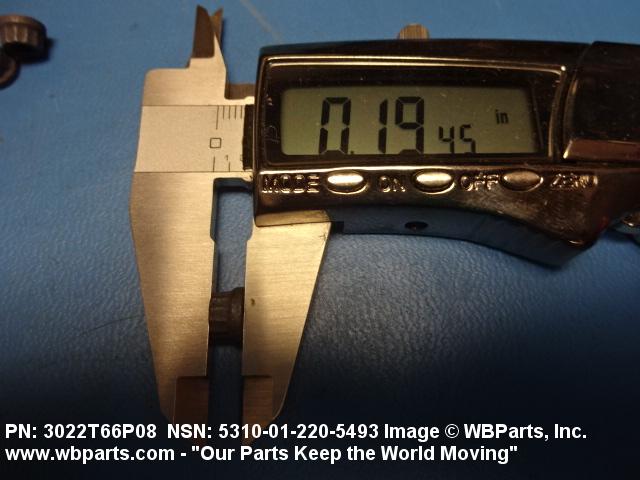

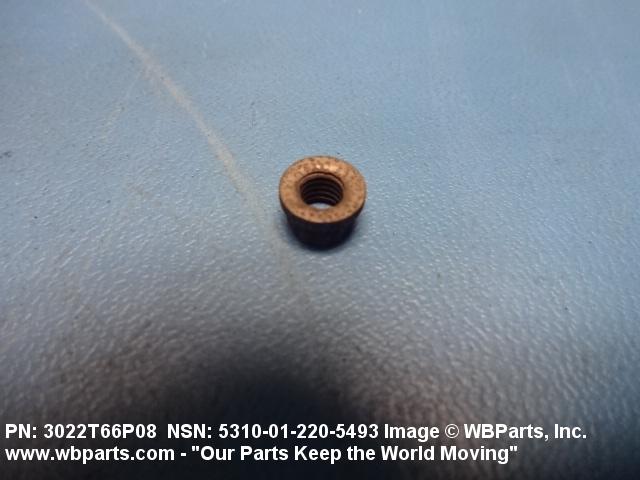

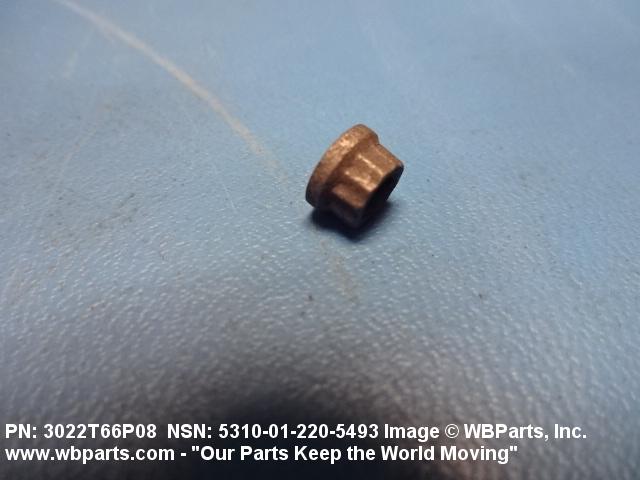

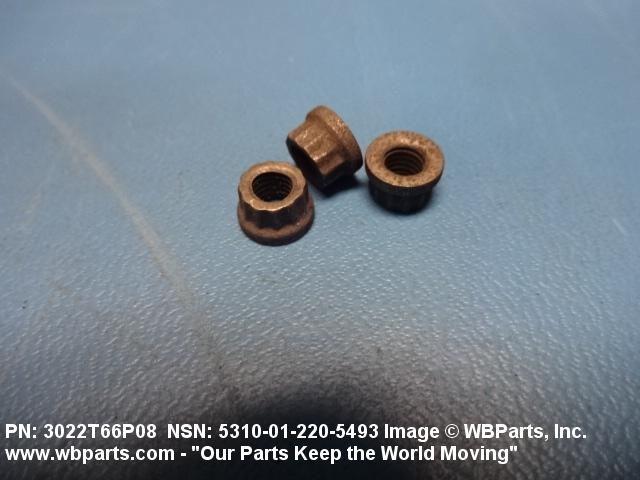

Drawings & Photos | NSN 5310-01-220-5493
Demand History | NSN 5310-01-220-5493
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3022T66P10 | 2020-05-05 | 10788 | DIBBS |
| 5310-01-220-5493 | 2019-08-14 | 100 | us |
| 3022T66P10 | 2019-05-01 | 11849 | DIBBS |
| 3022T66P10 | 2019-01-29 | 6798 | DIBBS |
| 5310-01-220-5493 | 2018-11-08 | 5377 | DIBBS |
| 5310-01-220-5493 | 2018-08-30 | 5377 | DIBBS |
| 5310-01-220-5493 | 2018-06-19 | 24453 | DIBBS |
| 5310-01-220-5493 | 2018-06-14 | 41000 | US |
| 5310-01-220-5493 | 2018-06-12 | 40000 | US |
| 5310-01-220-5493 | 2018-06-07 | 40000 | DIBBS |
| 5310-01-220-5493 | 2018-05-10 | 40000 | US |
| 5310-01-220-5493 | 2018-05-03 | 40000 | DIBBS |
| 5310-01-220-5493 | 2017-10-15 | 11493 | DIBBS |
| 5310-01-220-5493 | 2017-04-02 | 21369 | DIBBS |
| 5310-01-220-5493 | 2016-09-18 | 21066 | DIBBS |
| 5310-01-220-5493 | 2016-09-14 | 8550 | United States |
| 5310-01-220-5493 | 2016-07-12 | 30000 | DIBBS |
| 5310-01-220-5493 | 2016-03-13 | 6714 | DIBBS |
| 5310-01-220-5493 | 2012-03-15 | 30370 | DIBBS |
| 5310-01-220-5493 | 2011-08-04 | 4571 | DIBBS |
| 5310-01-220-5493 | 2010-04-01 | 191 | DIBBS |
| 5310-01-220-5493 | 2009-04-27 | 21830 | DIBBS |
| 5310-01-220-5493 | 2008-12-05 | 45282 | DIBBS |
Cross Reference | NSN 5310-01-220-5493
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3022T66P08 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3022T66P08 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
| 3022T66P09 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 3022T66P09 | 72962 | HARVARD INDUSTRIES INC |
| 3022T66P10 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-01-220-5493
Related Products | NSN 5310-01-220-5493
5310-01-220-5494, 5310-01-220-6001, 5310-01-220-6027, 5310-01-220-6079, 5310-01-220-6080
Technical Data | NSN 5310-01-220-5493
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | NICKEL ALLOY UNS N07001 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5709 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL SILVER THREADS |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | F50TF70 CLASS A MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| WASHER OUTSIDE DIAMETER | 0.327 INCHES NOMINAL |
| OVERALL HEIGHT | 0.193 INCHES NOMINAL |
| WASHER THICKNESS | 0.051 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.243 INCHES MINIMUM AND 0.251 INCHES MAXIMUM |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 1400.0 DEG FAHRENHEIT NOMINAL |
| SPECIAL FEATURES | TIOLUBE 660-1 COATING |
| SPECIFICATION/STANDARD DATA | 07482-M50TF19 MANUFACTURERS SPECIFICATION |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III PRECIOUS MATERIAL | SILVER |
| III END ITEM IDENTIFICATION | TF-34 ENGINE |
| MANUFACTURERS CODE | 99207 |
| MFR SOURCE CONTROLLING REFERENCE | 3022T66P08 |
Restrictions/Controls & Freight Information | NSN 5310-01-220-5493
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-220-5493
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | OP | SX:TF-34 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
M EA : Each |
